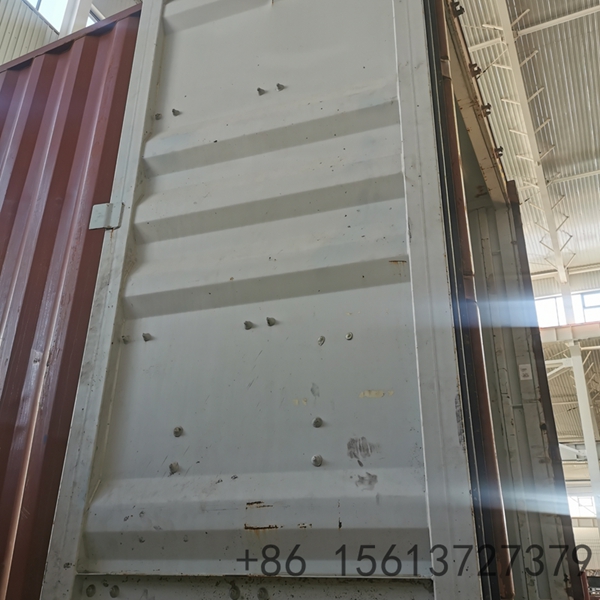

Heavy-Duty Corrugated Profile Specialization: Specifically calibrated to produce the robust corrugated profile required for shipping containers, offering superior structural integrity, stacking strength, and impact resistance for demanding logistics applications.
High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame with thickened side plates, designed to absorb the immense forming stresses of heavy-gauge steel and maintain tight dimensional tolerances.

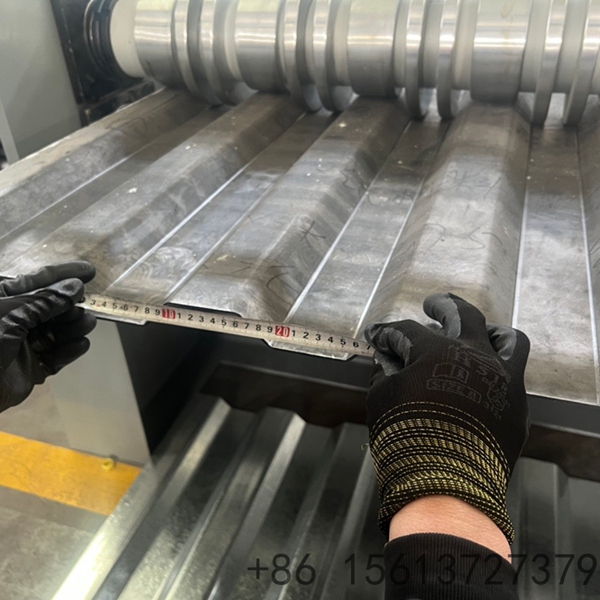

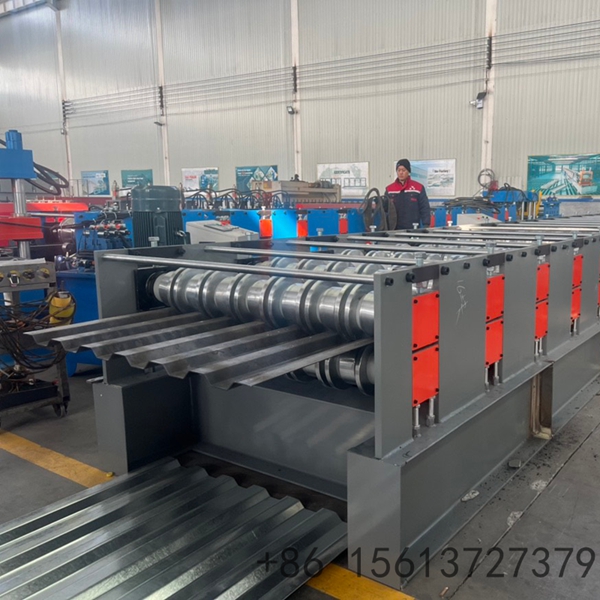

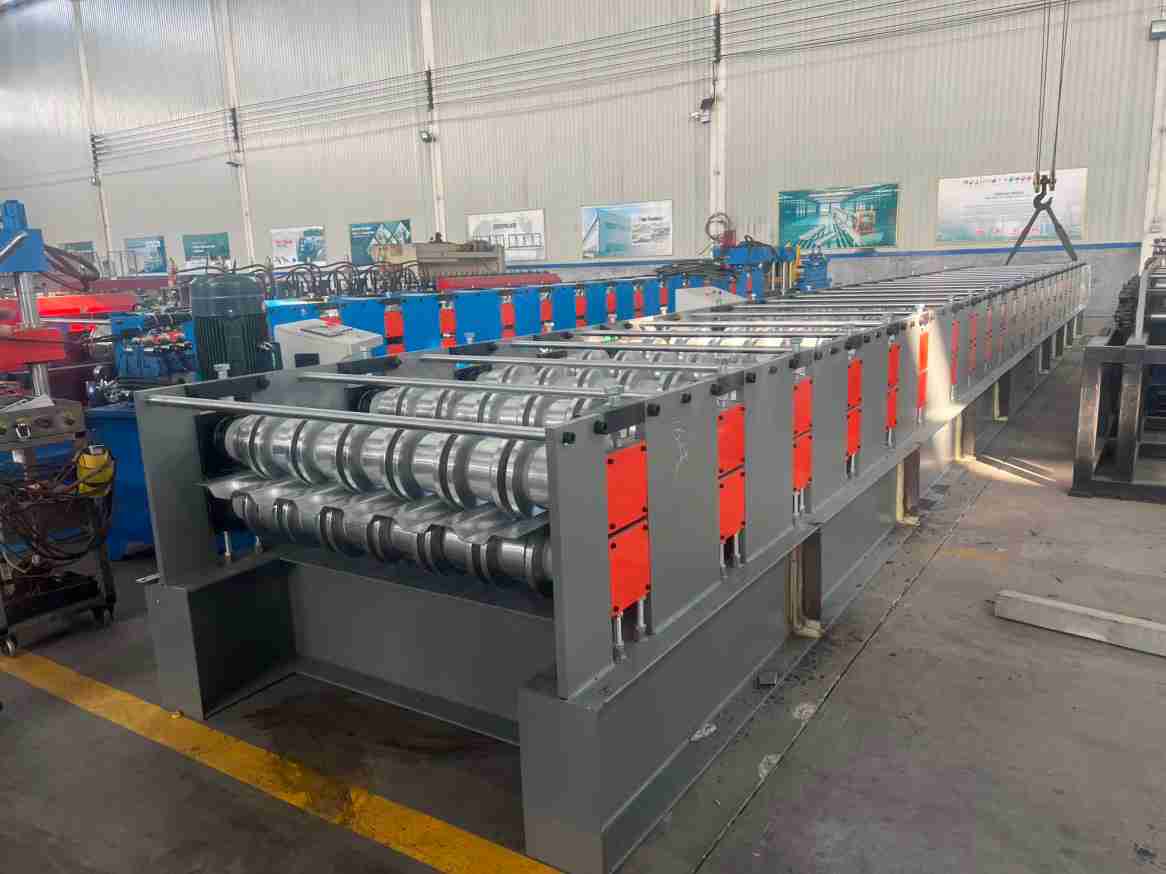

Precision Roll Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to shape the container panel profile, guaranteeing a flawless surface finish and consistent panel geometry for perfect welding and assembly.
Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program batch counts, panel lengths, and monitor real-time system diagnostics for efficient production.
Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts container panels to exact lengths with a strict ±1-2mm tolerance and clean edges for seamless fabrication.

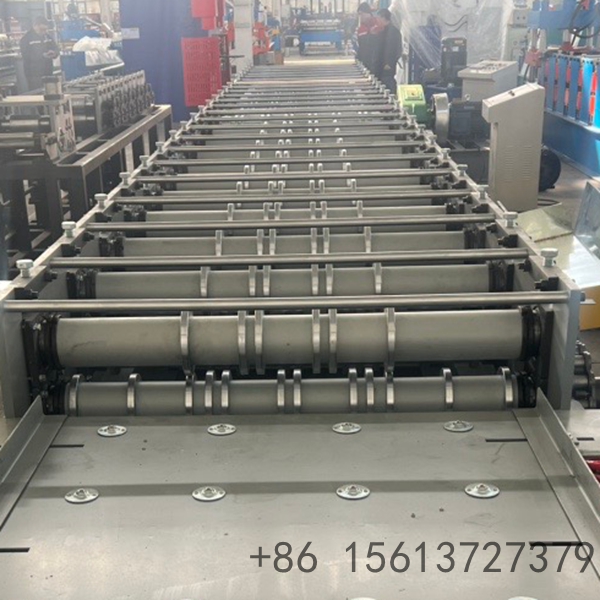

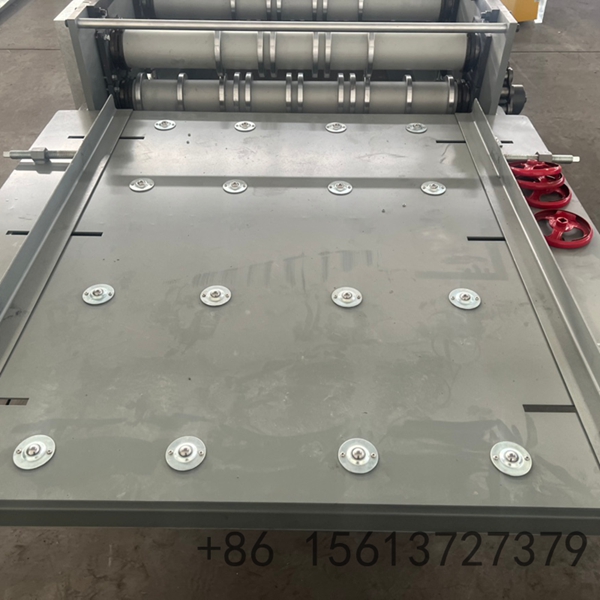

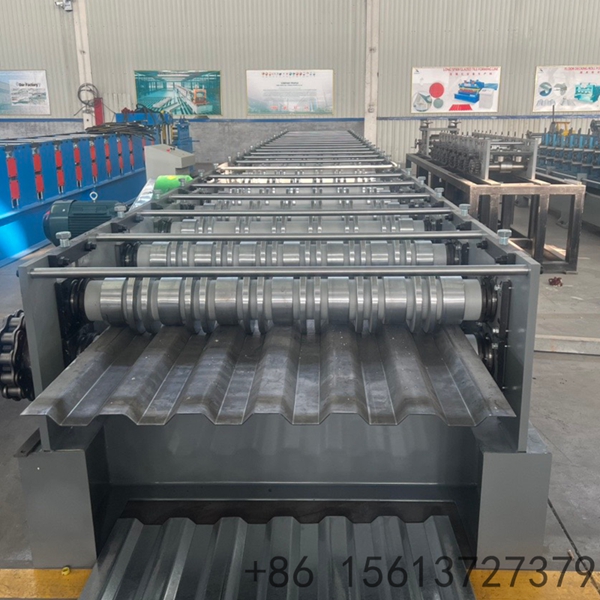

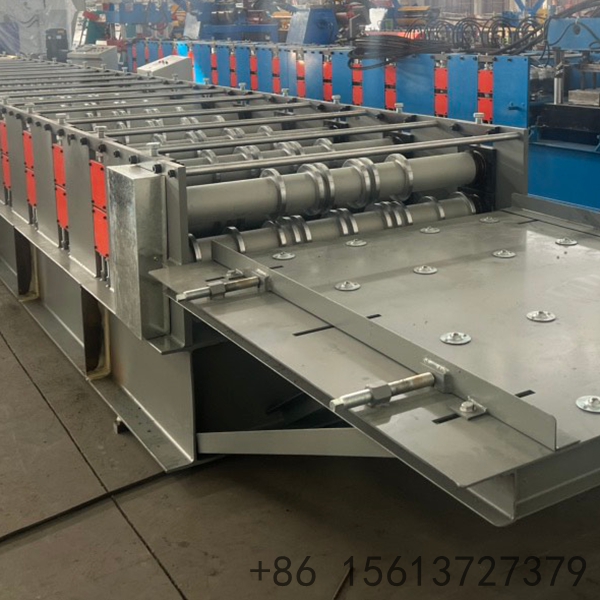

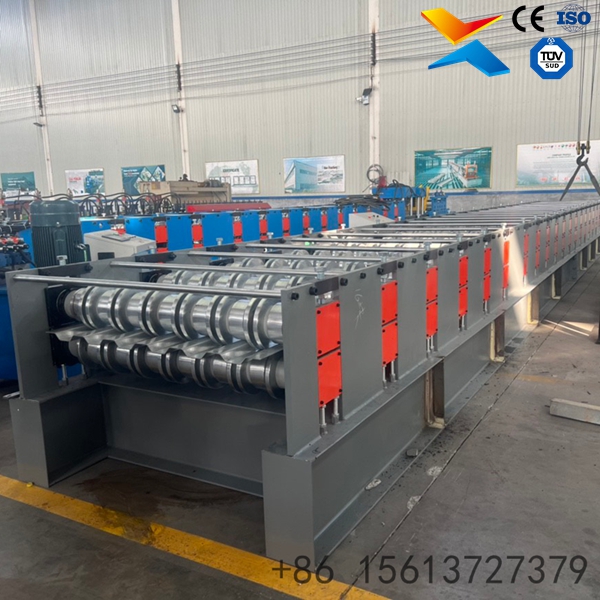

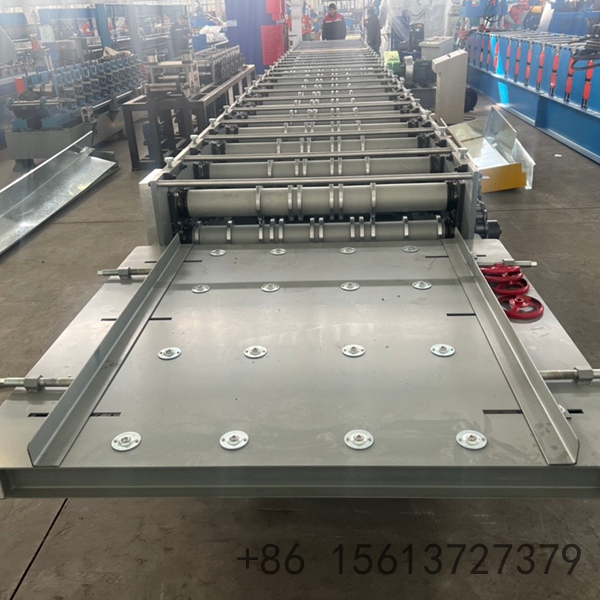

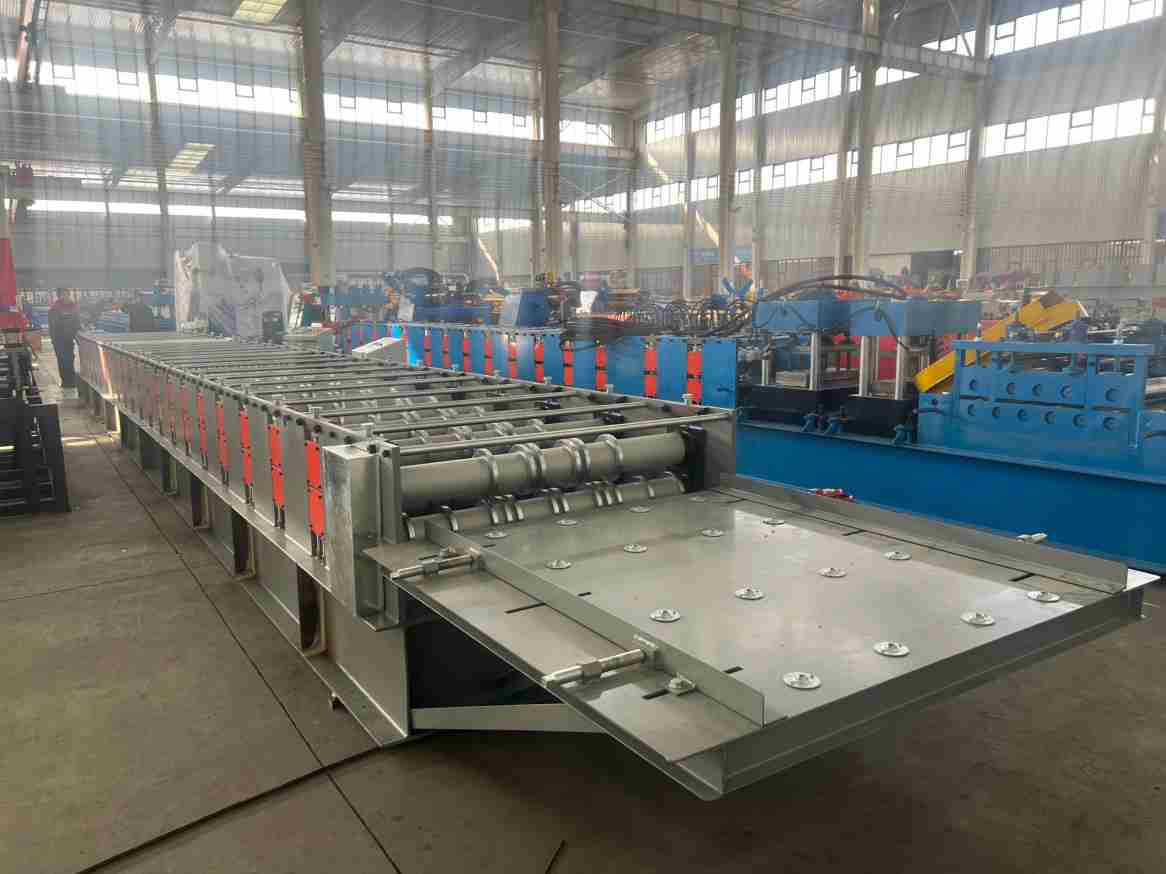

The Container Side Panel Forming Machine is a specialized production solution tailored for manufacturers of heavy-duty steel containers and modular structures. The corrugated side panel profile is engineered to withstand the extreme stresses of global logistics, providing exceptional stacking strength, torsional rigidity, and impact resistance. This equipment transforms raw steel coils into finished container panels through a highly synchronized process of decoiling, precision forming, and automated cutting.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Steel coil (Galvanized / Corten / Weathering Steel) |
| 2 | Material Thickness Range | 1.5 - 3.0 mm |
| 3 | Material Yield Strength | 350 - 550 MPa |
| 4 | Coil Width Range | 1000 / 1200 / 1250 mm (customizable) |
| 5 | Profile Type | Container Side Panel (Corrugated) |
| 6 | Forming Speed | 3 - 8 m/min (adjustable via frequency converter) |
| 7 | Number of Roller Stations | 18-24 rows |
| 8 | Main Motor Power | 7.5 - 15 kW |
| 9 | Hydraulic Station Power | 7.5 - 11 kW |
| 10 | Roller Material | 45# forged steel with hard chrome plating (0.05mm) |
| 11 | Shaft Material | 45# / 40Cr steel, diameter 80-100mm, tempered & polished |
| 12 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |
| 13 | Cutting Method | Hydraulic post-cut, automatic pause and cut |
| 14 | Control System | PLC with touch screen (Siemens / Mitsubishi / Delta) |
| 15 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 16 | Machine Dimensions | Approx. 10m - 15m × 1.8m - 2.2m × 1.5m - 2.0m |
| 17 | Machine Weight | Approx. 10 - 18 Tons |

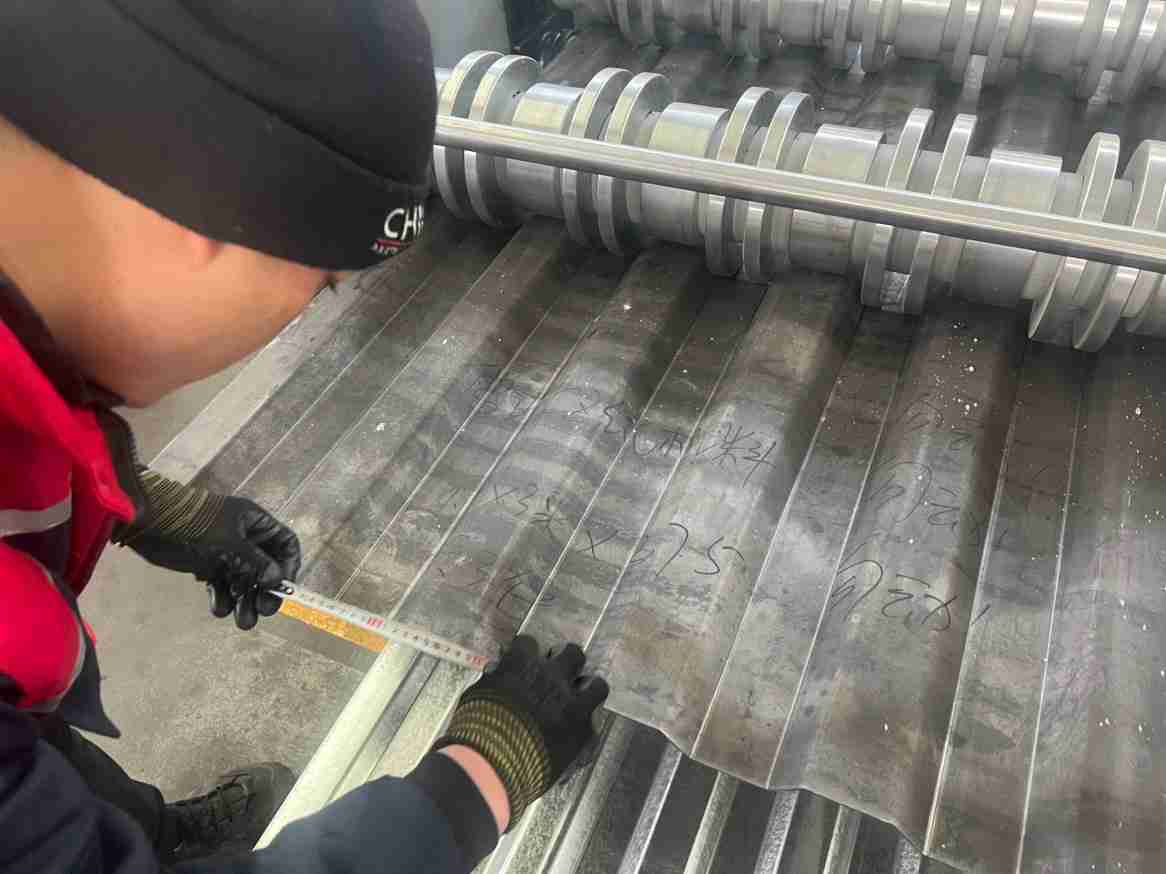

| 18 | Length Tolerance | ±1 - 2 mm |
| 19 | Uncoiler Capacity | Up to 10 tons (hydraulic) |
| 20 | Driving Mode | Chain transmission |
| 21 | Warranty | 12-24 months free warranty + lifelong technical support |
