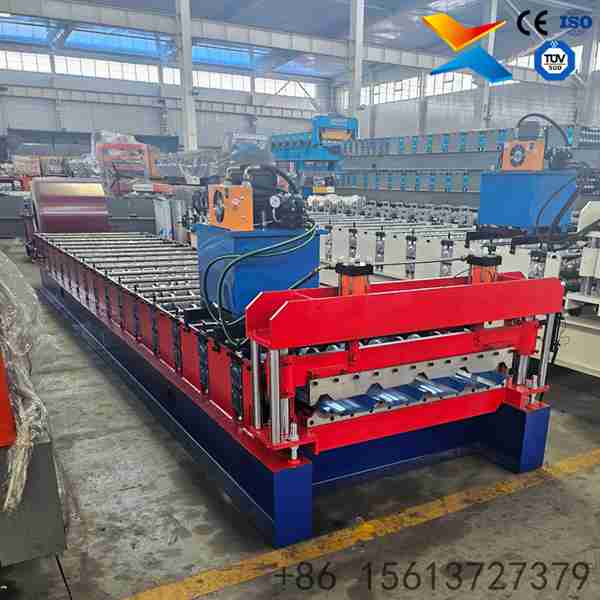

High-Speed Trapezoidal Roofing Panel Roll Forming Machine

High-Speed Trapezoidal Roofing Panel Roll Forming Machine

Product Attributes :

Application Production of trapezoidal metal roof sheets

Material Thickness 0.3 – 0.8 mm

Feeding Width 1000-1220 mm

Production Speed 8-15m/min

Note Custom sizes & profiles available

WhatsApp 15613727379

Product Description

Product Introduction:

Intelligent PLC Automation: Specifically engineered with advanced PLC control and touch screen interface, enabling fully automated production with minimal operator intervention and real-time production monitoring.

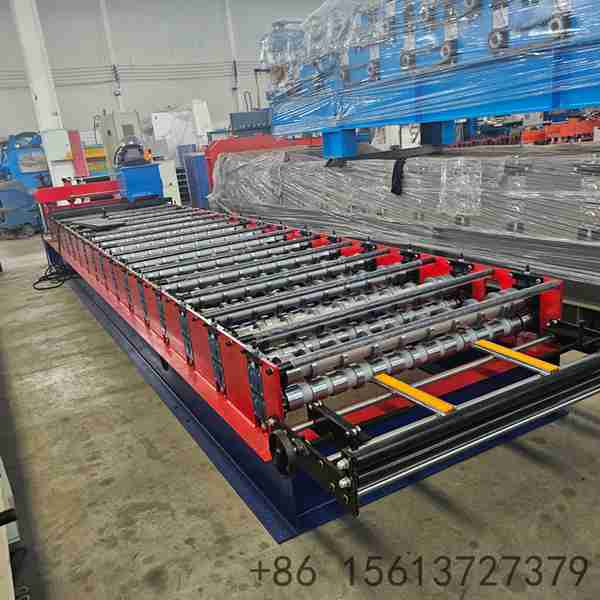

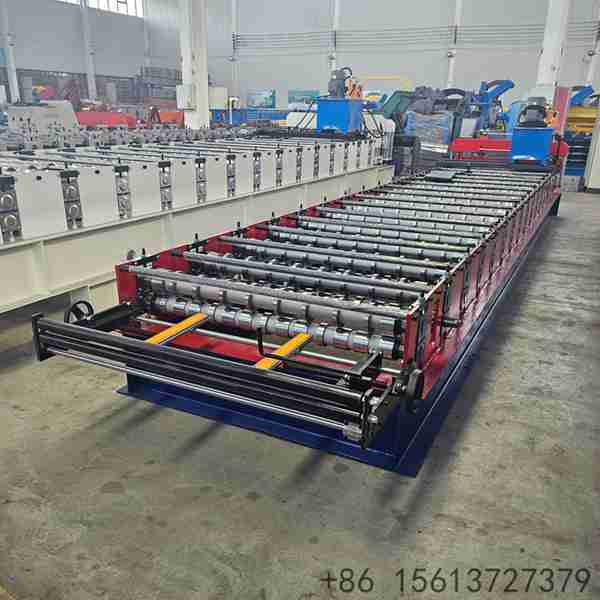

Robust Industrial Construction: Built on a reinforced steel base with thick side plates, designed to absorb continuous automated forming stresses and maintain strict dimensional tolerances during extended production runs.

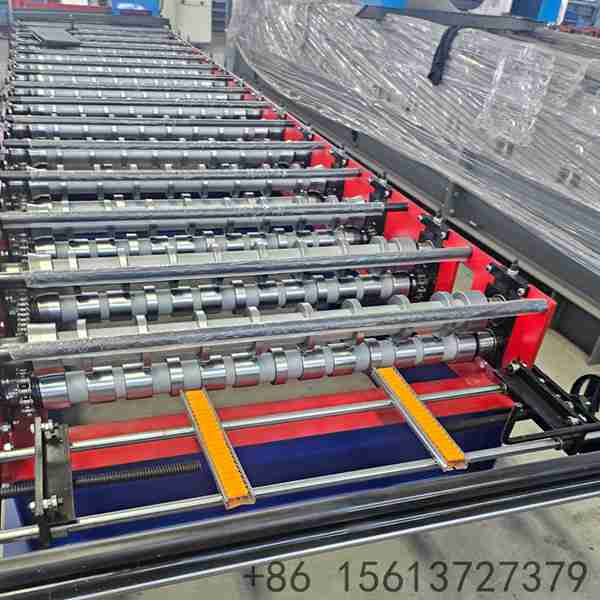

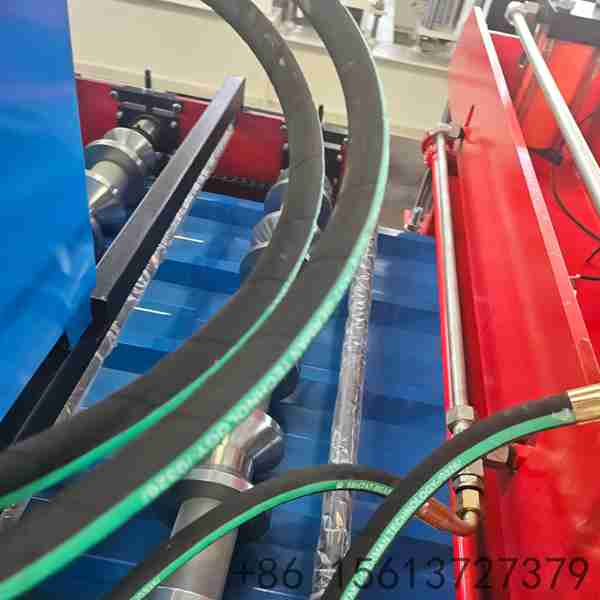

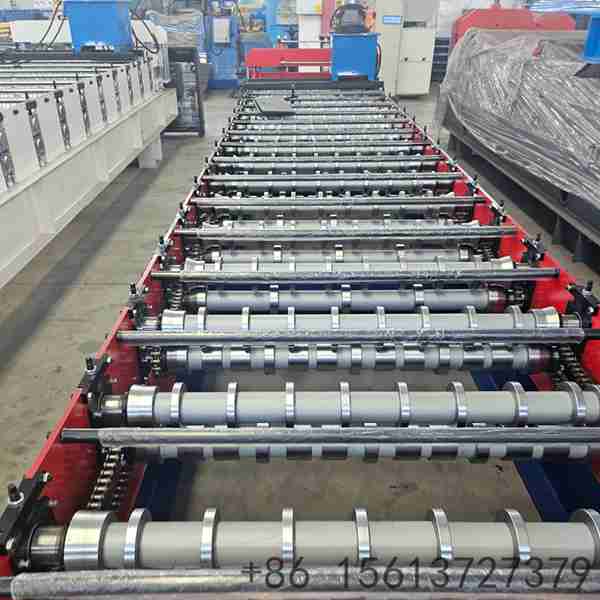

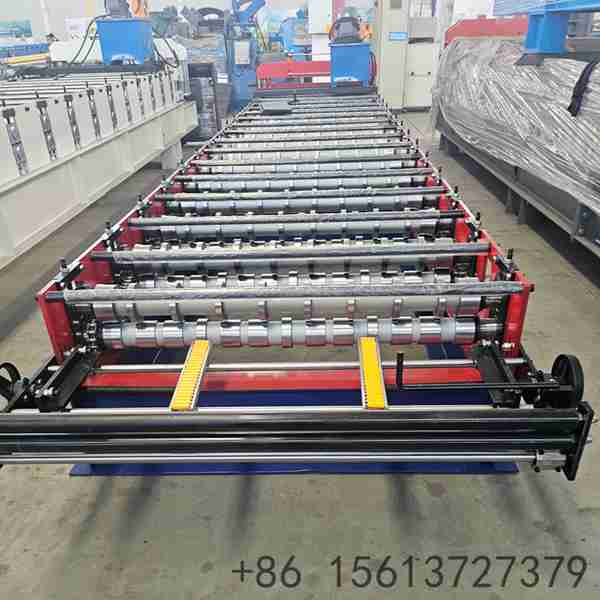

Advanced Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to mold the trapezoidal panel profile, ensuring an impeccable surface finish and consistent geometry across every production cycle.

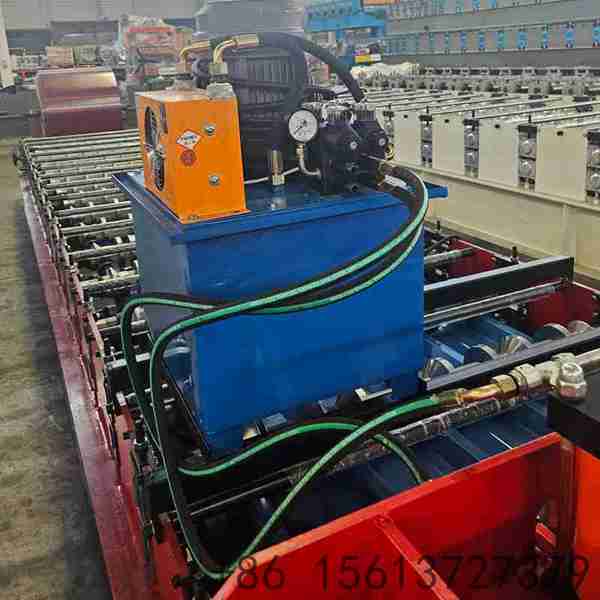

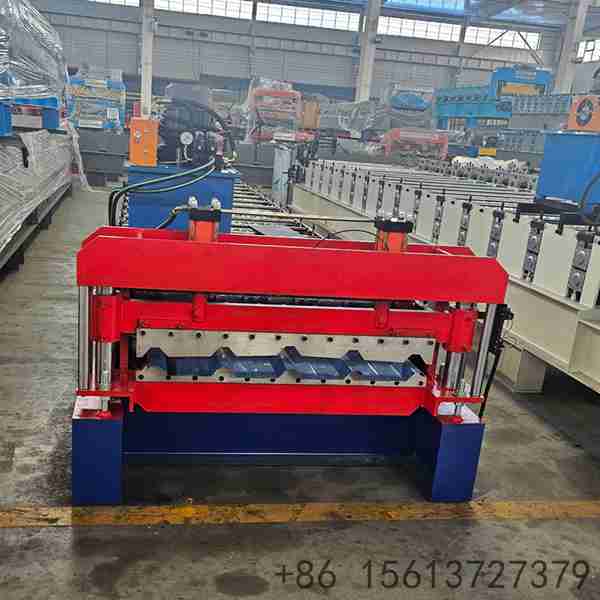

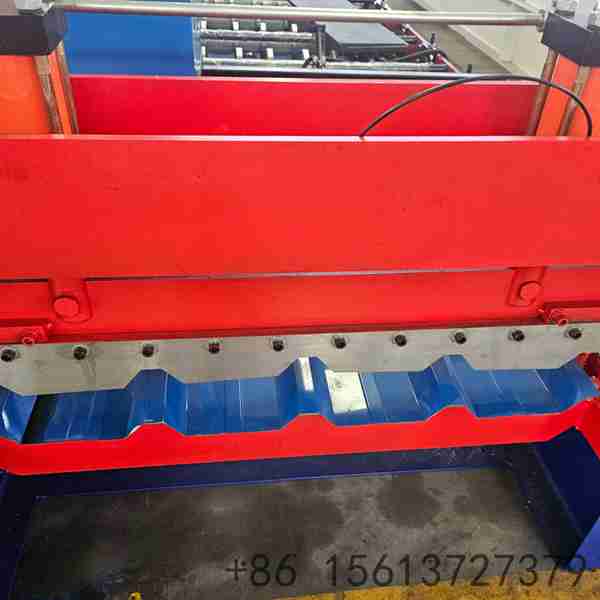

Precision Automated Cutting: Features a hydraulic cutting system with Cr12 mold steel blades (HRC 58-62) that tracks line speed to execute exact cuts with strict ±1-2mm tolerance and clean, burr-free edges for immediate installation.

Smart Production Control: Powered by an advanced PLC (Siemens/Mitsubishi/Delta) with touch screen interface, allowing operators to easily program batch counts, panel lengths, and monitor real-time diagnostics for optimal production control.

Product Description & Parameters:
The Automatic Trapezoidal Roofing Panel Roll Forming Machine is a high-performance production solution designed for manufacturers seeking intelligent, automated metal roofing manufacturing. This equipment transforms color-coated, galvanized, or Aluzinc steel coils into finished trapezoidal panels through a fully automated process of decoiling, precision forming, and PLC-controlled cutting with minimal manual operation.

The primary advantage of this roll former lies in its intelligent automation and forming precision. The reinforced base prevents deflection under load, while precision-ground rollers ensure each panel maintains consistent geometry and sharp profile definitions during automated production. The intelligent PLC control system simplifies operations, enabling quick setup and accurate batch production with real-time diagnostics. Meanwhile, the synchronized hydraulic cutting station tracks line speed in real-time to execute exact cuts, minimizing material waste and ensuring every trapezoidal panel is ready for immediate installation. This machine is the reliable choice for suppliers demanding intelligent automation, consistent quality, and operational efficiency in metal roofing production.

No.	Main Parameter / Feature	Details
1	Applicable Material	Color Coated Steel / Galvanized Steel / Aluzinc Coil
2	Material Thickness Range	0.3 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Coil Width Range	1000 / 1200 / 1250 mm (customizable)
5	Profile Type	Trapezoidal Roofing Panel
6	Forming Speed	8 - 12 m/min (adjustable via VFD)
7	Number of Forming Stations	11 - 17 rows
8	Main Motor Power	3 - 7.5 kW
9	Hydraulic Station Power	3 - 4 kW
10	Roller Material	45# Forged Steel with Hard Chrome Plating (0.05mm)
11	Shaft Material	45# Steel, Diameter 70-76mm, Quenched & Polished
12	Cutting Blade Material	Cr12 Mold Steel with Quenching Treatment (HRC 58-62)
13	Cutting Method	Hydraulic Post-Cutting, Automatic Stop-and-Cut
14	Control System	PLC with Touch Screen (Siemens / Mitsubishi / Delta)
15	Voltage	380V / 50Hz / 3 Phases (customizable)
16	Machine Dimensions	Approx. 6.0m - 8.0m × 1.3m - 1.5m × 1.3m - 1.5m
17	Machine Weight	Approx. 3 - 6 Tons
18	Length Tolerance	±1 - 2 mm
19	Decoiler Capacity	Up to 5 Tons (Manual or Hydraulic)
20	Drive Mode	Chain Transmission
21	Warranty	12-24 Months Free Warranty + Lifetime Technical Support
