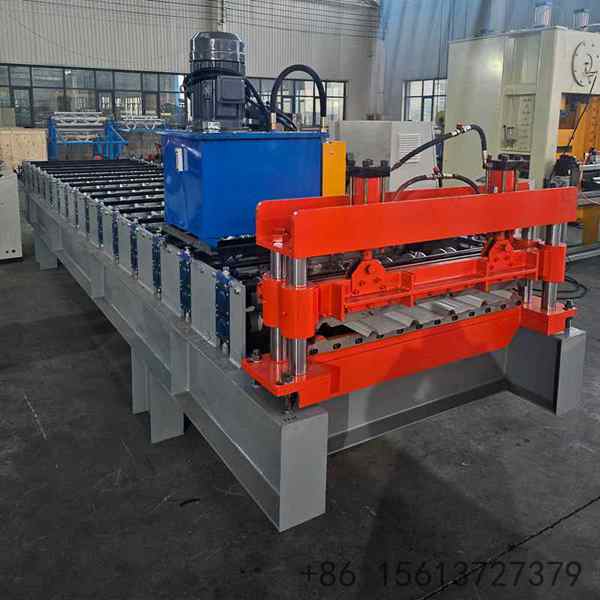

6 Rib Trapezoidal Roof Sheet Roll Forming Machine

6 Rib Trapezoidal Roof Sheet Roll Forming Machine

Product Attributes :

6 Rib Trapezoidal Roof Sheet Roll Forming Machine produces 6-rib trapezoidal roof panels from color steel, galvanized or Alu-Zinc coil. It integrates decoiling, roll forming, length measurement and hydraulic cutting, suitable for industrial plants, warehouses and steel structure roofing.

Product Description

Product Introduction:

6-rib trapezoidal profile: Produces 6-rib trapezoidal roof sheets with more ribs per panel, giving a finer surface appearance.

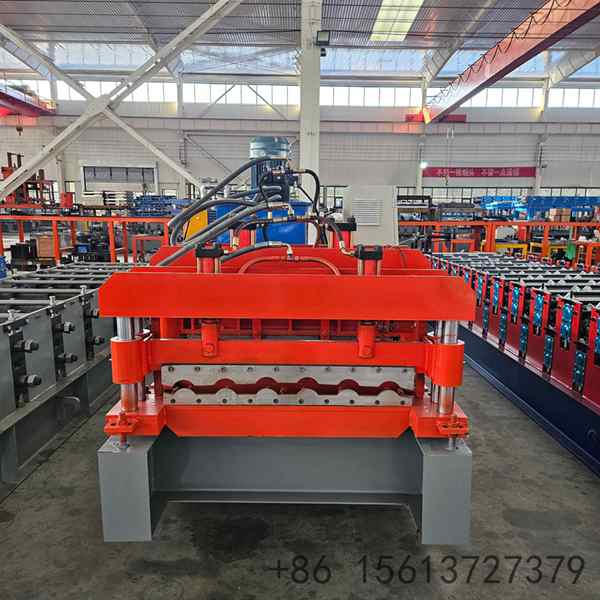

PLC automatic control: Supports length setting, quantity counting, automatic cutting and basic fault prompts, suitable for overseas customers.

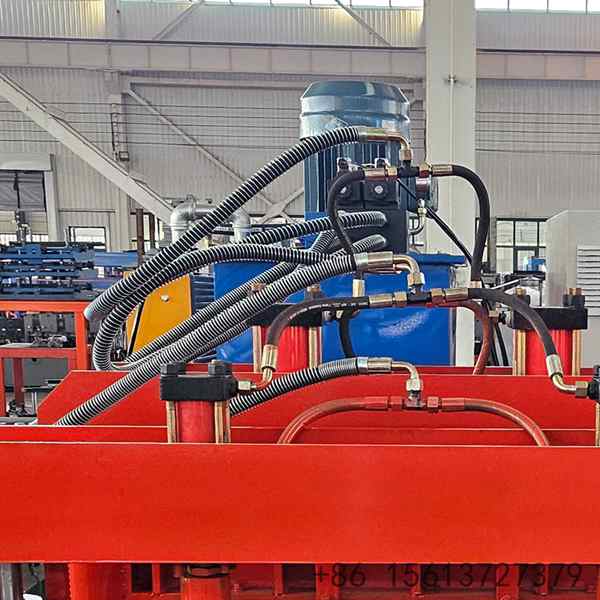

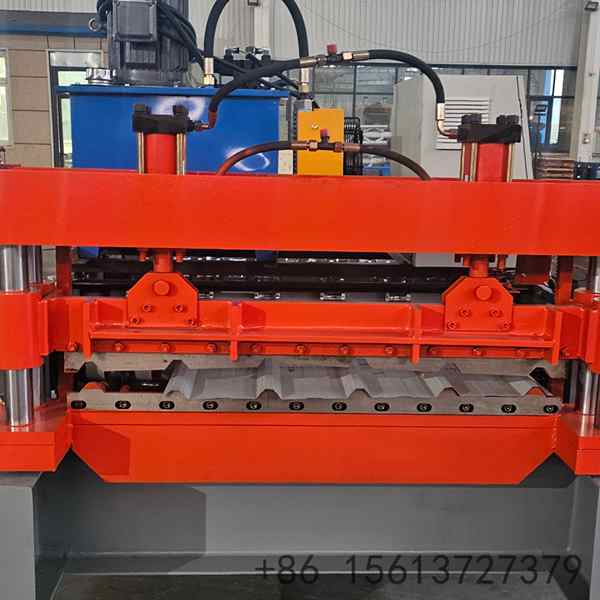

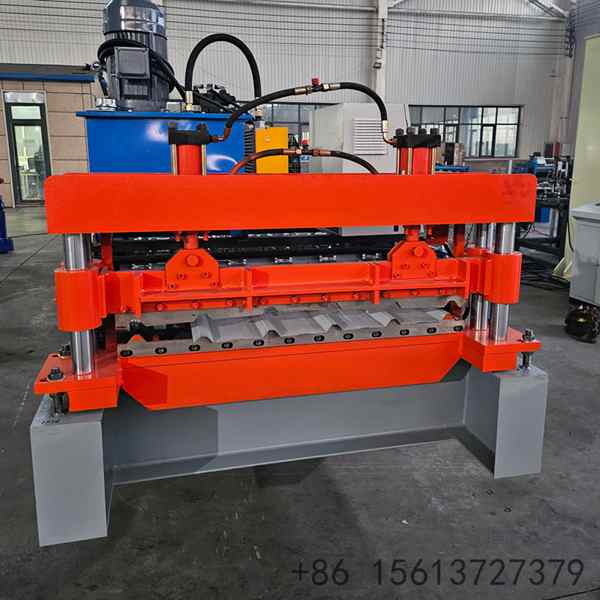

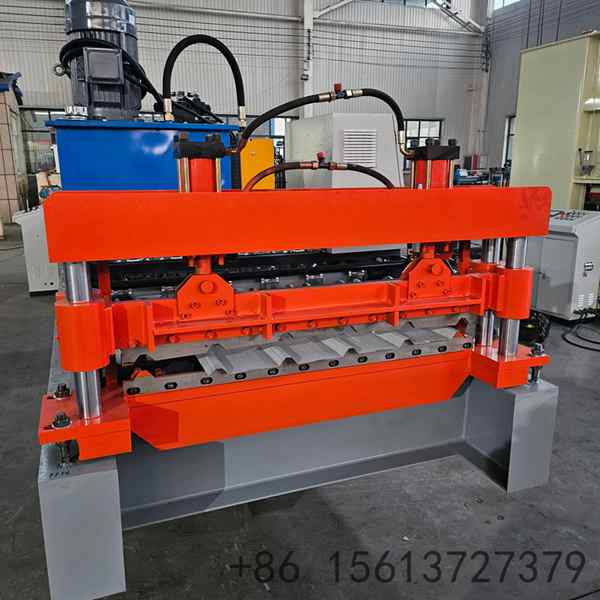

Hydraulic cutting system: Equipped with Cr12 / Cr12MoV blades for clean edges and stable length tolerance.

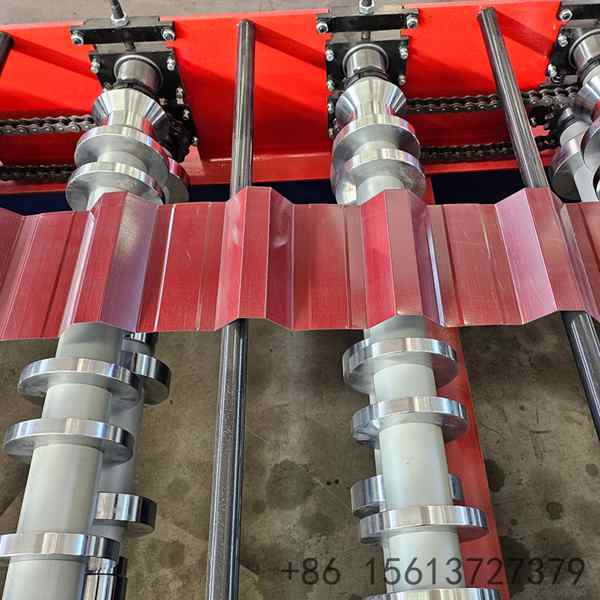

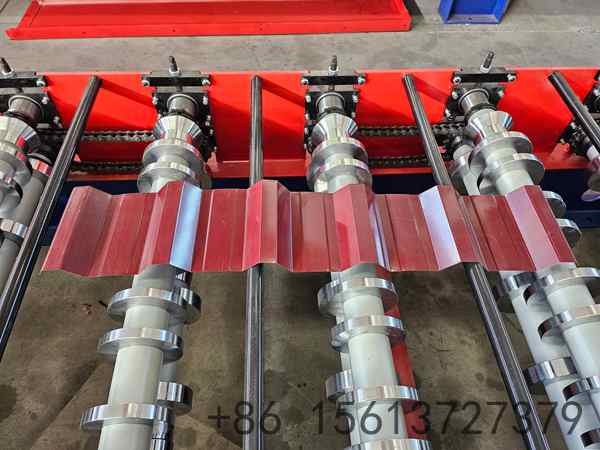

Reinforced forming frame: Welded H-beam structure and chrome-plated rollers help reduce panel deformation during continuous forming.

Customizable specification: Feeding width, effective width, rib height, roller stations and forming speed can be designed according to drawings.

Product Description & Parameters:

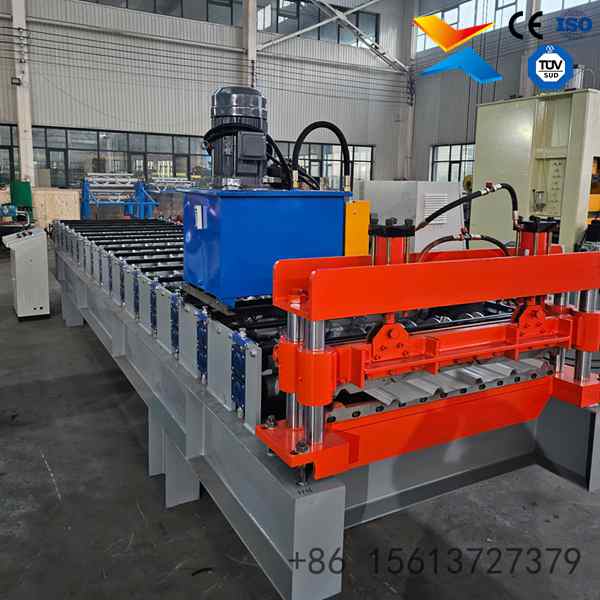

This 6 rib trapezoidal roof sheet roll forming machine is designed for producing 6-rib trapezoidal metal roof panels used in industrial plants, warehouses, workshops, prefabricated buildings and steel structure roofing. The coil is decoiled, fed into the roll forming section, gradually formed into the required 6-rib trapezoidal profile, then measured and cut by hydraulic cutting. Because 6-rib profiles may have different rib spacing and effective widths, the exact roller design should be confirmed with customer drawings before production.

No.	Main Parameter / Feature	Details
1	Applicable Material	Color Steel / Galvanized Steel / Alu-Zinc Coil
2	Material Thickness	0.3 – 0.8 mm, customizable
3	Feeding Width	914 – 1250 mm, customizable
4	Profile Type	6 Rib Trapezoidal Roof Sheet
5	Effective Width	Per customer drawing, customizable
6	Forming Speed	8 – 15 m/min, depends on configuration
7	Forming Stations	About 12 – 18 rows, depends on profile
8	Roller Material	45# Steel / GCr15, Chrome Plated
9	Shaft Diameter	φ70 – 76 mm, customizable
10	Cutting System	Hydraulic Cutting
11	Blade Material	Cr12 / Cr12MoV
12	Control System	PLC + HMI Touch Screen
13	Main Motor Power	5.5 – 7.5 kW, depends on configuration
14	Voltage	380V / 50Hz / 3 Phase, customizable
15	Machine Weight	Approx. 4 – 7 Tons
16	Application	Factory, Warehouse, Workshop, Steel Structure Roof
