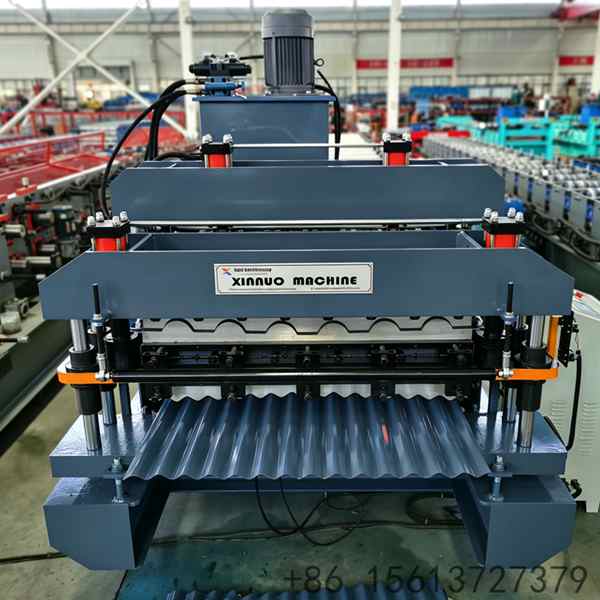

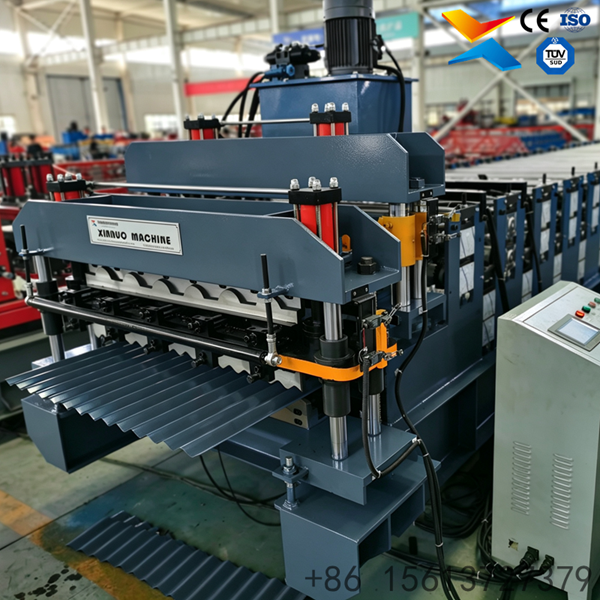

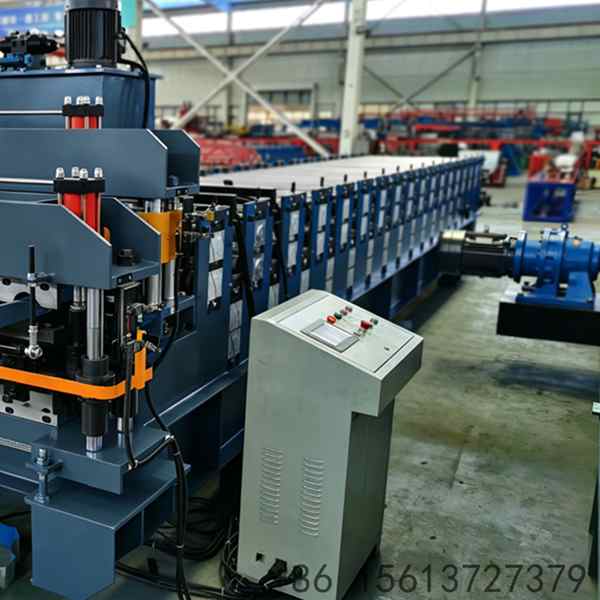

Double-Layer Glazed Arc Profile Cold Roll Forming Machine

Product Attributes :

Application Production of trapezoidal metal roof sheets

Material Thickness 0.3 – 0.8 mm

Feeding Width 1000-1220 mm

Production Speed 8-15m/min

Note Custom sizes & profiles available

WhatsApp 15613727379

Product Description

Product Introduction

Space-Saving 2-in-1 Design: Integrates two different profile forming systems into a single machine frame, significantly reducing workshop footprint and equipment investment costs.

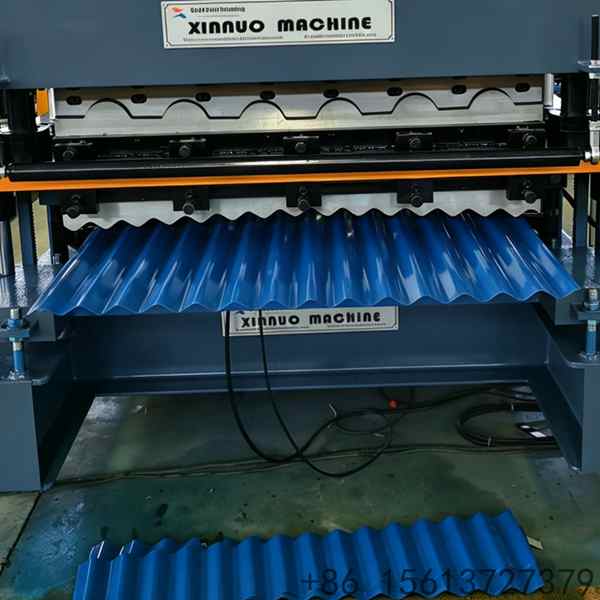

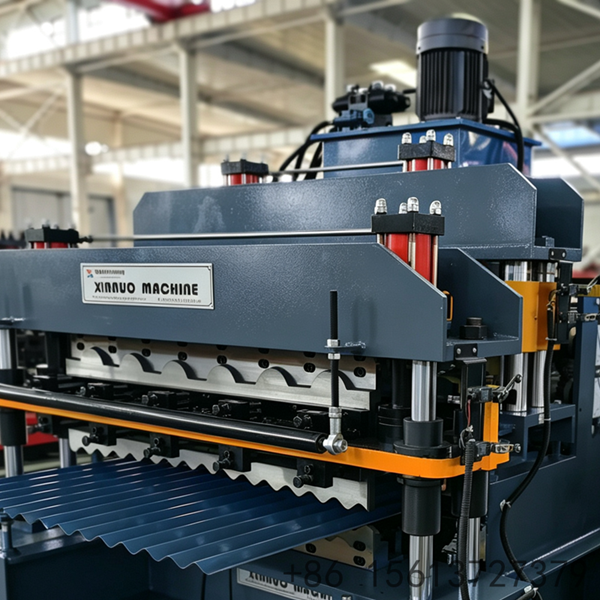

Elegant Glazed Arc Profiles: Features advanced hydraulic pressing technology to create beautiful, traditional glazed tile patterns with smooth curved surfaces for enhanced architectural aesthetics.
Independent Dual-Layer Operation: Each layer operates independently with its own set of rollers and cutting system, allowing quick switching between profiles via the PLC interface without manual adjustments.

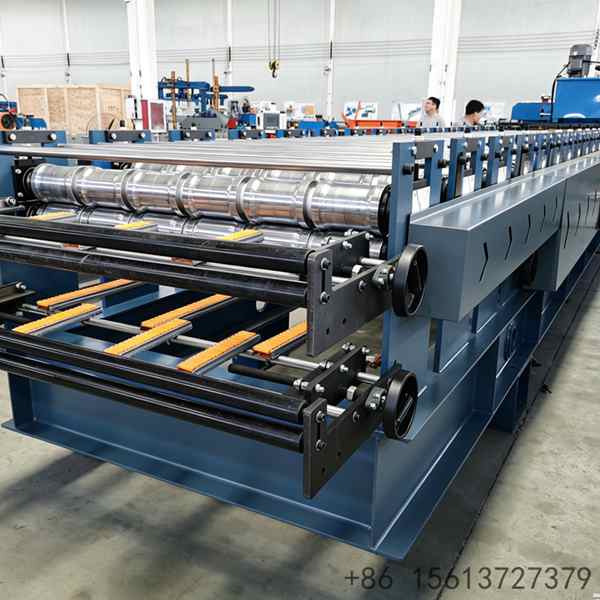

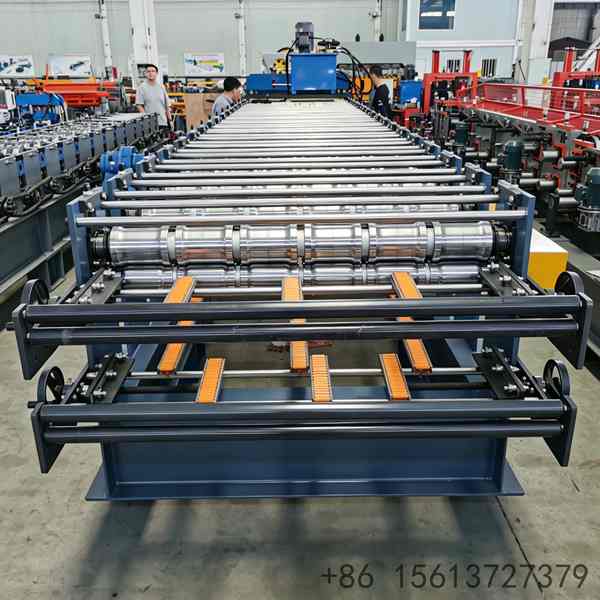

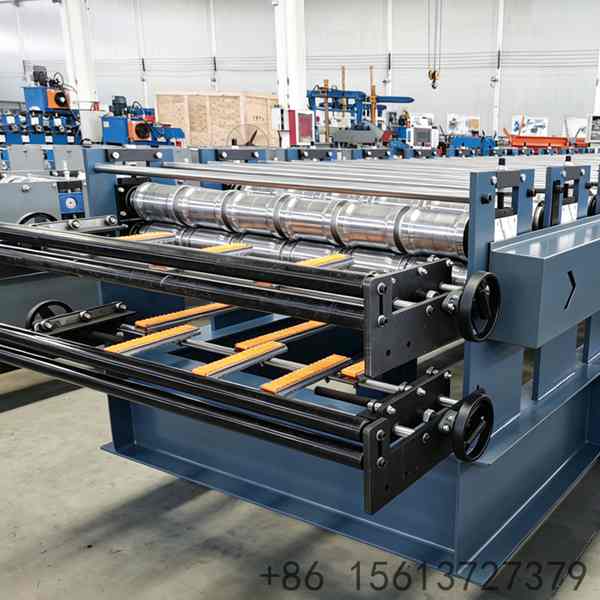

High-Precision Cold Roll Forming: Utilizes premium 45# forged steel rollers with hard chrome plating and precision machining to ensure consistent dimensions and smooth panel surfaces.
PLC Intelligent Control: Equipped with imported brand PLC and touch screen interface for easy operation, accurate length measurement, and reliable automatic production on both layers.

Product Description & Parameters

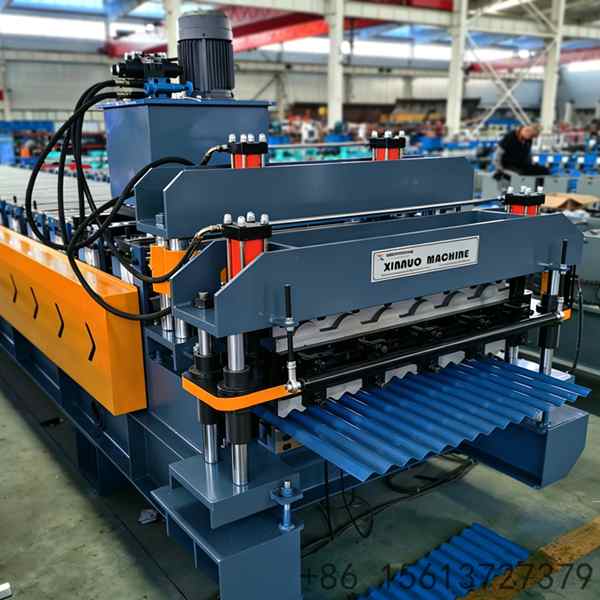

The Double-Layer Glazed Arc Profile Cold Roll Forming Machine is an innovative cold roll forming equipment that combines two different roofing tile profiles into a single production line. This space-saving design is perfect for manufacturers with limited workshop space who need to produce multiple roofing styles. The machine processes color-coated galvanized or galvalume coils into elegant glazed arc roofing panels that provide excellent weather protection and classic architectural appeal. Each layer features independent hydraulic pressing, roll forming, and cutting systems controlled by a unified PLC system. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and consistent forming quality for both profiles.

No.	Main Parameter / Feature	Details
1	Applicable Material	Color-coated galvanized steel / PPGI / Galvalume coil
2	Material Thickness Range	0.3 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Forming Speed	8 - 12 m/min per layer (adjustable via frequency converter)
5	Number of Roller Stations	18 - 24 stations per layer (depending on profile design)
6	Main Motor Power	4 kW + 4 kW (dual motors for each layer)
7	Hydraulic Station Power	4 - 5.5 kW
8	Roller Material	45# forged steel, polished and coated with 0.05mm hard chrome
9	Shaft Material	High-grade 45# steel, diameter 70-80mm, tempered and polished
10	Pressing Die Material	Cr12 mould steel with quenching treatment (HRC 58-62)
11	Cutting Blade Material	Cr12 mould steel with quenching treatment
12	Cutting Method	Hydraulic post-cut, automatic pause and cut
13	Control System	PLC control with touch screen (Mitsubishi / Delta / Siemens)
14	Voltage	380V / 50Hz / 3 Phase (customizable)
15	Machine Dimensions	Approx. 9m - 12m × 1.5m - 1.8m × 1.6m - 1.9m
16	Machine Weight	Approx. 5 - 9 Tons
17	Length Tolerance	±1 - 2 mm
18	Uncoiler Capacity	Up to 3 - 5 tons (manual or hydraulic)
19	Driving Mode	Chain transmission
20	Warranty	12-24 months free warranty + lifelong technical support
