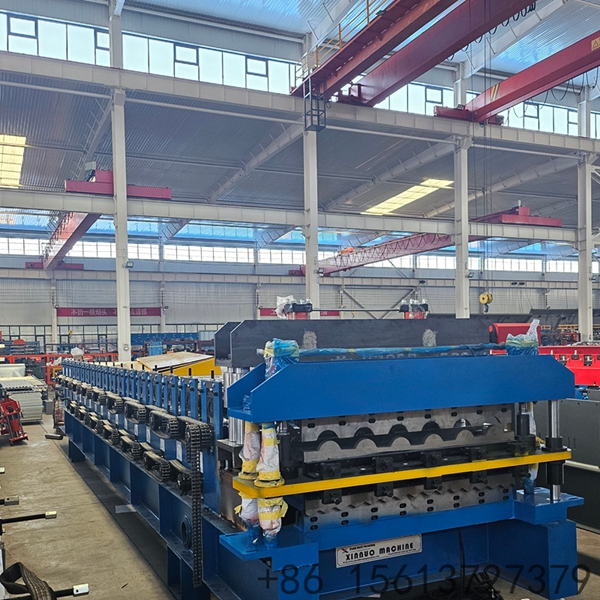

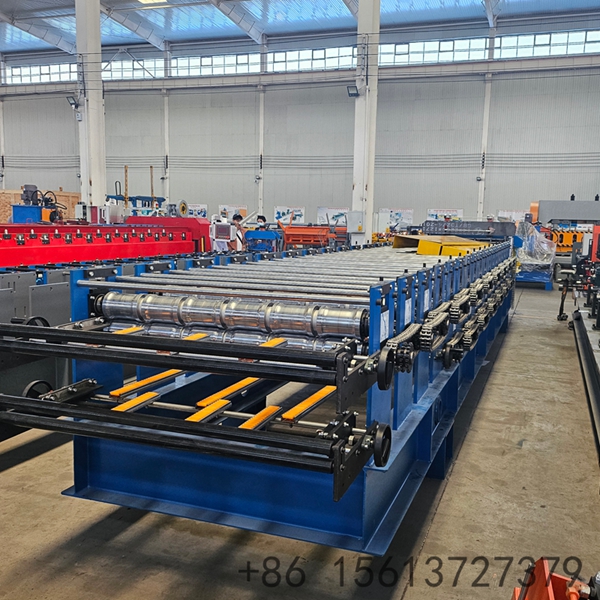

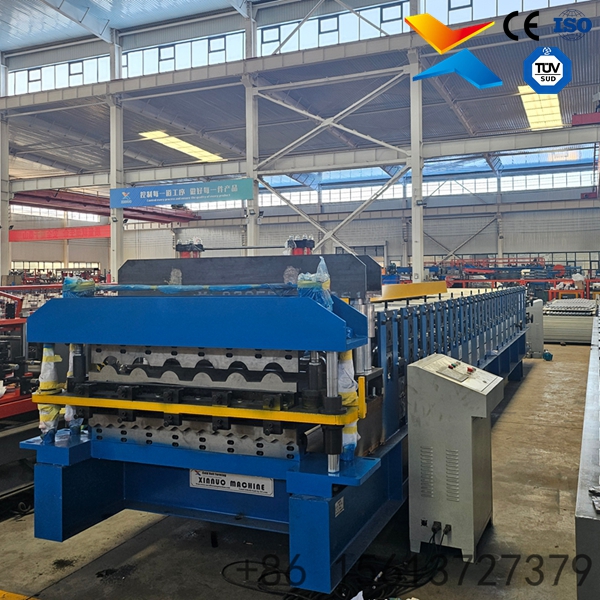

Double Layer Glazed Tile Roll Forming Machine

One Machine, Two Architectural Styles: Stop buying separate lines for different tile aesthetics. This dual-layer system gives you the classic, antique elegance of traditional glazed tiles for heritage and villa projects, while keeping modern-style glazed profiles ready for contemporary commercial and residential buildings.

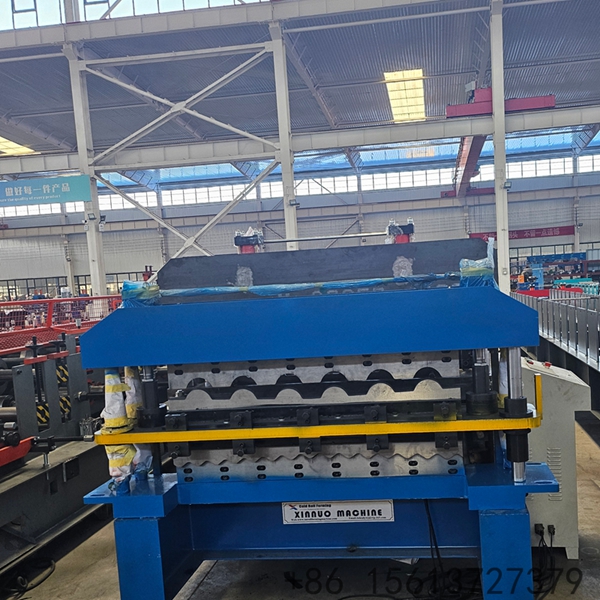

Zero-Downtime Profile Switching: Forget the tedious process of swapping out rollers. The upper and lower layers operate on completely isolated drive systems. When a new order comes in, simply select the desired glazed tile profile on the PLC screen and start producing immediately.

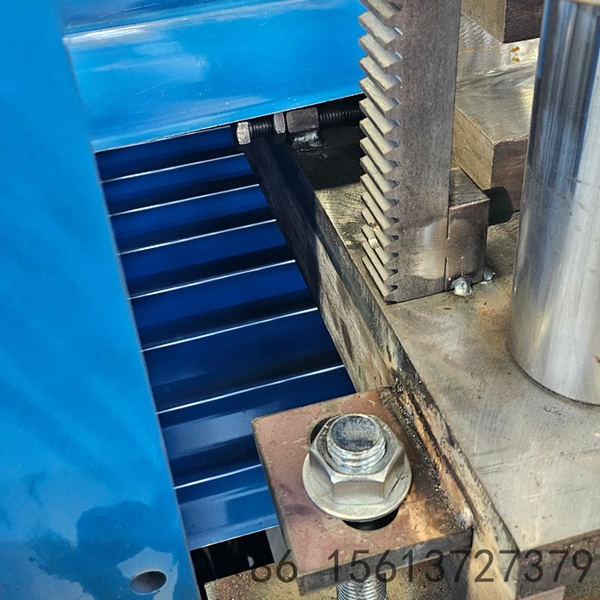

Watertight Precision Cutting: Both glazed tile profiles require exact edge alignment to prevent roof leaks and maintain visual appeal. Our universal hydraulic post-cut system uses Cr12 quenched blades to deliver burr-free cuts with a strict ±1mm tolerance, ensuring every tile locks together perfectly on-site.

Heavy-Duty Anti-Vibration Base: Glazed tile profiles demand consistent pressure during the pressing phase. We use a reinforced 350H steel beam base with 20mm thick side plates to completely absorb forming stress, guaranteeing that the glazed ribs remain sharp and the flat surfaces stay perfectly smooth.

Smart Production Management: The intuitive PLC interface doesn't just run the machine; it acts as your production manager. Set exact lengths, track batch counts, and monitor diagnostics in real-time, allowing a single operator to manage both roofing tile styles effortlessly.
