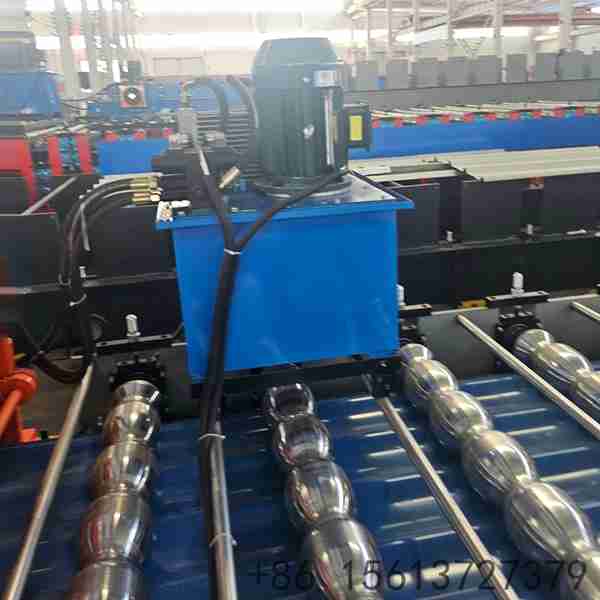

Double Capacity, Half the Footprint: Engineered to maximize factory efficiency, this dual-profile machine integrates two completely independent forming lines into one compact chassis, saving up to 50% of floor space compared to two standalone machines.
Independent Dual-Profile Production: Seamlessly produce smooth arc panels and elegant glazed tiles without manual roller swapping. Simply select the desired profile via the PLC touch screen to instantly switch production lines.

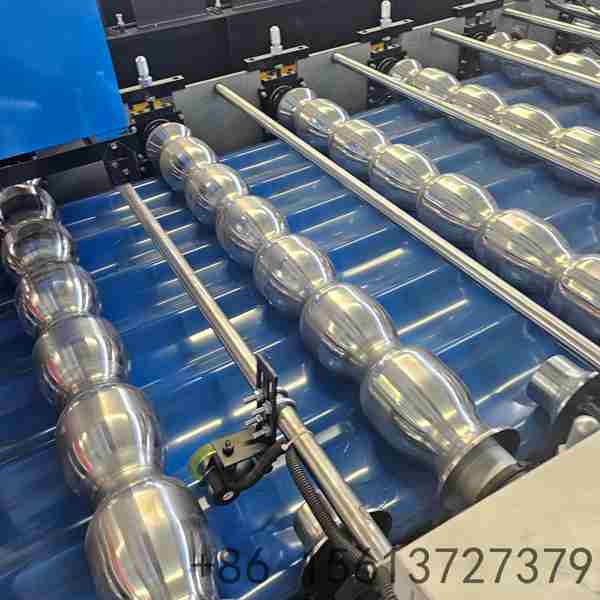

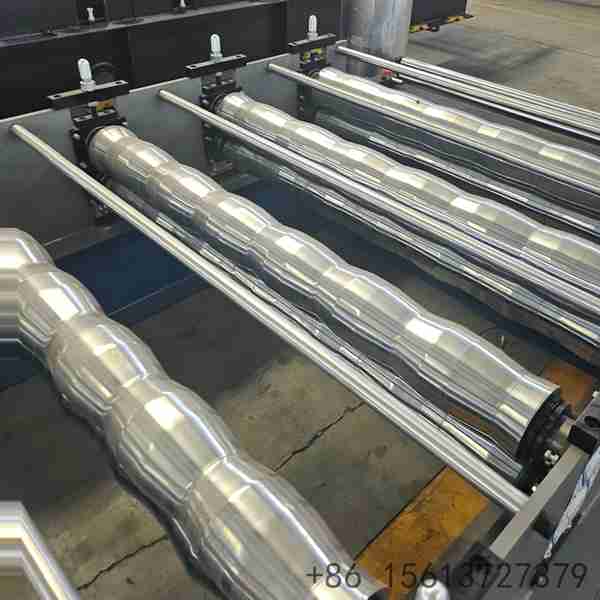

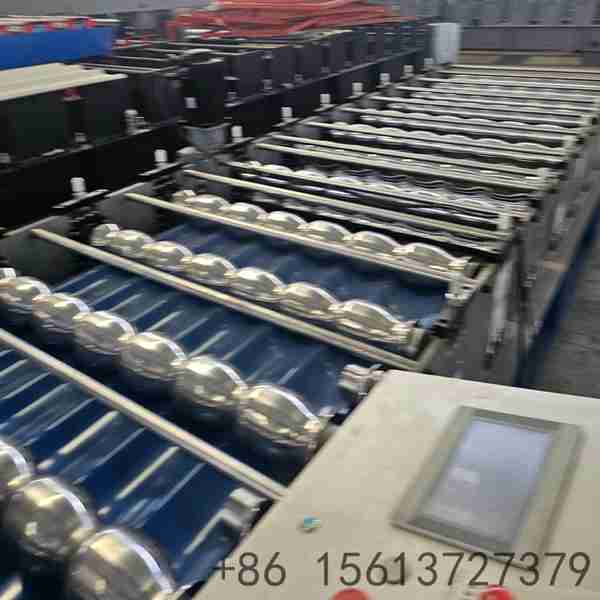

Premium Chrome-Plated Rollers: Forming rollers are crafted from high-grade 45# forged steel with a 0.05mm hard chrome coating, guaranteeing ultra-smooth panel finishes, extended wear resistance, and zero damage to pre-painted coatings.

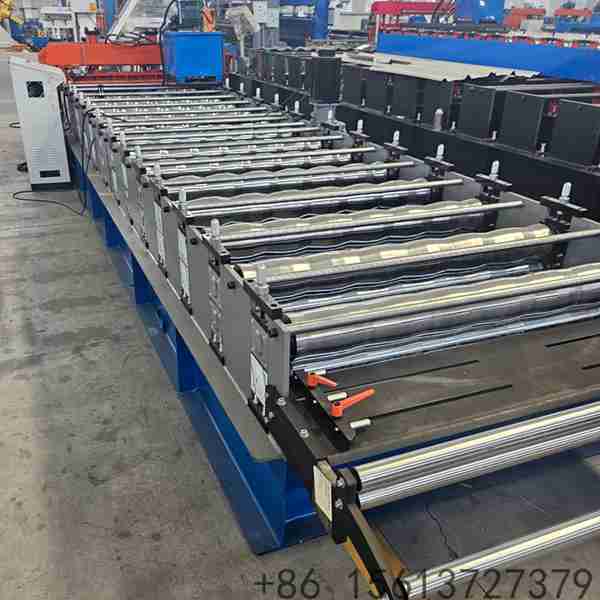

Smart PLC Automation: Features an intuitive multi-language PLC with a 7-inch touch screen, allowing for one-button operation, precise length setting, and real-time production monitoring.
Vibration-Resistant Main Frame: Built on a heavy-duty welded steel structure with reinforced H-beam supports to ensure absolute stability and minimize vibration during high-speed dual production.

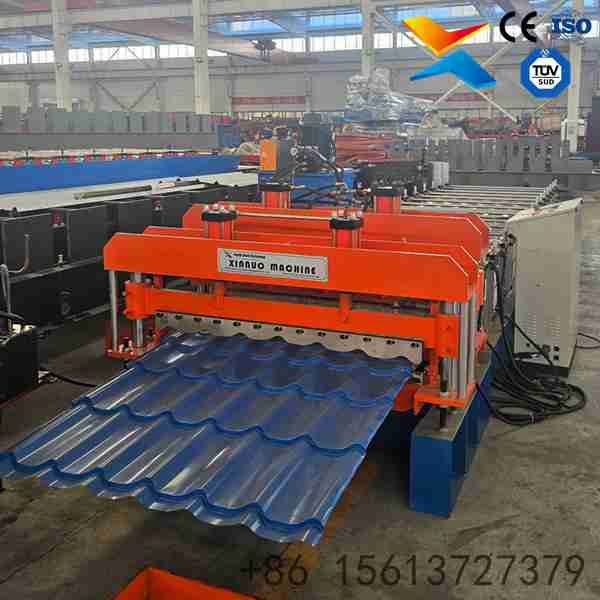

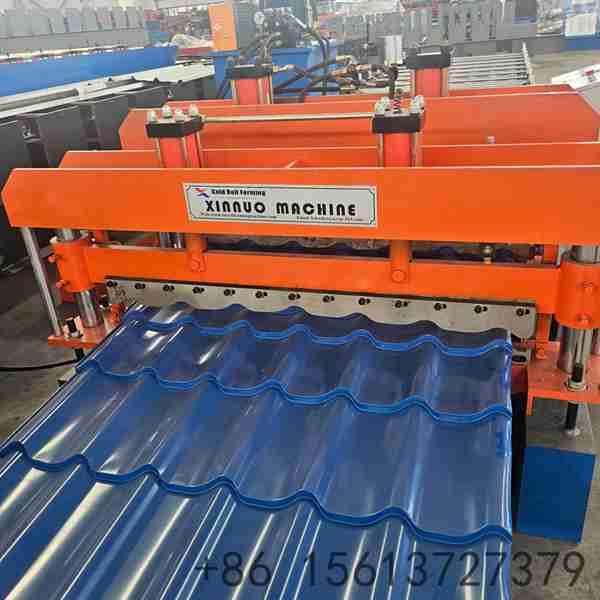

The Double Layer Arc & Glazed Tile Roll Former is the ultimate space-saving solution for modern manufacturers looking to maximize output without expanding their facility. By consolidating two distinct forming lines into a single unit, this machine drastically reduces capital expenditure and streamlines factory logistics. It is widely used for producing metal roofing panels for industrial factories, villas, and commercial buildings.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | PPGI, GI, Aluminum Coil |
| 2 | Material Thickness | 0.3 - 0.8 mm |
| 3 | Feeding Width | Max 1250 mm (Customizable) |
| 4 | Forming Speed | 0 - 15 m/min (Adjustable per layer) |
| 5 | Forming Stations | 14-18 rows per layer |
| 6 | Main Motor Power | 5.5 - 7.5 kW |
| 7 | Hydraulic Power | 4 - 5.5 kW |
| 8 | Roller Material | High Grade 45# Steel, Chrome Plated (0.05mm) |
| 9 | Shaft Material | 45# Forged Steel, Dia. 70-75mm |
| 10 | Cutting Blade Material | Cr12MoV, Quenched (HRC 58-62) |

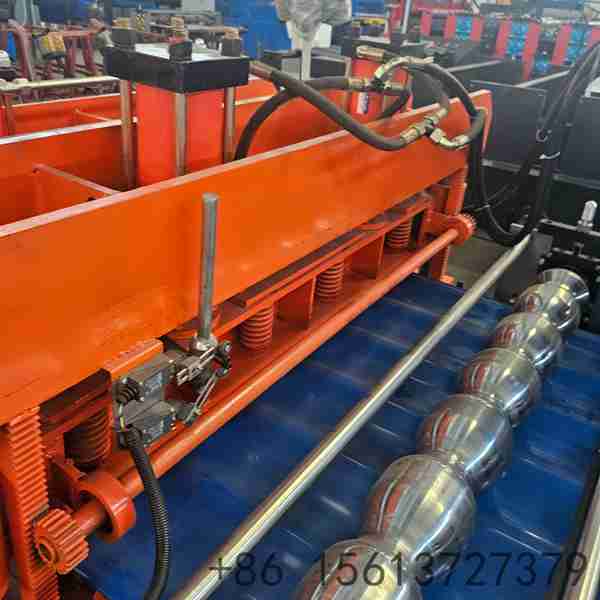

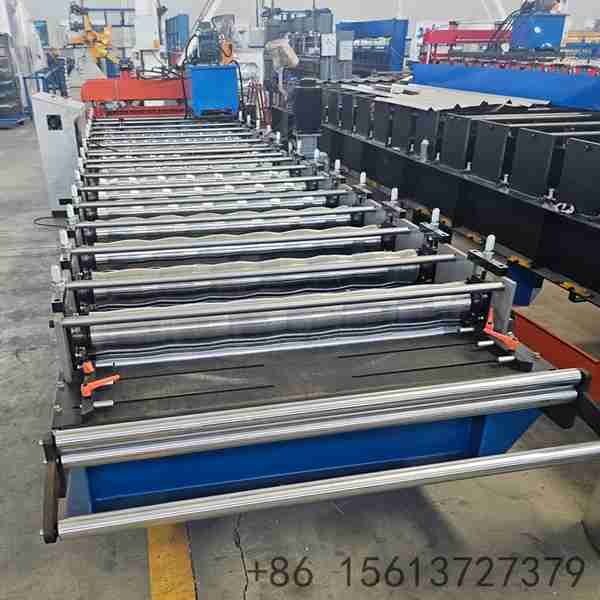

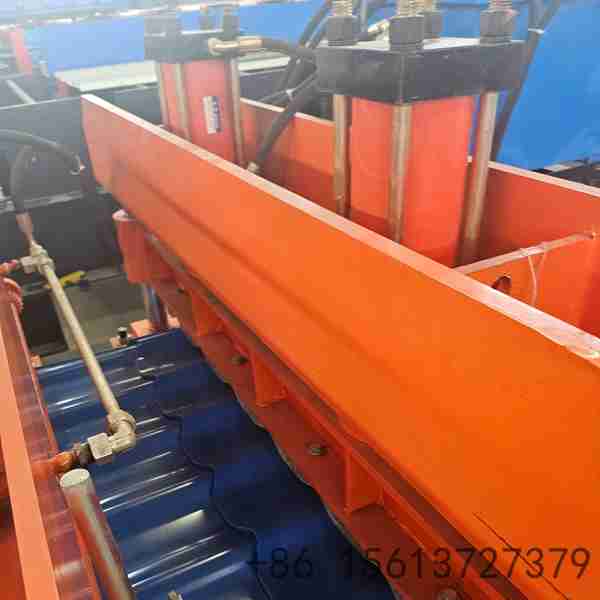

| 11 | Cutting Method | Hydraulic Stop-to-Cut |
| 12 | Control System | PLC + Touch Screen (Delta / Siemens) |
| 13 | Voltage | 380V / 50Hz / 3 Phase (Customizable) |
| 14 | Machine Dimensions | Approx. 8.5m x 1.5m x 1.6m |
| 15 | Machine Weight | Approx. 6 - 8 Tons |
| 16 | Decoiler | 5T Manual / Hydraulic Decoiler |
| 17 | Warranty | 12 Months + Lifetime Technical Support |
