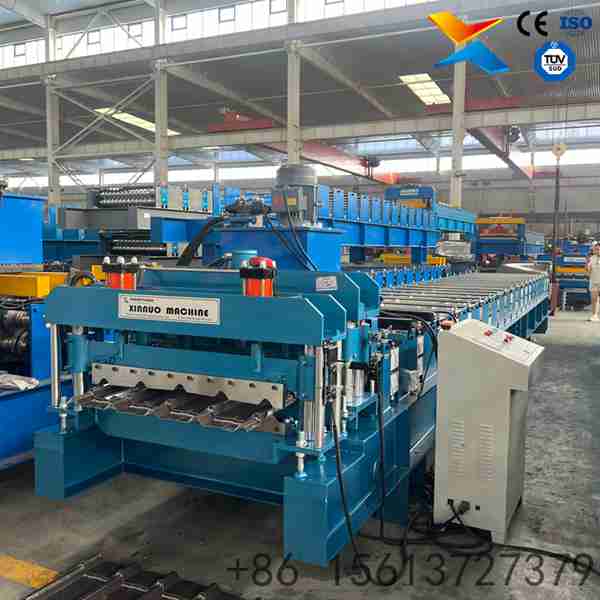

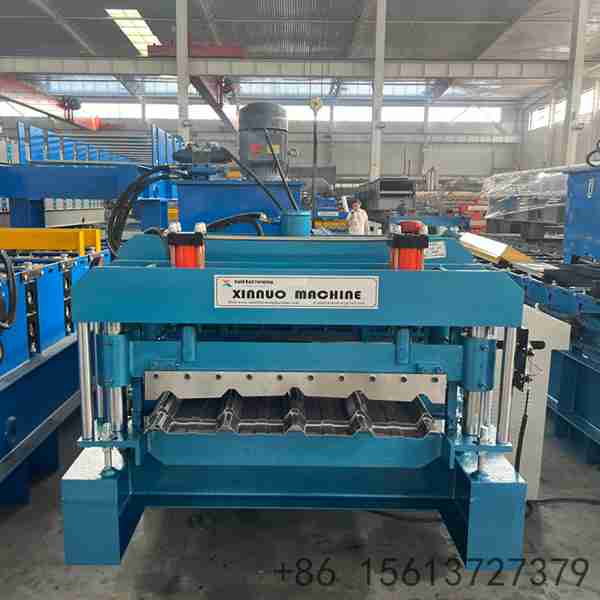

Professional 820 Glazed Tile Forming Machine

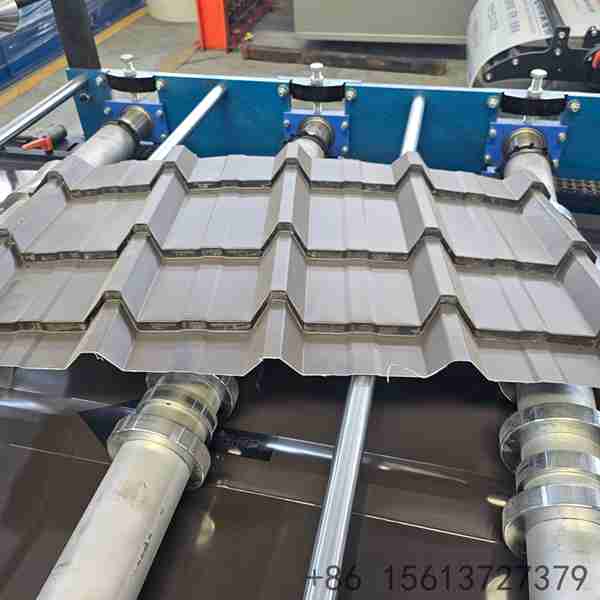

Main Structure of the Machine: 350 H Steel
Weight: Approximately 5 Tons
Dimensions: 8.5m x 1.6m x 1.6m
Voltage: 380V, 50Hz, 3 Phases (Customizable upon request)
Certificate: CE / ISO
Customization: Available according to customer's requirements
Product Briefing

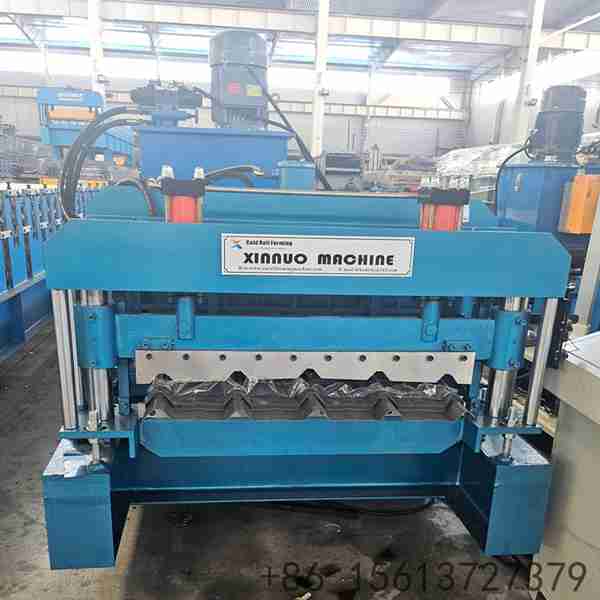

Architectural Profile Elegance: Optimized for producing 820mm trapezoidal glazed tiles with perfectly symmetrical steps and traditional aesthetics.

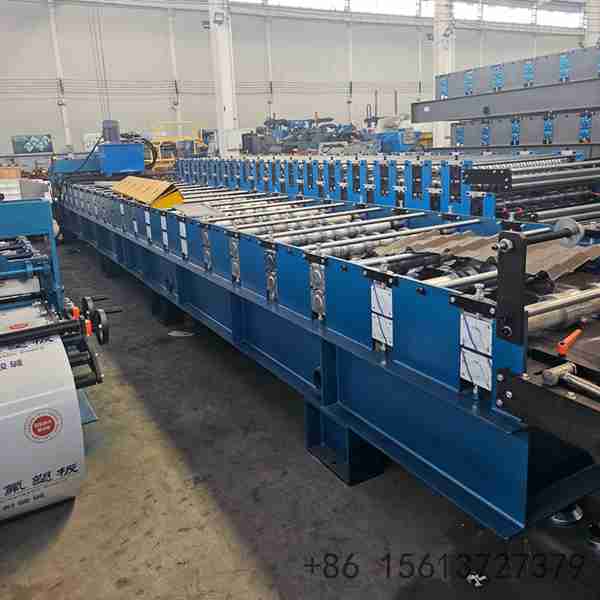

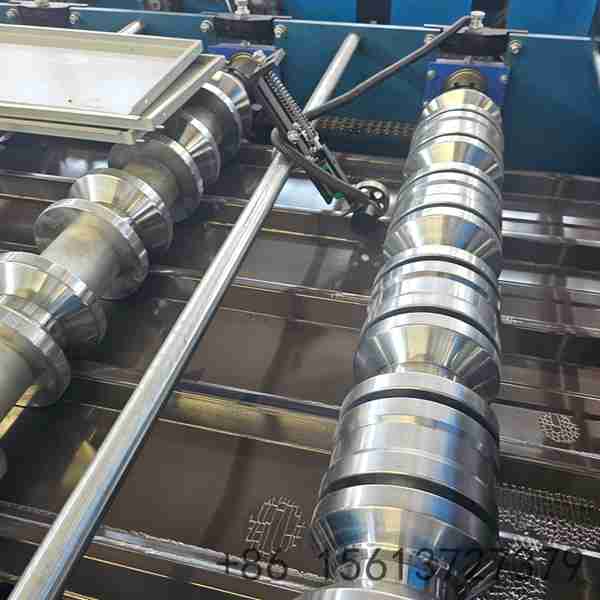

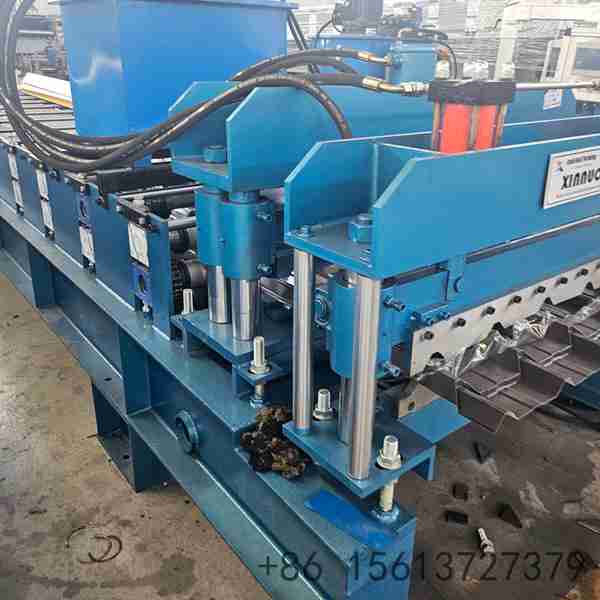

Cr12 Precision Rollers: Features rollers manufactured from high-grade Cr12 steel with mirror polishing for maximum durability and scratch prevention.
Antique Tile Finish Logic: Specifically designed to create the classic "stepped" texture that replicates high-end ceramic glazed tiles.
Zero-Defect Surface Protection: Specialized forming sequence ensures that color-coated metal surfaces remain pristine even after high-pressure stamping.

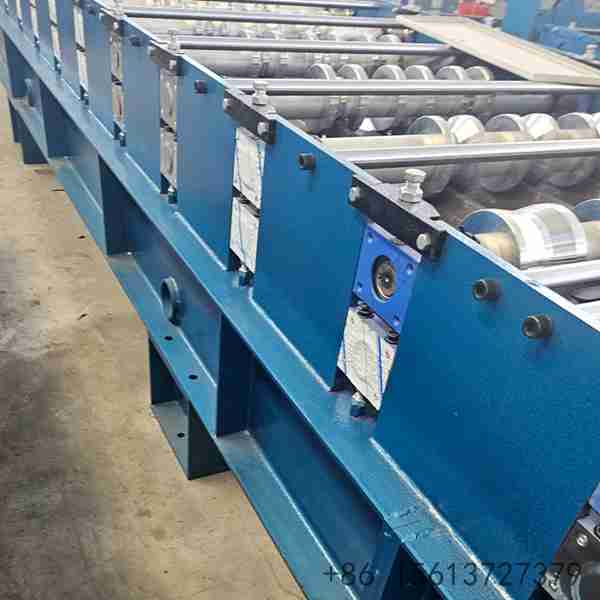

Reinforced Aesthetic Base: Built on a heavy-duty frame with precision alignment to ensure that long roof panels remain perfectly straight and wave-free.
Detailed Description
Technical Parameters
| Feature | Technical Specification |
|---|---|
| Aesthetic Category | Architectural / Premium Precision (Antique Finish) |
| Roller Material | High-Grade Cr12 Steel (Vacuum Heat Treated) |
| Roller Finish | Mirror Hard Chrome Coating (0.05mm - 0.08mm) |
| Forming Stations | 15 - 18 Rows (Precision Focused) |
| Shaft Diameter | Φ75mm - Φ80mm Solid Induction Hardened Shafts |
| Side Plate Thickness | 18mm - 25mm (Enhanced Structural Rigidity) |
| Drive System | High-Precision Double-Row Chain / Gearbox Drive |
| Cutting Blade | Cr12Mov with Professional Quenching (High Sharpness) |

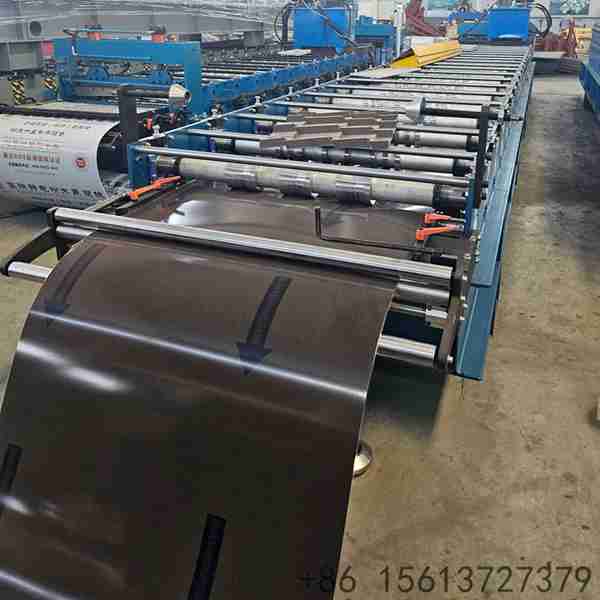

| Control System | Smart PLC with Graphic User Interface (GUI) |
| Production Accuracy | Length Tolerance ±0.5mm / Step Accuracy ±0.2mm |
Unique Technical Advantages
Optical Surface Protection: Our rollers undergo a proprietary vacuum heat treatment and mirror polishing process, ensuring they are smoother than standard industrial rollers to prevent paint scuffing.

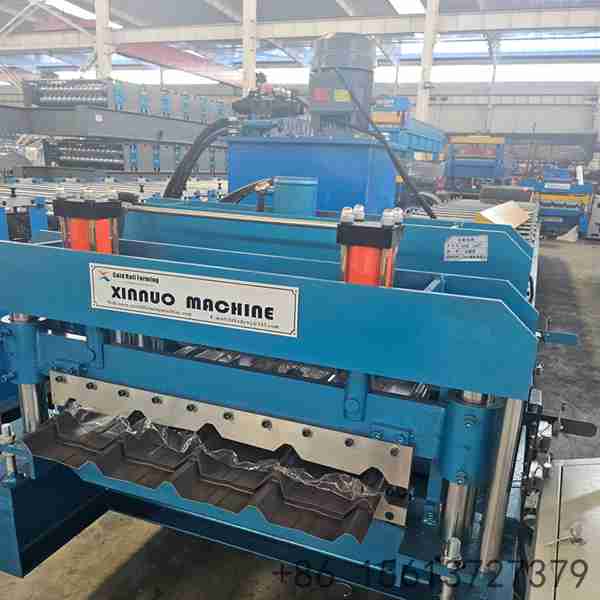

Precision Antique Stamping: The hydraulic stamping unit is calibrated with micro-adjustments to ensure that the antique tile "steps" are uniform in depth and perfectly aligned across the panel width.
Anti-Warping Roller Sequence: The forming logic is designed to release internal material tension, ensuring that wide roof panels remain perfectly flat without "edge waving."
High-End Finish Compatibility: The feeding and forming system is optimized for handling specialized coil finishes including high-gloss, matte, and sand-textured pre-painted steel.
