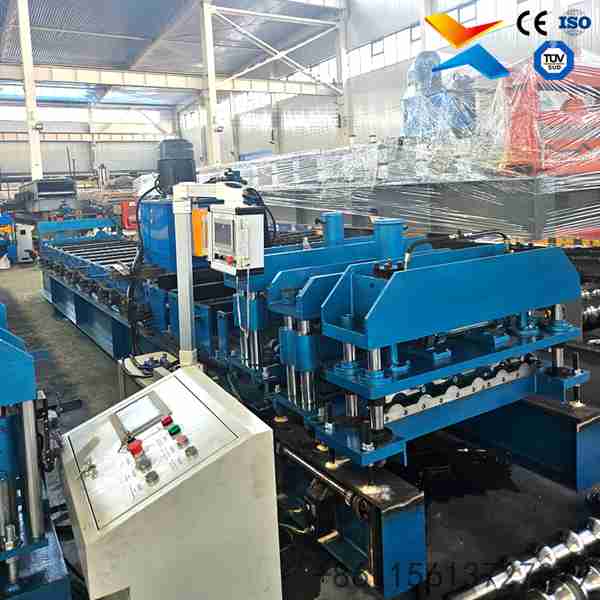

Automatic Glazed Tile Roll Forming Machine
Main Structure of the Machine: 350 H Steel
Weight: Approximately 5 Tons
Dimensions: 8.5m x 1.6m x 1.6m
Voltage: 380V, 50Hz, 3 Phases (Customizable upon request)
Certificate: CE / ISO
Customization: Available according to customer's requirements
Precision Glazed Tile Profiling: Specifically calibrated to produce metal tiles with authentic glazed tile aesthetics, featuring consistent wave patterns and perfect interlocking for superior water tightness and structural integrity in roofing applications.

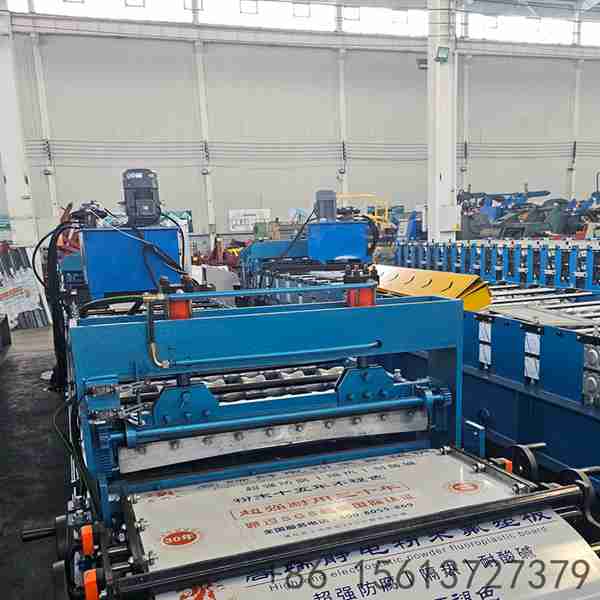

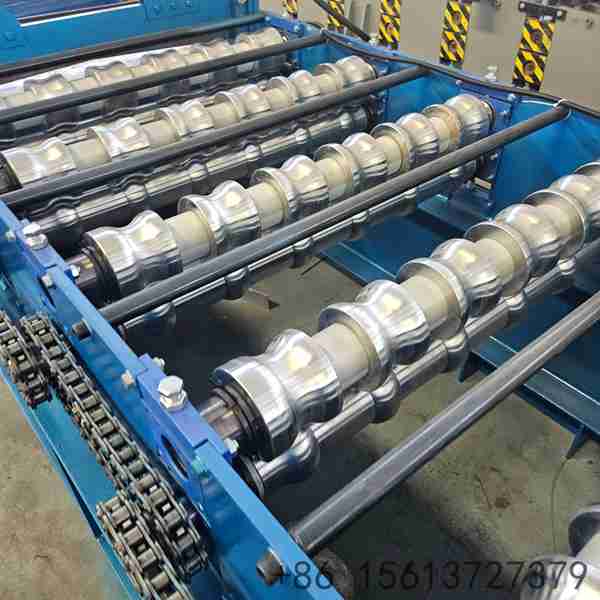

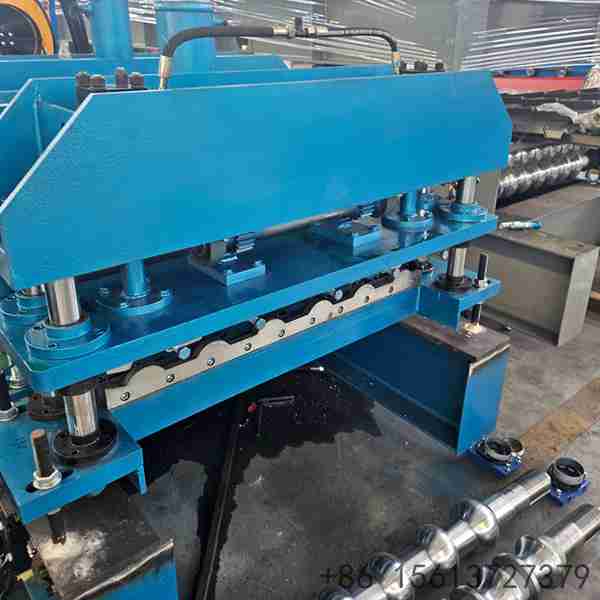

Robust Industrial Construction: Built on a reinforced steel base with thick side plates, engineered to absorb continuous forming stresses and maintain strict dimensional tolerances even at high production speeds.

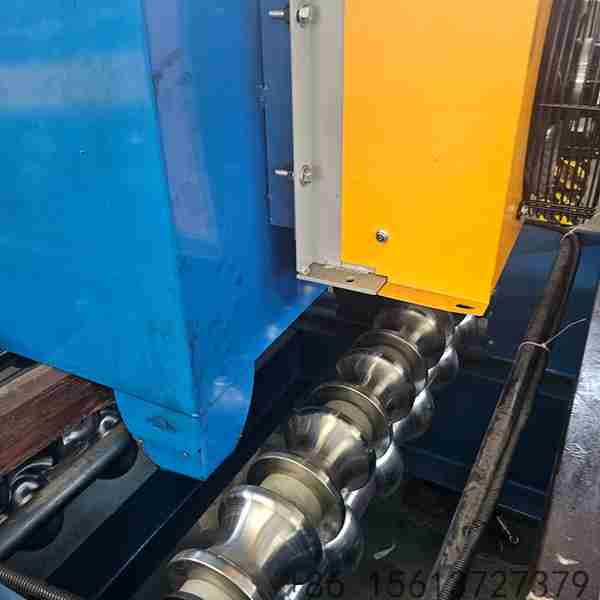

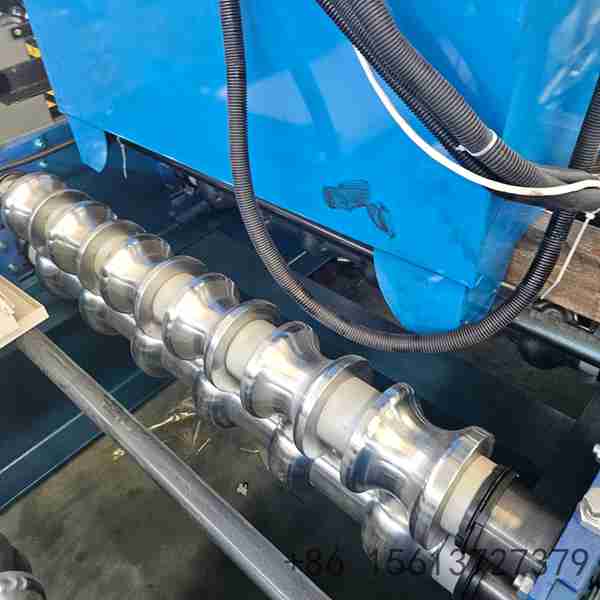

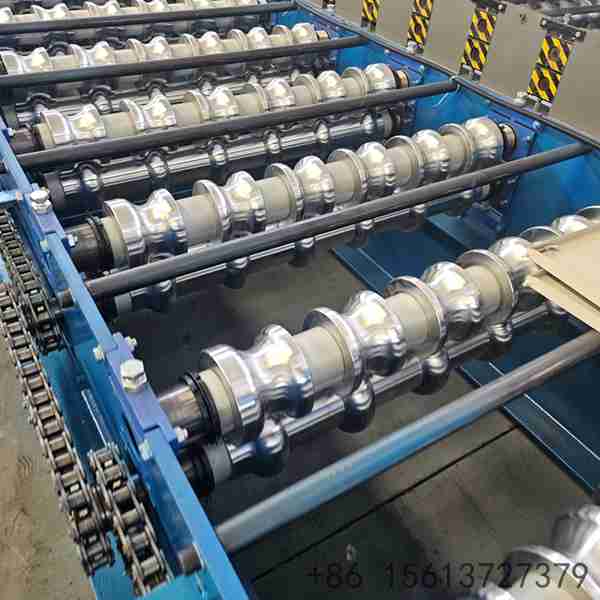

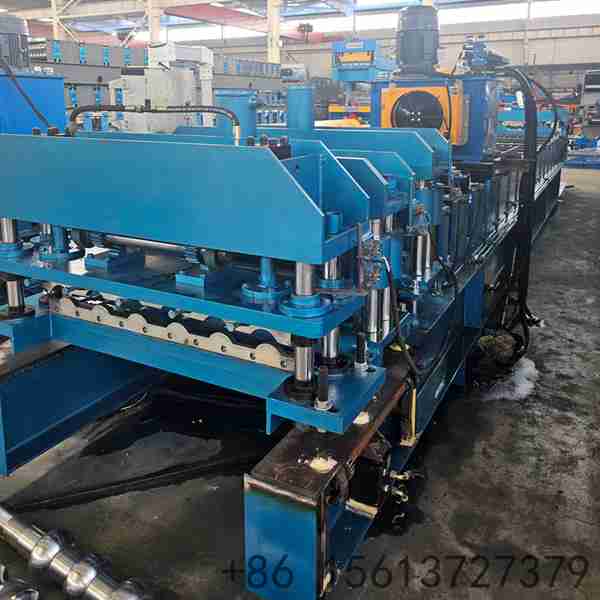

Advanced Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to mold the tile profile, ensuring an impeccable surface finish and consistent geometry across every production run.

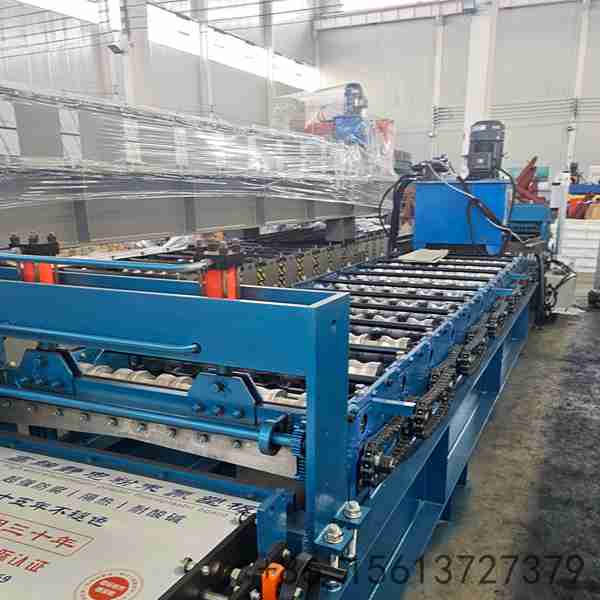

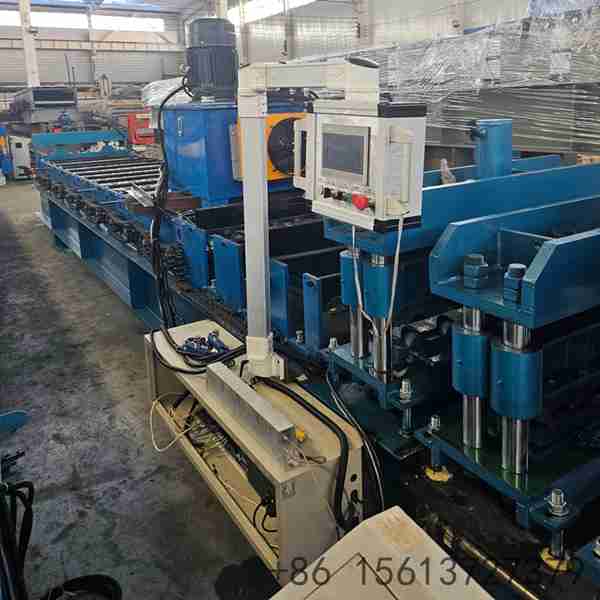

Intelligent PLC Automation: Powered by an advanced PLC (Siemens/Mitsubishi/Delta) with touch screen interface, allowing operators to easily program batch counts, tile lengths, and monitor real-time diagnostics for optimal production control.
Synchronized Hydraulic Cutting: Features a hydraulic cutting system with Cr12 mold steel blades (HRC 58-62) that tracks line speed to execute exact cuts with strict ±1-2mm tolerance and clean, burr-free edges.
The Glazed Tile Roll Forming Machine is a high-performance production solution designed for manufacturers of premium metal roofing materials. This equipment transforms color-coated, galvanized, or Aluzinc steel coils into finished glazed tiles through a highly synchronized process of decoiling, precision forming, and automated cutting.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color Coated Steel / Galvanized Steel / Aluzinc Coil |
| 2 | Material Thickness Range | 0.3 - 0.8 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Coil Width Range | 1000 / 1200 / 1250 mm (customizable) |
| 5 | Profile Type | Glazed Tile (Metal Roof Tile) |
| 6 | Forming Speed | 8 - 12 m/min (adjustable via VFD) |
| 7 | Number of Forming Stations | 11 - 17 rows |
| 8 | Main Motor Power | 3 - 7.5 kW |
| 9 | Hydraulic Station Power | 3 - 4 kW |
| 10 | Roller Material | 45# Forged Steel with Hard Chrome Plating (0.05mm) |
| 11 | Shaft Material | 45# Steel, Diameter 70-76mm, Quenched & Polished |
| 12 | Cutting Blade Material | Cr12 Mold Steel with Quenching Treatment (HRC 58-62) |
| 13 | Cutting Method | Hydraulic Post-Cutting, Automatic Stop-and-Cut |
| 14 | Control System | PLC with Touch Screen (Siemens / Mitsubishi / Delta) |
| 15 | Voltage | 380V / 50Hz / 3 Phases (customizable) |
| 16 | Machine Dimensions | Approx. 6.0m - 8.0m × 1.3m - 1.5m × 1.3m - 1.5m |
| 17 | Machine Weight | Approx. 3 - 6 Tons |
| 18 | Length Tolerance | ±1 - 2 mm |
| 19 | Decoiler Capacity | Up to 5 Tons (Manual or Hydraulic) |
| 20 | Drive Mode | Chain Transmission |
| 21 | Warranty | 12-24 Months Free Warranty + Lifetime Technical Support |
