Distinctive Bamboo Glazed Profile: Specifically engineered to produce the unique bamboo-style glazed tile profile, combining the aesthetic appeal of traditional roofing with the durability and lightweight advantages of modern metal construction.
High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame designed to withstand continuous forming stresses, ensuring zero vibration and maintaining tight dimensional tolerances during high-speed production.

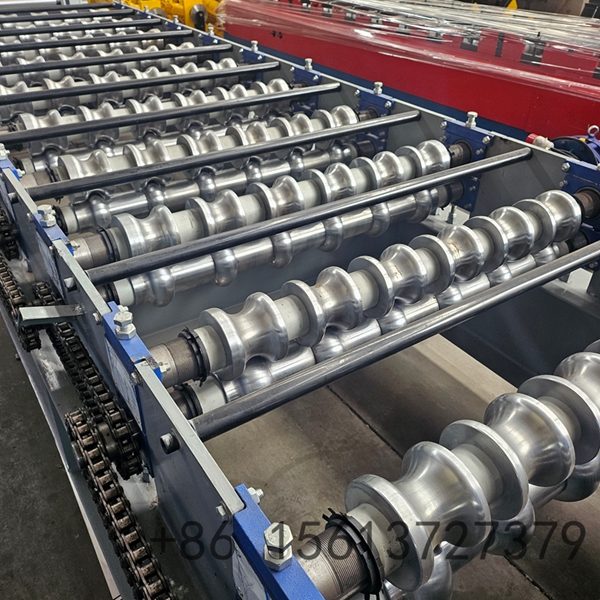

Precision Roll Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to shape the intricate glazed profile, guaranteeing a flawless surface finish and consistent panel geometry.
Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program batch counts, panel lengths, and monitor real-time system diagnostics.

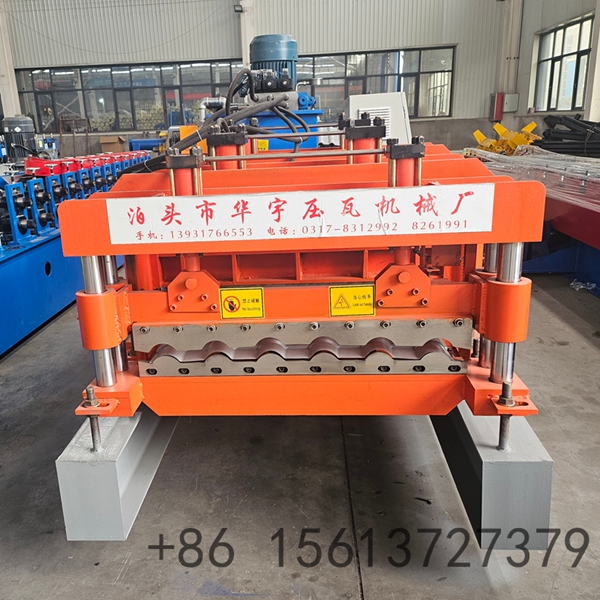

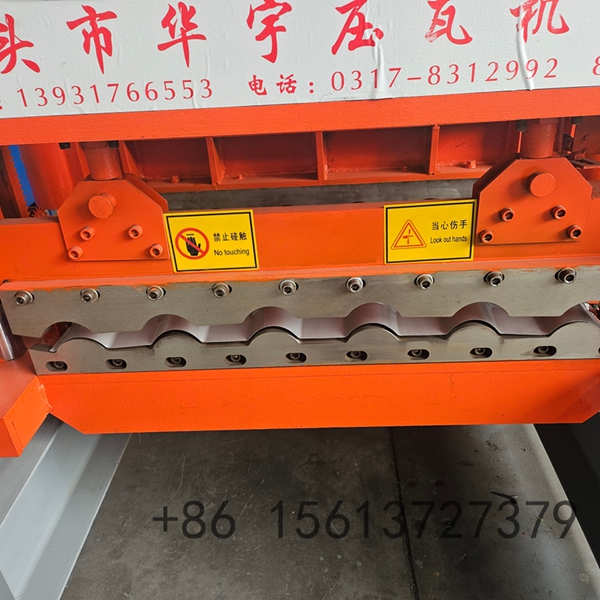

Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts panels to exact lengths with a strict ±1-2mm tolerance and clean edges.

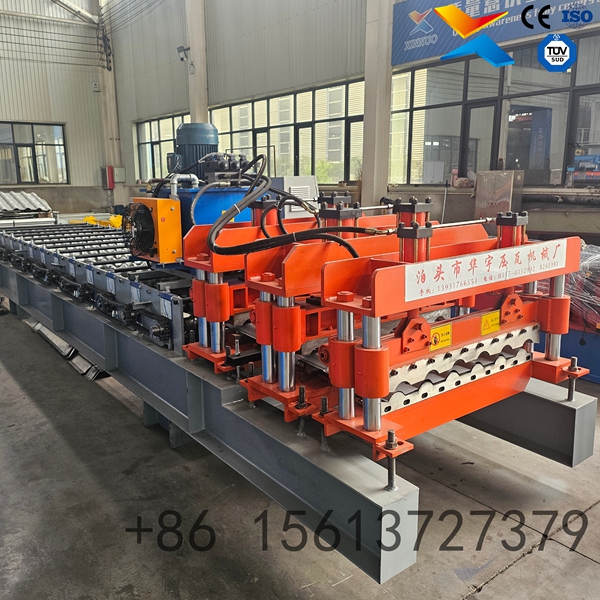

The Bamboo Glazed Roll Forming Machine is a specialized production solution designed for manufacturers seeking to create premium metal roofing with a distinctive architectural aesthetic. The bamboo glazed profile is highly sought after in residential, villa, and heritage renovation projects for its elegant, stepped appearance that mimics traditional ceramic or concrete tiles.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color steel / Galvanized steel / Aluzinc coil |
| 2 | Material Thickness Range | 0.3 - 0.8 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Coil Width Range | 1000 / 1200 / 1250 mm (customizable) |
| 5 | Profile Type | Bamboo Glazed Tile |
| 6 | Forming Speed | 8 - 12 m/min (adjustable via frequency converter) |
| 7 | Number of Roller Stations | 14 - 18 rows |
| 8 | Main Motor Power | 4 - 5.5 kW |

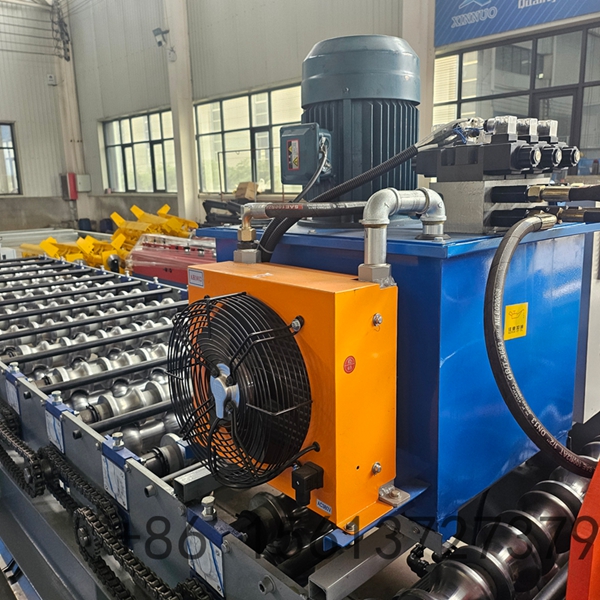

| 9 | Hydraulic Station Power | 4 - 5.5 kW |
| 10 | Roller Material | 45# forged steel with hard chrome plating (0.05mm) |
| 11 | Shaft Material | 45# / 40Cr steel, diameter 70-80mm, tempered & polished |
| 12 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |
| 13 | Cutting Method | Hydraulic post-cut, automatic pause and cut |
| 14 | Control System | PLC with touch screen (Siemens / Mitsubishi / Delta) |
| 15 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 16 | Machine Dimensions | Approx. 7m - 10m × 1.5m - 1.8m × 1.3m - 1.7m |
| 17 | Machine Weight | Approx. 5 - 9 Tons |
| 18 | Length Tolerance | ±1 - 2 mm |
| 19 | Uncoiler Capacity | Up to 5 tons (manual or hydraulic) |

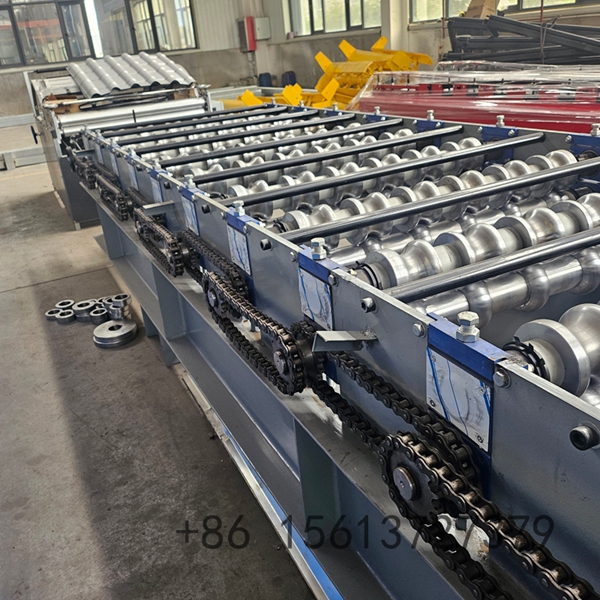

| 20 | Driving Mode | Chain transmission |
| 21 | Warranty | 12-24 months free warranty + lifelong technical support |
