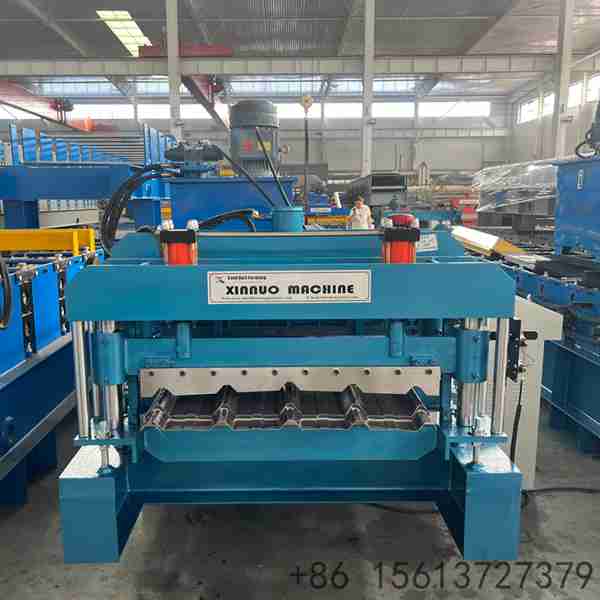

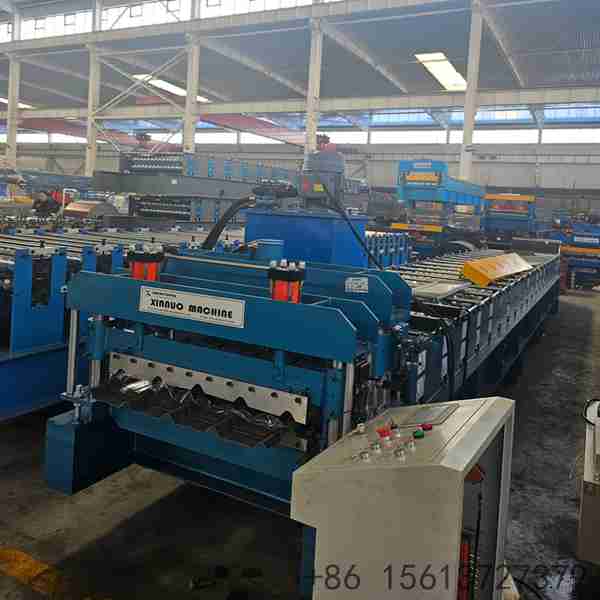

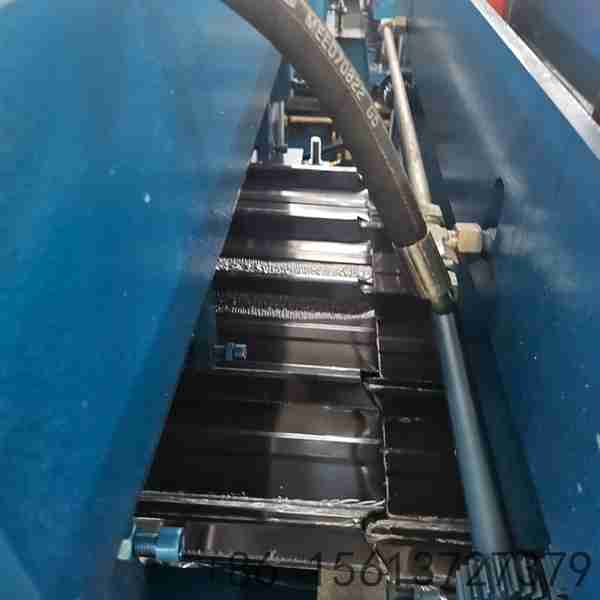

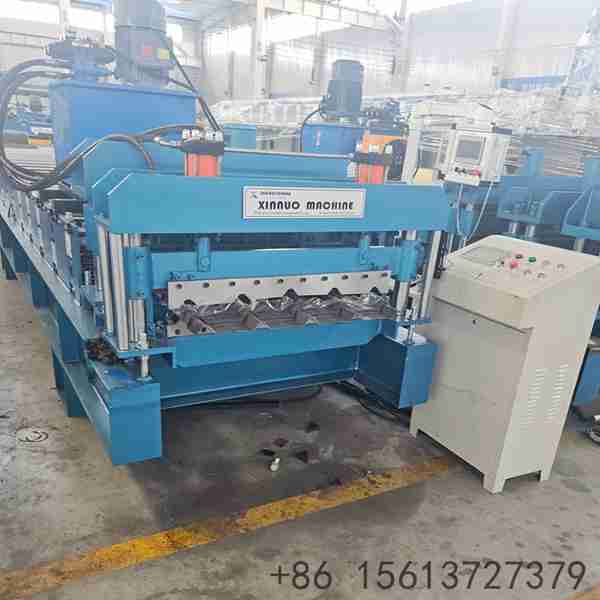

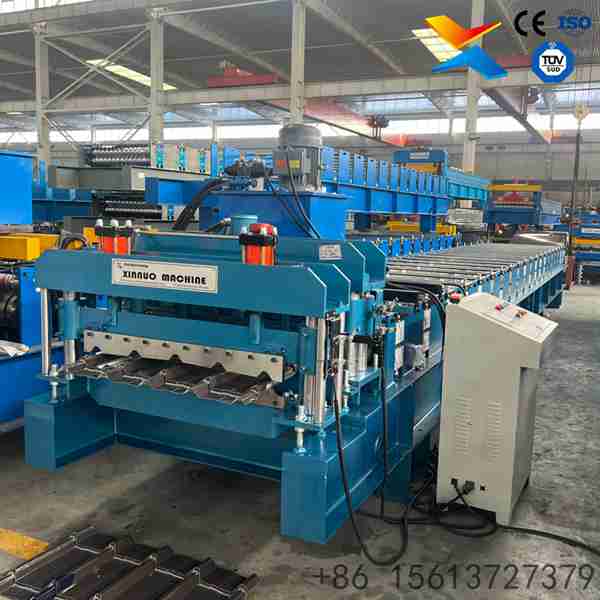

High Speed 820 Trapezoidal Roof Panel Forming Machine
Main Structure of the Machine: 350 H Steel
Weight: Approximately 5 Tons
Dimensions: 8.5m x 1.6m x 1.6m
Voltage: 380V, 50Hz, 3 Phases (Customizable upon request)
Certificate: CE / ISO
Customization: Available according to customer's requirements
Product Briefing
High-Throughput Servo Logic: Features a specialized servo-driven hydraulic station to minimize stamping dwell time and maximize hourly output.
Rapid Industrial Capacity: Engineered to achieve significantly higher production speeds than standard models for high-volume manufacturing.
Gearbox Drive Architecture: Utilizes a precision gearbox transmission system for smooth, high-torque power delivery at maximum speeds.

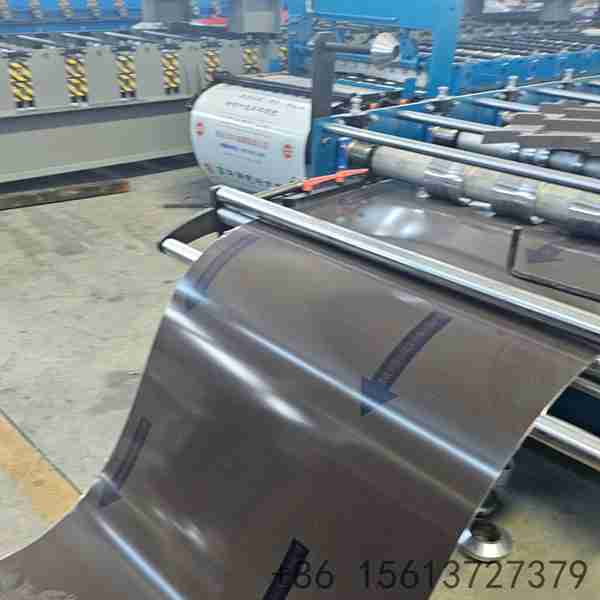

Advanced Smart PLC Suite: Integrated high-end PLC with real-time diagnostics and cloud-ready batch tasking for 24/7 industrial operation.

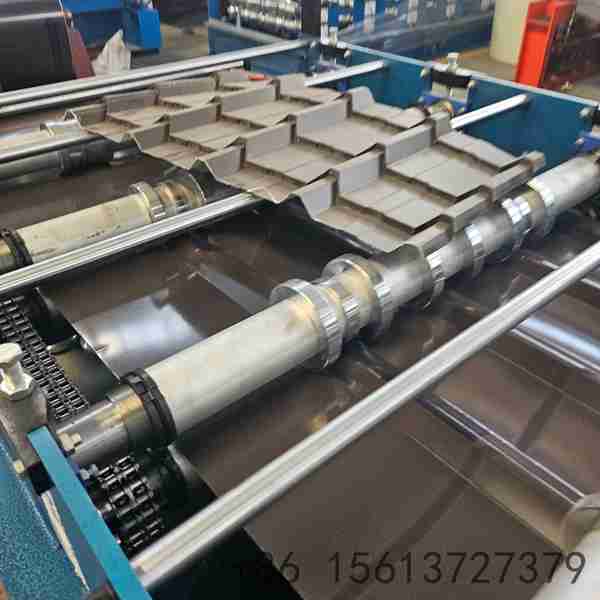

Reinforced Heavy-Duty Frame: Built on an extra-heavy 400H beam base to eliminate vibration during high-speed industrial cycles.
5. Detailed Description
Technical Parameters
| Feature | Technical Specification |
|---|---|
| Capacity Category | High-Speed Industrial (Capacity Focused) |
| Production Speed | 5m - 8m Per Minute (Glazed Tile Speed with Stamping) |
| Drive Technology | Precision Gearbox / 1.2 Inch Double-Row Chain |
| Effective Width | 820mm (Effective Coverage) |

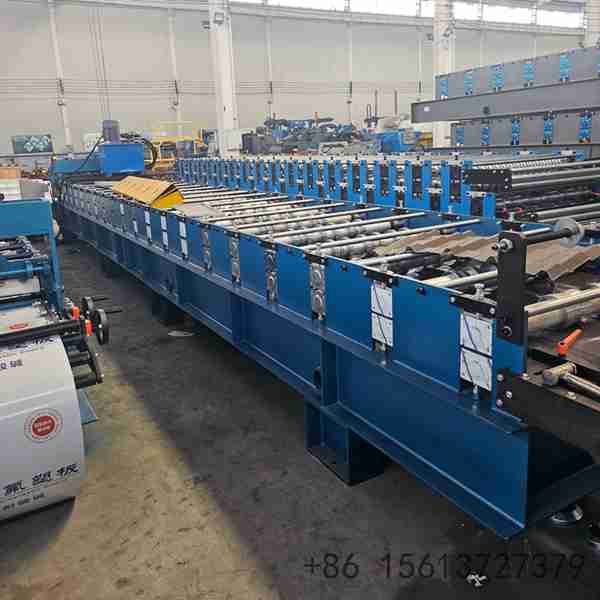

| Forming Stations | 13 - 15 Rows (Optimized for High-Speed Stability) |

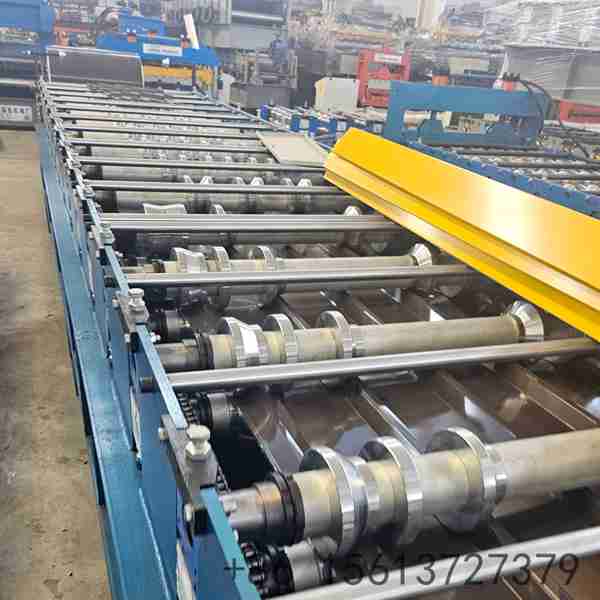

| Shaft Diameter | Φ80mm - Φ85mm Solid Induction Hardened Shafts |

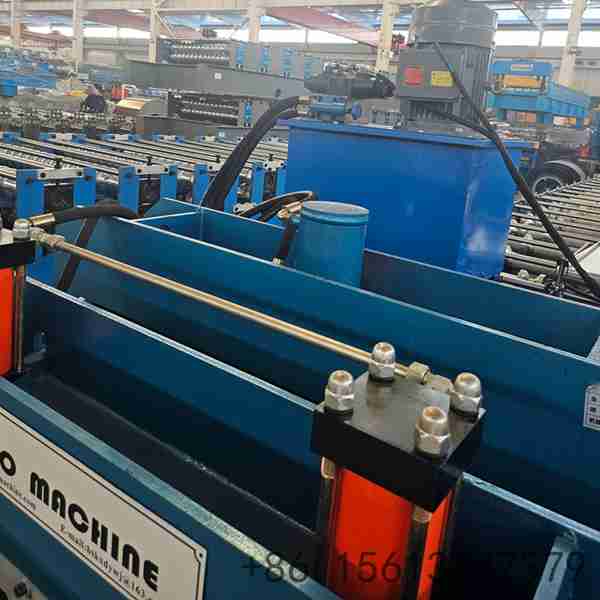

| Hydraulic Station | Servo-Driven High-Speed Pump (11KW - 15KW) |
| Motor Power | 7.5KW - 11KW Industrial Motor with Inverter |
| Control System | High-End Smart PLC (Siemens / Mitsubishi / Schneider) |
| Cutting Accuracy | ±1.0mm (Synchronized at High Speed) |
Unique Technical Advantages
Dynamic Speed Modulation: The system uses frequency inverters and servo logic to smoothly accelerate and decelerate, preventing material slippage even at maximum throughput.
Rapid Stamping Cycle: Our specialized servo-hydraulic valve technology reduces the tile stamping time by 30% compared to traditional hydraulic systems.
Oversized Mechanical Bearings: Equipped with heavy-duty tapered roller bearings on all drive shafts to handle the thermal and mechanical stress of continuous high-volume production.
Integrated Oil-Cooling Hub: The hydraulic station includes an independent cooling system to ensure stable cutting pressure during intensive, long-shift operations.
