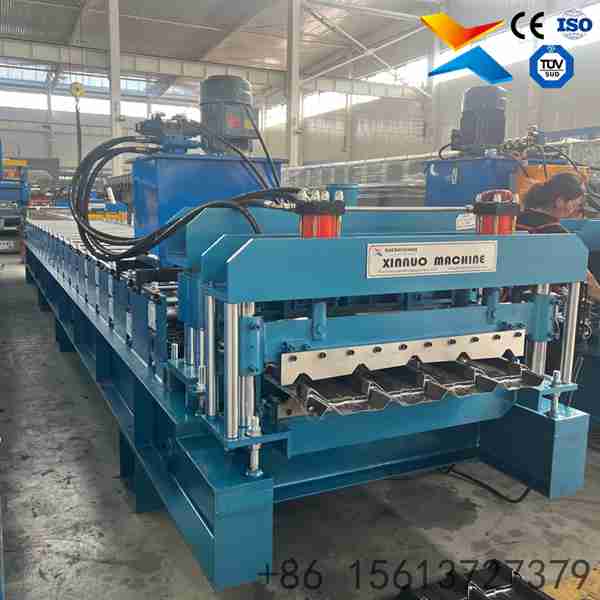

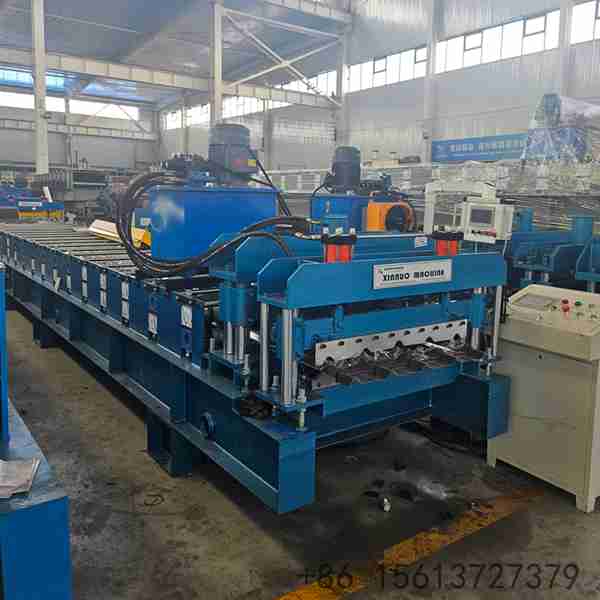

820 Trapezoidal Glazed Tile Roll Forming Machine
Main Structure of the Machine: 350 H Steel
Weight: Approximately 5 Tons
Dimensions: 8.5m x 1.6m x 1.6m
Voltage: 380V, 50Hz, 3 Phases (Customizable upon request)
Certificate: CE / ISO
Customization: Available according to customer's requirements
Product Briefing
Classic 820 Profile Precision: Specifically engineered to produce trapezoidal glazed tiles with an 820mm effective width for optimal roof coverage.

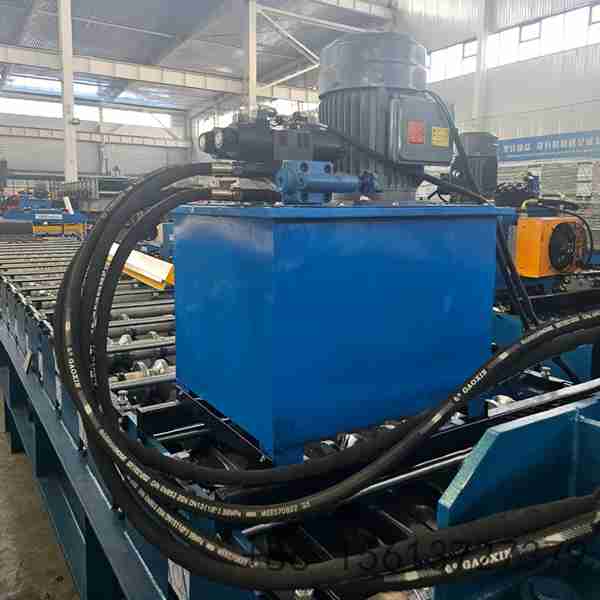

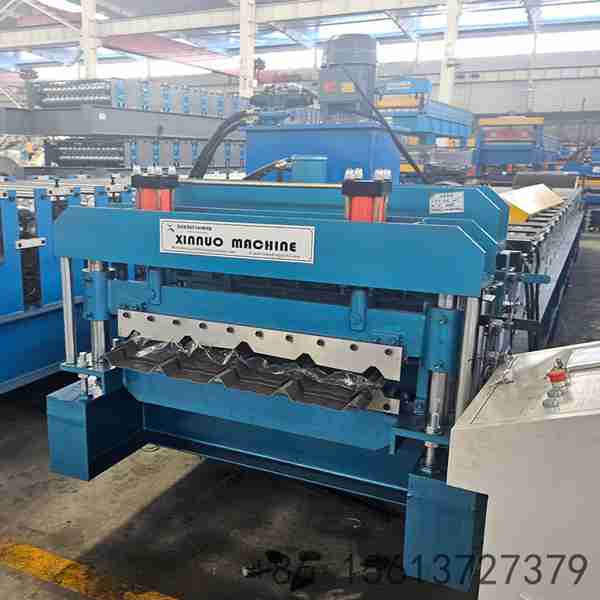

Integrated Stamping Station: Features an automated hydraulic pressing unit to create the distinct "stepped" look of traditional glazed tiles.

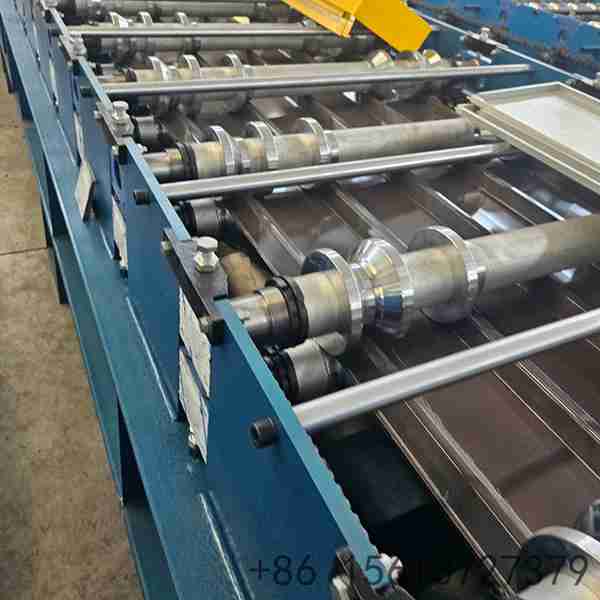

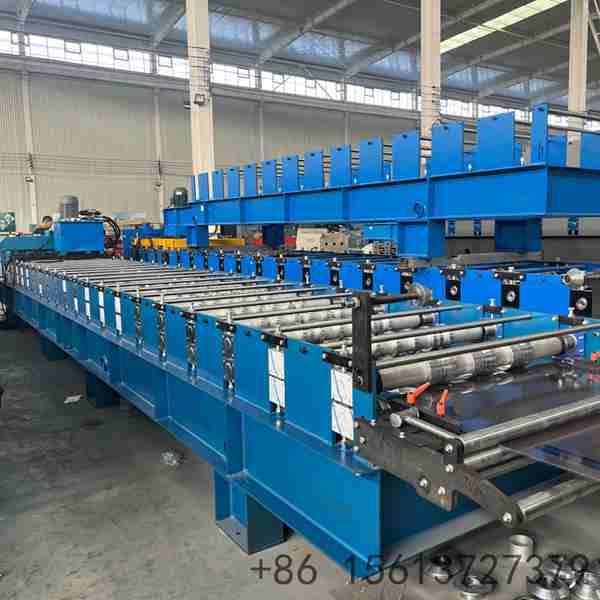

Heavy-Duty Roller Engineering: Rollers are manufactured from premium 45# forged steel, precision CNC-machined, and hard-chrome plated for superior wear resistance.
Intelligent PLC Automation: Features a centralized control system that manages feeding, forming, stamping, and cutting with minimal operator intervention.

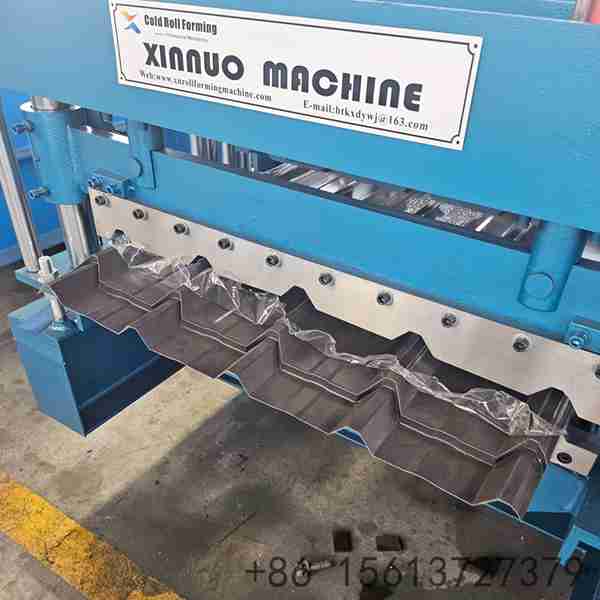

Synchronized Hydraulic Cutting: Integrated high-pressure post-forming cutting mechanism delivers clean, burr-free edges for every finished metal tile.
5. Detailed Description
Technical Parameters
| Feature | Technical Specification |
|---|---|
| Profile Type | 820 Trapezoidal Glazed Tile |
| Material Thickness | 0.3mm - 0.8mm (Customizable) |
| Effective Width | 820mm (Feeding Width: 1000mm) |
| Step Distance | 200mm - 400mm (Adjustable via PLC) |
| Forming Stations | 9 - 13 Rows (Optimized for Glazed Profile) |
| Shaft Diameter | Φ70mm - Φ75mm Solid Induction Hardened Shafts |
| Drive Method | High-Strength 1.0 Inch Double-Row Chain |
| Main Motor Power | 4.0KW / 5.5KW High-Efficiency Motor |
| Stamping Station | Hydraulic Pressing Unit (Integrated) |
| Control System | Industrial PLC (Siemens / Mitsubishi / Delta) |
Unique Technical Advantages

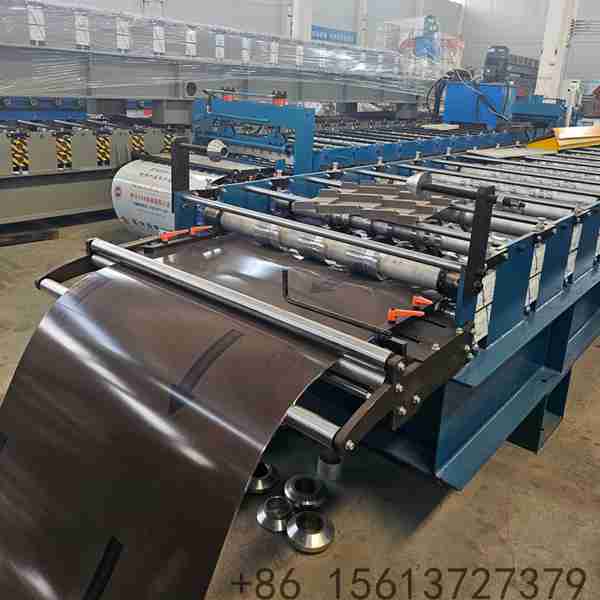

Anti-Scratch Forming Sequence: Our proprietary roller design incorporates specialized surface protection to ensure that pre-painted color coils are formed without any paint damage.
Seamless Step Transitions: The hydraulic stamping unit is synchronized with the forming speed to ensure that each tile step is perfectly aligned and aesthetically uniform.

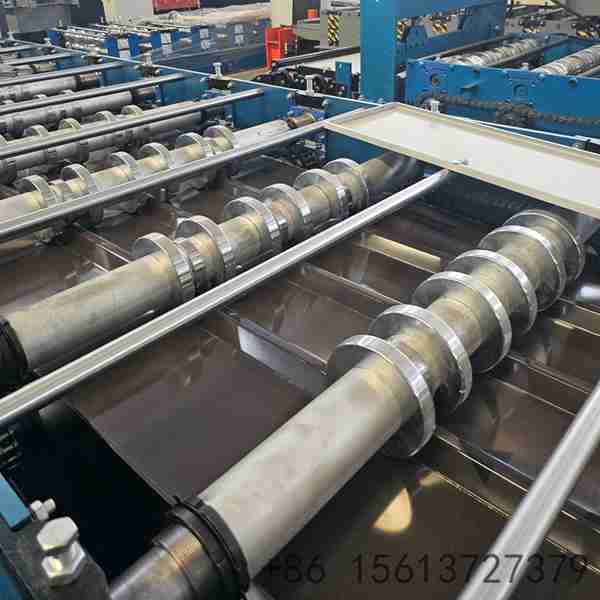

Reinforced Frame Stability: The machine base is constructed from oversized H-beam steel with vibration-damping mounts, ensuring long-term mechanical alignment.

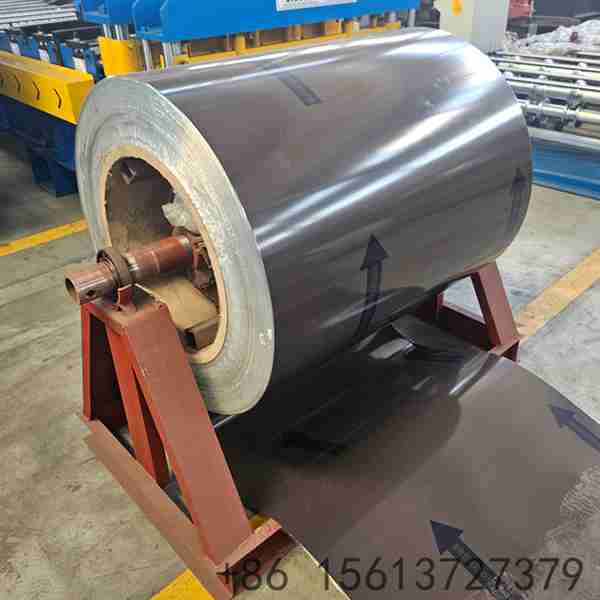

Universal Material Compatibility: Optimized for processing diverse coils including galvanized steel, Galvalume, and pre-painted metal for global roofing standards.
