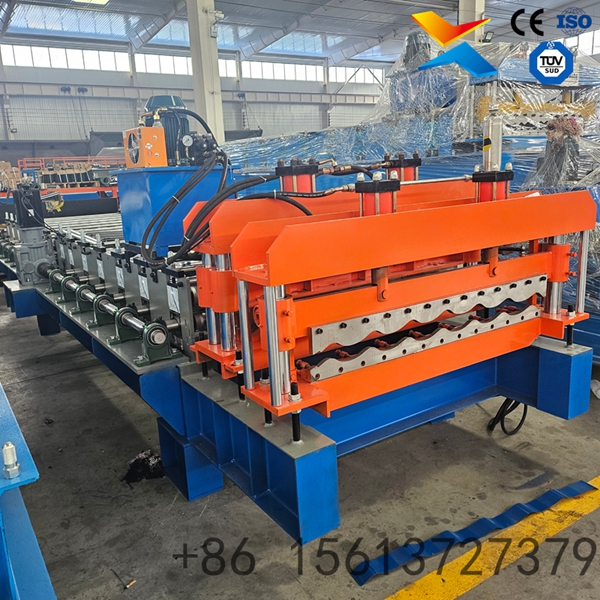

830 Glazed Tile Roofing Sheet Forming Machine

830 Glazed Tile Roofing Sheet Forming Machine

Product Attributes :

1	Main structure of the machine	350 H steel
2	Weight	About 5T
3	Dimensions	8.51.61.6m
4	Voltage	380V 50Hz 3phases(changeable as needs)
5	Certificate	CE/ISO
6	Custom	According to customer's requirements

Product Description

Product Introduction:

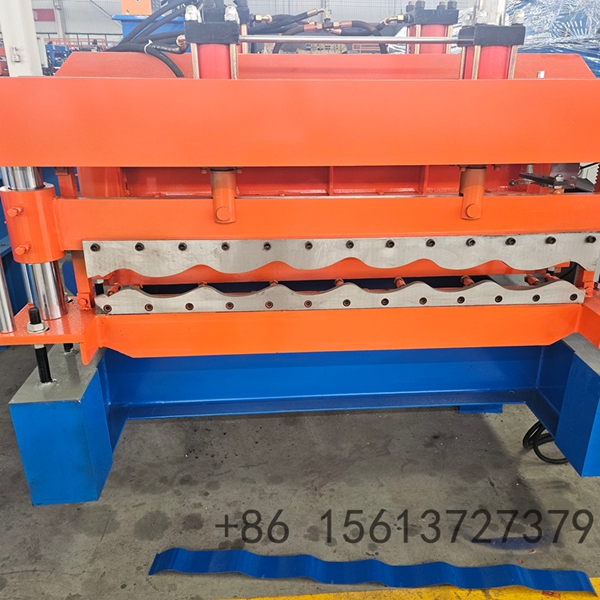

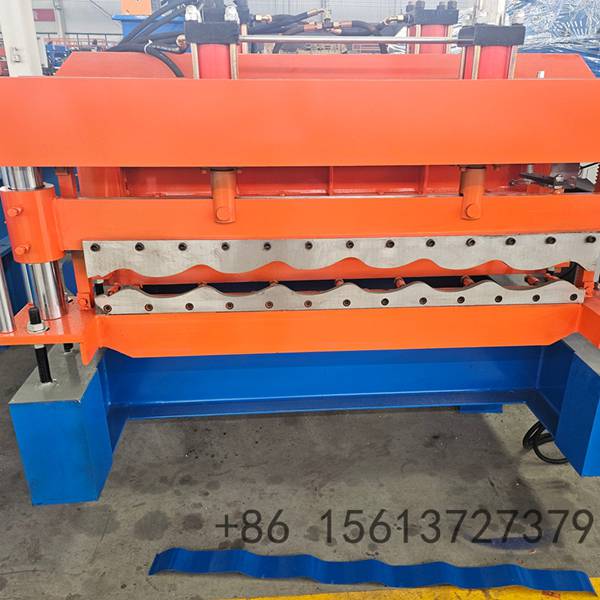

Classic Glazed Appearance: Utilizes advanced hydraulic pressing technology to create elegant, traditional glazed tile patterns that enhance the aesthetic appeal of residential and commercial roofs.

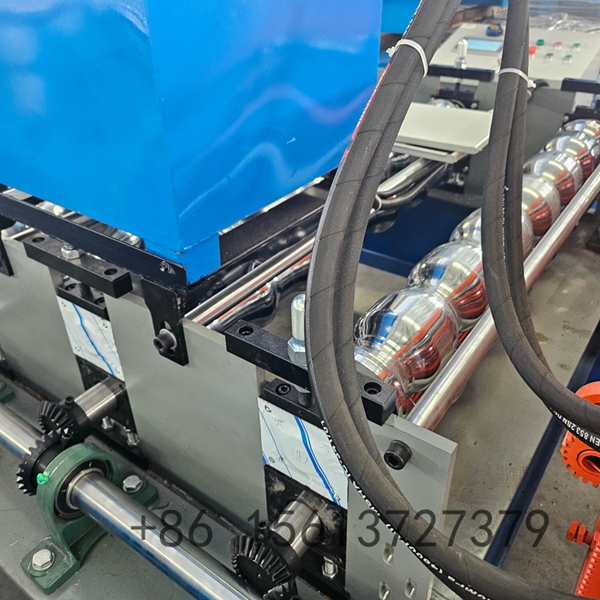

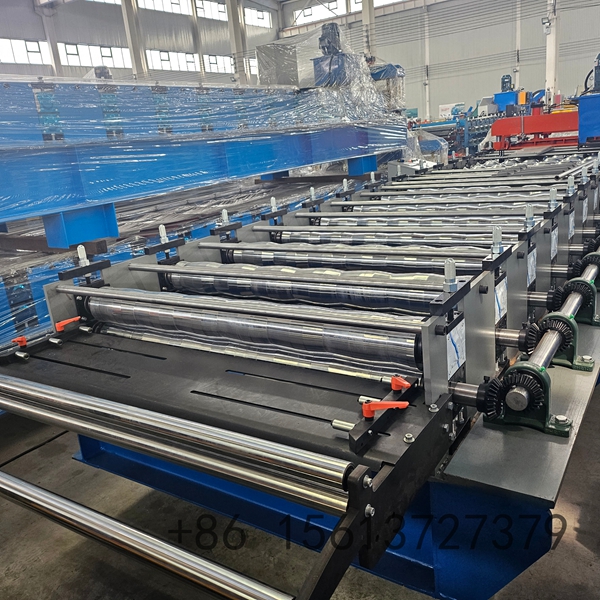

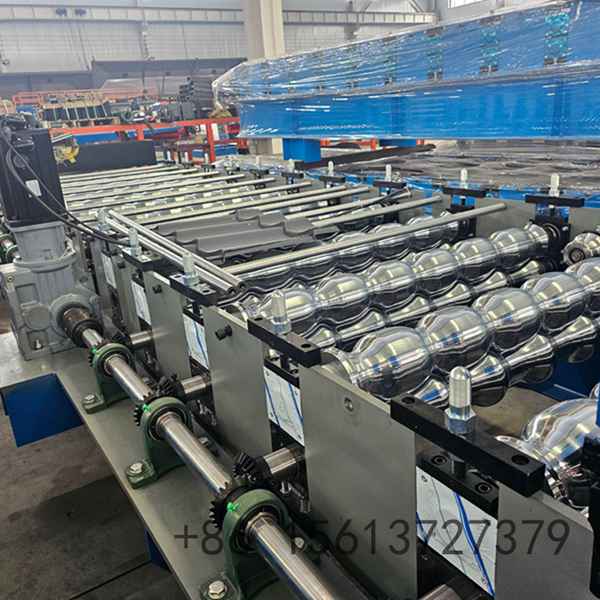

High-Precision Roll Forming: Features high-grade 45# forged steel rollers with hard chrome plating, ensuring consistent 830 profile dimensions and smooth panel surfaces.
PLC Intelligent Control: Equipped with imported brand PLC and touch screen interface for easy operation, accurate length measurement, and reliable automatic continuous production.

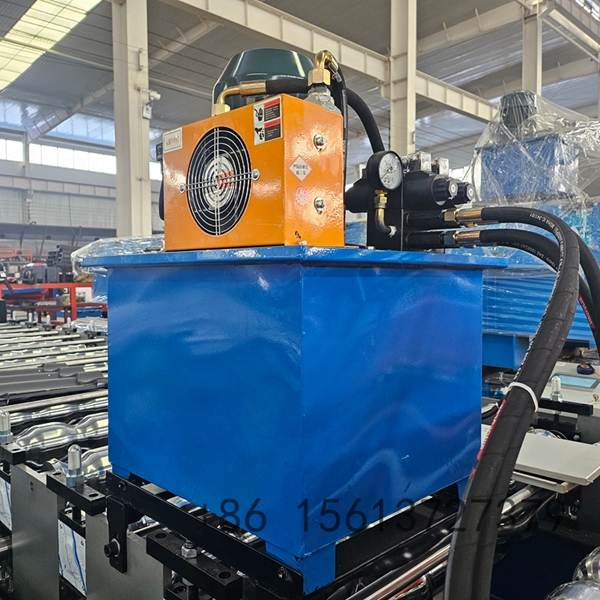

Automatic Hydraulic Cutting: Uses Cr12 mould steel cutting blades quenched for hardness, providing precise length-set cutting with minimal tolerance (±1-2mm).
Durable Machine Construction: Built with a heavy-duty welded steel frame and high-strength shafts to ensure stable, vibration-free operation during continuous production.

Product Description & Parameters:

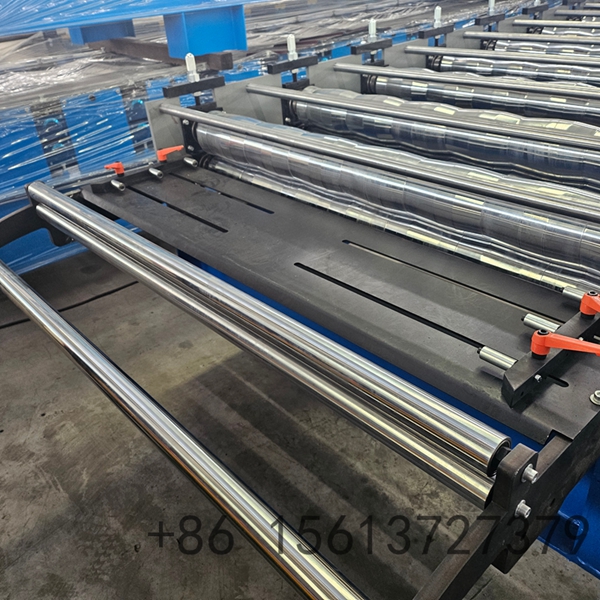

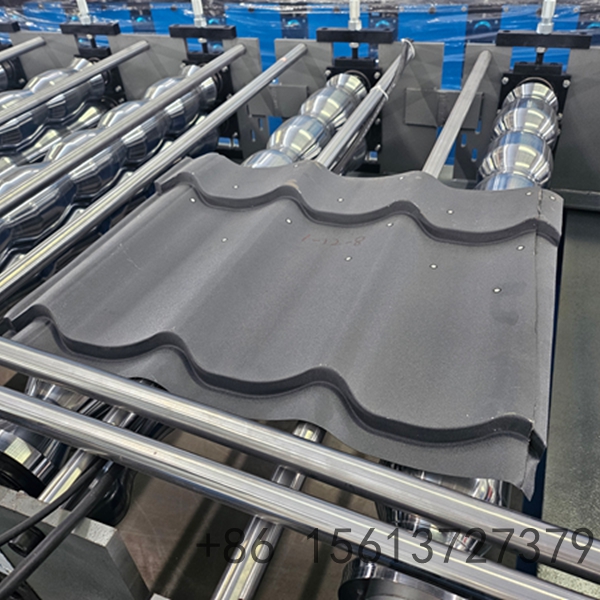

The 830 Glazed Tile Roofing Sheet Forming Machine is a specialized cold roll forming equipment designed for manufacturing elegant metal roof panels with a classic glazed finish. Widely used in villas, hotels, exhibition halls, and residential construction, this machine processes color-coated galvanized or galvalume coils into beautiful, durable roofing sheets. The production line integrates decoiling, guiding, roll forming, hydraulic pressing, length measuring, and automatic cutting into a seamless system that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and consistent forming quality.

No.	Item	Parameter
1	Suitable to process	Color steel plate
2	Width of the plate	914mm/1000mm/1200mm/1220mm/1250mm
3	Thickness of the plate	0.3-0.8mm
4	De-coiler	Manual one, can load 5 tons raw material
5	Rollers for forming	21+13 rows
6	Diameter of the roller	80mm
7	Rolling material	Carbon Steel 45#
8	Main motor power	5.5kw
9	Material of the cutting blade	Cr12 mov
10	Hydraulic cutting power	4kw
11	Processing precision	Within 1.00mm
12	Control system	Delta PLC control
13	Side panel of machine	16mm
