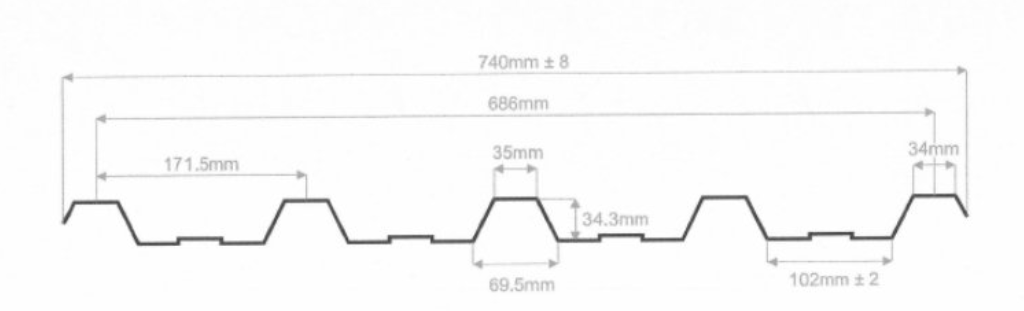

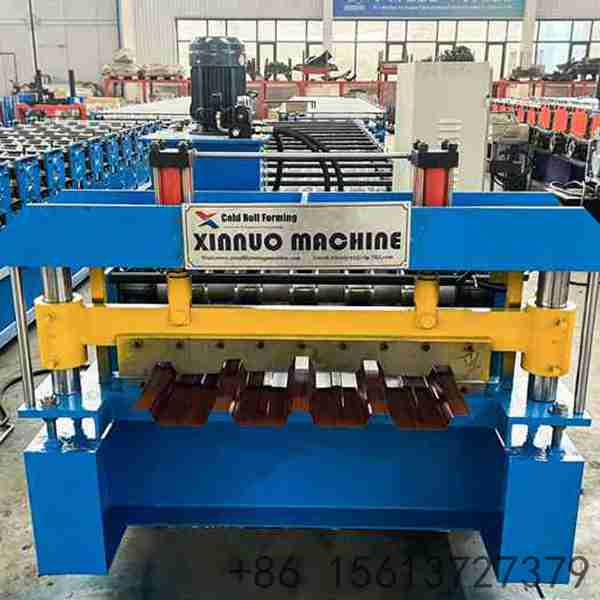

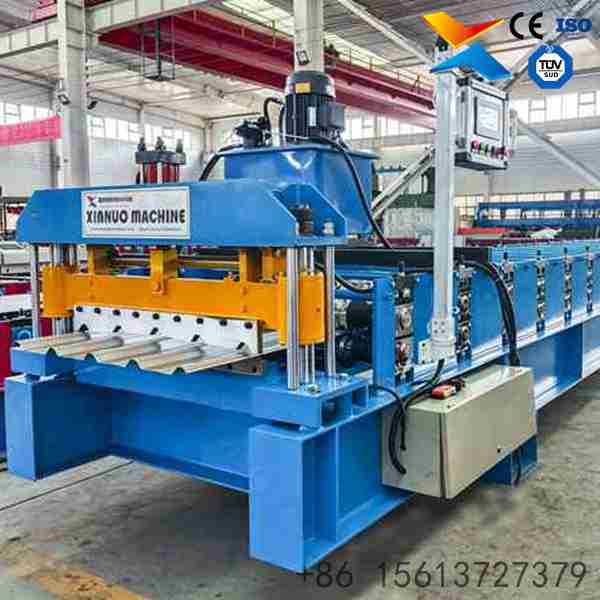

686 IBR Profile: 5 trapezoidal ribs at 171.5mm pitch, 686mm effective width.
Standard Roofing Match: Profile suits common IBR industrial and warehouse roofing layouts.
Low Coil Waste: 925mm feed width matches the profile with limited offcut.
Stable Long Forming: 350H frame, 16mm middle plate and hardened shafts.

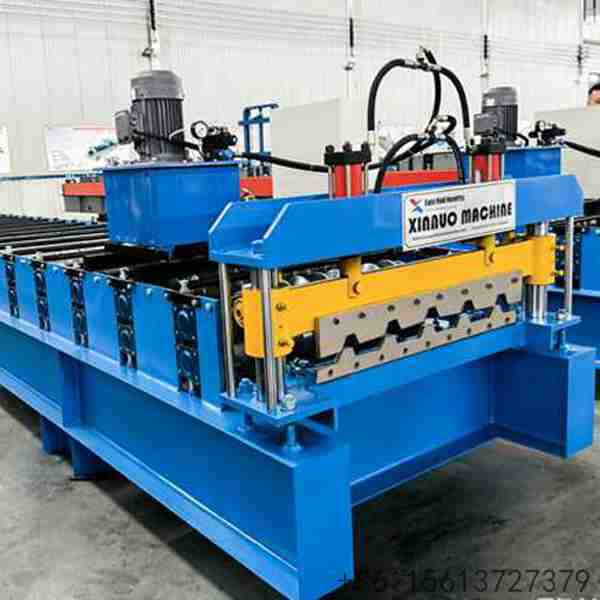

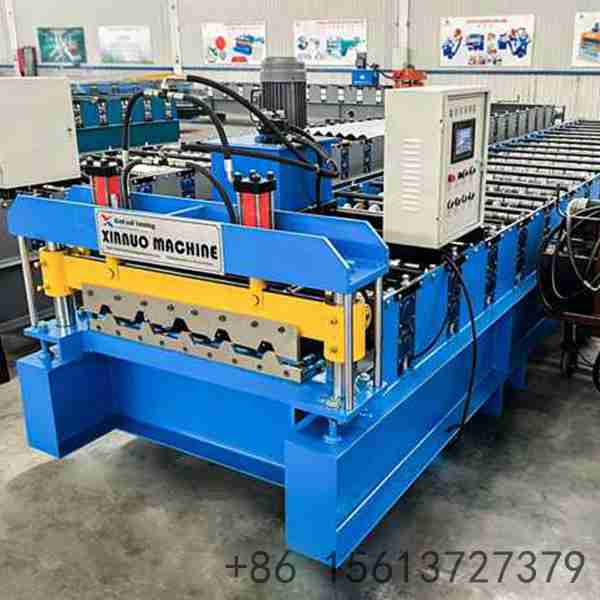

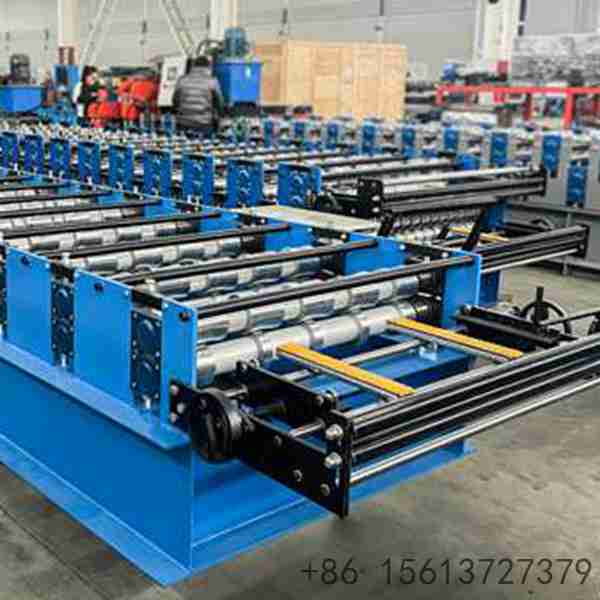

Proven Forming Train: 21 progressive stations hold rib height and clean edges.

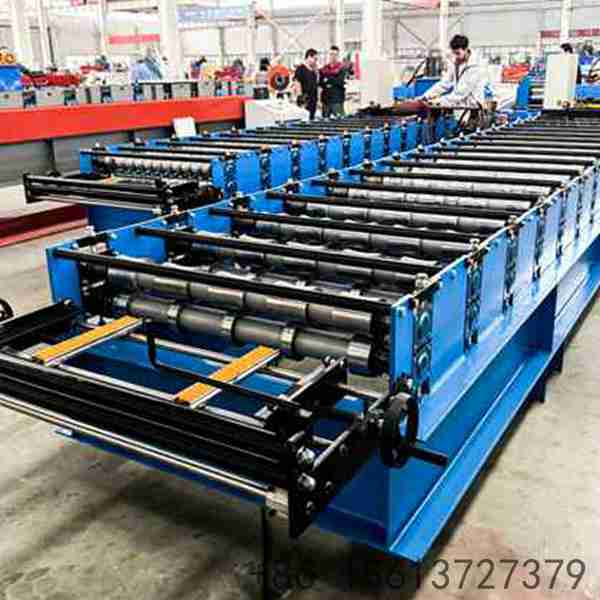

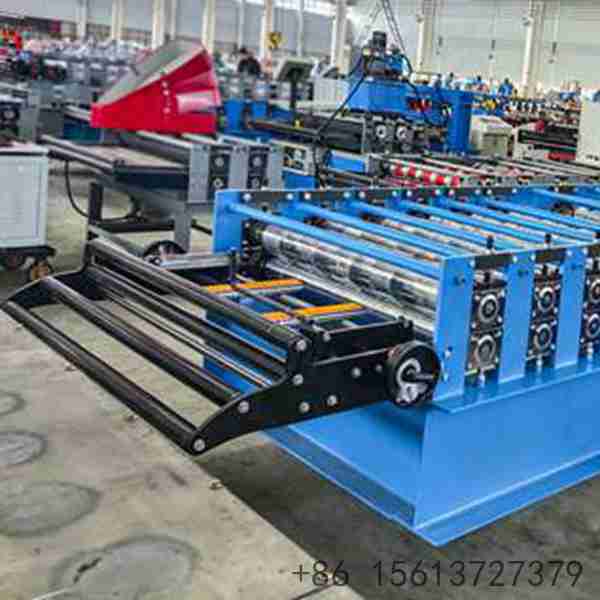

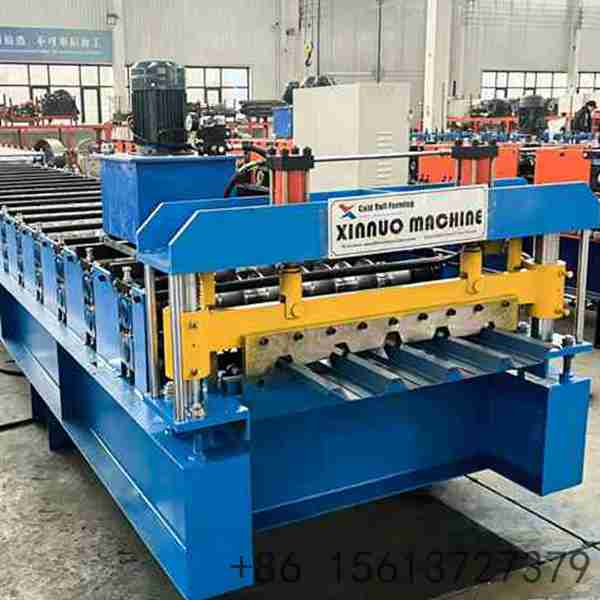

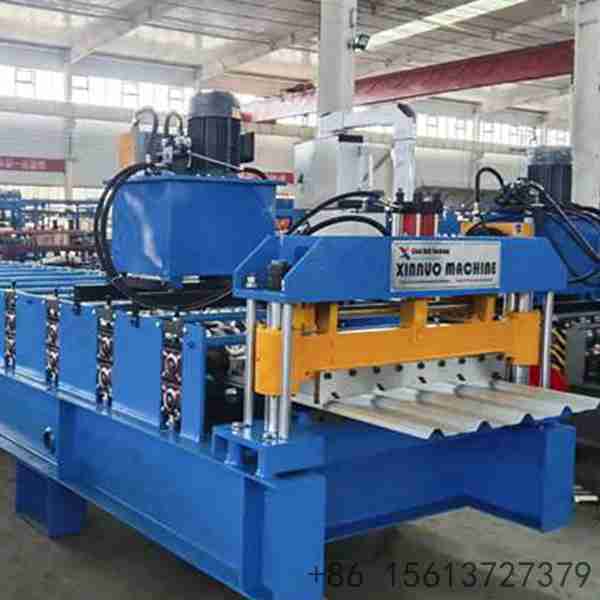

Automatic Control: Hydraulic cutting with PLC length setting and simple roller adjustment.
Single Factory Supply: Machine, cutting, control, installation and training support from one supplier.
| Component | Specification |
|---|---|
| Profile | 686 IBR trapezoidal panel, 5 ribs, 171.5mm pitch |
| Rib height | 34.3 mm |
| Effective width | 686 mm |
| Feed width | 925 mm |
| Sheet thickness | Customizable per roofing spec |
| Forming rows | 21 |
| Frame | 350H |
| Middle plate | 16 mm |
| Shafts | 80 mm, hardened |
| Main motor | 5.5 KW |
| Transmission | Two strand double row chain drive |
| Coil types | Galvanized / aluminum zinc / prepainted colored steel |
| Optional | Hydraulic cutting with PLC control, coil car, automatic stacker |

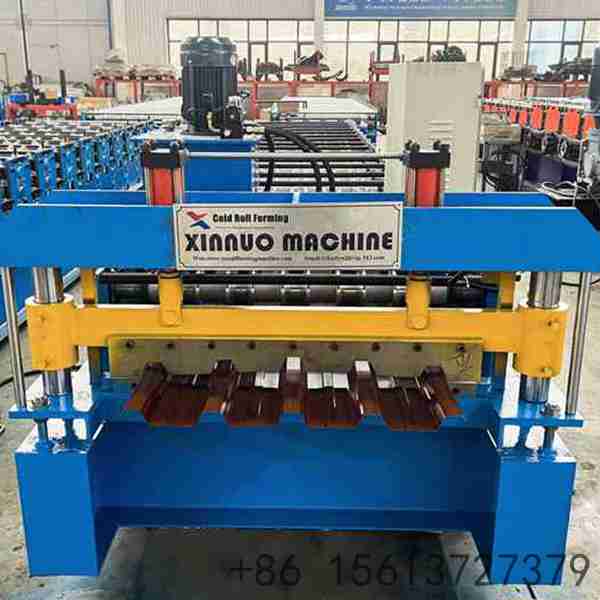

IBR Matched Profile: 5 ribs at 171.5mm pitch for standard roofing coverage.
Low Material Waste: 925mm feed width keeps offcut low on every coil.
Rigid Machine Body: 350H frame with 16mm middle plate limits deflection.
Hardened Tooling: 80mm hardened shafts hold rib accuracy over long runs.
Consistent Ribs: 21 forming stations build the trapezoidal shape gradually.
Automatic Cutting: Hydraulic shear with PLC length setting for repeatable panels.
Single Supplier: Machine, cutting, control and service from one factory.
