Made To Your Sheet: Profile details, coil width and panel length set before production.
Upward Expandable: Six rib 770mm cover leaves room to add a second profile later.

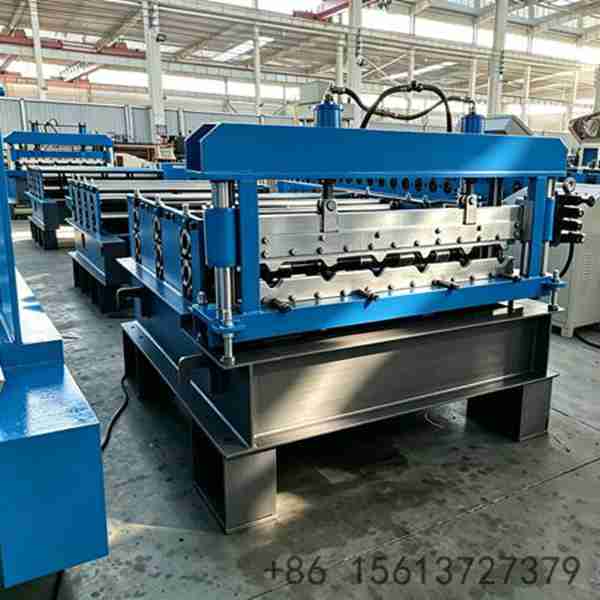

Line Level Supply: Uncoiler, forming, cutting, PLC control and stacking as one set.
Re-settable Rollers: Roller groups can be re-set when the profile changes.
Steady On Thick Coil: 350H frame and hardened shafts hold the section stable.
Project Support: Layout drawings, OEM branding and voltage matching for your market.
Training Included: Factory or online training plus spare parts list on delivery.
| Component | Specification |
|---|---|

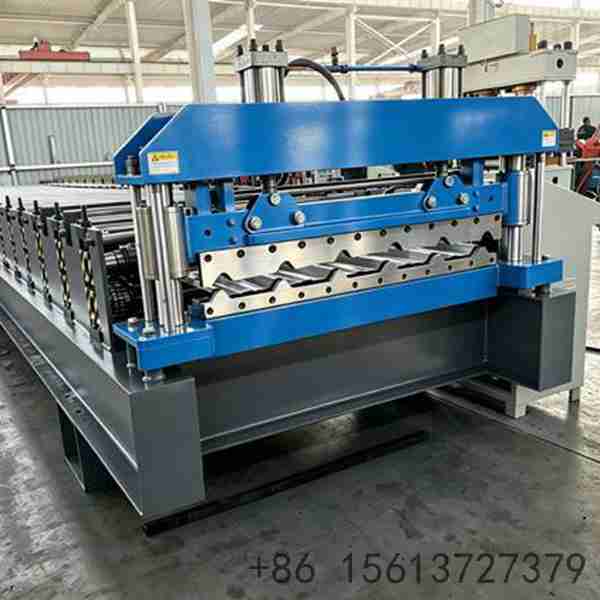

| Profile | 770 six rib trapezoidal panel, 6 ribs, 154mm pitch, customized on request |
| Rib height | 28 mm |
| Effective width | 770 mm |
| Feed width | 1000 mm, other coil widths on request |
| Sheet thickness | As agreed to your roofing requirement |

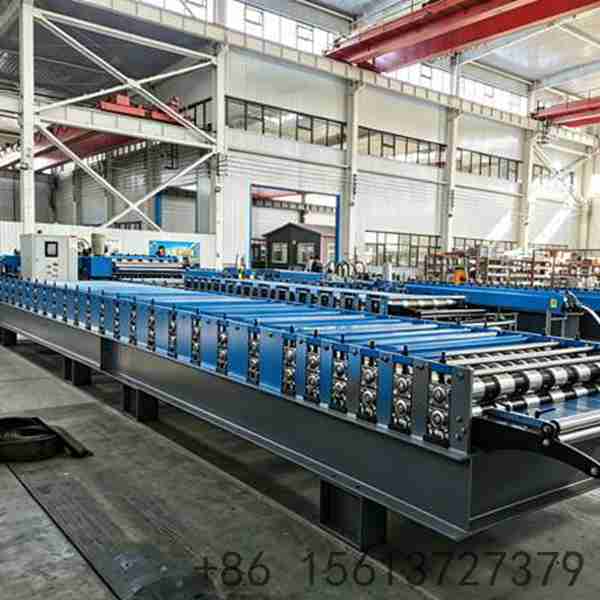

| Forming rows | 18 |
| Frame | 350H |
| Shafts | 75 mm, hardened |
| Main motor | 5.5 KW |
| Transmission | Two strand double row chain drive |
| Coil types | Prepainted colored / galvanized / aluminum zinc coated steel |

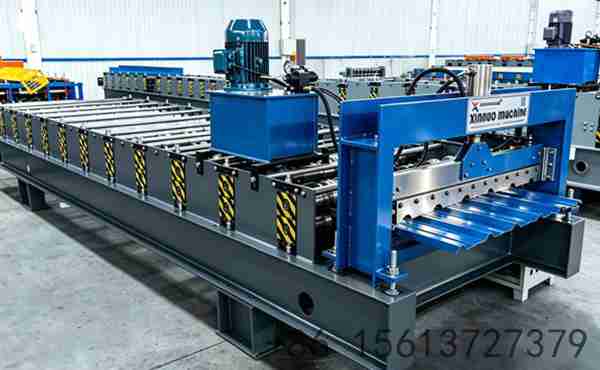

| Line scope | Uncoiler, forming section, cutting unit, PLC control, stacking |
Built To Drawing: Profile, coil width and panel length agreed before production.
Room To Grow: Six rib 770mm cover allows a second profile to be added later.
One Coordinated Line: Uncoiler, forming, cutting and stacking supplied together.
Re-settable Rollers: Roller groups adjust when the profile changes.
Stable On Thick Coil: 350H frame and 75mm shafts limit deflection.
Layout Ready: Floor plan drawings provided for the installation team.
OEM And Voltage: Branding, drawings and power supply matched to your market.
