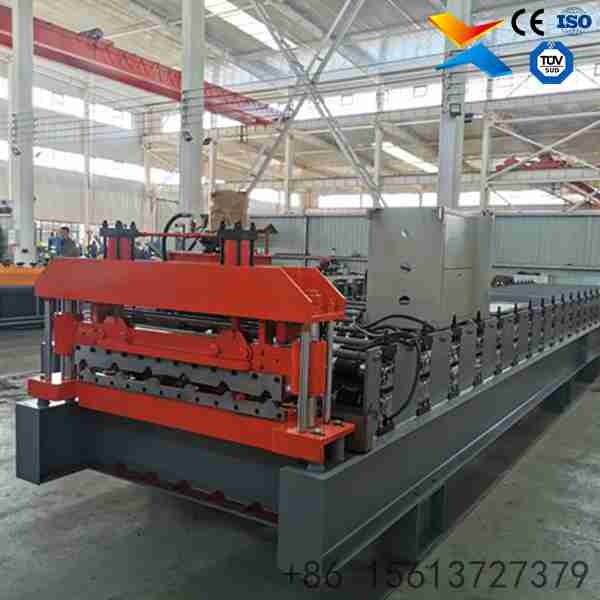

770 Six Rib Profile: 6 trapezoidal ribs at 154mm pitch, 770mm effective cover.
Extra Rigidity: One more rib than five rib sheets gives stiffer roof and wall panels.
Standard Export Build: Proven 18 station configuration for everyday panel output.

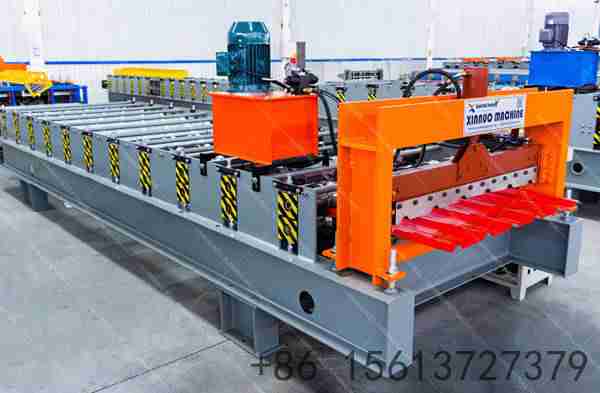

Low Coil Waste: 1000mm feed width matches the profile with limited offcut.
Stable Long Forming: 350H frame and 75mm shafts hold rib accuracy.
Automatic Control: Hydraulic cutting with PLC length setting and simple roller adjustment.
Single Factory Supply: Machine, cutting, control, installation and training support from one supplier.
| Component | Specification |
|---|---|
| Profile | 770 six rib trapezoidal panel, 6 ribs, 154mm pitch |
| Rib height | 28 mm |
| Effective width | 770 mm |
| Feed width | 1000 mm |
| Sheet thickness | Customizable per roofing spec |
| Forming rows | 18 |
| Frame | 350H |
| Shafts | 75 mm, hardened |
| Main motor | 5.5 KW |
| Transmission | Two strand double row chain drive |
| Coil types | Prepainted colored / galvanized / aluminum zinc coated steel |
| Optional | Hydraulic cutting with PLC control, coil car, automatic stacker |

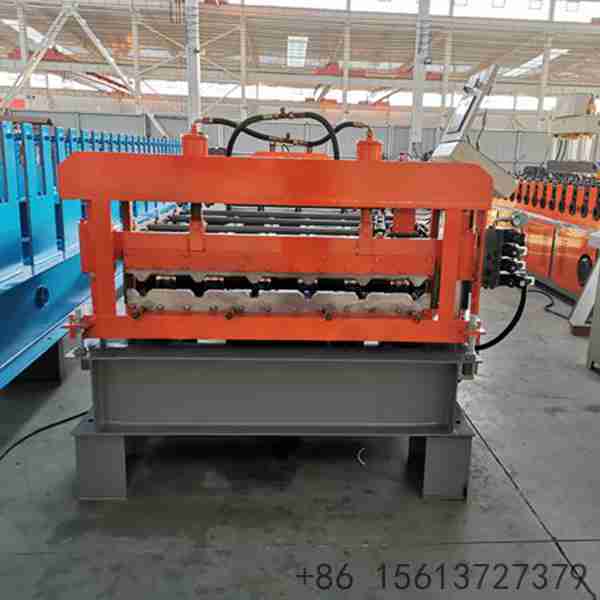

Six Rib Coverage: 6 ribs at 154mm pitch over 770mm of effective cover.
Stiffer Panel: The extra rib raises rigidity for low pitch and wide span roofs.
Low Material Waste: 1000mm feed width keeps offcut low on every coil.
Rigid Machine Body: 350H welded frame limits deflection during forming.

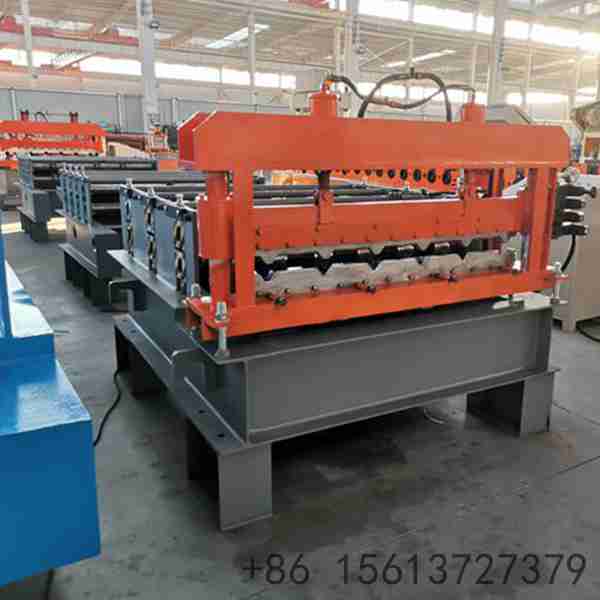

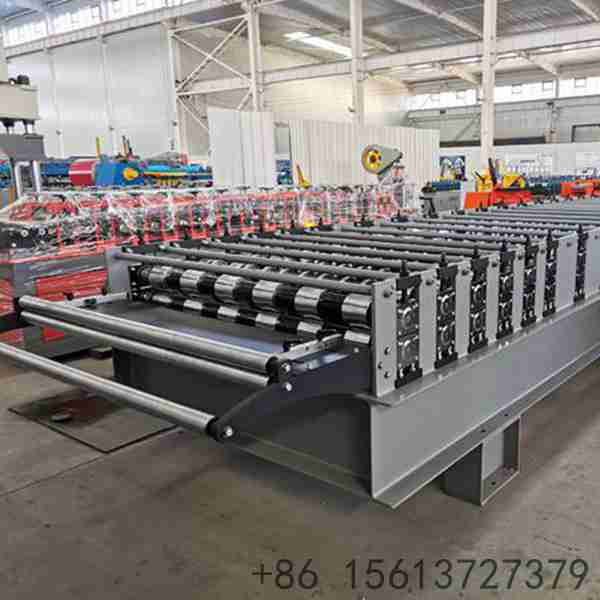

Consistent Ribs: 18 progressive stations build the trapezoidal shape gradually.

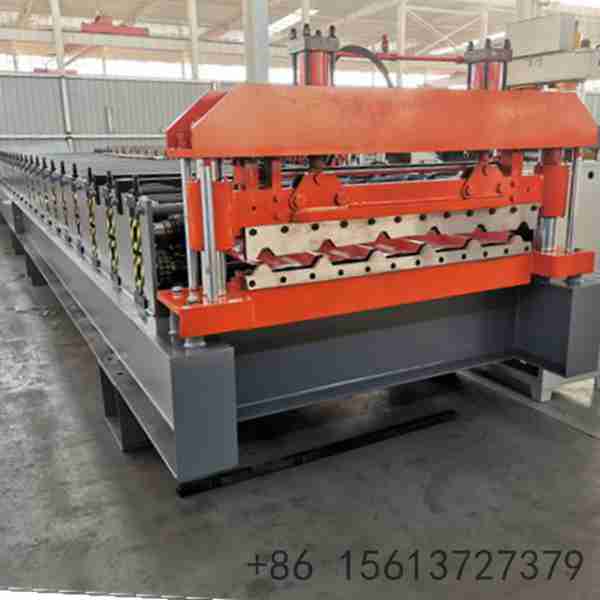

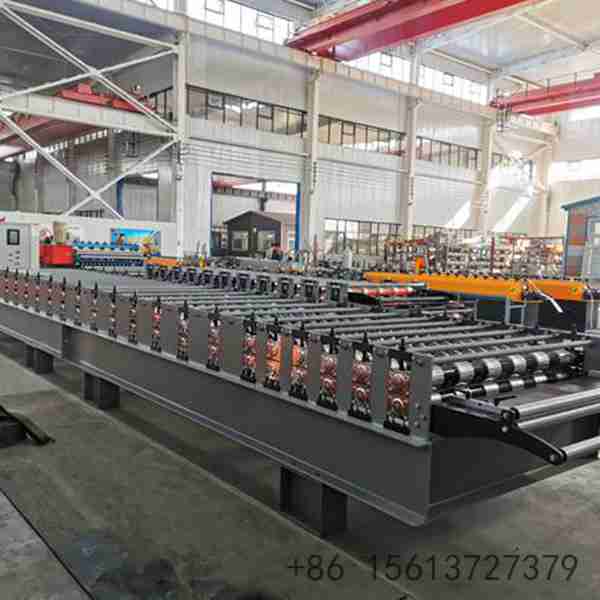

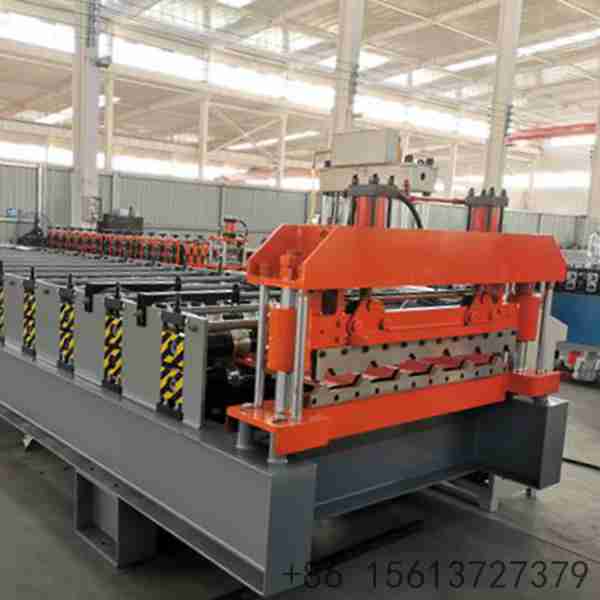

Automatic Cutting: Hydraulic shear with PLC length setting for repeatable panels.
Single Supplier: Machine, cutting, control and service from one factory.
