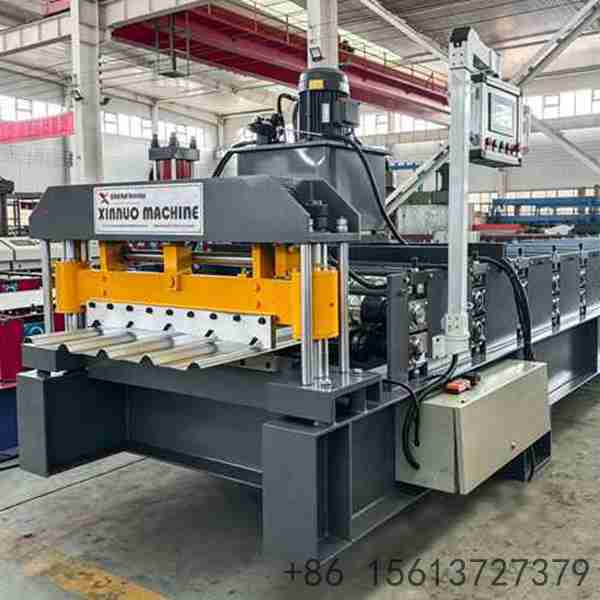

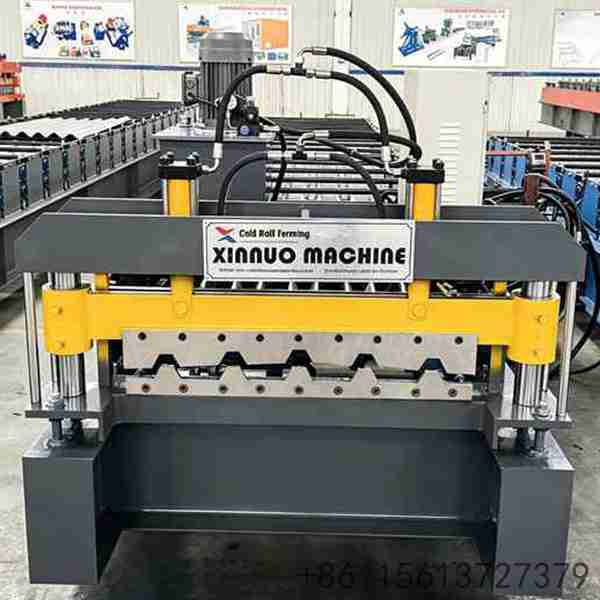

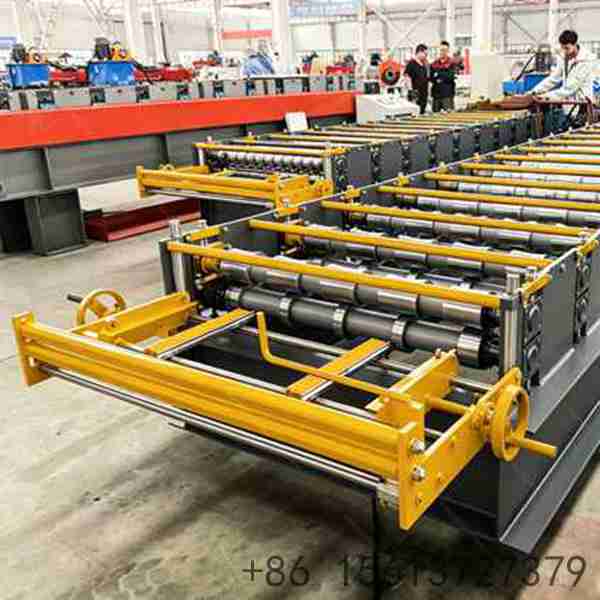

High Output Build: 22 forming stations and 11KW motor for larger daily tonnage.
Thick Coil Ready: Heavier drive and hardened shafts suit thicker coated steel coil.

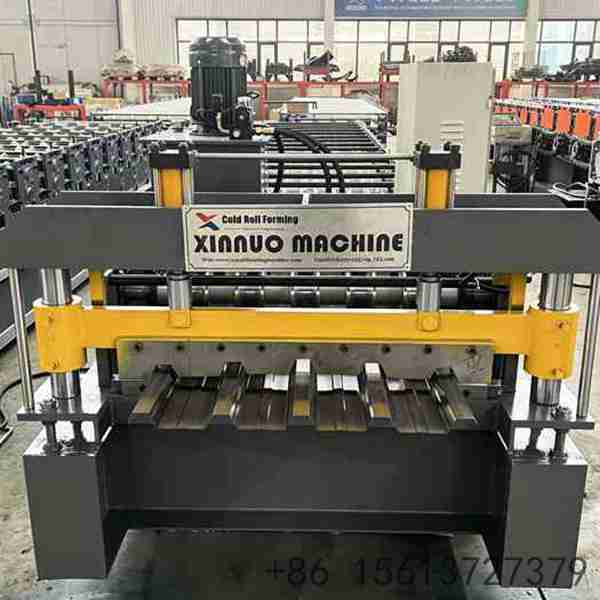

686 IBR Profile: 5 trapezoidal ribs at 171.5mm pitch, 686mm effective width.
Stable Under Load: 350H frame with 16mm middle plate limits deflection.

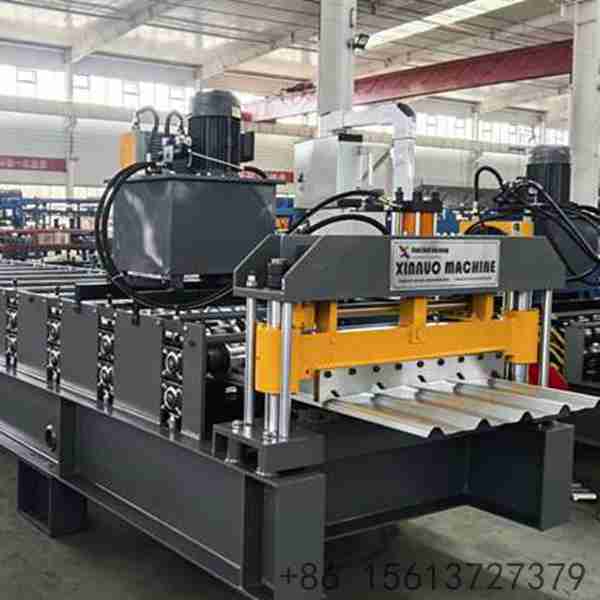

Strong Transmission: One inch double row chain drive keeps torque even across stations.

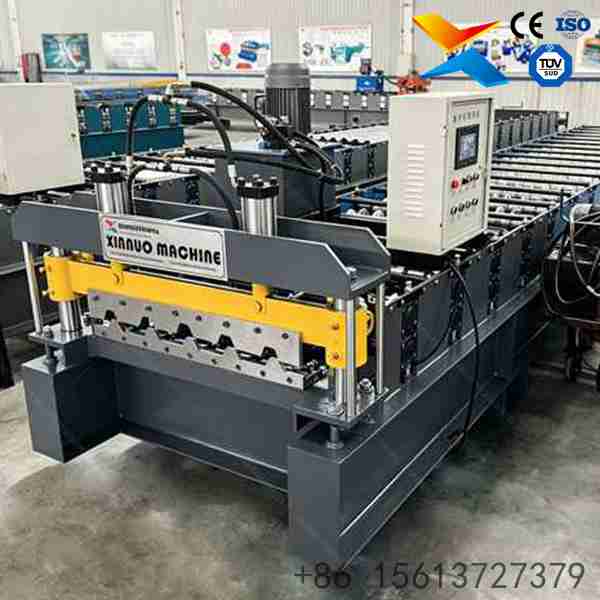

Automatic Control: Hydraulic cutting with PLC length setting for repeatable output.
Single Factory Supply: Machine, cutting, control, installation and training support.
| Component | Specification |
|---|---|
| Profile | 686 IBR trapezoidal panel, 5 ribs, 171.5mm pitch |
| Rib height | 34.3 mm |
| Effective width | 686 mm |
| Feed width | 925 mm |

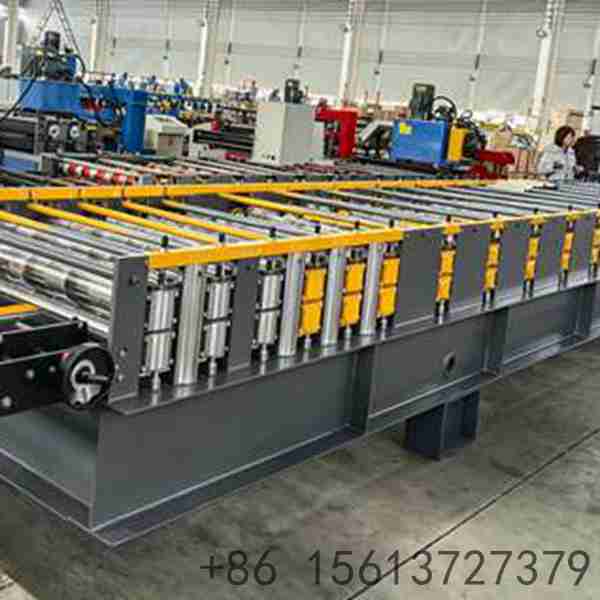

| Sheet thickness | Customizable per roofing spec, thicker coil supported |
| Forming rows | 22 |
| Frame | 350H |
| Middle plate | 16 mm |
| Shafts | 80 mm, hardened |
| Main motor | 11 KW |
| Transmission | One inch double row chain drive |
| Coil types | Galvanized / aluminum zinc / prepainted colored steel |
| Optional | Hydraulic cutting with PLC control, coil car, automatic stacker |
Higher Daily Tonnage: 22 stations and 11KW motor raise continuous output.
Thick Material Support: Stronger drive handles heavier coated steel coil.

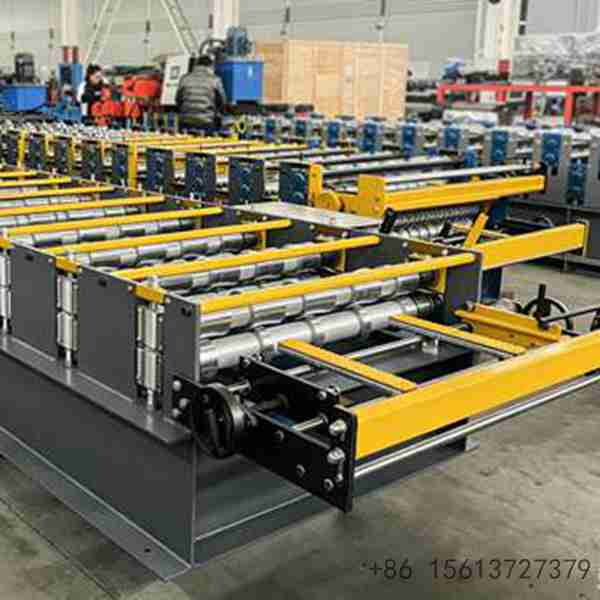

Gradual Rib Forming: 22 passes reduce sheet stress and keep edges square.
Rigid Machine Body: 350H frame with 16mm middle plate limits deflection.
Even Torque: One inch double row chain drive keeps all stations loaded evenly.

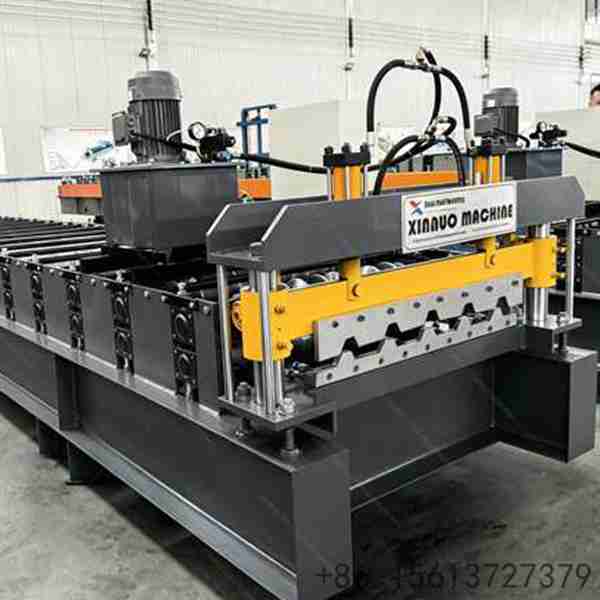

Repeatable Cutting: Hydraulic shear with PLC length setting for clean panel ends.
Single Supplier: Machine, cutting, control and service from one factory.
