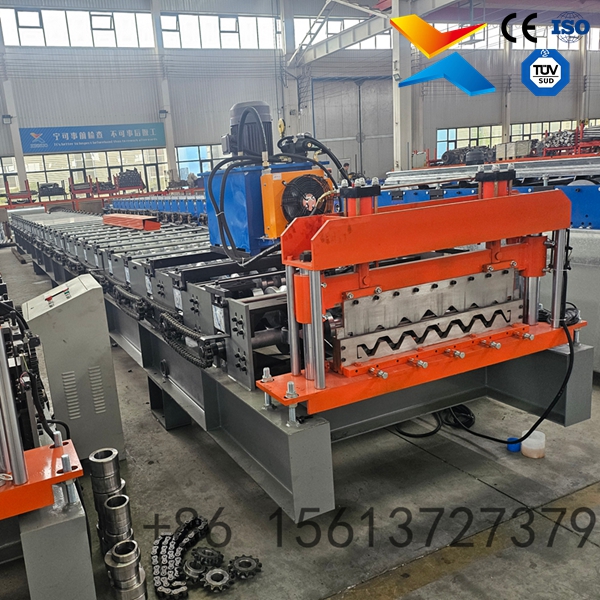

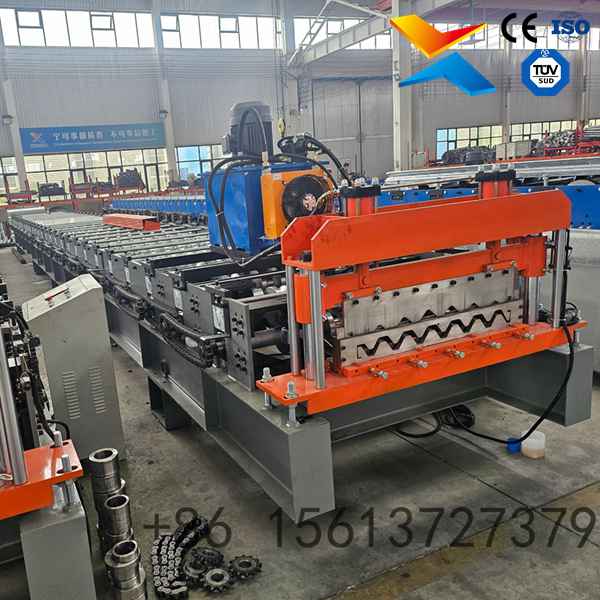

890 IBR Roll Forming Machine

Product Attributes :

Type: Roll Forming Machine
Tile Type: Galvanized Steel
Rolling Thickness: 0.3-0.8 mm
Feeding Width: 1000 mm
Weight: 7000 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate

Product Description

Product Introduction:

890 IBR Profile Specialization: Specifically calibrated to produce the 890 IBR (Inverted Box Rib) trapezoidal profile, offering an optimal balance of wide coverage, structural strength, and efficient water drainage for industrial and commercial roofing applications.

High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame with thickened side plates, designed to absorb forming stresses and maintain tight dimensional tolerances during continuous high-speed production.

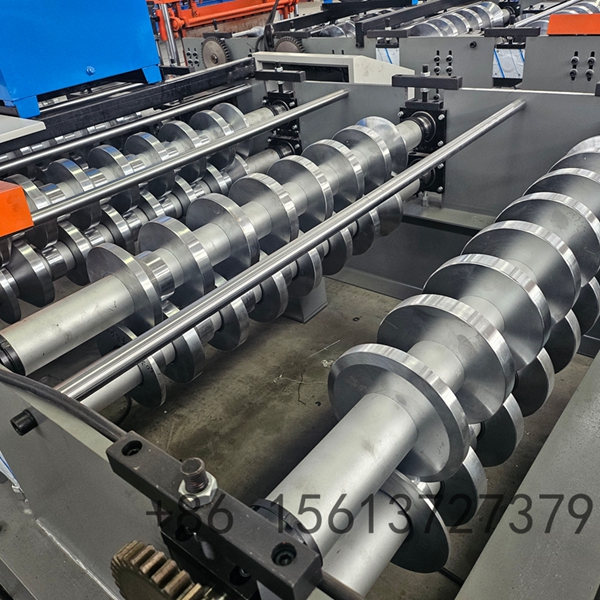

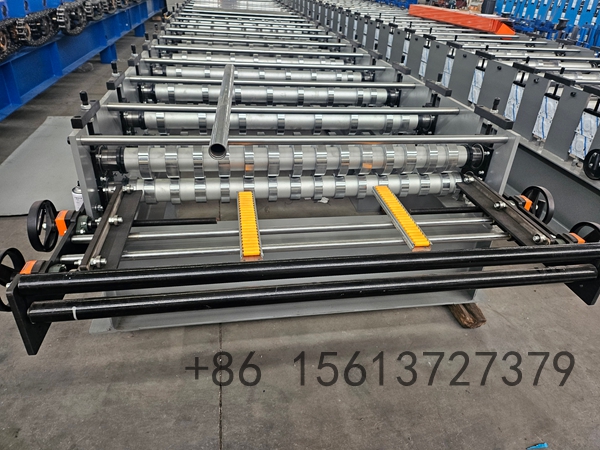

Precision Roll Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to shape the 890 IBR profile, guaranteeing a flawless surface finish and consistent panel geometry for perfect on-site interlocking.

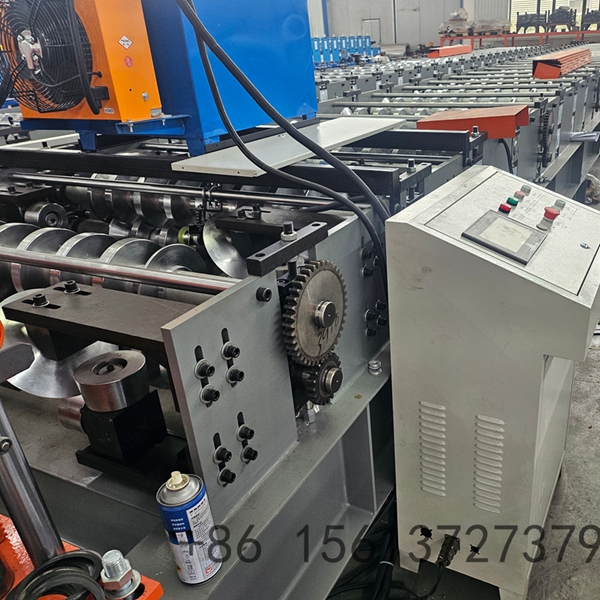

Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program batch counts, panel lengths, and monitor real-time system diagnostics for efficient production.

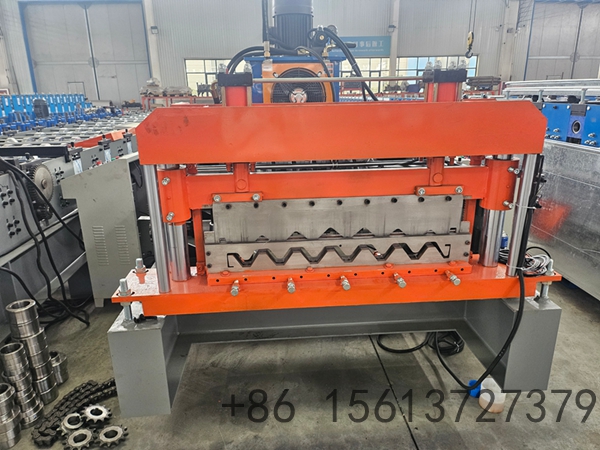

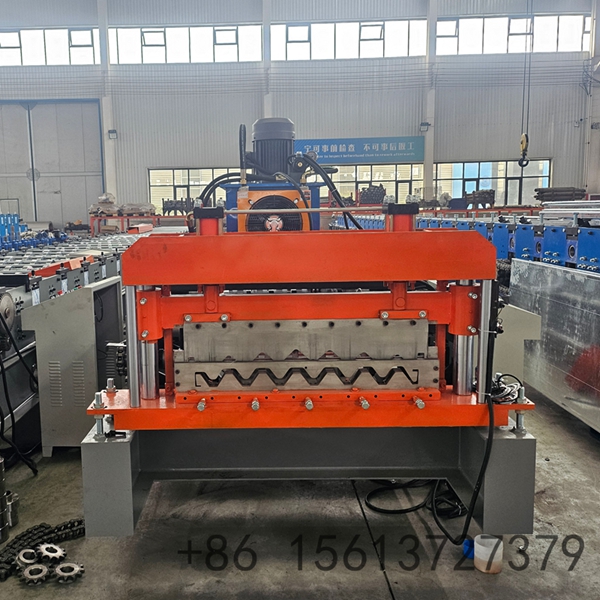

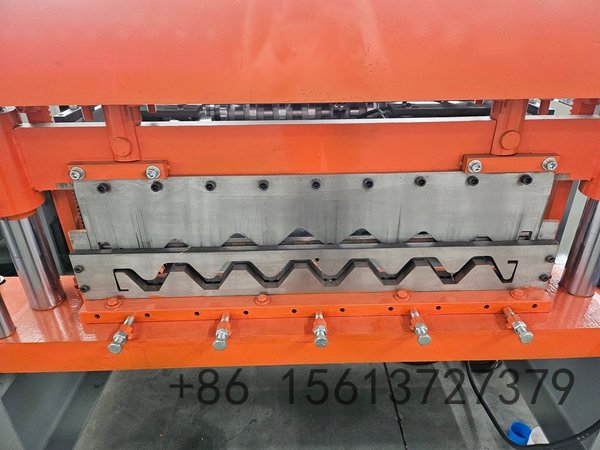

Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts 890 IBR panels to exact lengths with a strict ±1-2mm tolerance and clean edges.

Product Description & Parameters:

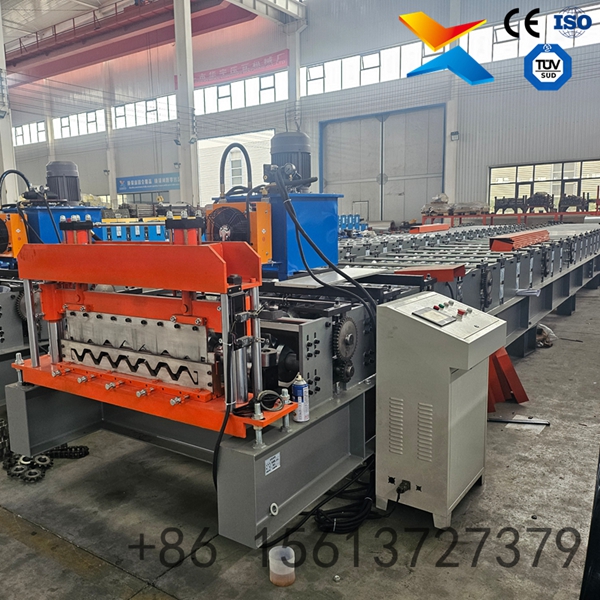

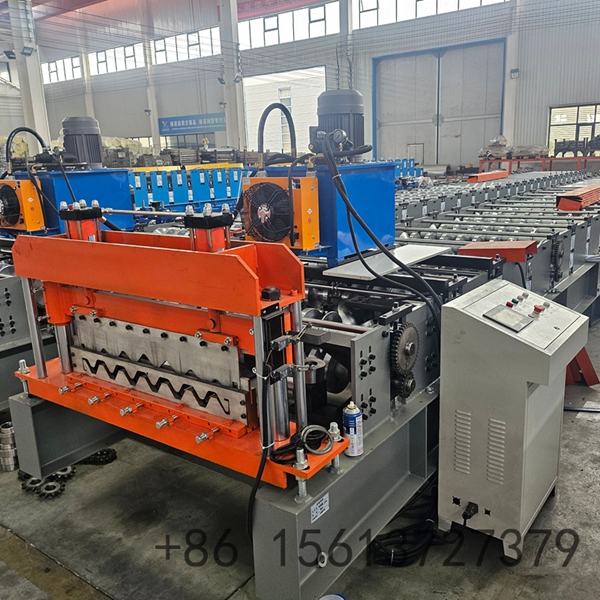

The 890 IBR Roll Forming Machine is a specialized production solution tailored for manufacturers of premium steel roofing materials. The 890 IBR trapezoidal profile is widely specified in construction due to its superior span capabilities, aesthetic ribbing, and excellent weather resistance. This equipment transforms raw color steel, galvanized, or aluzinc coils into finished roofing panels through a highly synchronized process of decoiling, precision forming, and automated cutting.

The core advantage of this machine lies in its structural rigidity and forming precision. The reinforced base frame prevents deflection under load, while the precision-ground rollers guarantee that every 890 IBR panel maintains consistent geometry and sharp rib definitions. The intelligent PLC control system streamlines operations, allowing for quick setup and accurate batch production. Meanwhile, the hydraulic cutting station tracks the line speed in real-time to execute exact cuts, minimizing material waste and ensuring that every panel is ready for immediate assembly. This 890 IBR roll forming machine is the reliable choice for suppliers demanding consistent quality and operational efficiency in the steel roofing market.

No.	Main Parameter / Feature	Details
1	Applicable Material	Color steel / Galvanized steel / Aluzinc coil
2	Material Thickness Range	0.3 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Coil Width Range	1000 / 1200 / 1220 / 1250 mm (customizable)
5	Profile Type	890 IBR Trapezoidal Roof Panel
6	Forming Speed	8 - 15 m/min (adjustable via frequency converter)
7	Number of Roller Stations	13-16 rows
8	Main Motor Power	4 - 5.5 kW
9	Hydraulic Station Power	4 - 5.5 kW
10	Roller Material	45# forged steel with hard chrome plating (0.05mm)
11	Shaft Material	45# / 40Cr steel, diameter 70-80mm, tempered & polished
12	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)
13	Cutting Method	Hydraulic post-cut, automatic pause and cut
14	Control System	PLC with touch screen (Siemens / Mitsubishi / Delta)
15	Voltage	380V / 50Hz / 3 Phase (customizable)
16	Machine Dimensions	Approx. 7m - 10m × 1.3m - 1.65m × 1.1m - 1.6m
17	Machine Weight	Approx. 5 - 9 Tons
18	Length Tolerance	±1 - 2 mm
19	Uncoiler Capacity	Up to 5 tons (manual or hydraulic)

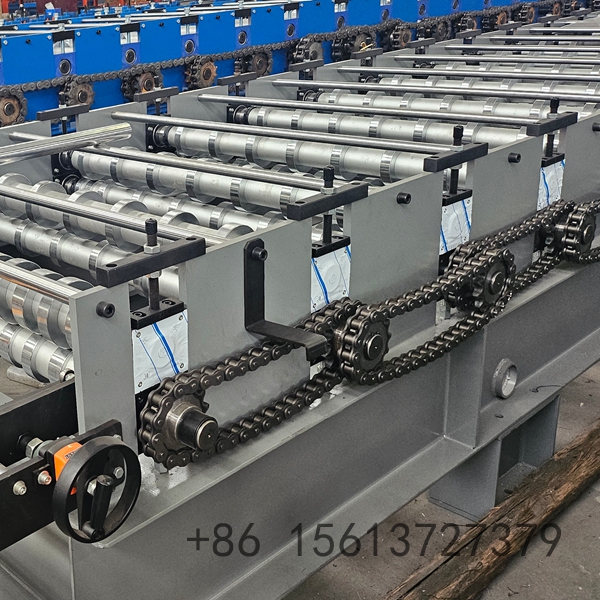

20	Driving Mode	Chain transmission
21	Warranty	12-24 months free warranty + lifelong technical support
