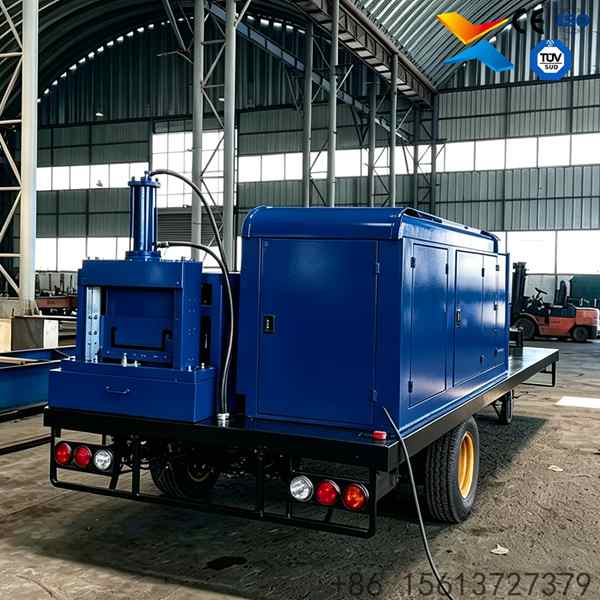

Built On A Trailer: Tow it between projects and set up where the building goes up.

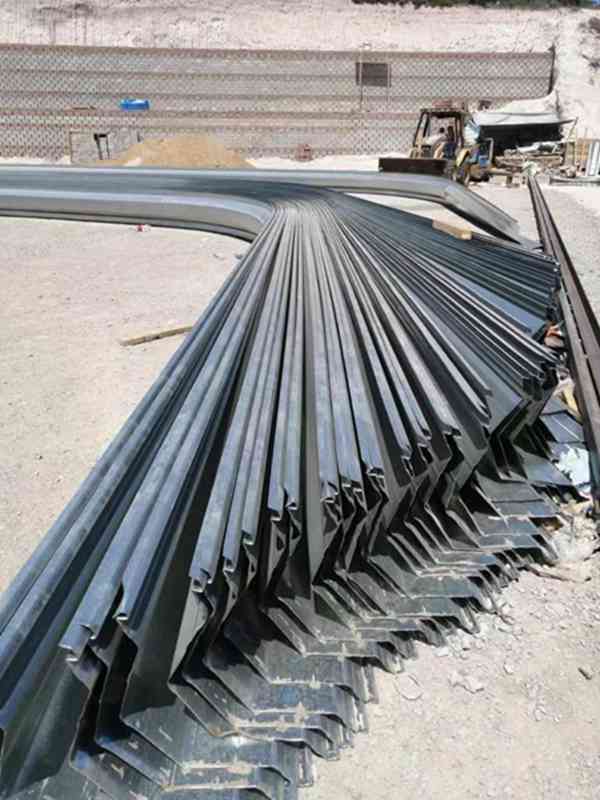

Coil To Arch In One Pass: Forming and curving happen in a single continuous run.

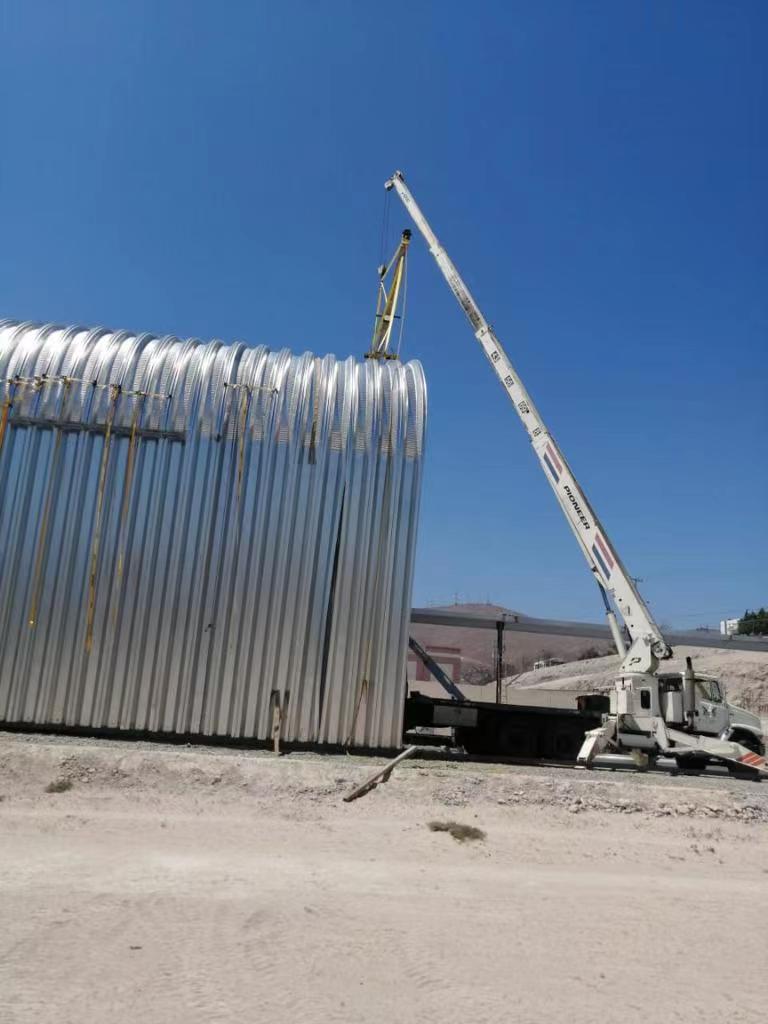

No Beams Or Columns: The arch carries its own load across the span.
Wide Span Range: Bending radius covers structures from 6 m to over 50 m.
Three Coil Types: Galvanized, galvalume and color coated steel.
0.4 mm To 1.2 mm: Runs light and medium gauge coil on the same line.
Less Steel, Lighter Base: Uses notably less steel and needs lighter foundations.
| Component | Specification |
|---|---|
| Product type | Portable on-site beamless arch forming machine, trailer mounted |
| Working method | Flat coil to self supporting arch panel, cold roll formed and curved in a single pass |
| Structure | No beams, purlins or columns required |
| Span range | 6 m to over 50 m, set by bending radius |
| Coil materials | Galvanized steel, galvalume, color coated steel |
| Sheet thickness | 0.4 mm to 1.2 mm |
| Forming stations | [To be confirmed] |

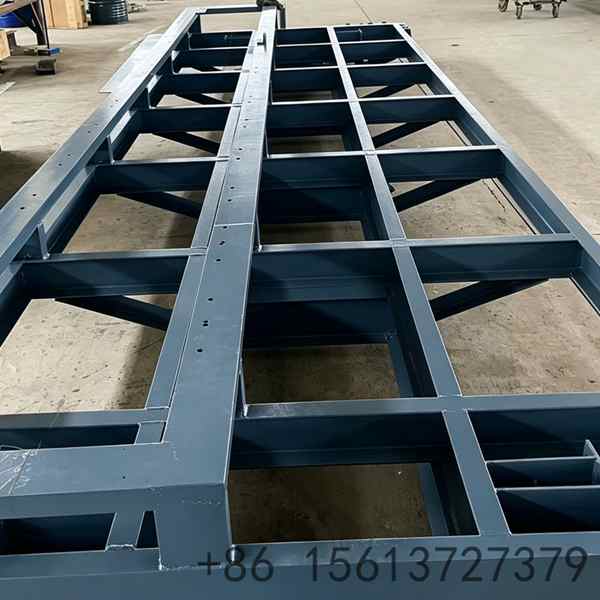

| Frame | [To be confirmed] |
| Shafts | [To be confirmed] |
| Main motor | [To be confirmed] |
| Coil width | [To be confirmed] |
| Line speed | [To be confirmed] |
| Machine dimensions | [To be confirmed] |
| Machine weight | [To be confirmed] |
| Seaming unit | [To be confirmed] |
On Site Production: Panels are made where the building is, so long panels are not trucked.
Single Pass: Coil goes in flat and comes out curved, with no second bending step.
Self Supporting: No beams, purlins or columns are needed to carry the roof.
Adjustable Radius: Bending radius is set to suit the arch design from 6 m to over 50 m.
Wide Material Range: Galvanized, galvalume and color coated coil from 0.4 mm to 1.2 mm.
Lower Steel Use: The arch roof uses less steel than a framed building of the same span.
Lighter Foundations: A self supporting arch needs a lighter base than a framed structure.
