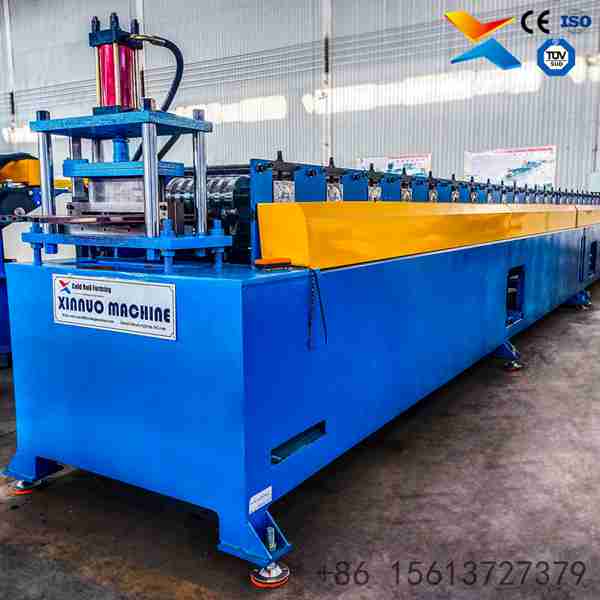

Product output: Great wall / decorative wave panels
Applicable material: Color coated steel / aluminum-magnesium-manganese alloy sheet
Panel width: Customizable
Profile pattern: Great wall wave (raised ribs, sharp corners)
Profile length: Customizable
Application: Wall cladding, facade decoration, ceiling panels
Decorative Profile: Forms the great wall wave pattern with uniform ribs and sharp corners.
Surface Quality: Progressive forming keeps the sheet flat without scratches or distortion.

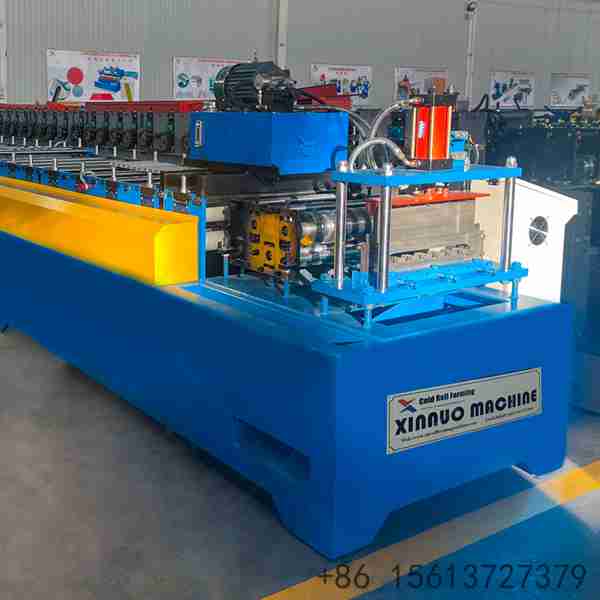

Multi Material: Processes color coated steel and aluminum-magnesium-manganese alloy sheets.
Heavy Duty Build: 350H frame with 25 mm center plate for stable forming.

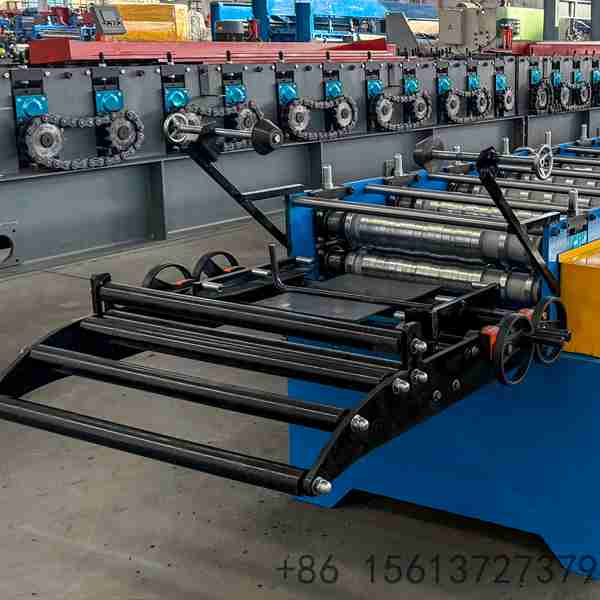

Stable Drive: K87 gear motor with 1 inch double row chain transmission.
Customizable Specs: Panel width and profile length adjustable to project needs.
| Component | Specification |
|---|---|
| Material of rollers | High grade 45# forged steel, surface hard chromium plating |
| Rows of rollers | 16-22 stations |
| Material of shafts | High grade 45# forged steel |
| Diameter of shafts | 80-100 mm |
| Material of cutting blade | Cr12 Heat Treatment |
| Speed | 10-15 m/min |

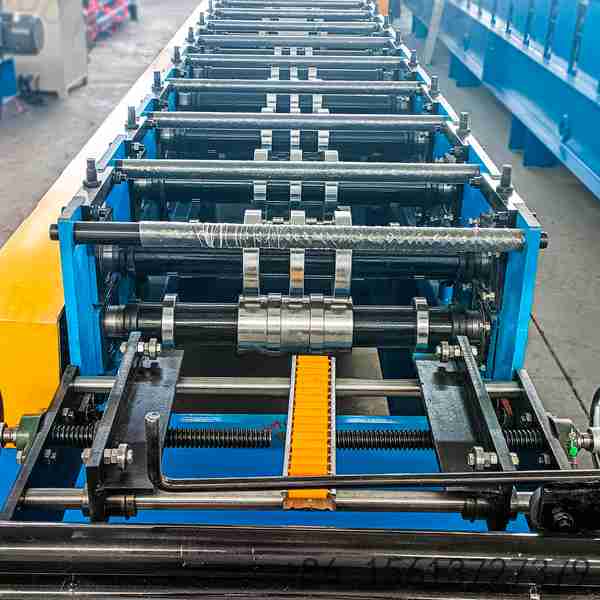

| Frame | 350H heavy duty frame, 25 mm center plate |
| Main motor | K87 gear motor, 7.5 KW |
| Transmission | 1 inch double row chain |

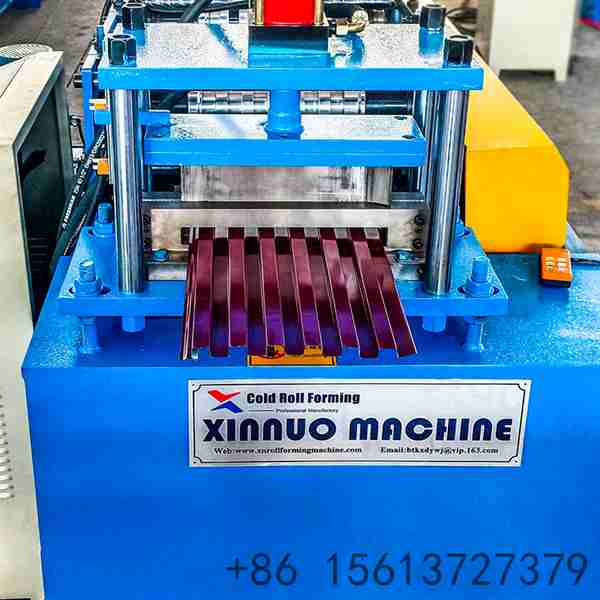

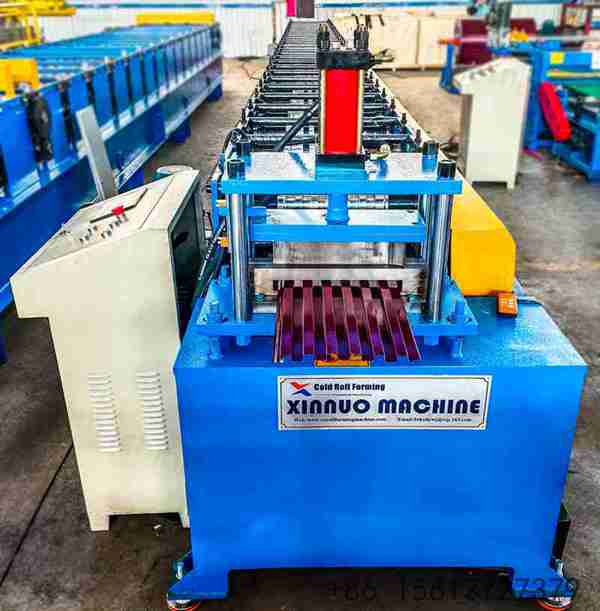

| Control system | PLC control |

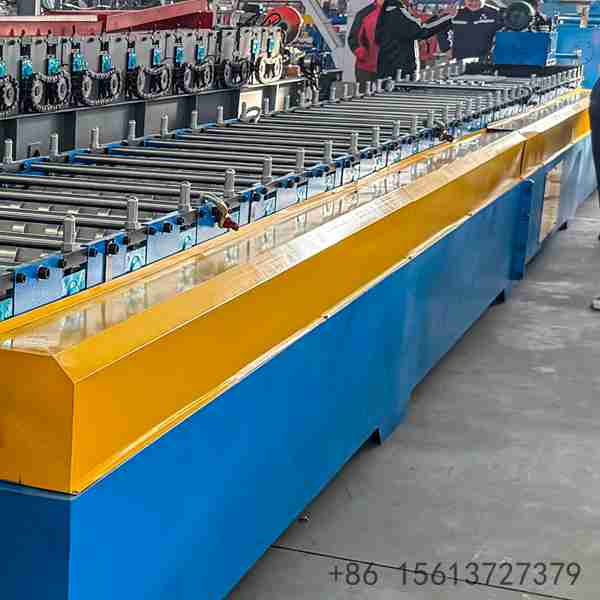

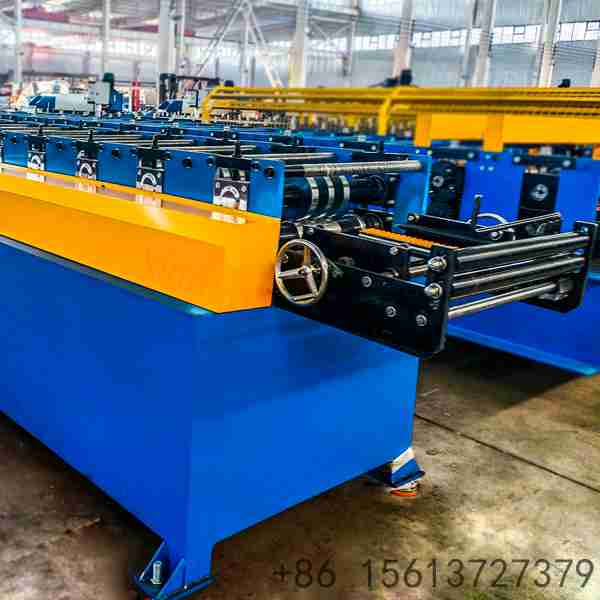

Pattern Uniformity: 16-22 station progressive forming keeps ribs uniform in depth with sharp corners.

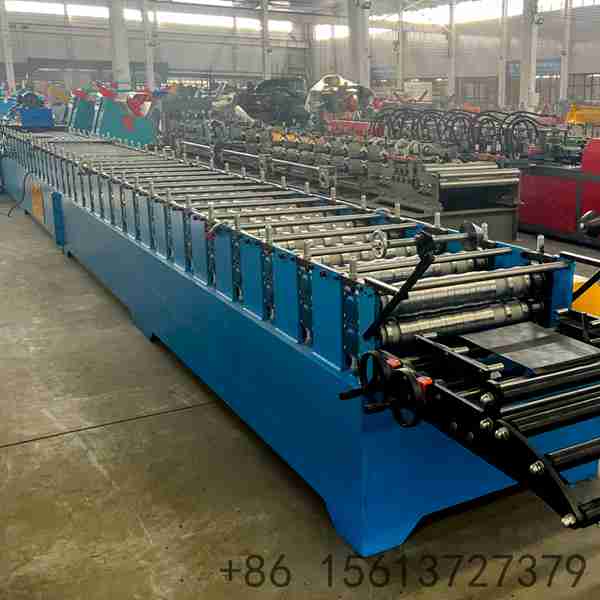

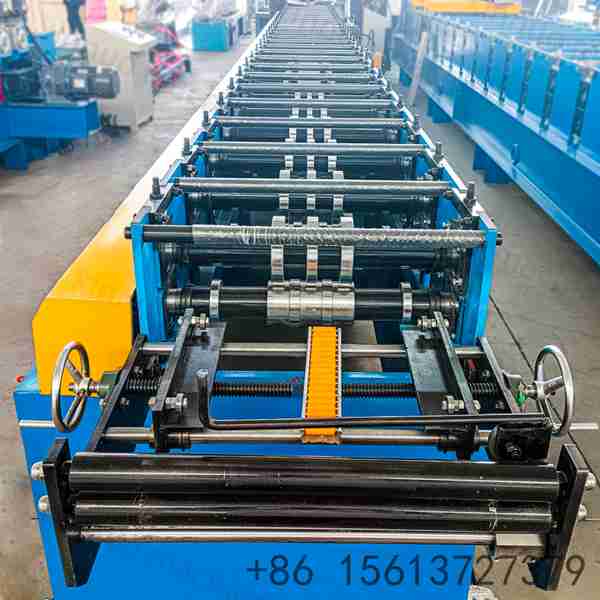

Surface Protection: Hard chromium plated rollers protect the coating of decorated sheets.

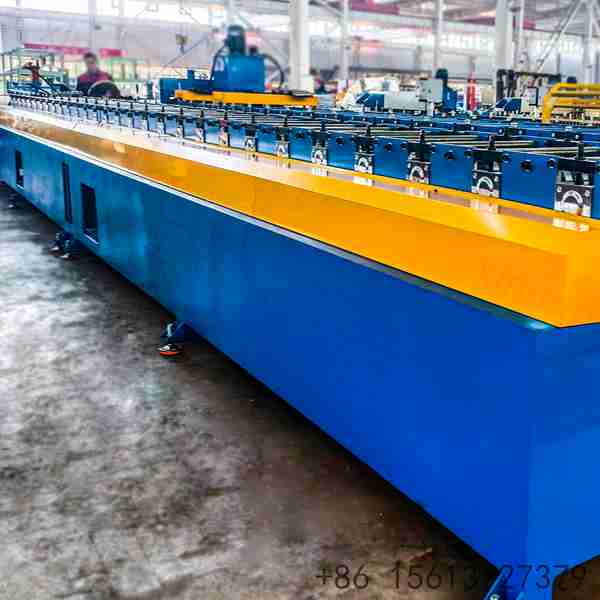

Heavy Duty Rigidity: 350H frame with 25 mm center plate maintains roller alignment.
High Torque Drive: K87 gear motor delivers stable power for continuous production.
Large Shafts: 80-100 mm solid shafts support heavy forming loads.
Reliable Transmission: 1 inch double row chain ensures stable power delivery.

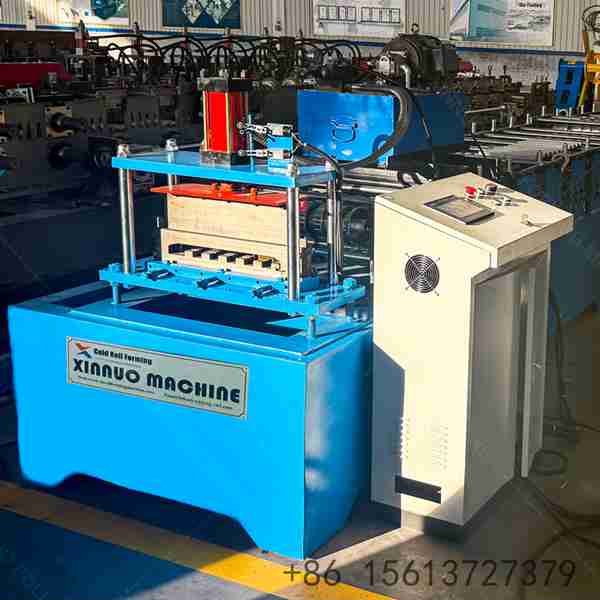

Clean Cutting: Cr12 heat-treated blades provide precise panel length cutting.
