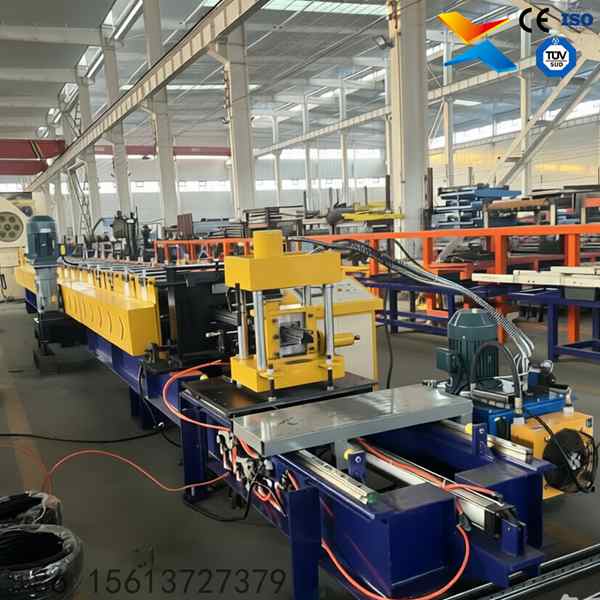

Storage Rack Column Roll Forming Machine
Product Attributes :
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 14 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of cutting blade Cr12 Heat Treatment
Speed 10-15 m/min
Side plate thickness 16 mm
Product Description
The Storage Rack Column Roll Forming Machine is a fully automatic, high-precision metal profiling system dedicated to producing high-strength warehouse shelving uprights. Built for the modern logistics and warehousing industry, it efficiently processes galvanized steel coils into precise, durable rack columns—critical components for securing heavy-duty pallet racking systems in distribution centers, industrial warehouses, and large-scale storage facilities.
Core Features
High-Speed & Stable Production

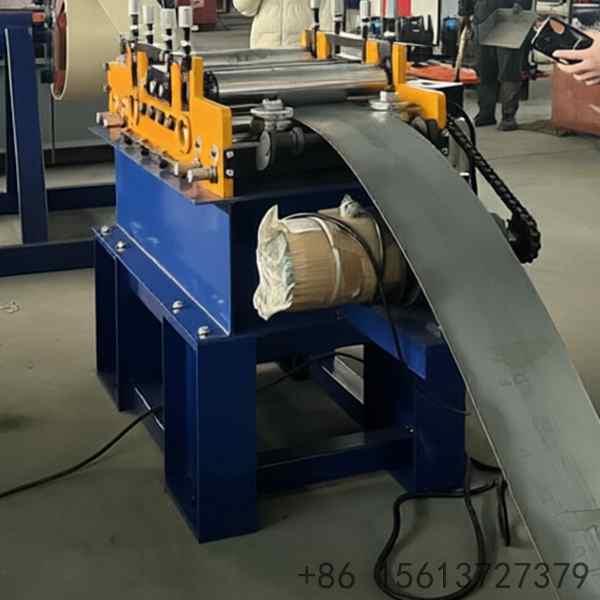

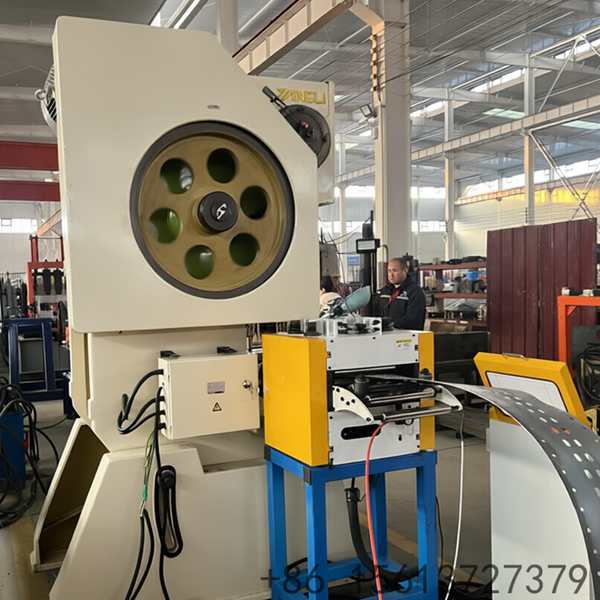

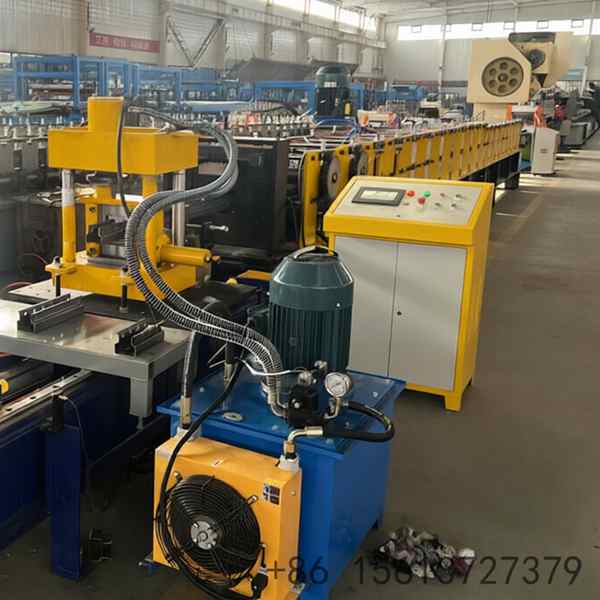

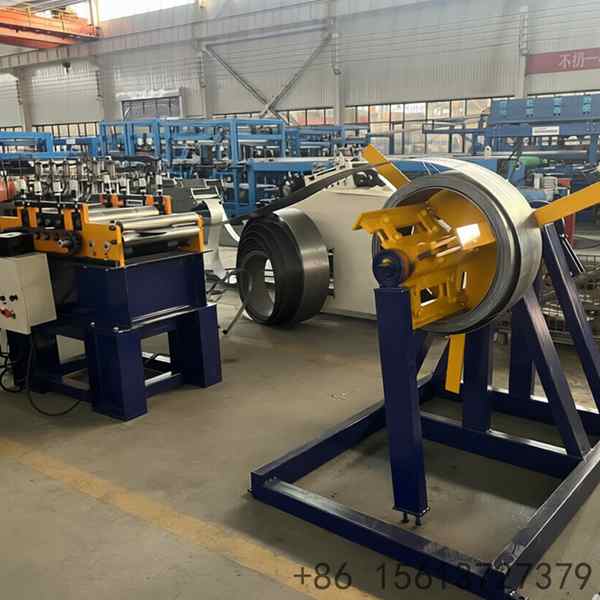

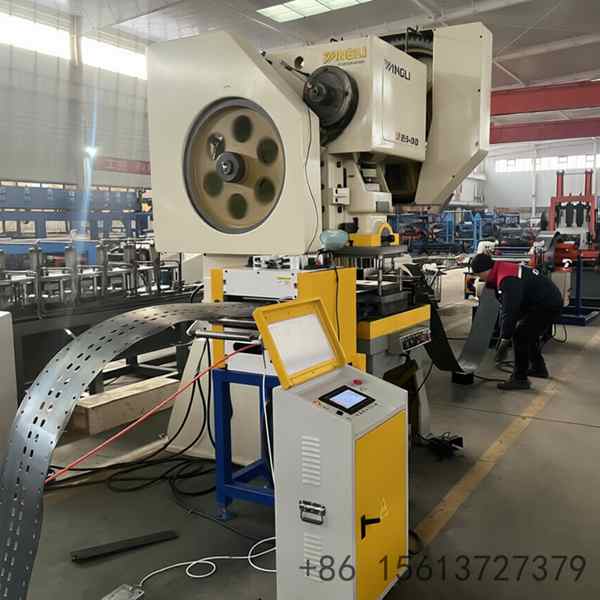

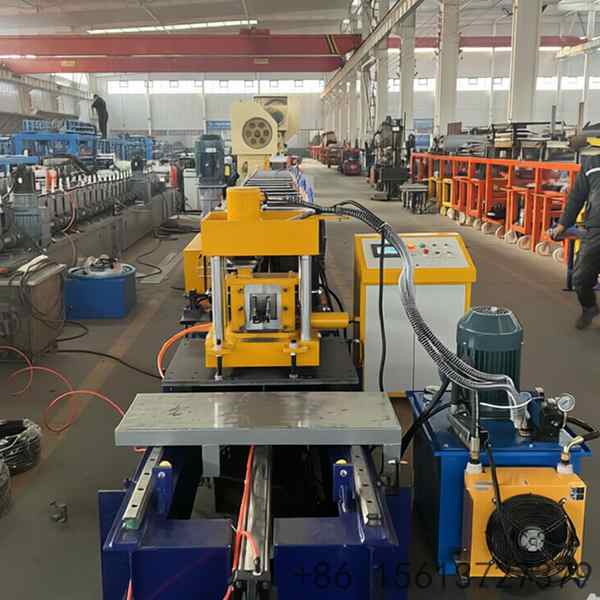

Equipped with advanced PLC control and servo-driven feeding systems, the machine realizes a fully automatic workflow including uncoiling, leveling, servo-punching, roll forming, hydraulic cutting, and automatic output. With a stable production speed of 15–25m/min (depending on profile complexity), it greatly improves manufacturing efficiency and ensures consistent output for mass production orders.
Equipped with advanced PLC control and servo-driven feeding systems, the machine realizes a fully automatic workflow including uncoiling, leveling, servo-punching, roll forming, hydraulic cutting, and automatic output. With a stable production speed of 15–25m/min (depending on profile complexity), it greatly improves manufacturing efficiency and ensures consistent output for mass production orders.
High Precision & Excellent Forming Quality

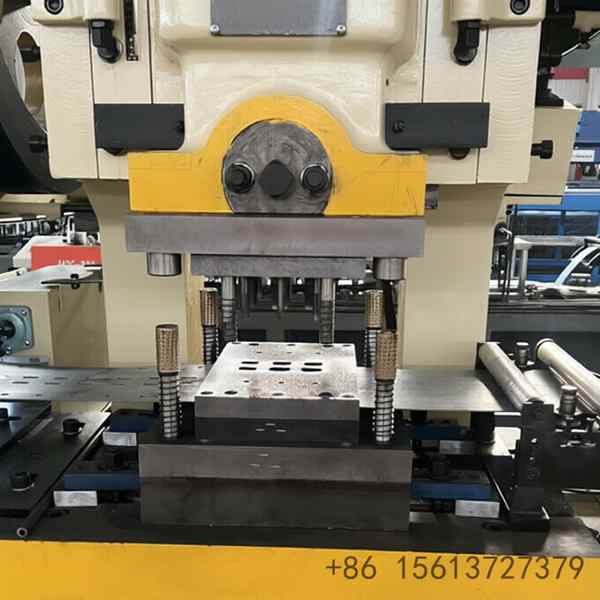

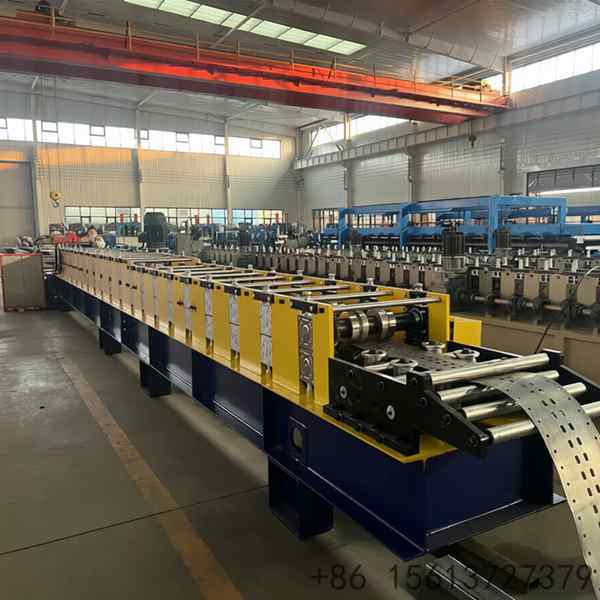

The forming rolls are manufactured from high-grade Cr12MoV alloy steel with heat treatment and precision grinding, ensuring high dimensional accuracy and a smooth surface finish without scratching the material coating. The punching position tolerance is strictly controlled within ±0.5mm, and the hole shape is clean without burrs, fully meeting international racking engineering standards (such as RMI or FEM).
The forming rolls are manufactured from high-grade Cr12MoV alloy steel with heat treatment and precision grinding, ensuring high dimensional accuracy and a smooth surface finish without scratching the material coating. The punching position tolerance is strictly controlled within ±0.5mm, and the hole shape is clean without burrs, fully meeting international racking engineering standards (such as RMI or FEM).
Strong Adaptability & Wide Application

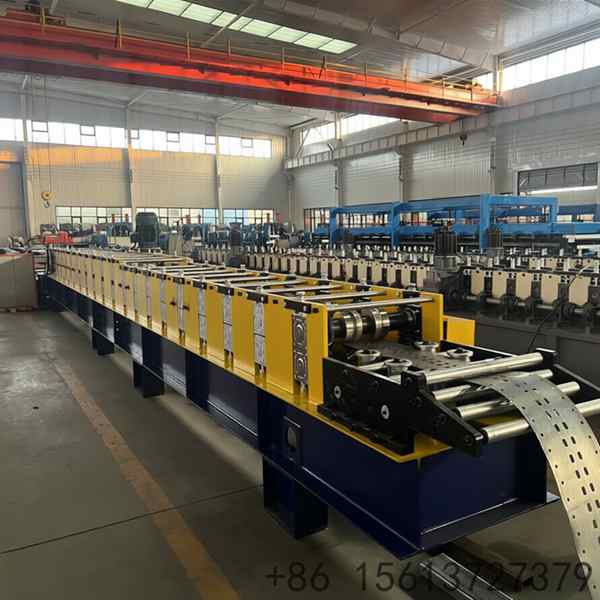

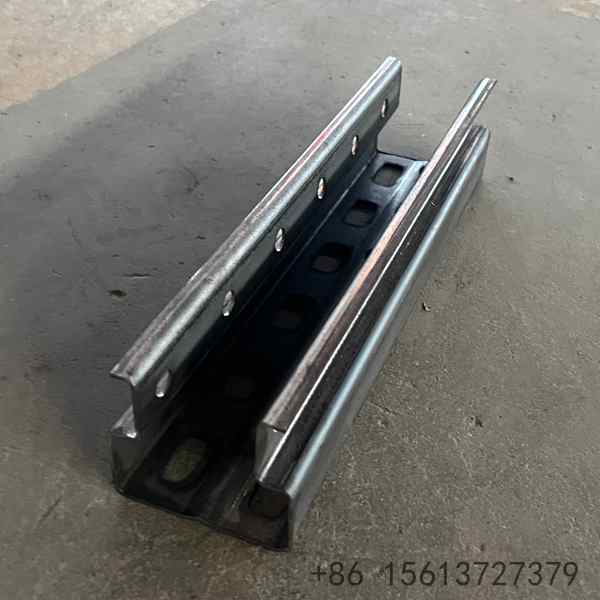

Supports quick changeover for various rack column profiles such as Σ -type (Sigma), 90-degree angle, and customized special sections. It handles material thickness typically from 1.5mm to 3.0mm, making it suitable for different load-bearing requirements ranging from light-duty shelving to heavy-duty selective pallet racking.
Supports quick changeover for various rack column profiles such as Σ -type (Sigma), 90-degree angle, and customized special sections. It handles material thickness typically from 1.5mm to 3.0mm, making it suitable for different load-bearing requirements ranging from light-duty shelving to heavy-duty selective pallet racking.
Robust Structure & Long Service Life

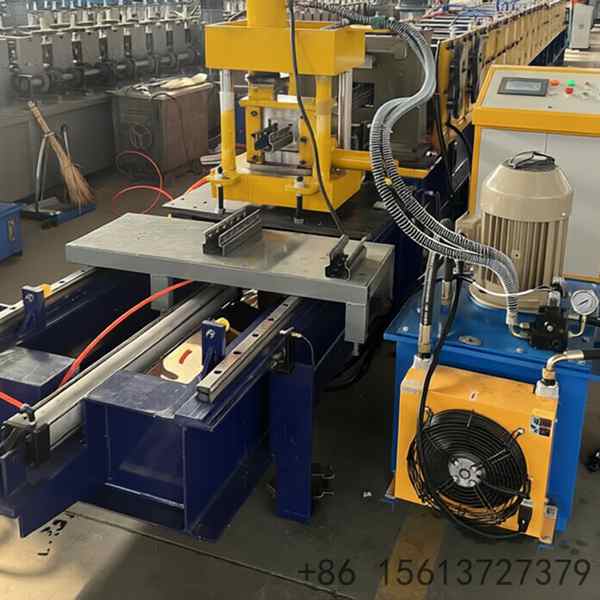

The machine adopts a heavy-duty welded steel frame with stress relief treatment, offering high rigidity to withstand the strong pressure of thick plate forming. Main electrical and hydraulic components utilize international branded parts (e.g., Siemens, Schneider, Rexroth), ensuring reliability, a low failure rate, and easy daily maintenance.
The machine adopts a heavy-duty welded steel frame with stress relief treatment, offering high rigidity to withstand the strong pressure of thick plate forming. Main electrical and hydraulic components utilize international branded parts (e.g., Siemens, Schneider, Rexroth), ensuring reliability, a low failure rate, and easy daily maintenance.
Safe & Eco-Friendly Operation
Full protective guards, emergency stop systems, and light-curtain safety sensors ensure safe operation for workers. The equipment meets CE certification and industrial safety standards, making it ideal for export to global markets with strict safety regulations.
Full protective guards, emergency stop systems, and light-curtain safety sensors ensure safe operation for workers. The equipment meets CE certification and industrial safety standards, making it ideal for export to global markets with strict safety regulations.
Application Scope
Widely used by professional storage rack manufacturers, logistics equipment suppliers, and metal structure factories. The finished columns are mainly applied in automated stereoscopic warehouses (AS/RS), e-commerce fulfillment centers, cold storage facilities, and general industrial pallet racking systems
Detail
| Parameter | Specification |
|---|---|
| Material Thickness | 1.5 – 3.0 mm |
| Material Type | Galvanized / Cold Rolled Steel |
| Forming Speed | 15 – 25 m/min |
| Profile Type | Sigma (Σ) / 90° Angle / Customized |
| Punching System | Servo / Hydraulic Punching |
| Cutting Method | Flying Tracking Cut |
| Main Motor Power | 11 – 22 kW |
| PLC Control | Siemens / Mitsubishi |
| Dimensional Tolerance | ± 0.5 mm |
