Automatic Triangular Keel Roll Forming Machine

Automatic Triangular Keel Roll Forming Machine

Product Attributes :

1.Voltage: 380V/50Hz (customizable for 220V/60Hz)

2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)

3.Weight：3000-5000kg (depending on configuration)

4.Raw Material：Galvanized steel coil

5.Thickness: 0.5-1.5mm

6.2 years for machinery warranty

7.WhatsApp：+8615613727379

Product Description

Core Advantages

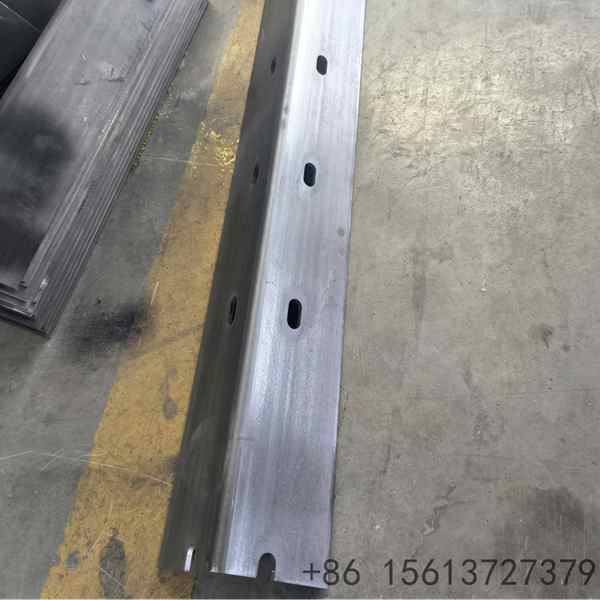

High Precision Punching: Integrated with a high-accuracy punching system, it ensures every slot on the keel is perfectly positioned for seamless cross-tee connection and flat ceiling installation.

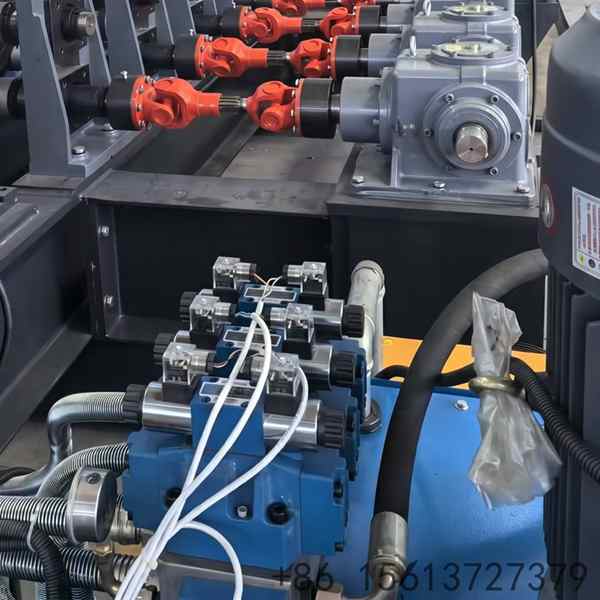

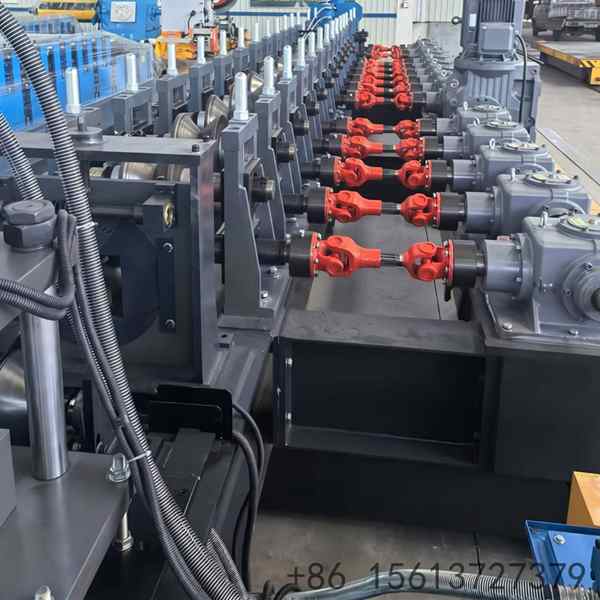

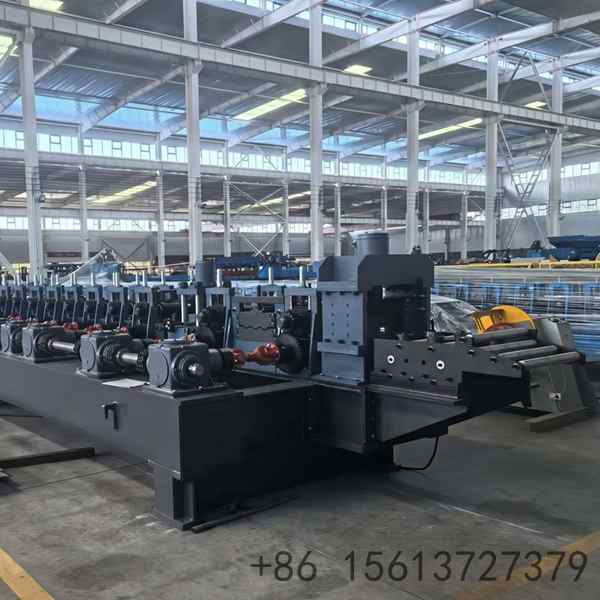

Universal Joint Drive System: Unlike traditional chain drives, our machine utilizes a universal joint transmission. This provides stronger torque, smoother operation, lower noise, and a significantly longer service life.

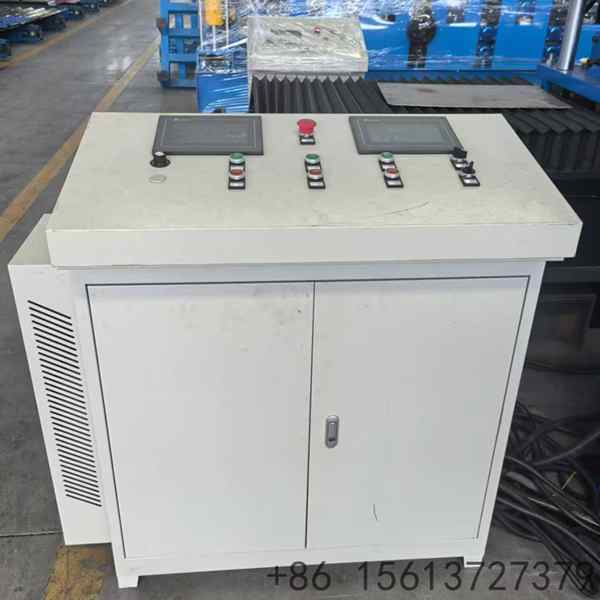

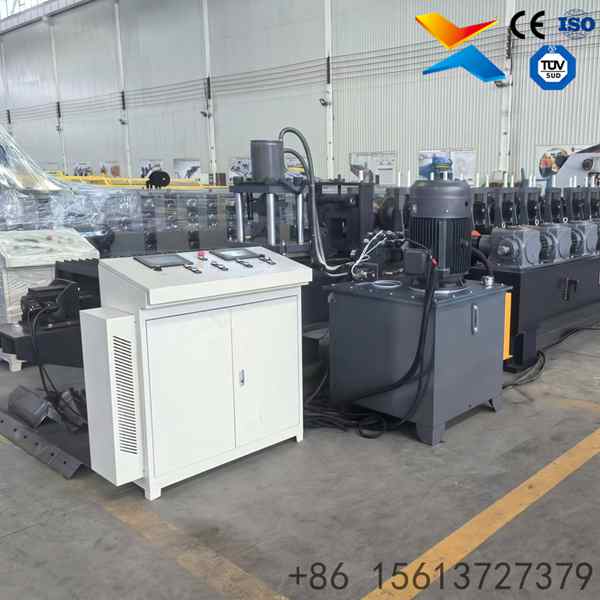

Intelligent Automation: Powered by the Delta PLC control system, the entire line requires only one operator. Users can easily set lengths, quantities, and punching patterns via the user-friendly touch interface.

Superior Surface Finish: All rollers are precision-machined and hard-chrome plated, ensuring the finished keels are free from scratches, ripples, or deformations, meeting strict aesthetic standards.

Heavy-Duty Construction: The machine frame is built with high-quality welded steel and undergoes heat treatment to eliminate internal stress, ensuring the equipment remains stable even under long-term, high-speed production.

Product Parameters

Item	Specification
Applicable Material	Galvanized Steel / Color Steel Coils
Material Thickness	0.5 - 1.2 mm (Customizable)
Forming Speed	15 - 25 m/min
Forming Stations	16 - 22 Stations (Subject to profile)
Drive System	Universal Joint Drive (Superior stability)
Control System	Delta PLC & Touch Screen (Multilingual)
Cutting System	Hydraulic Post-cutting / Servo Cutting
Roller Material	GCr15 or Cr12 with quenching treatment
