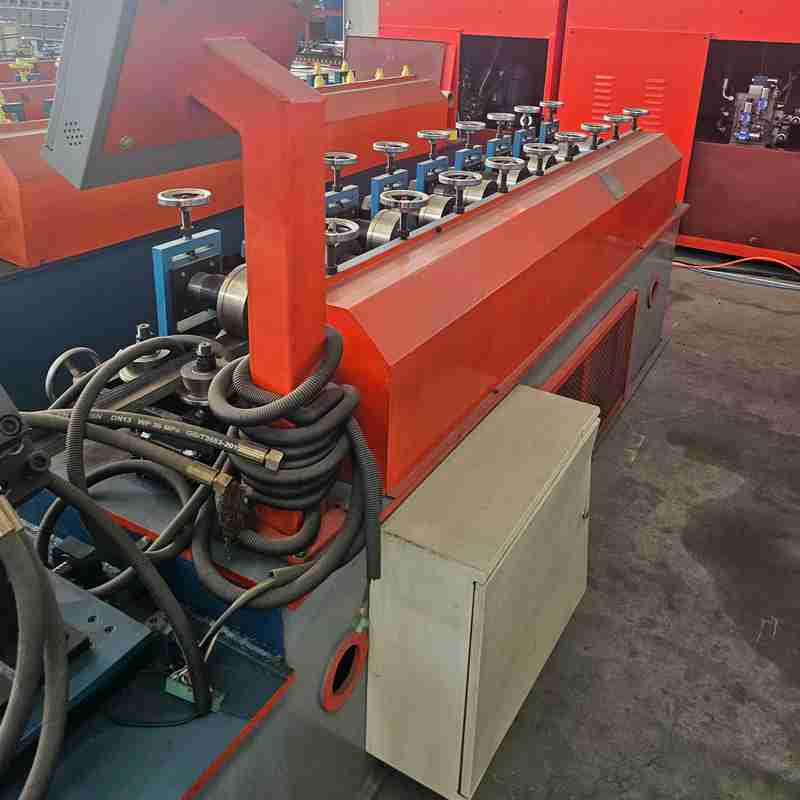

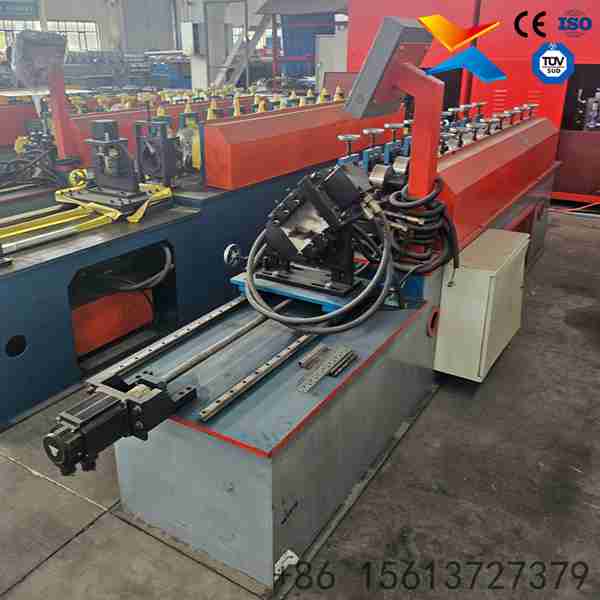

Servo C-Stud Roll Forming Machine
1.Voltage: 380V/50Hz (customizable for 220V/60Hz)
2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)
3.Weight：3000-5000kg (depending on configuration)
4.Raw Material：Galvanized steel coil
5.Thickness: 0.5-3mm
6.2 years for machinery warranty
7.WhatsApp：+8615613727379

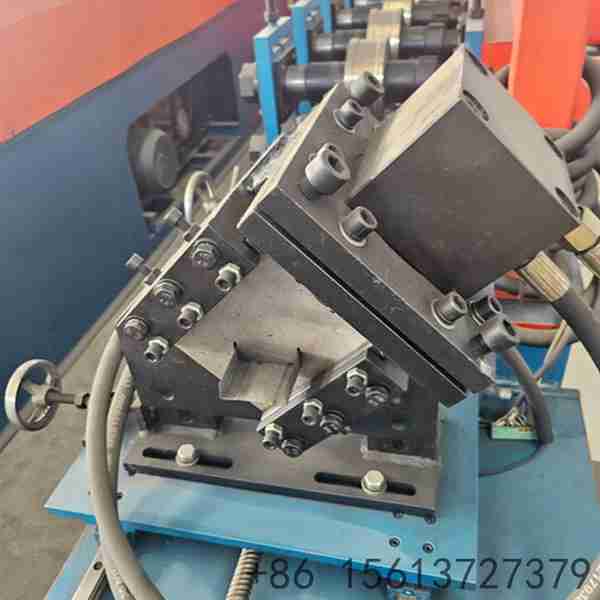

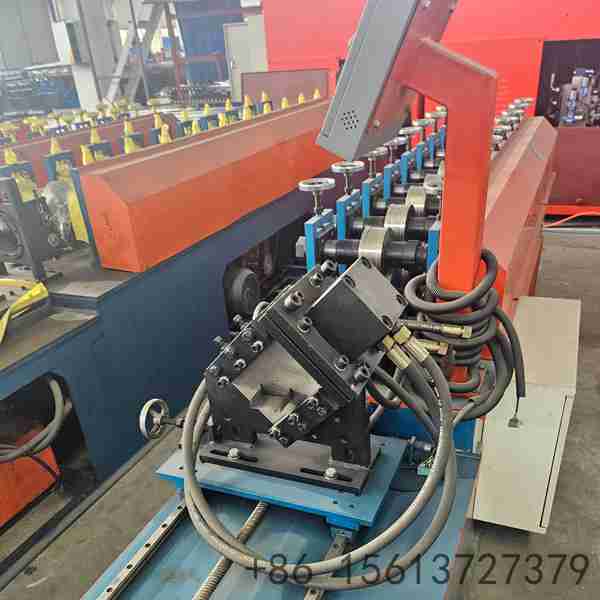

Servo Tracking Cutting Technology: Specifically engineered with an advanced servo tracking cutting system that executes precise cuts while the machine is running, eliminating stop-and-go operations and maximizing production efficiency.

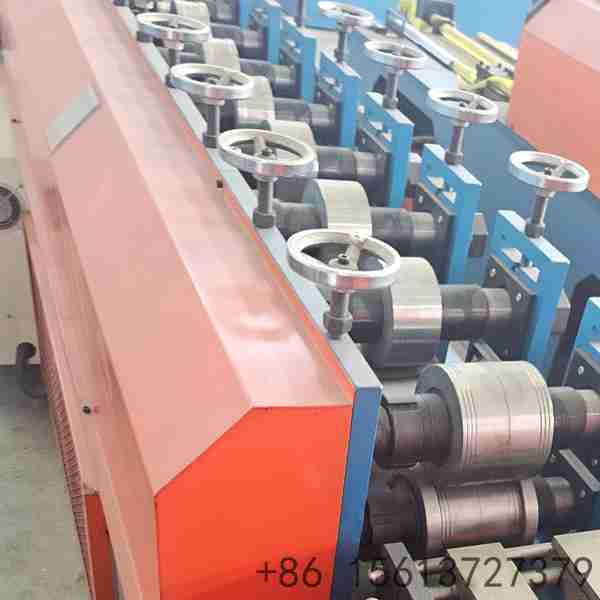

Robust Industrial Construction: Built on a reinforced steel base with thick side plates, designed to absorb continuous high-speed forming stresses and maintain strict dimensional tolerances during extended production runs.

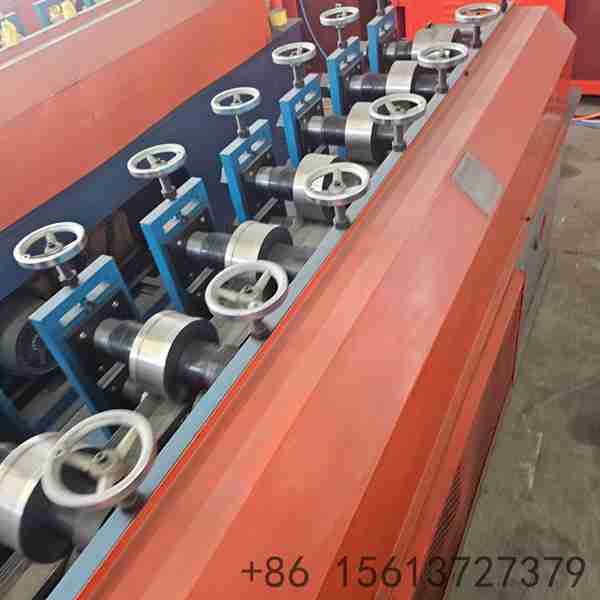

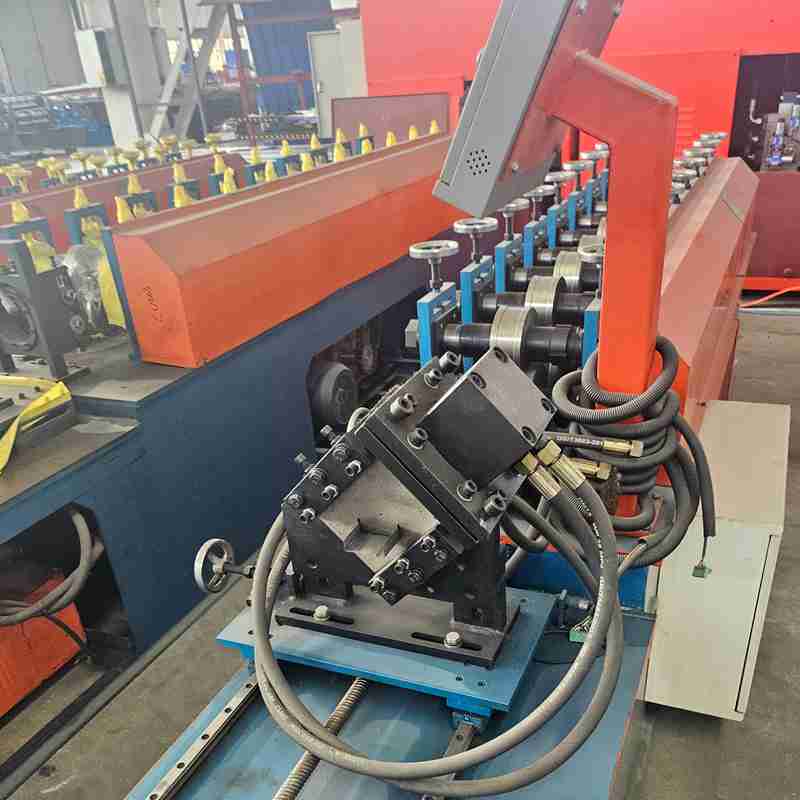

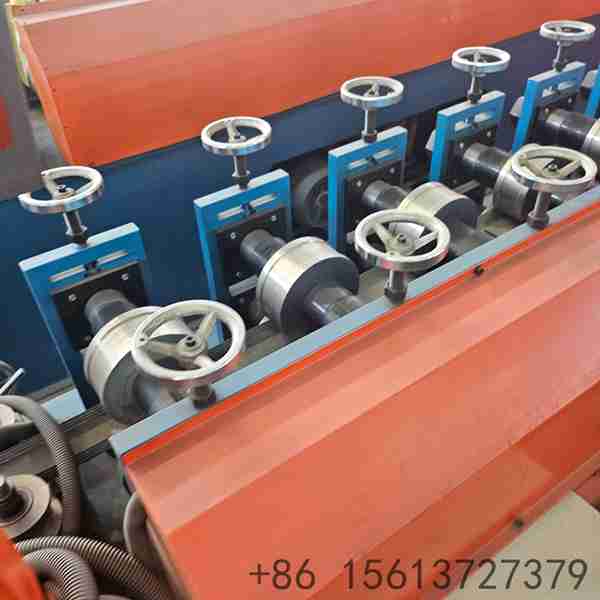

Advanced Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to mold the C-stud profile, ensuring an impeccable surface finish and consistent geometry across every production cycle.
Intelligent PLC Automation: Powered by an advanced PLC (Siemens/Mitsubishi/Delta) with touch screen interface, allowing operators to easily program stud lengths, punching patterns, and monitor real-time diagnostics for optimal production control.
High-Speed Continuous Forming: Features a high-speed continuous forming capability reaching up to 30m/min, significantly increasing daily output for large-scale drywall framing and partition projects.
The Servo C-Stud Roll Forming Machine is a high-performance production solution designed for manufacturers of light steel framing systems. This equipment transforms galvanized steel coils into finished C-studs through a highly synchronized process of decoiling, precision forming, servo tracking punching/cutting, and automated collection.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized Steel Coil |
| 2 | Material Thickness Range | 0.4 - 1.2 mm |
| 3 | Material Yield Strength | Up to 550 MPa (G550) |
| 4 | Coil Width Range | 75 - 150 mm (customizable) |
| 5 | Profile Type | C-Stud (Light Steel Keel) |
| 6 | Forming Speed | 15 - 30 m/min (adjustable via VFD) |
| 7 | Number of Forming Stations | 10 - 15 rows |
| 8 | Main Motor Power | 4 - 5.5 kW |
| 9 | Servo Motor Power | 3 - 4 kW (for tracking cut) |
| 10 | Roller Material | 45# Forged Steel with Hard Chrome Plating (0.05mm) |
| 11 | Shaft Material | 45# Steel, Diameter 50-60mm, Quenched & Polished |
| 12 | Cutting Blade Material | Cr12Mov Mold Steel with Quenching Treatment (HRC 58-62) |
| 13 | Cutting Method | Servo Tracking Cut (Non-stop) |
| 14 | Control System | PLC with Touch Screen (Siemens / Mitsubishi / Delta) |
| 15 | Voltage | 380V / 50Hz / 3 Phases (customizable) |
| 16 | Machine Dimensions | Approx. 6.0m - 8.0m × 1.0m - 1.5m × 1.5m |
| 17 | Machine Weight | Approx. 2.5 - 4 Tons |
| 18 | Length Tolerance | ±1 - 2 mm |
| 19 | Decoiler Capacity | Up to 5 Tons (Manual or Hydraulic) |
| 20 | Drive Mode | Gear / Chain Transmission |
| 21 | Warranty | 12-24 Months Free Warranty + Lifetime Technical Support |
