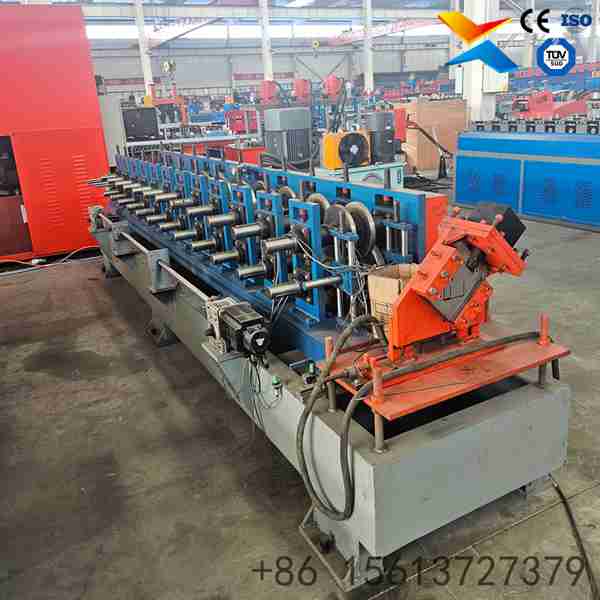

Automatic Changeable C Stud Roll Forming Machine

Automatic Changeable C Stud Roll Forming Machine

Product Attributes :

1.Voltage: 380V/50Hz (customizable for 220V/60Hz)

2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)

3.Weight：3000-5000kg (depending on configuration)

4.Raw Material：Galvanized steel coil

5.Thickness: 0.5-3mm

6.2 years for machinery warranty

7.WhatsApp：+8615613727379

Product Description

Product Introduction:

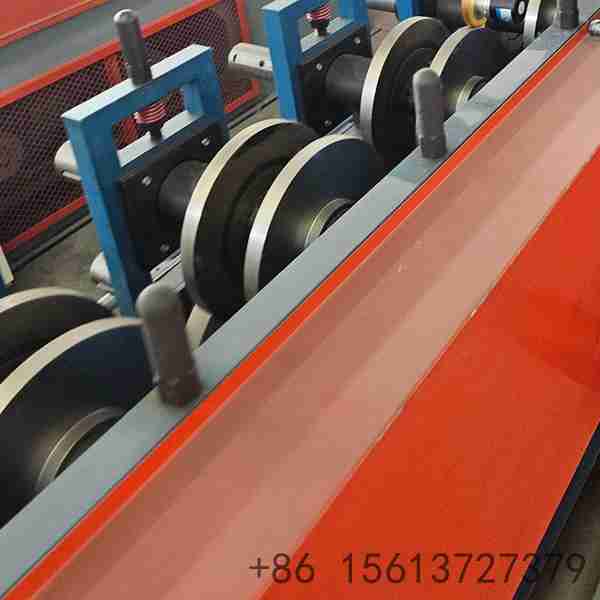

One-Button Profile Switching: Equipped with an advanced PLC control system, operators can switch between different C stud dimensions (width, height, and flange) in seconds via the touch screen, completely eliminating the need for manual roller adjustments.

Flexible Production Capability: Perfectly suited for manufacturers handling diverse, small-batch orders. The auto-adjustable system significantly reduces machine downtime and setup time between different specifications.

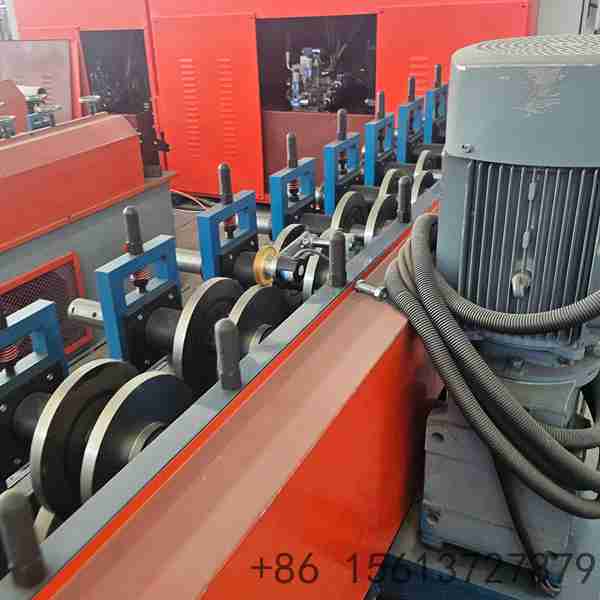

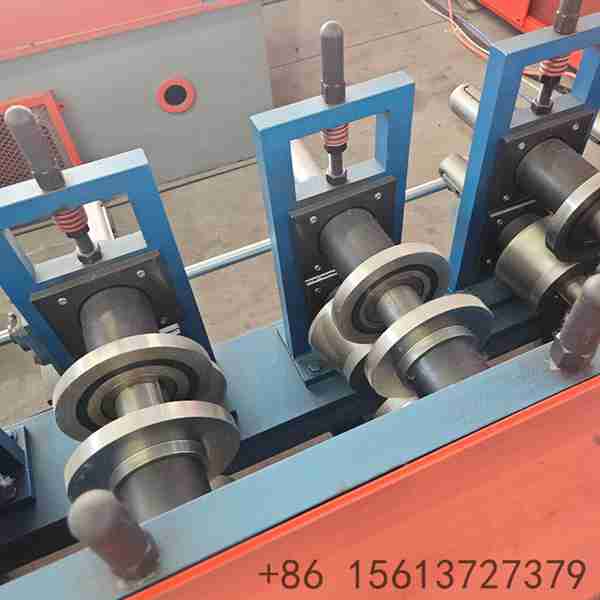

Servo-Driven Precision: Utilizes servo motors for automatic width and height adjustment, ensuring millimeter-level accuracy and consistent geometry for every profile produced.

Labor-Saving Automation: Reduces reliance on highly skilled technicians. A single operator can manage the entire automatic changeable process, drastically lowering labor costs.

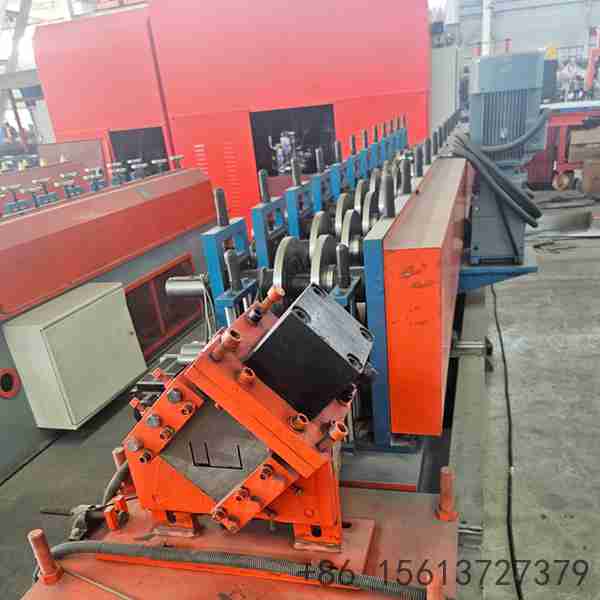

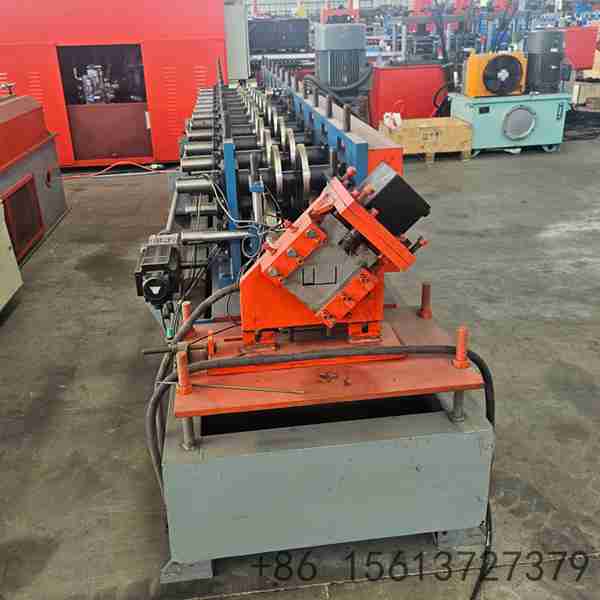

Continuous Forming with Auto-Cutting: Features a hydraulic flying cut or stop-to-cut system that operates synchronously with the auto-adjustable forming stations, ensuring clean, burr-free cuts.

Product Description & Parameters:

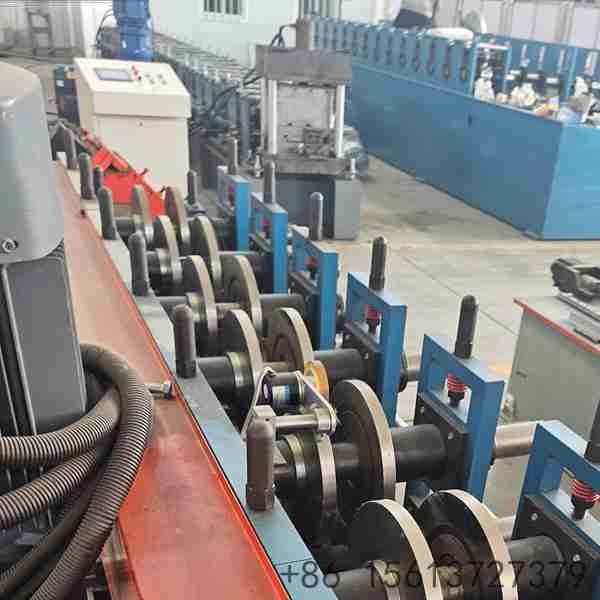

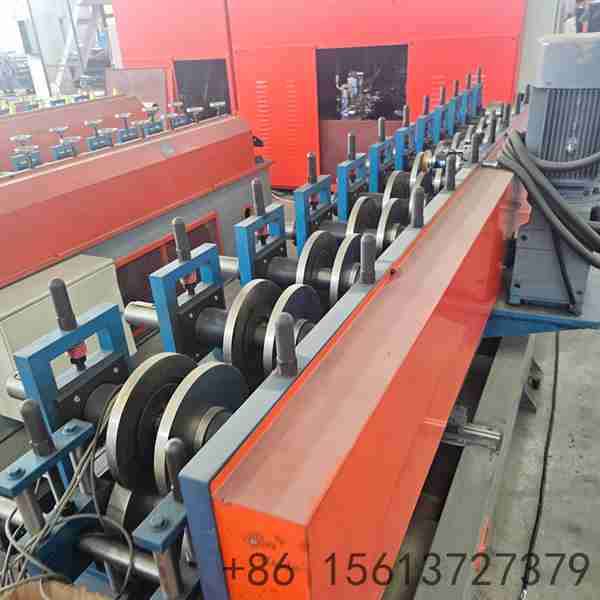

The Automatic Changeable C Stud Roll Forming Machine is the ultimate solution for modern steel framing manufacturers who demand flexibility and speed. Traditional C stud machines require hours of manual adjustment when changing sizes; our auto-changeable system transforms this process into a matter of seconds.

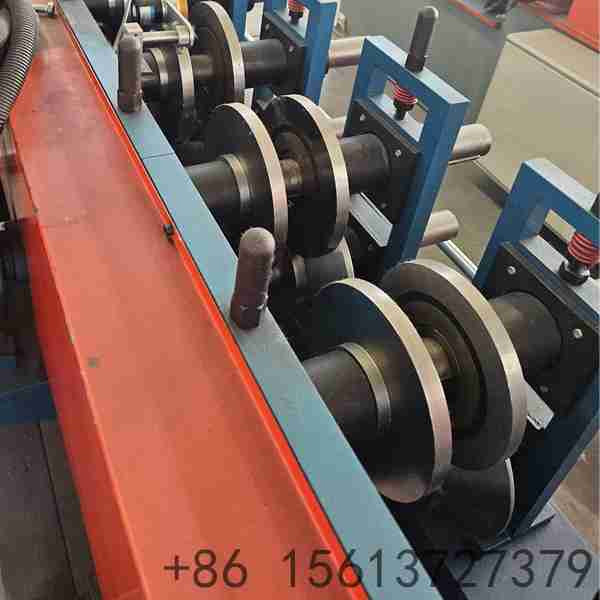

By integrating servo-driven adjustment mechanisms with a smart PLC, the machine automatically repositions the forming rollers and guides based on the input parameters. This eliminates human error and ensures that every C stud meets exact structural specifications. Whether you are producing 63mm, 90mm, or 150mm studs, this machine adapts instantly, making it the most cost-effective and efficient choice for dynamic construction markets.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized Steel Coil (GI)
2	Material Thickness	0.4 - 1.5 mm
3	Adjustable Profile Range	C63 - C200 (Width), H25 - H60 (Height)
4	Forming Speed	15 - 25 m/min (Adjustable)
5	Profile Switching Time	< 1 Minute (Auto Changeable)

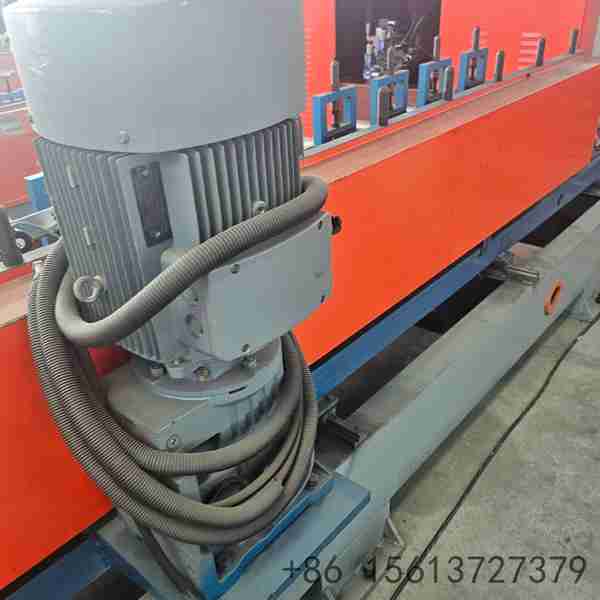

6	Main Motor Power	5.5 - 7.5 kW (Servo Motor)
7	Hydraulic Power	4 - 5.5 kW
8	Roller Material	High Grade 45# Steel, Chrome Plated (0.05mm)
9	Shaft Material	45# Forged Steel, Dia. 70-75mm
10	Cutting Method	Hydraulic Flying Cut / Stop-to-Cut
11	Control System	PLC + Touch Screen (Siemens / Delta)
12	Voltage	380V / 50Hz / 3 Phase (Customizable)
13	Machine Dimensions	Approx. 9.0m x 1.5m x 1.6m
14	Machine Weight	Approx. 6.5 - 8.5 Tons
15	Decoiler	5T Hydraulic Decoiler
16	Warranty	12 Months + Lifetime Technical Support
