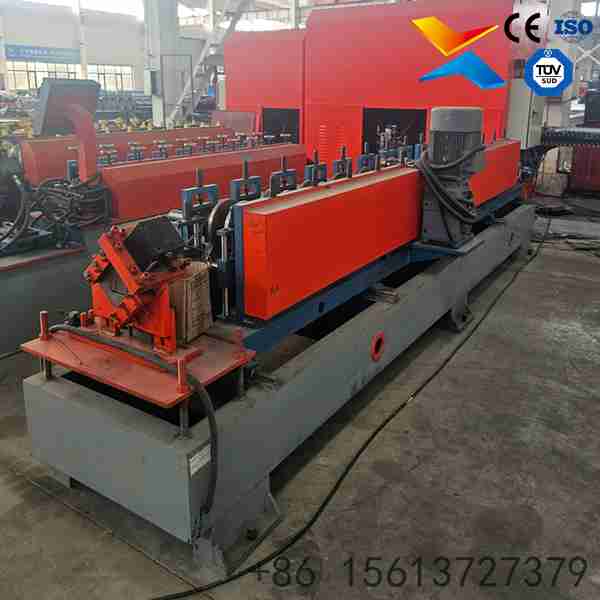

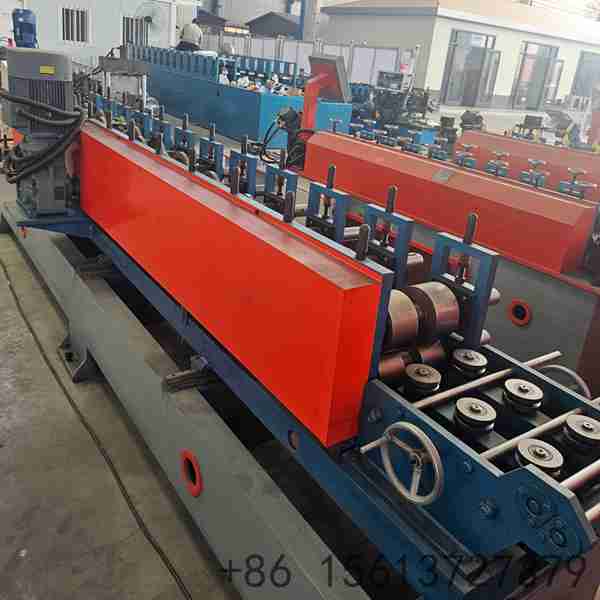

Heavy-Duty Auto Changeable C Purlin Machine

Heavy-Duty Auto Changeable C Purlin Machine

Product Attributes :

1.Voltage: 380V/50Hz (customizable for 220V/60Hz)

2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)

3.Weight：3000-5000kg (depending on configuration)

4.Raw Material：Galvanized steel coil

5.Thickness: 0.5-3mm

6.2 years for machinery warranty

7.WhatsApp：+8615613727379

Product Description

Product Introduction:

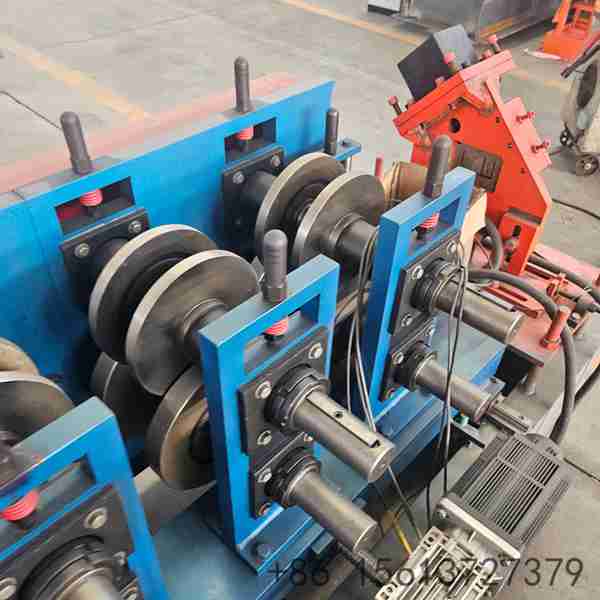

Reinforced Heavy-Duty Frame: Built with high-strength H-beams and thick side plates to absorb the intense vibrations during high-speed auto-adjustable forming and punching, ensuring long-term dimensional stability.

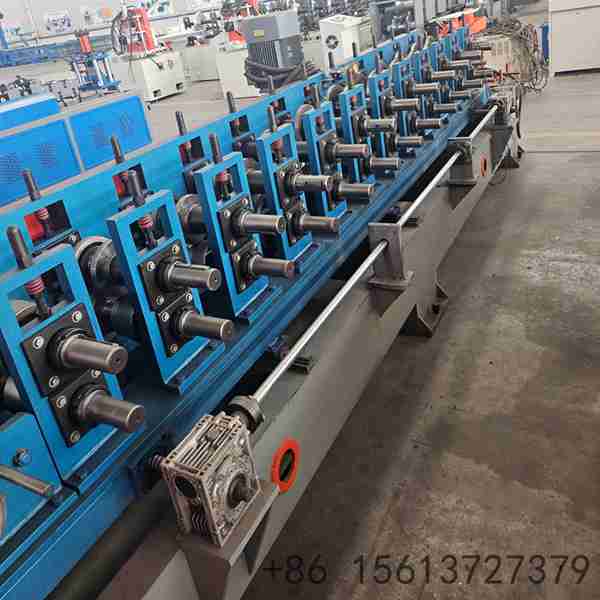

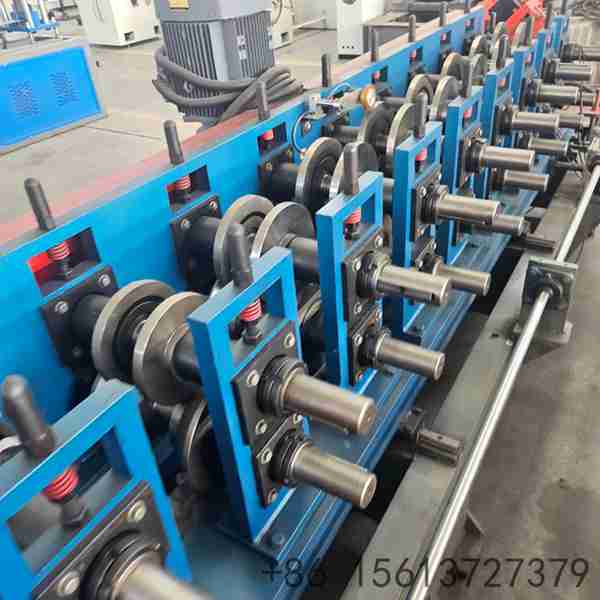

Integrated Precision Punching: Features a hydraulic punching station that automatically adjusts hole positions according to the selected C purlin profile, guaranteeing accurate alignment for structural assembly.

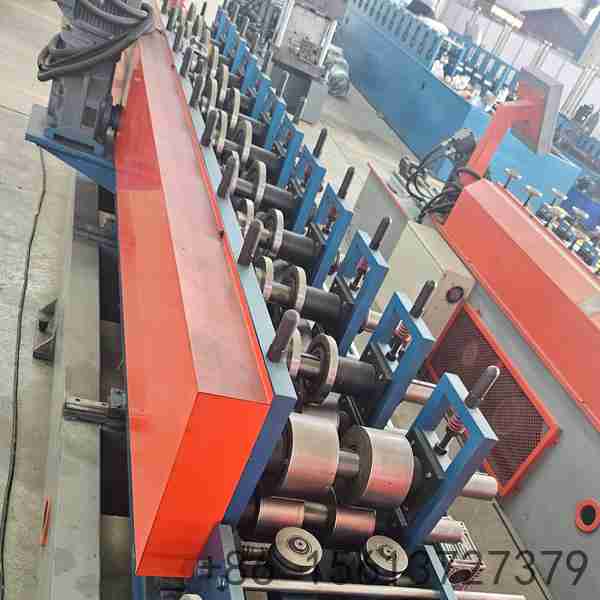

Robust Auto-Adjustable Mechanism: The heavy-duty servo system ensures that even when switching to larger C purlin dimensions, the rollers maintain perfect alignment and pressure without deflection.

High-Strength Material Compatibility: Designed to handle thicker galvanized coils (up to 1.5mm or higher) and high-yield steel, making it ideal for heavy structural applications.

Smart PLC Synchronization: The control system perfectly synchronizes the auto-changeable forming, punching, and cutting processes, ensuring zero defects and seamless operation.

Product Description & Parameters:
The Heavy-Duty Auto Changeable C Purlin Machine is engineered for demanding structural steel applications where precision and strength are non-negotiable. While standard auto-changeable machines excel at light framing, this heavy-duty variant is built to handle the rigorous requirements of industrial purlins and heavy C studs.

The reinforced frame provides the necessary rigidity to support the auto-adjustable servo mechanisms under heavy load. Combined with the integrated punching system, the machine can produce fully finished, ready-to-install structural components in a single pass. The auto-changeable feature allows contractors and manufacturers to switch between different structural sizes on the fly, without sacrificing the heavy-duty performance required for large-span buildings and steel frameworks.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized Steel, High-Strength Steel
2	Material Thickness	0.6 - 2.0 mm (Heavy Duty)
3	Adjustable Profile Range	C80 - C300 (Width), H40 - H80 (Height)
4	Forming Speed	12 - 20 m/min
5	Profile Switching Time	< 2 Minutes (Auto Changeable)
6	Main Motor Power	7.5 - 11 kW (Servo Motor)
7	Hydraulic Power	5.5 - 7.5 kW (Punching & Cutting)
8	Roller Material	45# Steel, CNC Machined, Hard Chrome Plated
9	Shaft Material	45# Forged Steel, Dia. 75-80mm
10	Punching System	Hydraulic, Auto-Adjustable Position

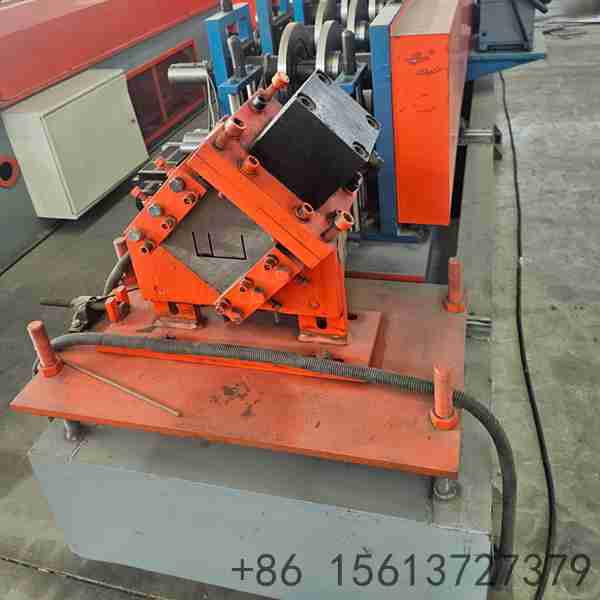

11	Cutting Method	Hydraulic Flying Cut
12	Control System	PLC + Touch Screen (Siemens / Omron)
13	Voltage	380V / 50Hz / 3 Phase
14	Machine Dimensions	Approx. 10.0m x 1.8m x 1.6m
15	Machine Weight	Approx. 8.5 - 11 Tons
16	Decoiler	5T - 8T Hydraulic Decoiler
17	Warranty	12-24 Months + Lifetime Support
