Customizable 4-Size U Channel Roll Forming Machine

Customizable 4-Size U Channel Roll Forming Machine

Product Attributes :

1.Voltage: 380V/50Hz (customizable for 220V/60Hz)

2.Machine Dimension：Length: 8-12m; Width: 1.2-1.5m; Height: 1.5-1.8m (varies by model)

3.Weight：3000-5000kg (depending on configuration)

4.Raw Material：Galvanized steel coil

5.Thickness: 0.5-3mm

6.2 years for machinery warranty

7.WhatsApp：+8615613727379

Product Description

Product Introduction

4-Size Versatility: Designed to produce four different U channel dimensions with quick-change tooling, maximizing equipment utilization and reducing the need for multiple machines.

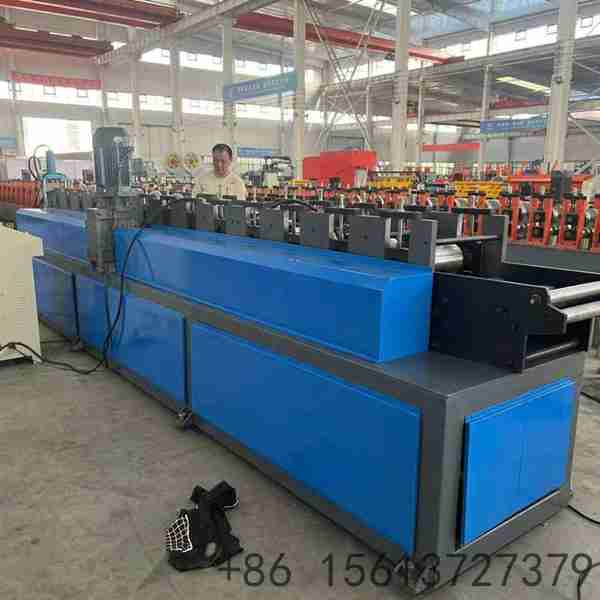

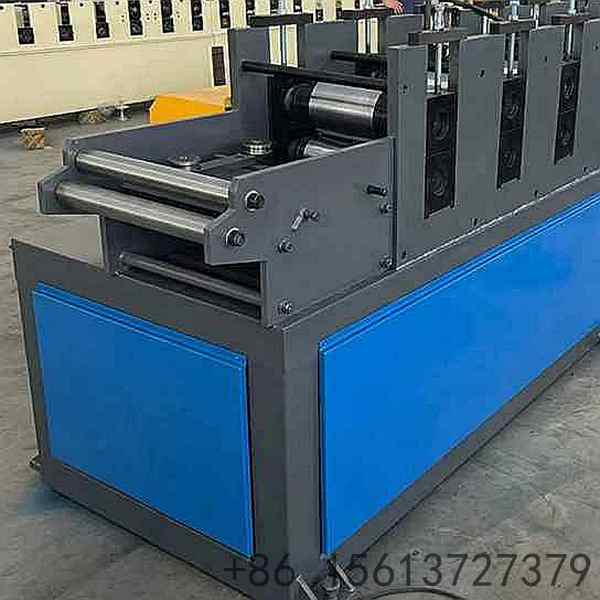

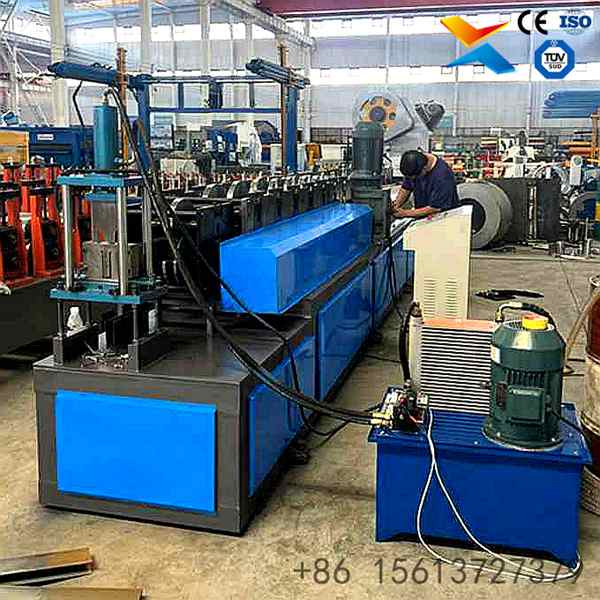

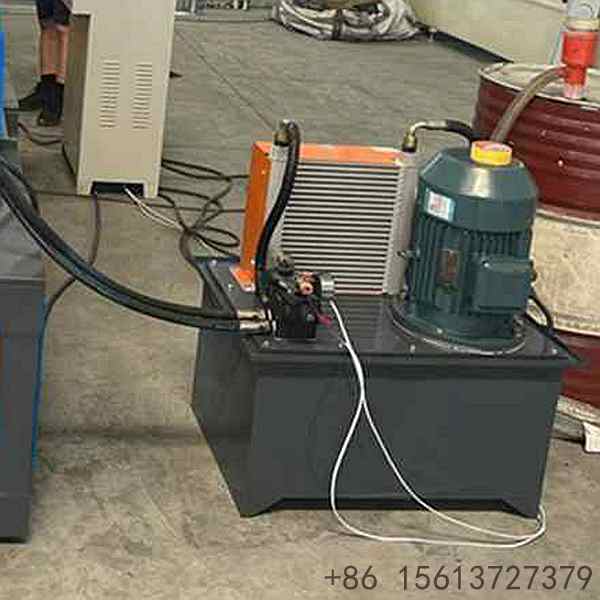

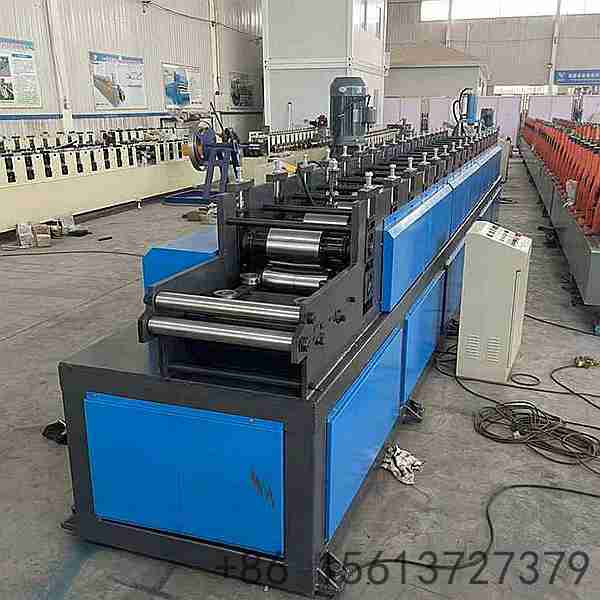

Quick Tooling Changeover: Features a modular roller cassette system that allows operators to switch between U channel sizes in minutes, minimizing downtime and increasing production flexibility.
High-Precision Forming: Advanced roller design and precision machining ensure consistent U channel dimensions with tight tolerances for reliable structural performance.

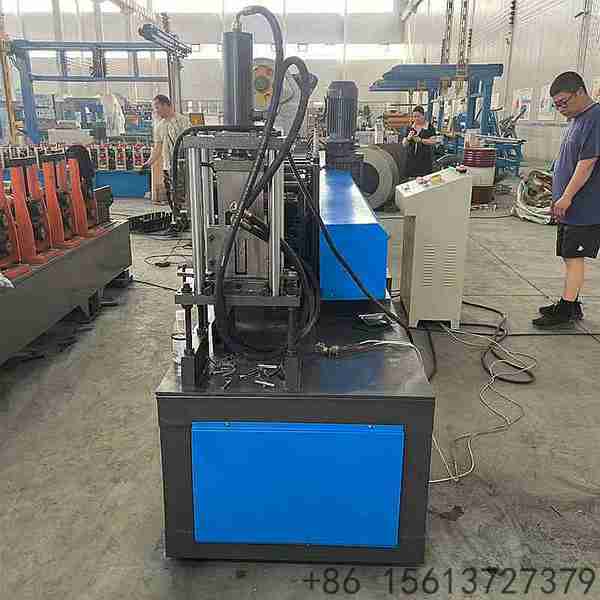

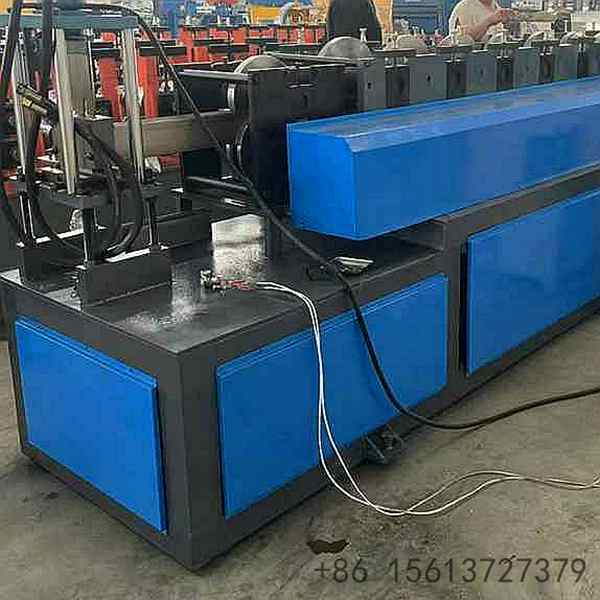

PLC Intelligent Control: Equipped with imported brand PLC and touch screen interface for easy operation, accurate length measurement, and reliable automatic production.
Durable Machine Construction: Built with heavy-duty steel frame and high-strength shafts to ensure stable, vibration-free operation during continuous production.

Product Description & Parameters

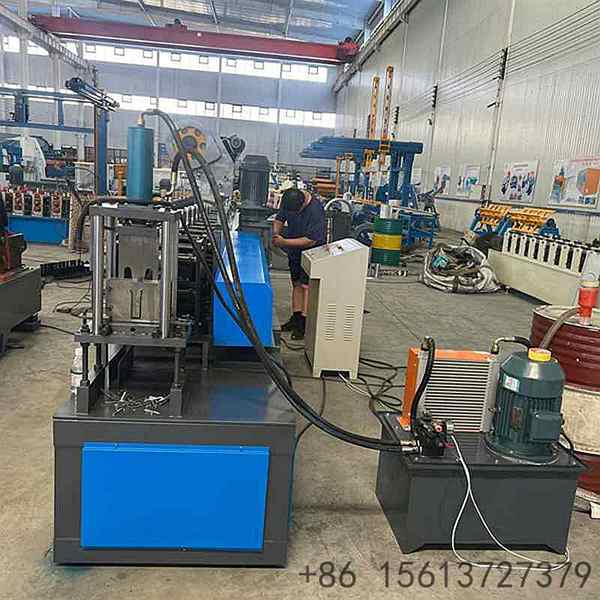

The Customizable 4-Size U Channel Roll Forming Machine is a highly versatile cold roll forming equipment designed for manufacturing multiple U channel profiles from a single production line. This innovative machine features a quick-change tooling system that allows operators to switch between four different U channel sizes efficiently, making it ideal for manufacturers with diverse product requirements. The machine integrates hydraulic uncoiling, guiding, roll forming, length measuring, and automatic cutting into a seamless production line. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized steel coil / PPGI / Aluzinc / Carbon steel
2	Material Thickness Range	1.0 - 3.0 mm
3	U Channel Sizes	4 customizable sizes (e.g., 50×25, 75×40, 100×50, 150×75)
4	Forming Speed	10 - 15 m/min (adjustable via transducer)
5	Number of Roller Stations	14 - 18 stations per size
6	Main Motor Power	7.5 - 11 kW
7	Hydraulic Station Power	4 - 5.5 kW
8	Roller Material	45# forged steel, polished and coated with 0.05mm hard chrome
9	Shaft Material	High-grade 45# steel, diameter 70-80mm, tempered and polished
10	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)
11	Cutting Method	Hydraulic post-cut, automatic pause and cut
12	Control System	PLC control with touch screen (Mitsubishi / Delta / Siemens)
13	Voltage	380V / 50Hz / 3 Phase (customizable)
14	Machine Dimensions	Approx. 10m - 14m × 1.5m - 1.8m × 1.4m - 1.6m
15	Machine Weight	Approx. 6 - 10 Tons
16	Length Tolerance	±1 - 2 mm
17	Tooling Change Time	Approximately 30-60 minutes per size
18	Uncoiler Capacity	Up to 5 tons (hydraulic)
19	Driving Mode	Chain transmission
20	Warranty	12-24 months free warranty + lifelong technical support
