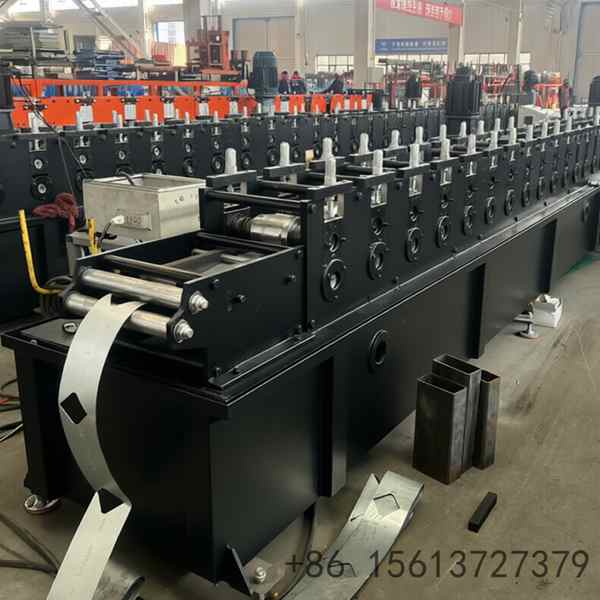

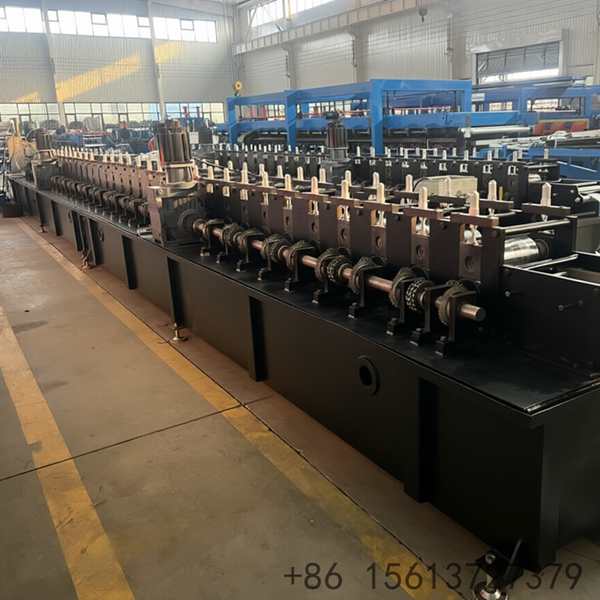

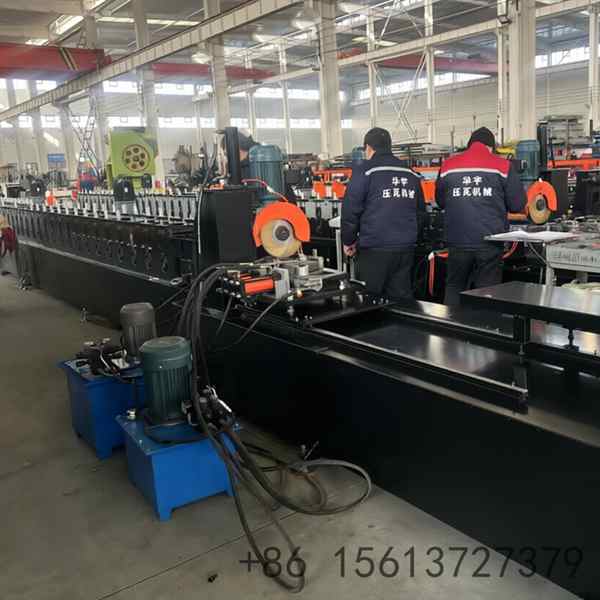

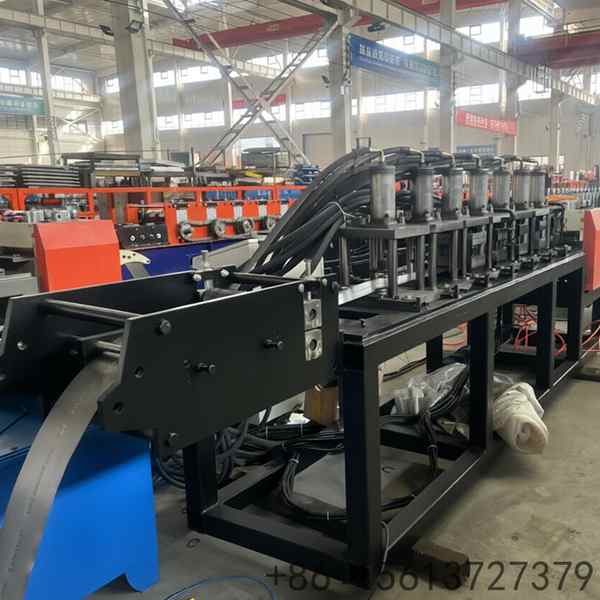

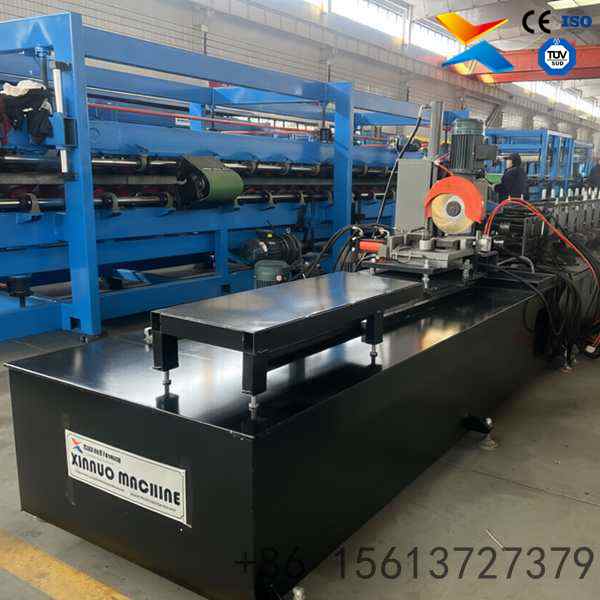

Light Frame Roll Forming Machine
Product Attributes :
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 14 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of cutting blade Cr12 Heat Treatment
Speed 10-15 m/min
Side plate thickness 16 mm
Product Description

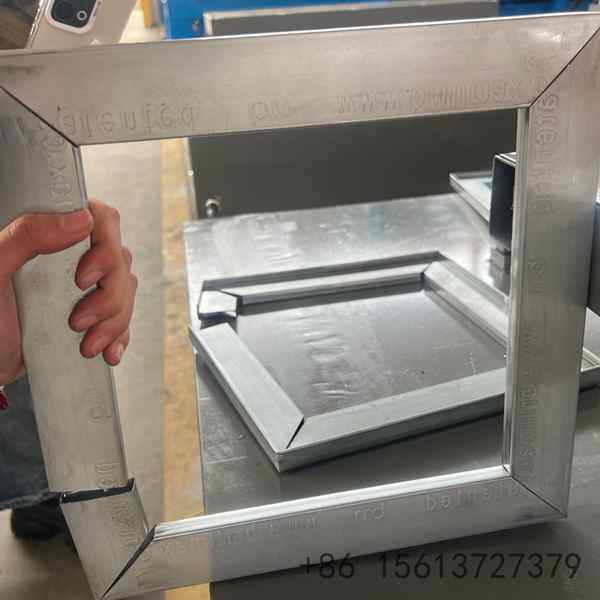

The Lighting Bracket Roll Forming Machine is a specialized, high-precision industrial system dedicated to manufacturing durable and lightweight metal brackets for various lighting fixtures. Designed to meet the growing demand in the lighting industry, it efficiently processes galvanized steel, aluminum, and stainless steel coils into precise profiles—critical structural components for mounting and supporting lighting systems in residential, commercial, and industrial environments.
Core Features
High Precision & Custom Profiles
The machine produces brackets with exact dimensions to ensure perfect compatibility with diverse lighting systems. Featuring quick-change tooling systems, it supports a wide range of designs, from standard mounting brackets to intricate custom profiles tailored for specific architectural lighting needs.
The machine produces brackets with exact dimensions to ensure perfect compatibility with diverse lighting systems. Featuring quick-change tooling systems, it supports a wide range of designs, from standard mounting brackets to intricate custom profiles tailored for specific architectural lighting needs.
High-Speed & Efficient Production

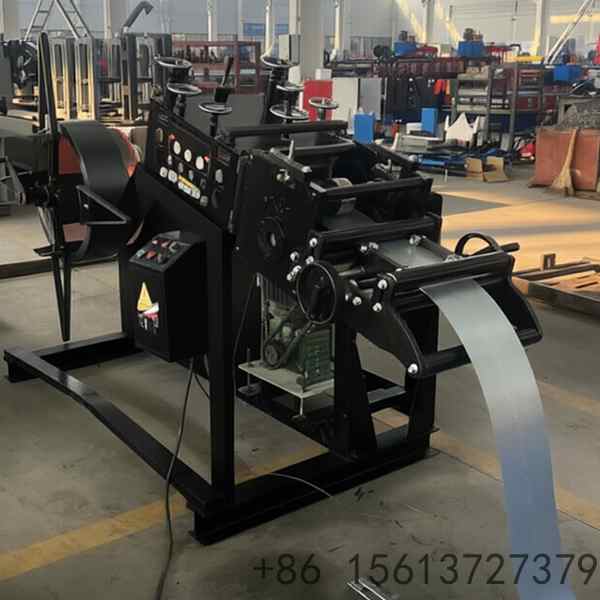

Equipped with an advanced automated workflow (uncoiling, feeding, roll forming, and cutting), the machine ensures high-speed production capable of reaching 20–40 meters per minute. This high efficiency allows manufacturers to easily meet the large-scale demands of commercial and industrial lighting projects.
Equipped with an advanced automated workflow (uncoiling, feeding, roll forming, and cutting), the machine ensures high-speed production capable of reaching 20–40 meters per minute. This high efficiency allows manufacturers to easily meet the large-scale demands of commercial and industrial lighting projects.
Multi-Material Compatibility
Highly adaptable to different lighting requirements, the machine seamlessly processes various materials, including galvanized steel, aluminum, and stainless steel, ensuring the ideal balance of durability, lightweight properties, and corrosion resistance for both indoor and outdoor fixtures.
Highly adaptable to different lighting requirements, the machine seamlessly processes various materials, including galvanized steel, aluminum, and stainless steel, ensuring the ideal balance of durability, lightweight properties, and corrosion resistance for both indoor and outdoor fixtures.
Integrated Automation & Eco-Friendly

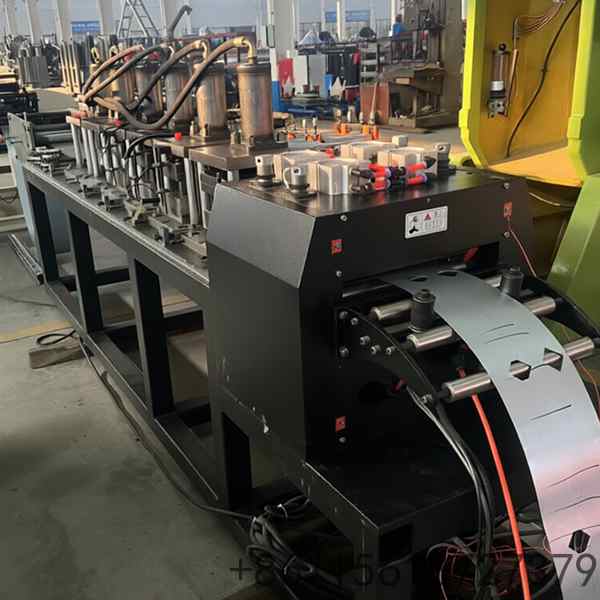

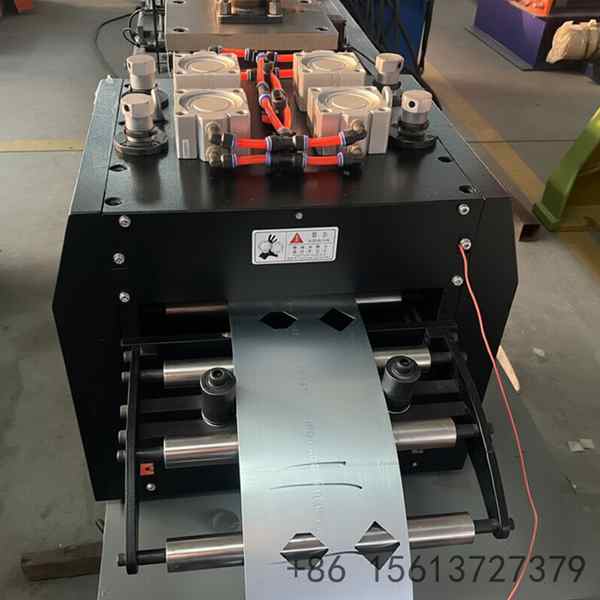

The line features built-in punching and cutting systems to reduce secondary operations and labor costs. With a PLC control system for automated adjustments and real-time monitoring, it significantly reduces material waste, supporting sustainable and cost-effective manufacturing practices.
The line features built-in punching and cutting systems to reduce secondary operations and labor costs. With a PLC control system for automated adjustments and real-time monitoring, it significantly reduces material waste, supporting sustainable and cost-effective manufacturing practices.
Application Scope
Widely used by lighting fixture manufacturers and metal component suppliers. The finished brackets are essential for industrial heavy-duty lighting, commercial office lighting, residential decorative fixtures, streetlights, and smart lighting systems (IoT-enabled)
Detail
| Parameter | Specification |
|---|---|
| Material Type | Galvanized Steel / Aluminum / Stainless Steel |
| Forming Speed | 20 – 40 m/min |
| Profile Type | Lighting Brackets / Custom Profiles |
| Punching & Cutting | Integrated Automatic System |
| Dimensional Tolerance | ± 0.1 mm (High Precision) |
| Main Motor Power | 5.5 – 7.5 kW (Adjustable by profile) |
| Roller Material | High-Grade Forged Steel, Chrome Plated |
| Control System | PLC + Touch Screen (Siemens / Delta) |
| Voltage | 380V / 3Ph / 50Hz (Customizable) |
