Product Description
Product Introduction:
Product Description & Parameters:

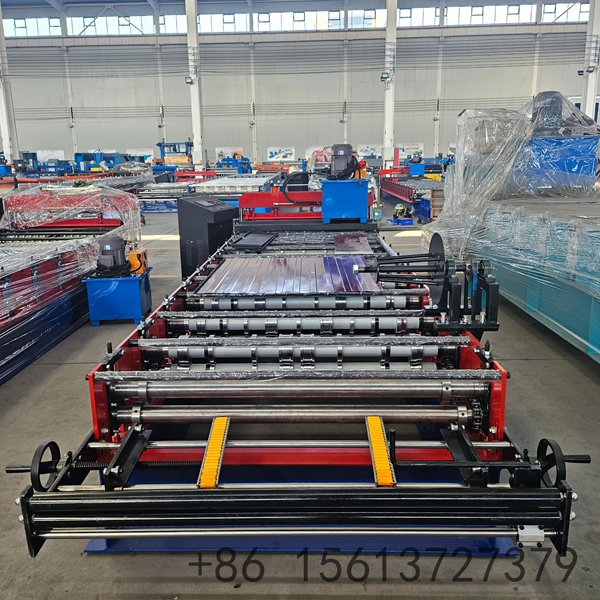

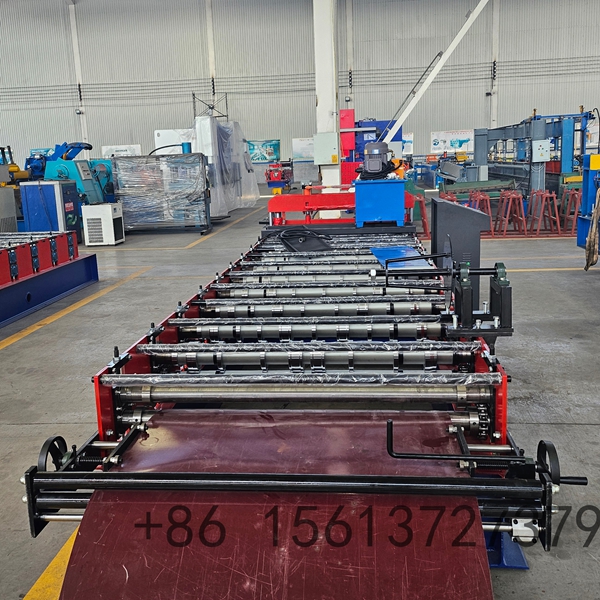

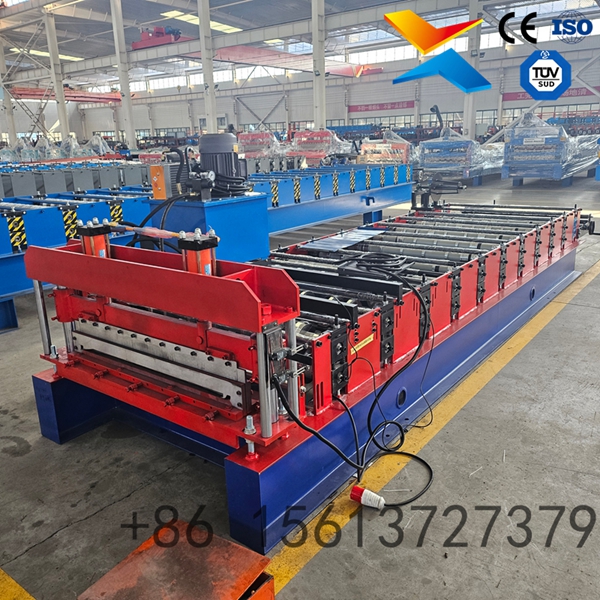

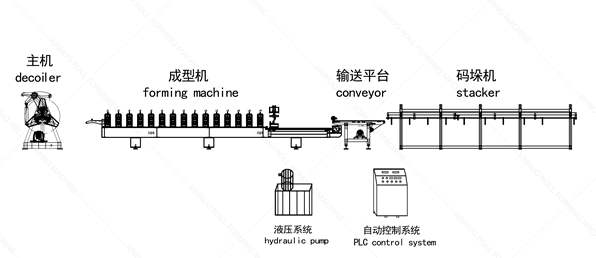

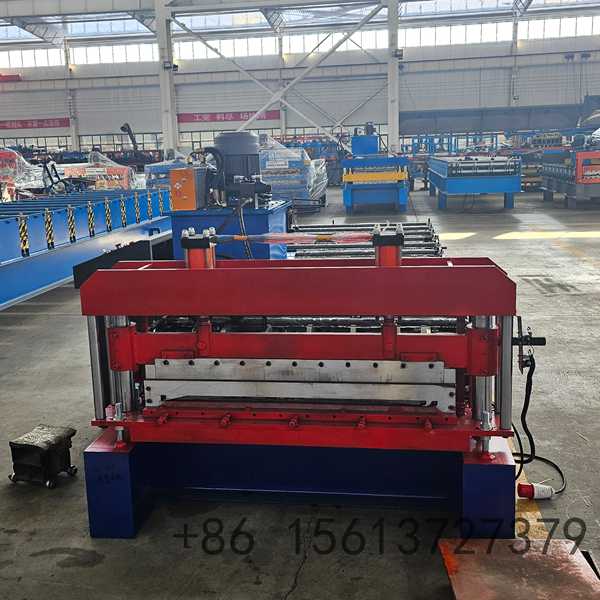

The Standing Seam Snap Lock Panel Roll Former is a specialized cold roll forming equipment designed for manufacturing high-quality snap lock metal roofing panels widely used in residential buildings, commercial facilities, and architectural projects. The snap lock panels feature vertical raised seams with male and female legs that simply snap together during installation, eliminating the need for mechanical seaming tools and significantly reducing installation time. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.
The Standing Seam Snap Lock Panel Roll Former is a specialized cold roll forming equipment designed for manufacturing high-quality snap lock metal roofing panels widely used in residential buildings, commercial facilities, and architectural projects. The snap lock panels feature vertical raised seams with male and female legs that simply snap together during installation, eliminating the need for mechanical seaming tools and significantly reducing installation time. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic hydraulic cutting into a seamless production line that requires only 1-2 operators. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.
Product Details:
| Production Speed | 8-15m/min, stable operation with minimal error |

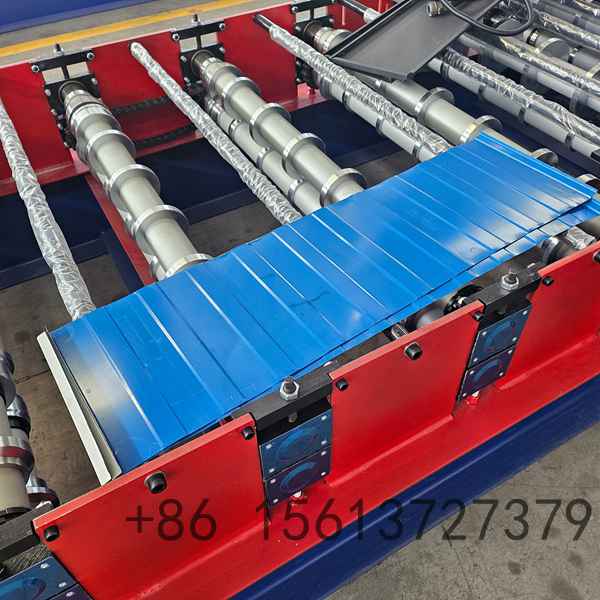

| Roller Stations | 14-22 stations depending on profile design |
| Roller Material | High-quality GCr15 steel with heat treatment & hard chrome plating |
| Shaft Diameter | 75 mm solid steel shaft, precision machined |

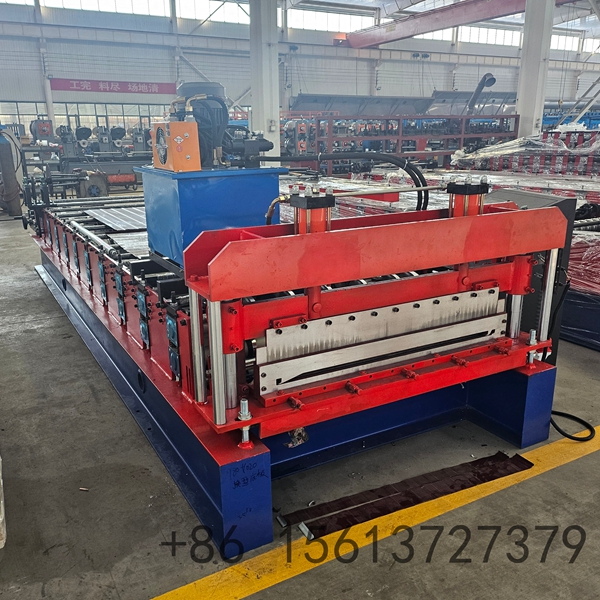

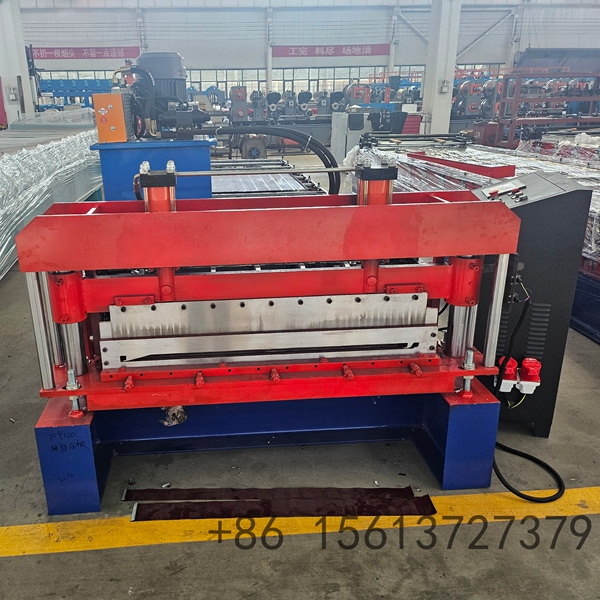

| Cutting System | Hydraulic cutting with high-precision blades for smooth edges |

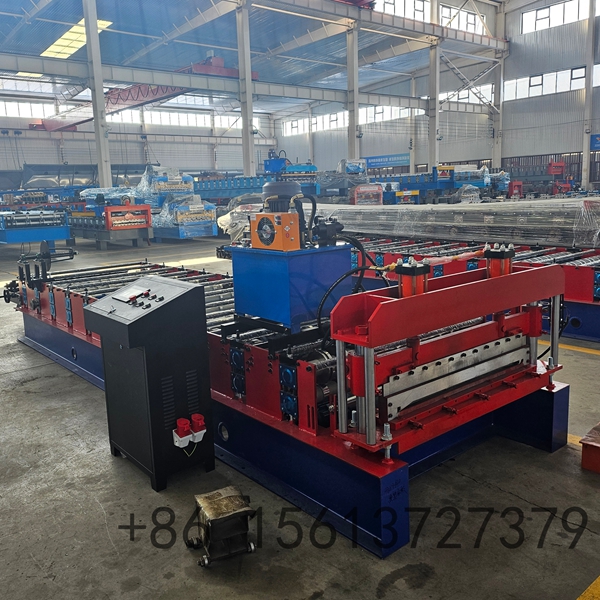

| Control System | PLC automatic control with touch screen (Siemens/Delta) |
| Main Motor Power | 5.5 kW (customizable for higher production speed) |

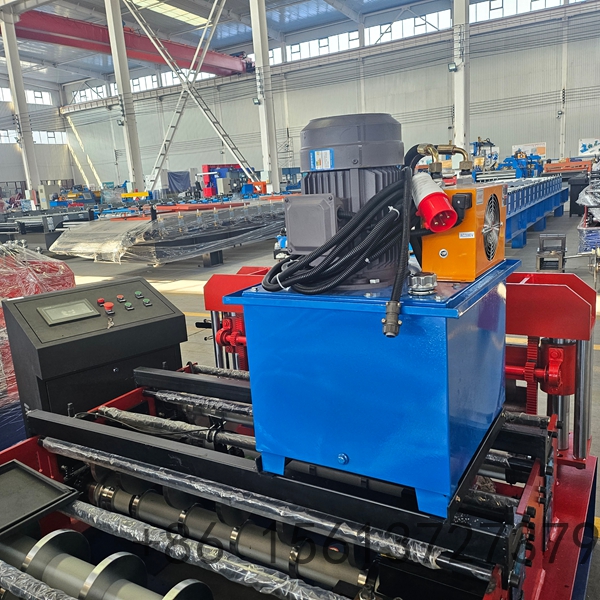

| Hydraulic Station Power | 4 kW with reliable pump for long-term performance |
| Dimension (L×W×H) | About 8.5 m × 1.5 m × 1.5 m |
| Weight |
About 6 tons |
