Stacker Palletizer Roll Forming Machine

Product Attributes :

Auto Palletizer Machine for Metal Roofing Sheet Roll Forming Machine is an advanced automated stacking system designed to enhance the efficiency of metal roofing production lines.

Product Description

Product Introduction:

Integrated Forming and Stacking: Combines roll forming, punching, cutting, and automatic stacking into one seamless production line, maximizing warehouse storage equipment manufacturing efficiency.
High-Precision Roll Forming: Advanced roller design and precision machining ensure consistent stacker palletizer dimensions with tight tolerances for perfect assembly and high load-bearing capacity.
Automatic Hydraulic Punching & Cutting: Equipped with multi-station punching and Cr12 mould steel cutting blades quenched for hardness, providing precise hole placement and length-set cutting with minimal tolerance (±1mm).
PLC Intelligent Control: Utilizes imported brand PLC and touch screen interface for easy operation, accurate length measurement, and reliable automatic stacking and production.
Durable Machine Construction: Built with heavy-duty steel frame and high-strength shafts to ensure stable, vibration-free operation during continuous production of warehouse shelving.

Product Description & Parameters:
The Stacker Palletizer Roll Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality warehouse shelving components, pallet rack uprights, and stacking system profiles. Widely used in logistics centers, automated warehouses, and industrial storage facilities, this machine integrates the forming of metal profiles with automated stacking capabilities to streamline the production process. The machine processes galvanized or cold-rolled steel coils through decoiling, leveling, hydraulic punching, roll forming, length measuring, and automatic cutting. The finished products are then automatically stacked and palletized for easy forklift handling. The rollers are manufactured from high-grade 45# forged steel with hard chrome plating and heat treatment, ensuring long service life and smooth panel surfaces.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized steel coil / Cold-rolled steel / Aluzinc
2	Material Thickness Range	1.0 - 2.5 mm
3	Material Yield Strength	235 - 550 MPa
4	Forming Speed	10 - 25 m/min (adjustable via transducer)
5	Number of Roller Stations	16 - 22 stations (depending on profile design)
6	Main Motor Power	11 - 18.5 kW
7	Hydraulic Station Power	5.5 - 7.5 kW
8	Roller Material	High-grade 45# forged steel with hard chrome plating (0.05mm)
9	Shaft Material	45# / 40Cr steel, diameter 75-90mm, tempered and polished
10	Punching System	Multi-station hydraulic punching (single/dual holes, slots)
11	Cutting Blade Material	Cr12 / Cr12MoV mould steel with quenching treatment (HRC 58-62)
12	Cutting Method	Hydraulic post-cut / Pre-cut, automatic pause and cut
13	Control System	PLC control with touch screen (Siemens / Mitsubishi / Delta)
14	Voltage	380V / 50Hz / 3 Phase (customizable)
15	Machine Dimensions	Approx. 10m - 15m × 1.5m - 2.0m × 1.5m - 1.8m
16	Machine Weight	Approx. 8 - 15 Tons
17	Length Tolerance	±1 - 2 mm
18	Uncoiler Capacity	Up to 5 - 8 tons (manual or hydraulic)
19	Driving Mode	Chain transmission
20	Warranty	12-24 months free warranty + lifelong technical support

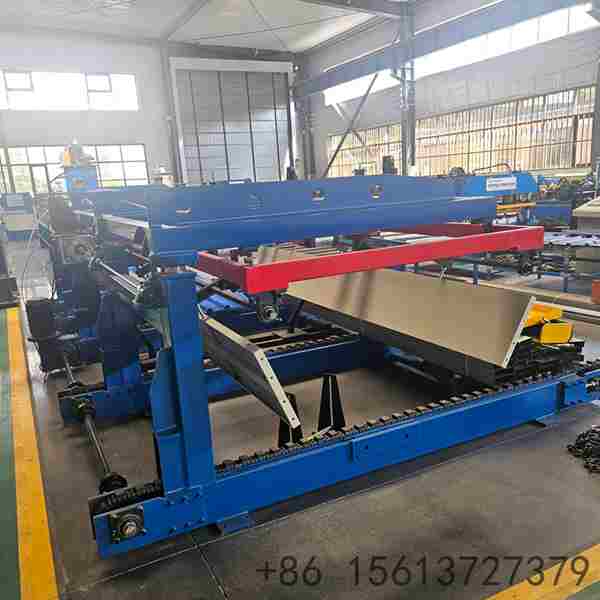

Automatic stacker palletizer roll forming machine designed for continuous production of warehouse storage racks

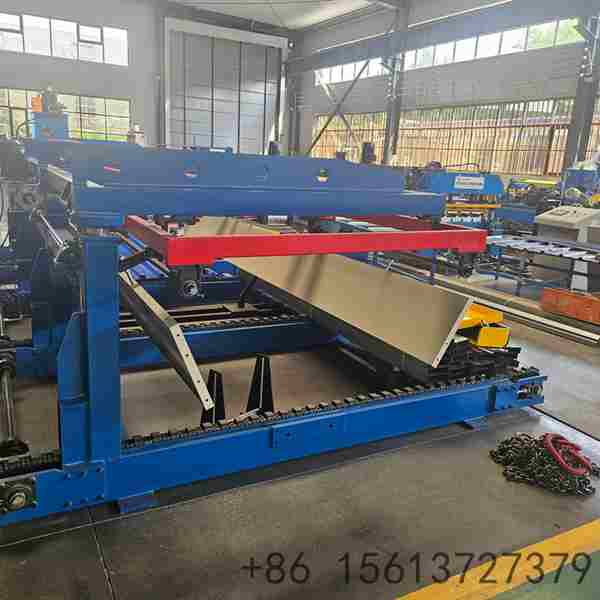

Precision roll forming station with multiple roller stations ensuring accurate palletizer upright profile shaping

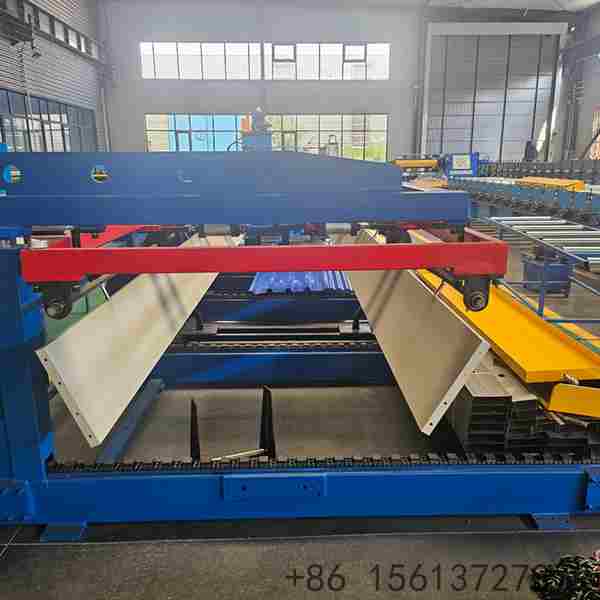

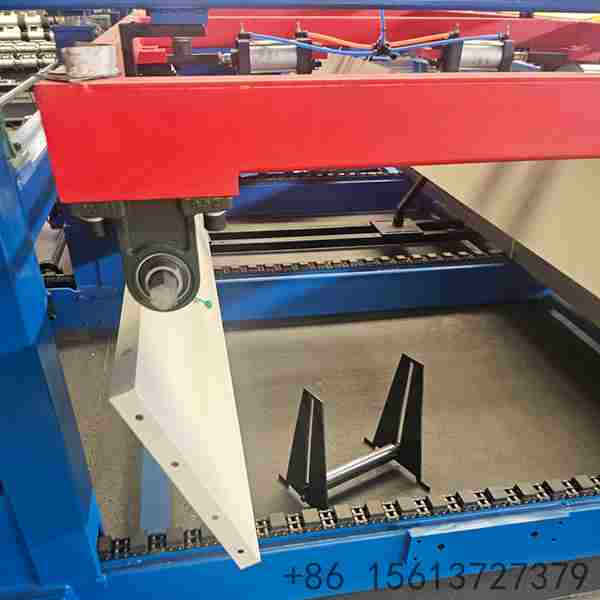

Integrated automatic stacking system allowing seamless stacking of formed shelving panels onto pallets

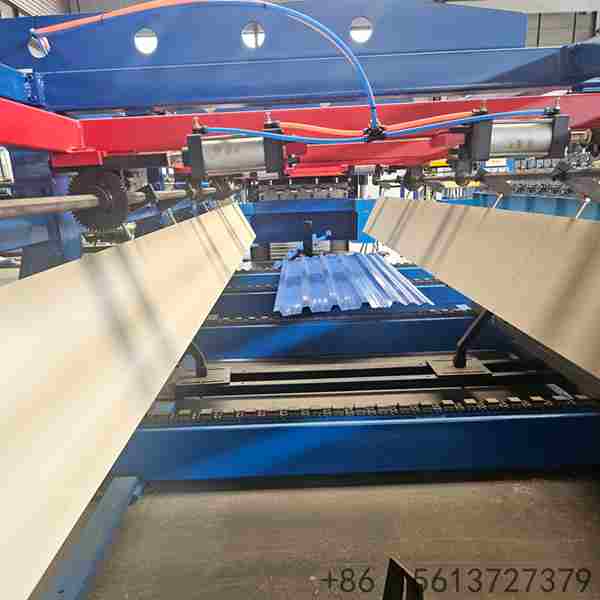

Finished galvanized steel warehouse rack uprights produced by the high-precision roll forming equipment

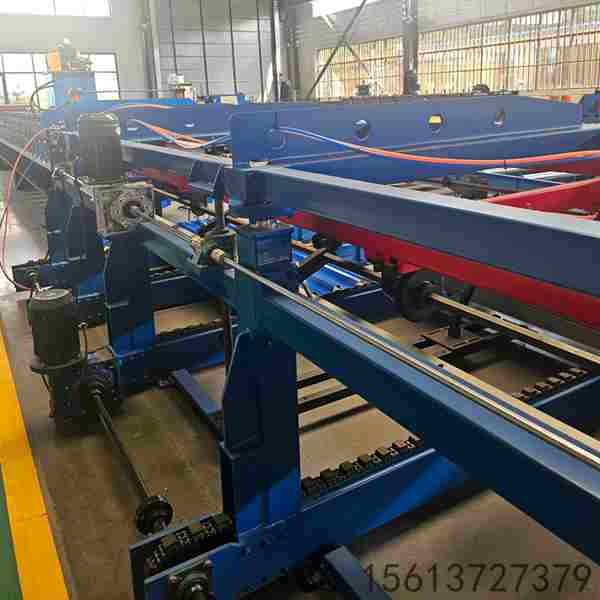

Heavy-duty welded steel frame structure of the stacker machine ensuring maximum stability during high-speed operation

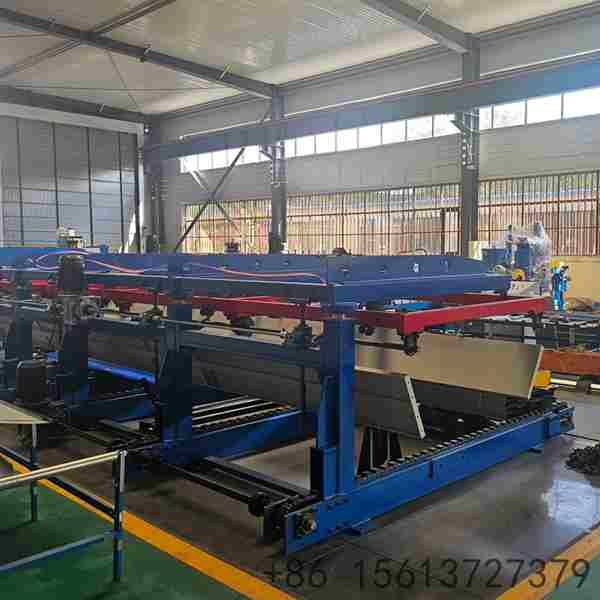

Hydraulic decoiler and servo feeding system working perfectly with the automated palletizer roll former
