Valley Gutter Section: A V shaped gutter with an arc bottom, formed for roof valleys.

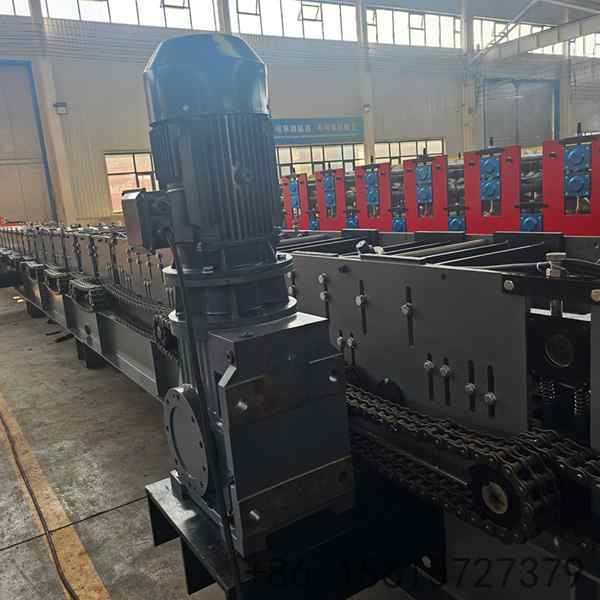

12 Forming Stations: The valley and the arc bottom fold step by step, keeping the gutter line straight.
Heavy Build: A 350H frame, an 18mm middle plate and 75mm shafts suit long production runs.
Matched Drive: An 11KW motor with a two inch chain drive carries the forming load.
Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Valley angle, gutter depth, arc bottom and edge form follow your drawing.
Fewer Operations: Forming and cutting run as one line.
| Component | Specification |
|---|---|
| Machine type | Valley gutter roll forming machine |
| Profile | V shaped roof valley gutter with arc bottom |
| Model | HY125.57 |
| Developed section width | 225.06 mm |
| Effective coverage width | [To be confirmed] |
| Coil feed width | 350 mm |
| Forming stations | 12 |
| Middle plate | 18 mm |
| Frame | 350H |
| Shafts | 75 mm |
| Main motor | 11 KW |
| Chain drive | Two inch chain |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |

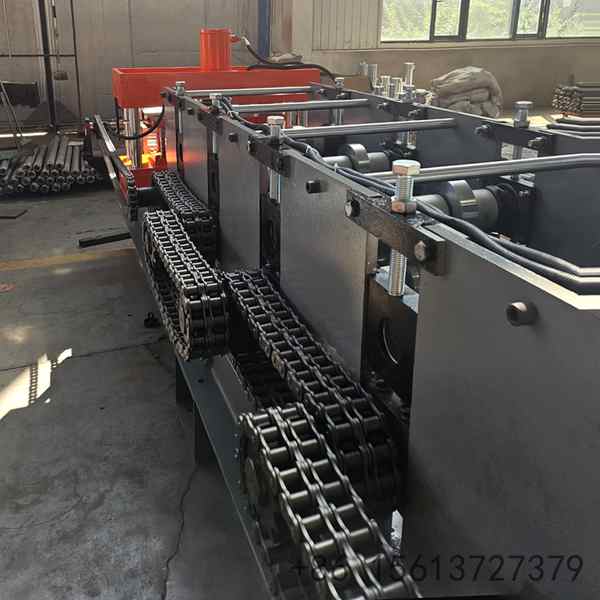

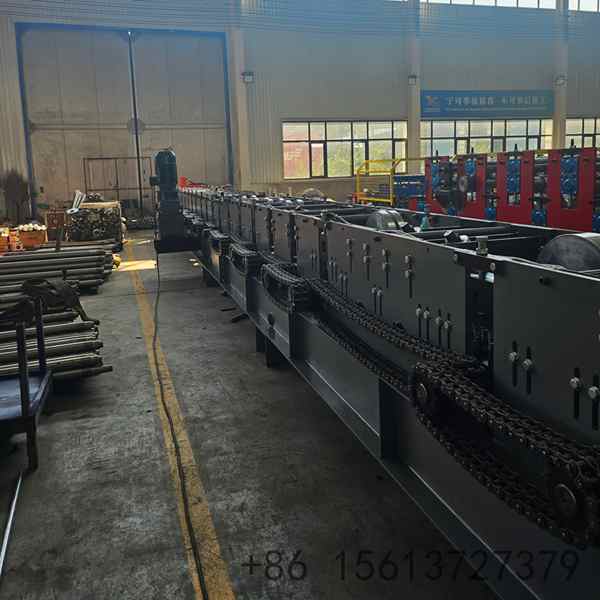

Arc Bottom Valley: The V shaped gutter folds with an arc bottom, so the trough runs without a hard crease line.
12 Stations: The valley, the arc bottom and the turned up edges fold step by step.
Heavy Build: A 350H frame with an 18mm middle plate and 75mm shafts holds the section.
Matched Drive: An 11KW motor and a two inch chain drive carry the load of the forming pass.
Fewer Operations: Forming and cutting run as one line.
Set From Panel: Length and batch count are entered on the control panel.
Drawing Matched: Valley angle, gutter depth and edge form follow your section drawing.
