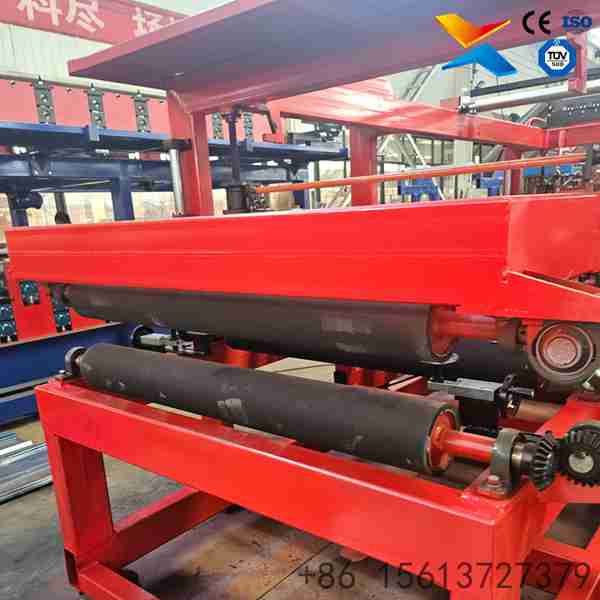

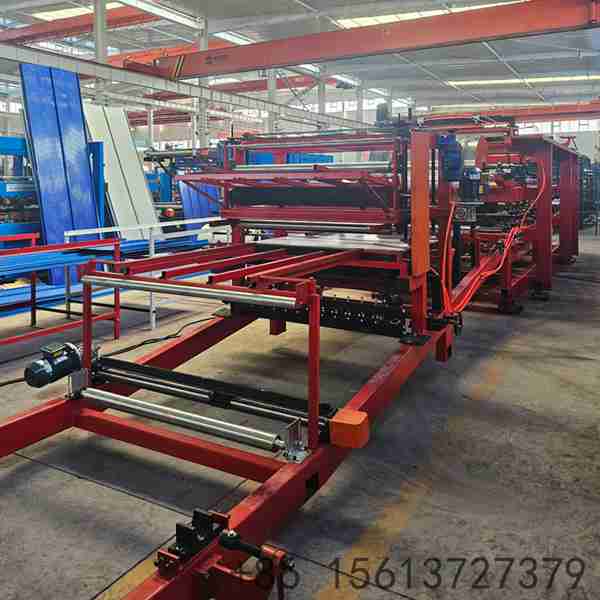

Smart Servo Driven Rock Wool And EPS Sandwich Panel Production Line
This Smart Servo-Driven Rock Wool and EPS Sandwich Panel Production Line is engineered for manufacturers seeking intelligent automation and energy-efficient production. By replacing traditional hydraulic drives with precision servo motors and energy-saving inverters, this line significantly reduces power consumption while delivering unmatched forming and pressing accuracy. The centralized smart PLC with remote monitoring capability allows production managers to supervise every section from a single interface. Combined with fully automatic material handling, this next-generation equipment provides the smart factory infrastructure necessary to produce premium insulated panels with superior bonding strength and dimensional accuracy for the global construction market.
Product Briefing
Servo Precision Drive: High-precision servo motors replace traditional hydraulic systems for accurate pressure and speed control with lower energy use.
Energy-Saving Inverter Logic: Smart inverters dynamically adjust motor speeds to match production demand, cutting power use during idle periods.
Fully Automatic Handling: Integrated automatic material handling covers the entire flow from core feeding to final panel stacking.

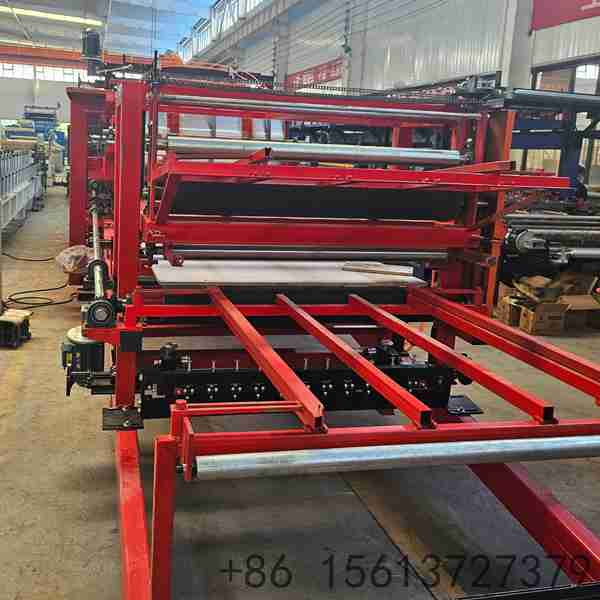

Smart PLC with Remote Monitoring: Centralized control with connectivity options allows real-time supervision and diagnostics of every line section.
Precision Multi-Zone Heating: Digitally controlled heating zones maintain optimal curing temperatures for both rock wool and EPS foam cores.
Detailed Description
Technical Parameters
| Component | Technical Specification |
|---|---|
| Line Category | Smart Servo-Driven (Energy Efficient) |
| Core Materials | Rock Wool / EPS Foam / Glass Wool |
| Panel Thickness | 50mm - 250mm (Adjustable) |
| Effective Width | 950mm - 1150mm (Customizable) |
| Steel Skin Thickness | 0.3mm - 0.8mm (Pre-painted Steel) |
| Drive Technology | Servo Motors + Energy Saving Inverters |
| Press System | Servo Driven Continuous Laminating Press |
| Heating Control | Precision Multi-Zone Temperature System |

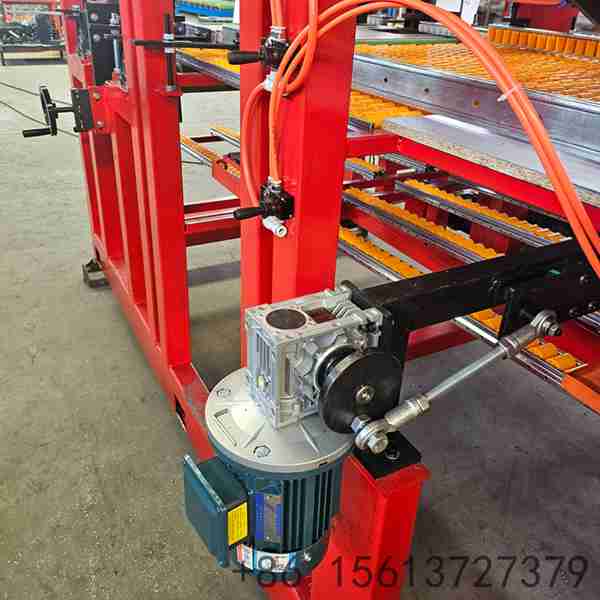

| Cutting Unit | Servo Flying Saw / Ribbon Cutter |
| Material Handling | Fully Automatic (Feeding to Stacking) |
| Control System | Smart PLC with Remote Monitoring |
| Line Speed | 3m - 7m Per Minute (Core Dependent) |
Unique Technical Advantages
Energy-Saving Drive Logic: Servo and inverter technology can reduce total line power consumption by up to 30% compared to conventional hydraulic configurations.

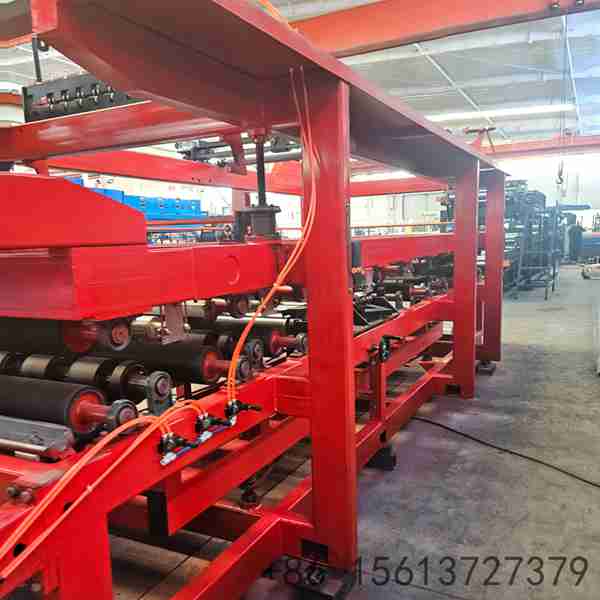

Servo Precision Control: Servo-driven press and saw units provide repeatable accuracy within tight tolerances for uniform panel thickness and clean cuts.
Remote Smart Diagnostics: The PLC supports remote monitoring and data logging, enabling proactive maintenance and production analytics.
Automatic Material Flow: Fully automatic handling minimizes manual intervention, reduces labor costs, and ensures consistent production quality.
