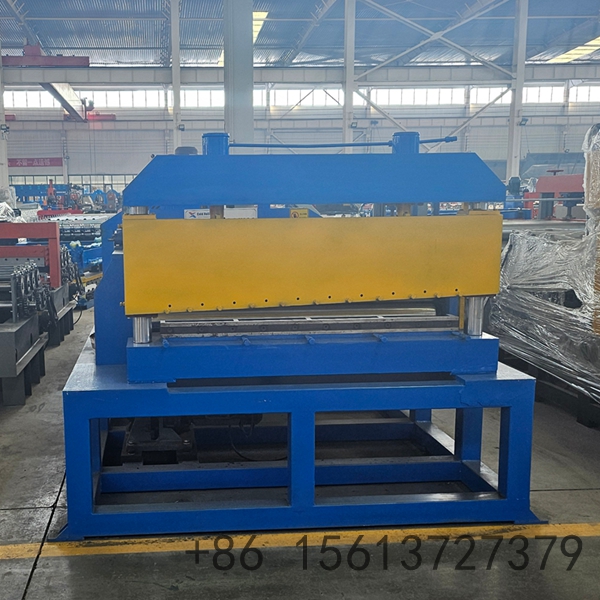

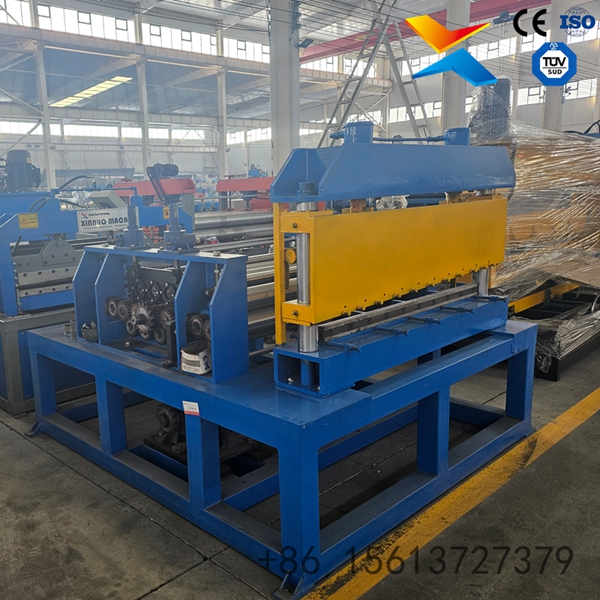

Slitting Line Tile Forming Machine

Product Attributes :

Item	Description
Product Name	Slitting Line Tile Forming Machine
Core Function	Automated slitting and precision forming of tiles or metal roofing coils
Control System	Advanced PLC Control with Touch Screen Interface
Key Features	High-speed operation, minimal material waste, durable cutting blades
Application	Mass production for construction materials, drywall framing, and roofing systems
Advantage	Ensures consistent dimensional accuracy and superior edge quality

Product Description

Item	Description
Applicable Material	Color Steel Coil, Galvanized Steel, Aluminum, Ceramic Slabs
Material Thickness	0.3 mm – 0.8 mm (Customizable)
Effective Width	1000 mm / 1250 mm (Standard)
Slitting Width Range	50 mm – 1000 mm (Adjustable)
Forming Speed	10 – 20 m/min (Variable Frequency Control)
Main Motor Power	5.5 kW – 7.5 kW
Hydraulic System	4 kW (Cutting & Punching)
Control System	PLC Automatic Control with Touch Screen

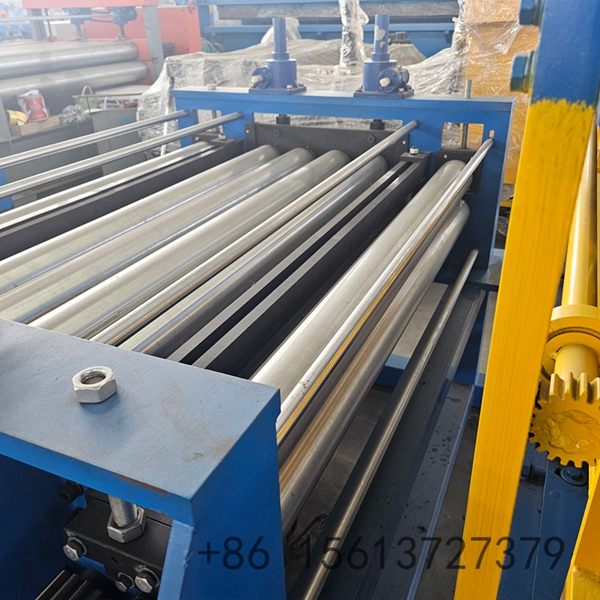

Roller Material	45# Steel with Chrome Plating (Hardened)

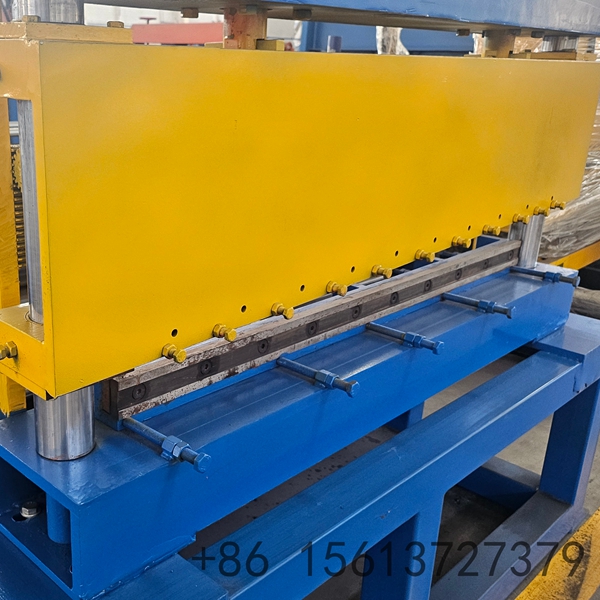

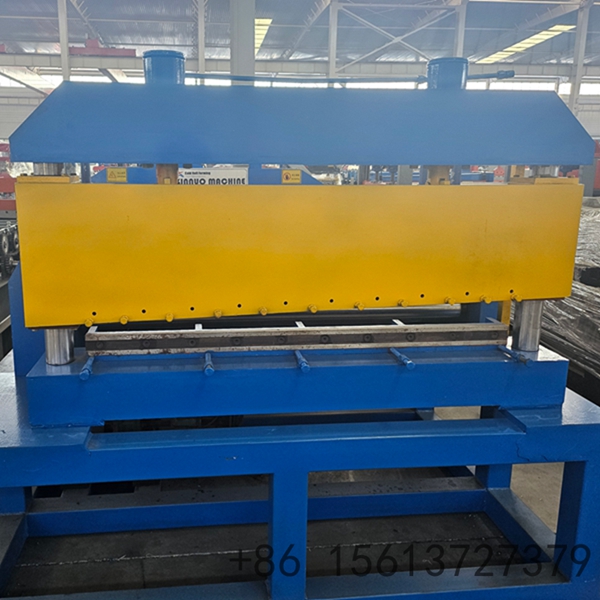

Cutting Method	Hydraulic Shearing / Mould Cutting
Voltage	380V / 50Hz / 3 Phase (Customizable)
Overall Dimension	Approx. 6000 mm × 1500 mm × 1400 mm (L×W×H)
Machine Weight	Approx. 4000 kg – 6000 kg

1. Product Overview
The Slitting Line Tile Forming Machine is an advanced industrial solution designed for the high-efficiency processing of roofing materials and tiles. Integrating precision slitting technology with automated forming capabilities, this equipment transforms raw coils into uniform, high-quality finished products. Featuring a robust PLC control system and durable cutting blades, it significantly reduces material waste and operational costs, making it ideal for large-scale manufacturing in the construction industry.

2. Key Features & Advantages

High Precision: Ensures consistent dimensional accuracy and superior edge quality for every tile.
Automated Operation: Equipped with a user-friendly PLC touch screen interface for easy control and monitoring.
Efficient Production: High-speed processing capability maximizes daily output while minimizing manual labor.
Durability: Built with high-grade steel rollers and blades to ensure a long service life and stable performance.
Versatility: Capable of processing various materials to meet diverse construction requirements.
