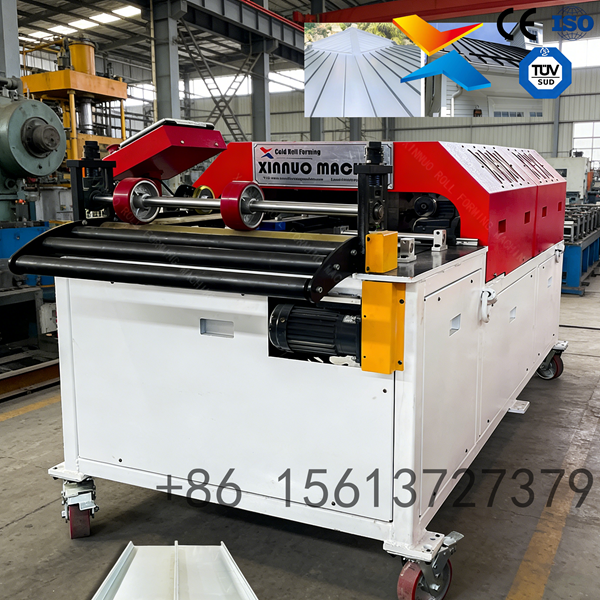

Standing Seam Metal Roofing Panel Roll Forming Machine
|
|
+86 15613727379 |
|
Diameter of shaft |
70mm |
|
Material of shaft |
(high grade) 45# Steel, quenching and tempering treatment |
|
Material of roller |
45# steel polished and coated with chrome HRC55-60° |
| Control system | PLC Frequency Control System with touch screen |
|
Cutting |
hydraulic cutting after roll forming |

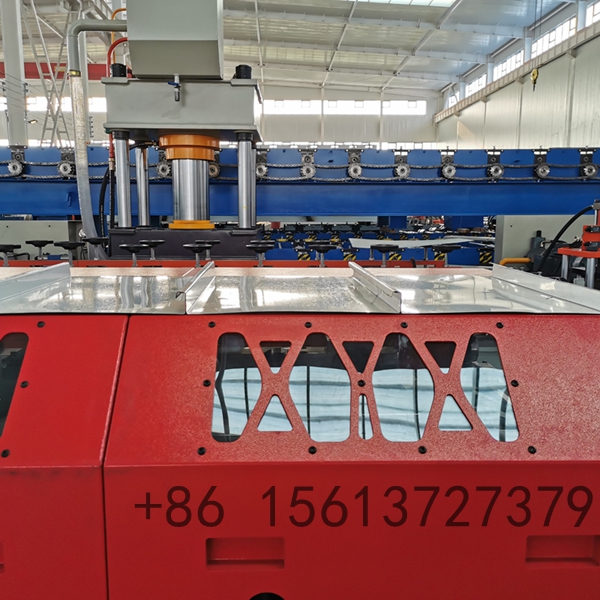

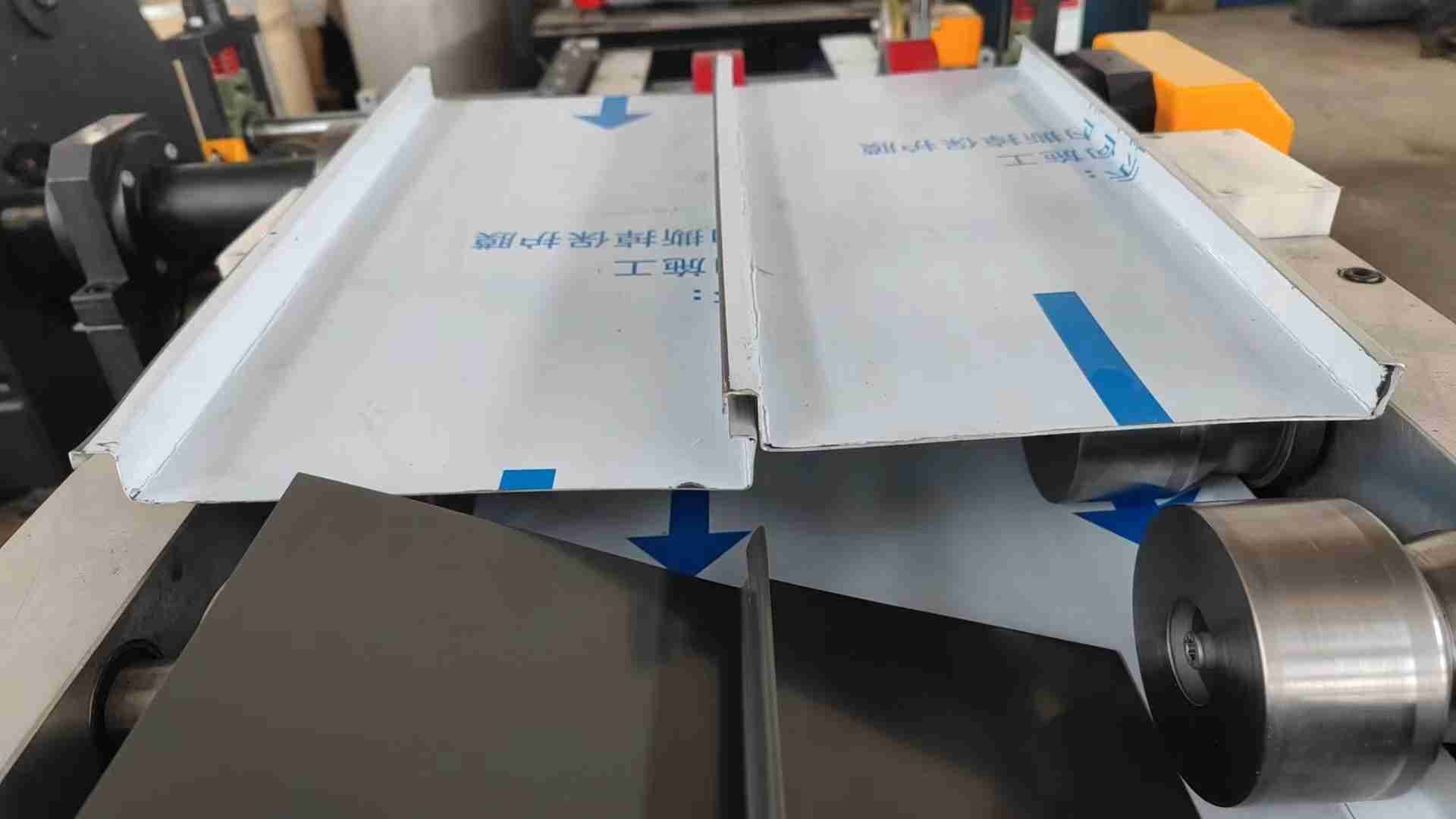

Concealed Fastener Design: Specifically engineered to produce standing seam panels with hidden clip attachment systems, eliminating exposed fasteners and significantly reducing the risk of roof leaks while providing a clean, modern architectural appearance.

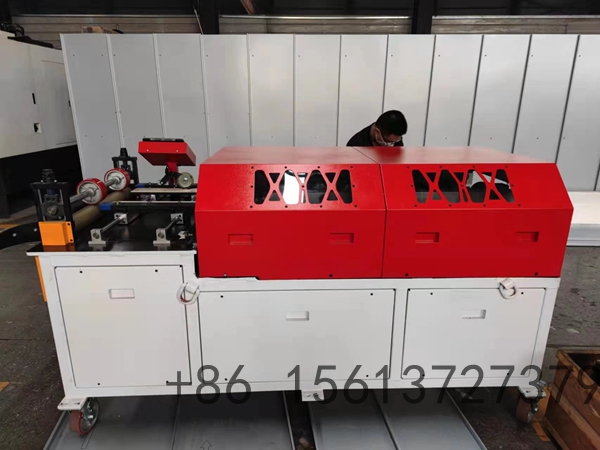

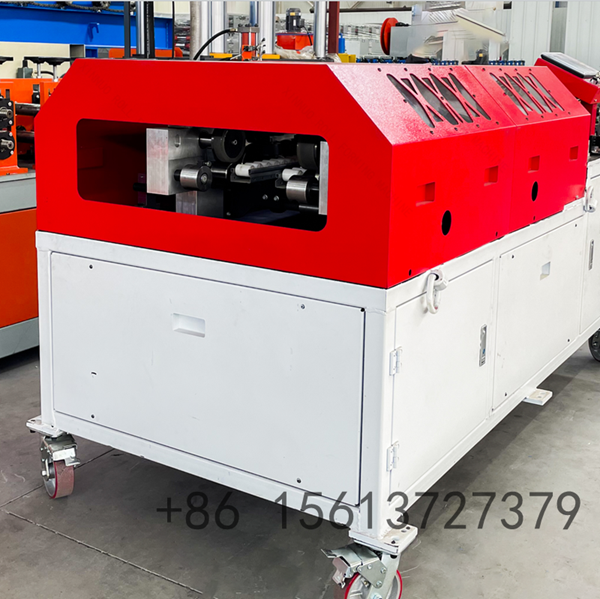

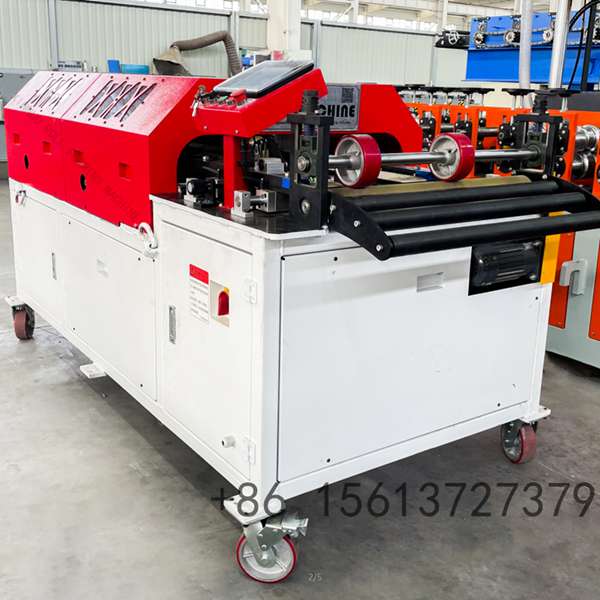

High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame designed to withstand the continuous forming stresses of creating tall vertical seams, ensuring zero vibration and maintaining tight dimensional tolerances.

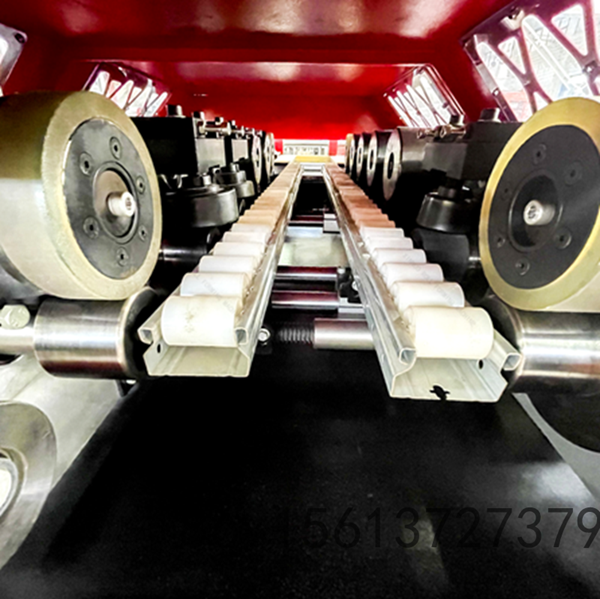

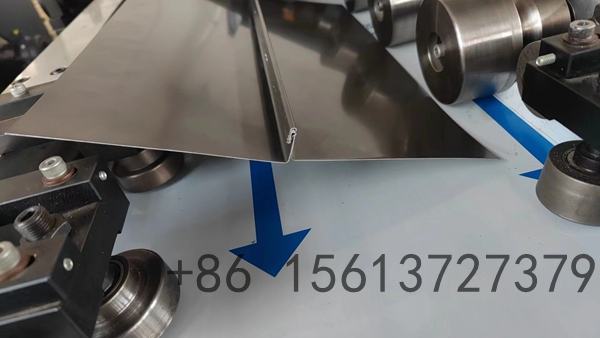

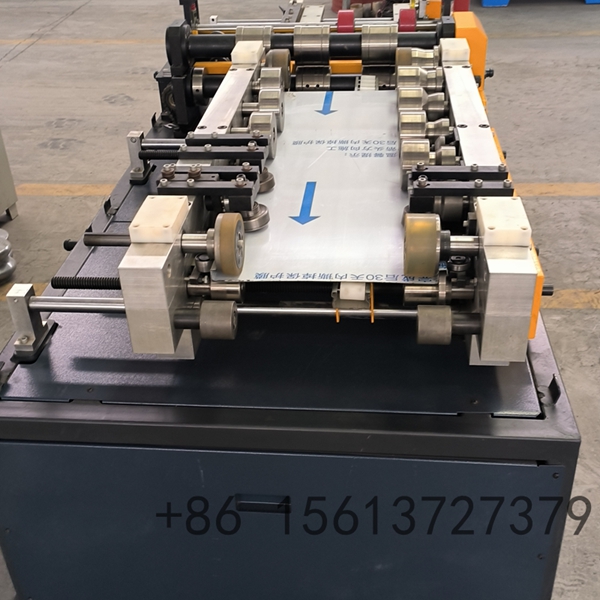

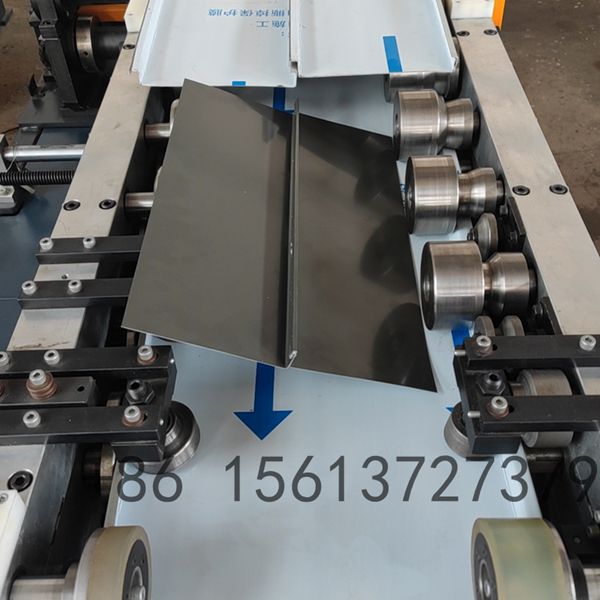

Precision Roll Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to shape the intricate standing seam profile, guaranteeing a flawless surface finish and consistent panel geometry for perfect on-site interlocking.

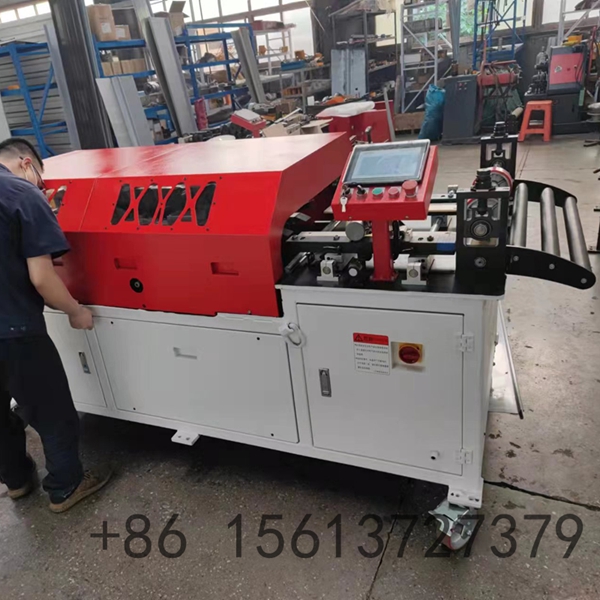

Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program batch counts, panel lengths, and monitor real-time system diagnostics for efficient production.
Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts panels to exact lengths with a strict ±1-2mm tolerance and clean edges for seamless installation.

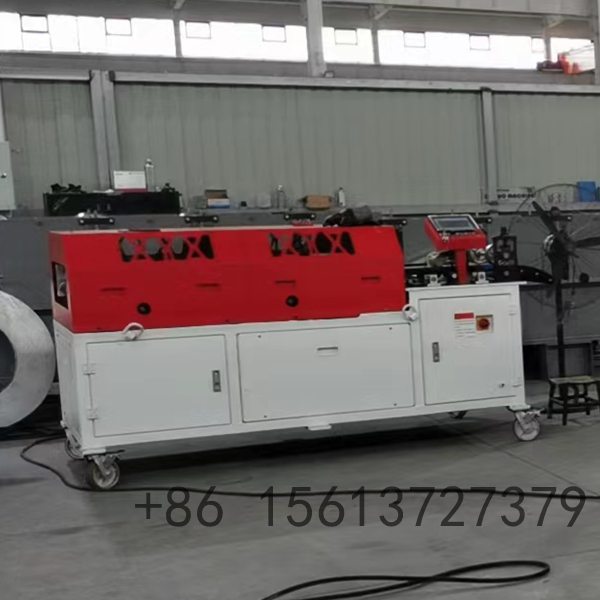

The Standing Seam Metal Roofing Panel Roll Forming Machine is a specialized production solution designed for manufacturers of premium architectural roofing systems. Standing seam roofs are highly valued in commercial, institutional, and high-end residential construction for their superior weather resistance, structural integrity, and sleek aesthetic. This machine transforms color steel, galvanized, or aluzinc coils into finished panels through a seamless process of automated decoiling, precision roll forming, electronic length measurement, and hydraulic cutting.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color steel / Galvanized steel / Aluzinc coil |
| 2 | Material Thickness Range | 0.4 - 0.8 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Coil Width Range | 1000 / 1200 / 1250 mm (customizable) |
| 5 | Profile Type | Standing Seam (Concealed Fastener) |
| 6 | Forming Speed | 8 - 12 m/min (adjustable via frequency converter) |
| 7 | Number of Roller Stations | 16 - 22 rows |
| 8 | Main Motor Power | 5.5 - 7.5 kW |
| 9 | Hydraulic Station Power | 5.5 - 7.5 kW |
| 10 | Roller Material | 45# forged steel with hard chrome plating (0.05mm) |
| 11 | Shaft Material | 45# / 40Cr steel, diameter 75-85mm, tempered & polished |
| 12 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |
| 13 | Cutting Method | Hydraulic post-cut, automatic pause and cut |
| 14 | Control System | PLC with touch screen (Siemens / Mitsubishi / Delta) |
| 15 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 16 | Machine Dimensions | Approx. 9m - 13m × 1.5m - 1.8m × 1.4m - 1.8m |
| 17 | Machine Weight | Approx. 6 - 11 Tons |
| 18 | Length Tolerance | ±1 - 2 mm |
| 19 | Uncoiler Capacity | Up to 5 tons (manual or hydraulic) |
| 20 | Driving Mode | Chain transmission |
| 21 | Warranty | 12-24 months free warranty + lifelong technical support |
