High Load Capacity & Robust Build: Engineered with a heavy-duty welded steel frame to safely support and unwind massive steel coils, making it ideal for demanding industrial roll forming and slitting lines.

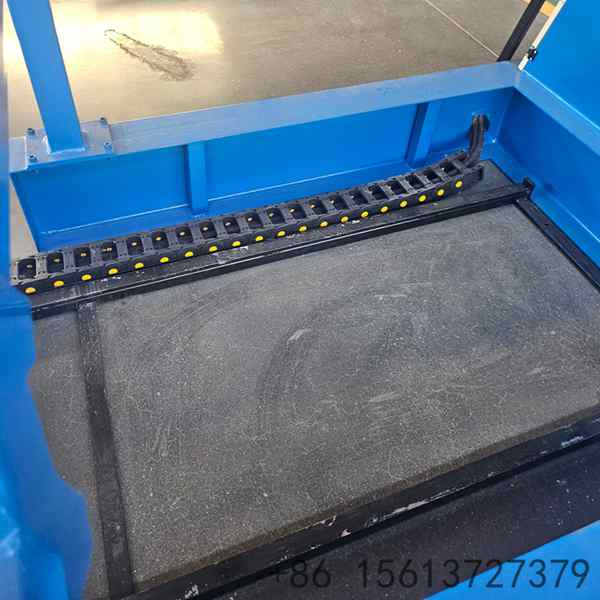

Precise Hydraulic Tension Control: Features an advanced hydraulic braking system that applies consistent and adjustable back tension, preventing material sagging and eliminating surface scratches during unwinding.

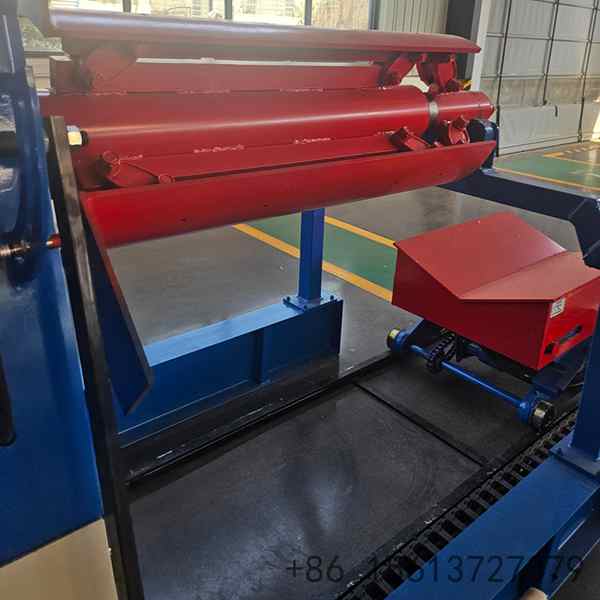

Effortless Coil Loading & Expanding: Equipped with a hydraulic expanding mandrel and optional lifting dolly/support arms, allowing operators to load, center, and secure heavy coils quickly and safely.
Smooth & Adjustable Unwinding: Driven by an AC motor with a frequency converter, the decoiler provides highly stable rotational torque and allows precise speed adjustment to match the downstream roll forming line.
Intelligent Automation & Safety: Integrates seamlessly with PLC control systems and features motorized hold-down arms and safety brakes to prevent coil rollback, ensuring continuous, automated, and safe material feeding.

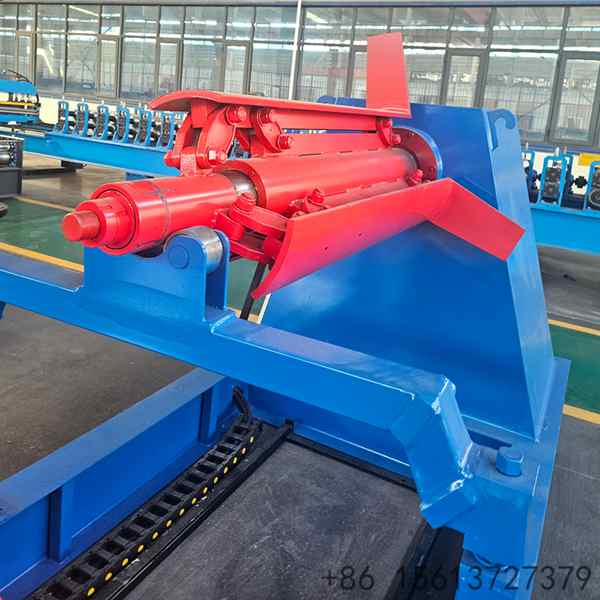

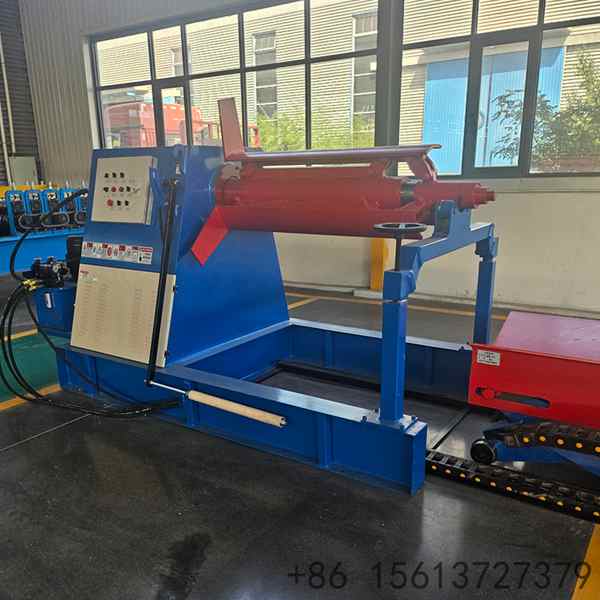

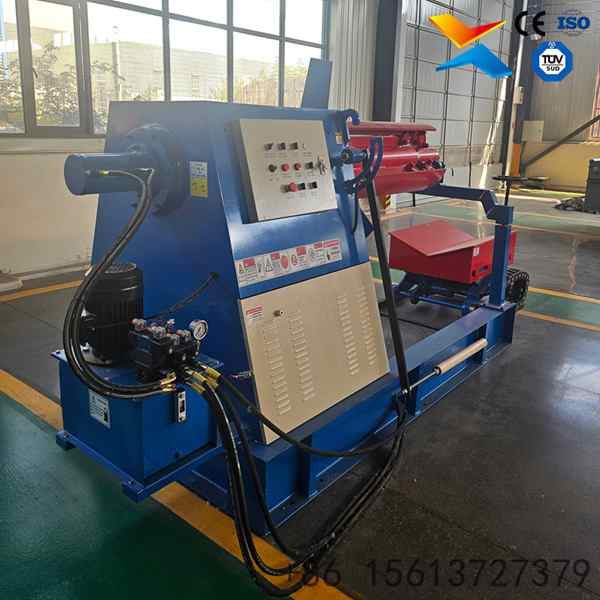

The Hydraulic Decoiler Machine is a critical auxiliary equipment designed to securely hold, support, and systematically unwind large, heavy coils of metal strip in continuous roll forming, slitting, and cut-to-length lines. Unlike simpler mechanical versions, this heavy-duty uncoiler utilizes a pressurized hydraulic system to perform its core functions, offering unparalleled control and power. The core operation involves loading the coil onto the decoiler's mandrel, which then expands hydraulically to grip the coil from the inside. A critical component, the hydraulic brake, applies consistent and adjustable back tension to the material. This tension prevents the coil from unraveling uncontrollably, ensures a tight and stable feed into the straightener or roll former, and protects delicate pre-painted surfaces from damage. Built with high-quality 45# steel shafts, forged rollers, and robust hydraulic cylinders, this machine guarantees long-term durability and minimal maintenance.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Max Loading Capacity | 3T, 5T, 7T, 10T, up to 15T (customizable based on needs) |
| 2 | Coil Inner Diameter (ID) | Φ450 - 530 mm / Φ508 - 610 mm (with gaskets) |
| 3 | Max Coil Outer Diameter (OD) | Φ1200 - 1500 mm |
| 4 | Max Coil Width | Up to 1500 mm (customizable) |
| 5 | Uncoiling Motor Power | 3 kW - 11 kW (depending on capacity) |
| 6 | Hydraulic Station Power | 2.2 kW - 7.5 kW |
| 7 | Max Hydraulic Pressure | 10 - 16 MPa |
| 8 | Uncoiling Speed | 0 - 20 m/min (adjustable via frequency converter) |
| 9 | Mandrel Expanding Mode | Hydraulic automatic expanding and shrinking |
| 10 | Tension Control | Adjustable hydraulic disc brake / back tension system |

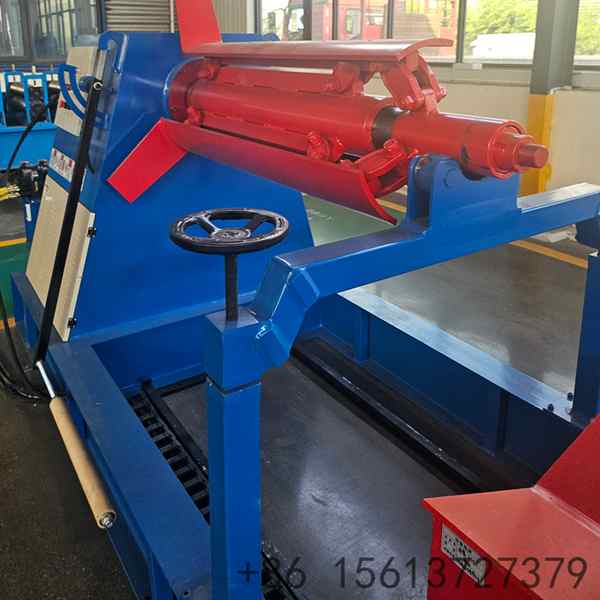

| 11 | Hold-Down Device | Motorized hydraulic pressing arm to prevent coil loosening |

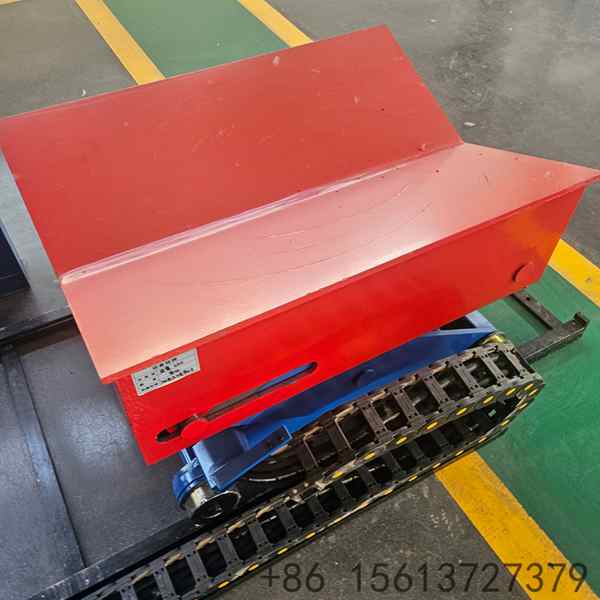

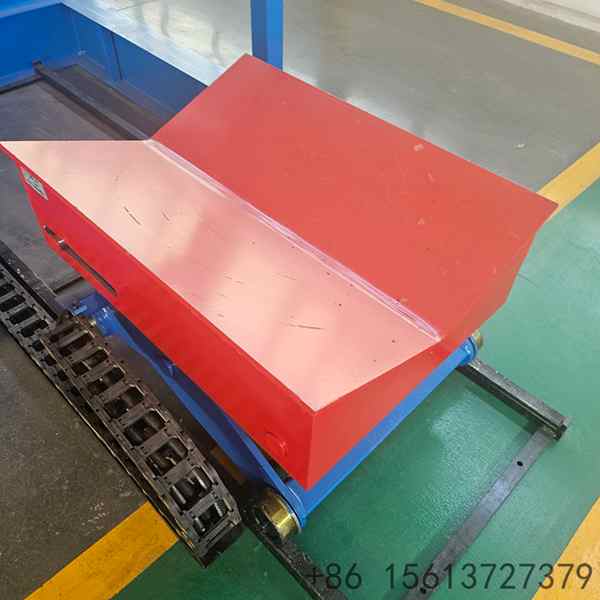

| 12 | Loading Assistance | Optional hydraulic lifting dolly / coil support arm |

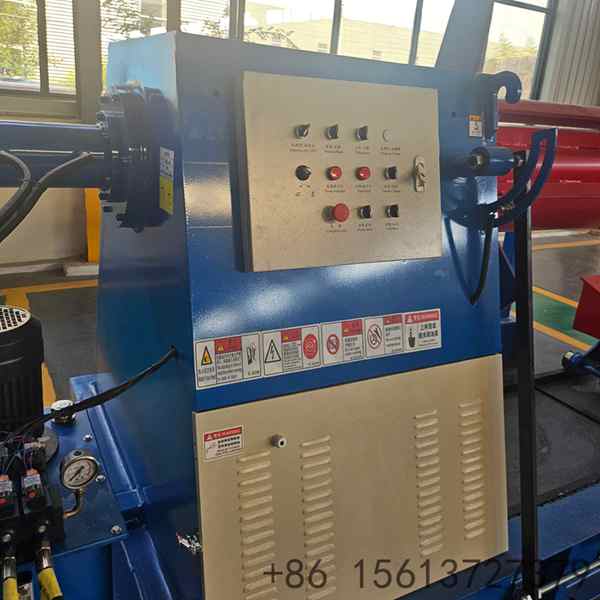

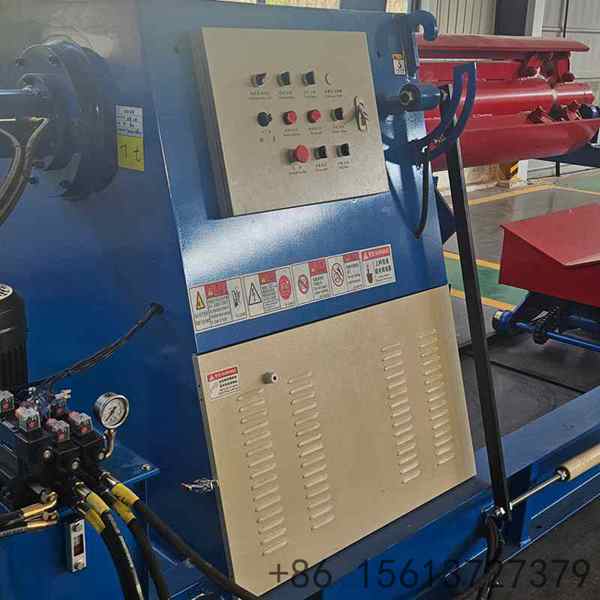

| 13 | Control System | PLC integration / Independent control panel with E-Stop |
| 14 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 15 | Main Shaft Material | 40Cr / 45# forged steel, quenched and tempered |
| 16 | Machine Weight | Approx. 2.5 - 8 Tons (varies by tonnage capacity) |
