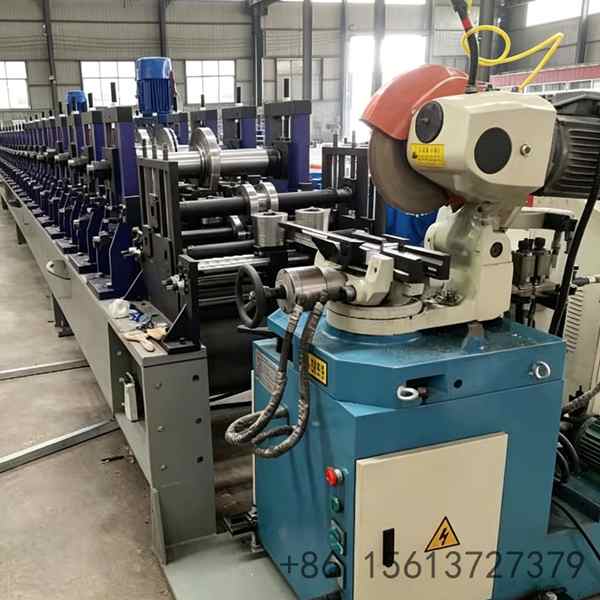

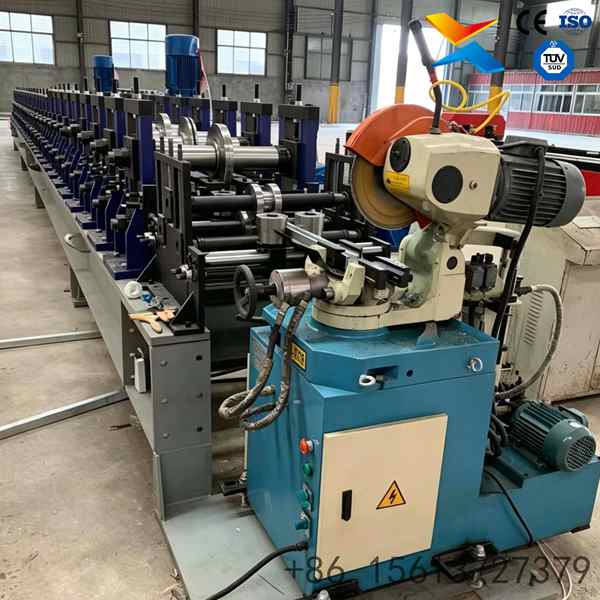

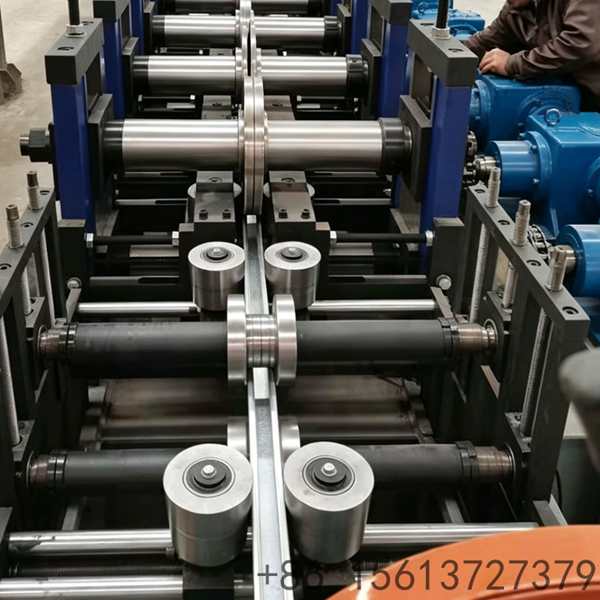

PV Support Bracket Roll Forming Machine
Product Attributes :
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 14 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50 mm
Material of cutting blade Cr12 Heat Treatment
Speed 10-15 m/min
Side plate thickness 16 mm
Product Description
he Solar PV Bracket Roll Forming Machine is a fully automatic, high-speed metal profiling system dedicated to producing high-strength photovoltaic mounting structures.
Built for the fast-growing renewable energy sector, it efficiently processes galvanized, aluminum, and stainless steel coils into precise,
long-lasting PV brackets—critical components for securing solar panels in ground-mounted power stations, industrial rooftops, and large-scale solar park projects.
Core Features
High-Speed & Stable Production

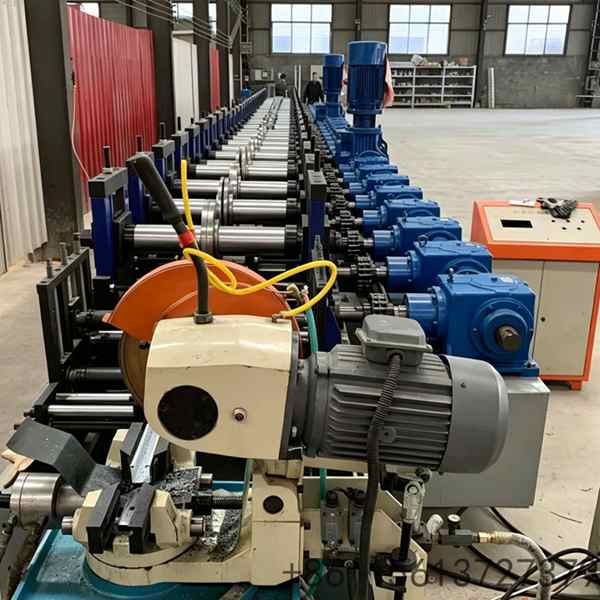

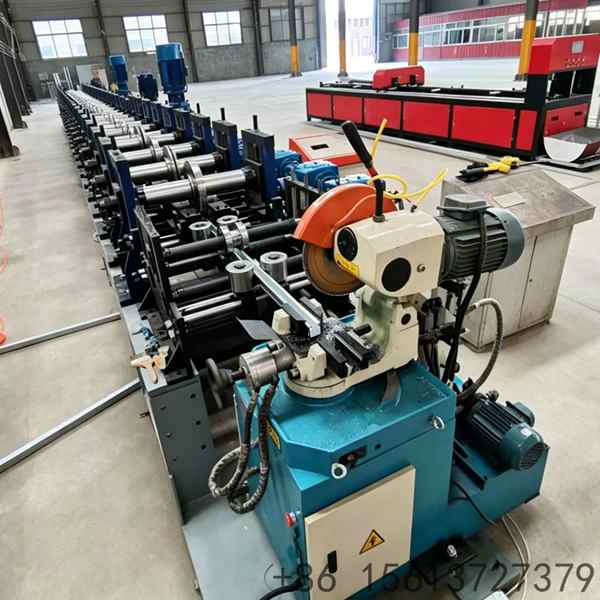

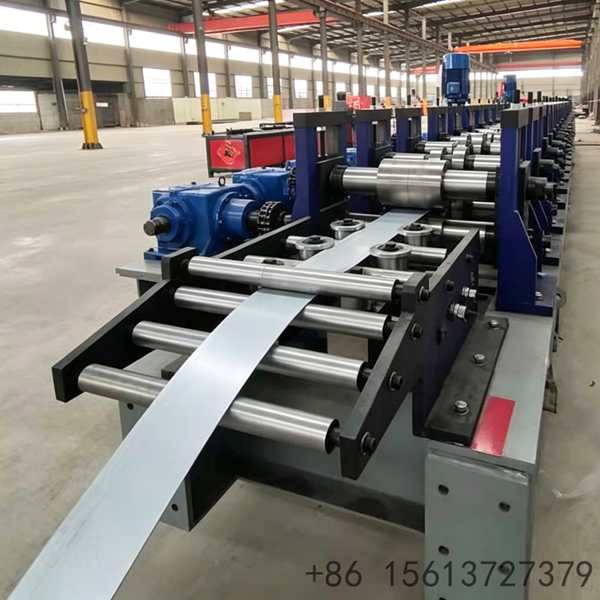

Equipped with advanced PLC control and servo-driven systems, the machine realizes a fully automatic workflow including uncoiling, leveling, punching, roll forming,
flying cutting, and automatic stacking. With a forming speed of 10–20m/min, it greatly improves production efficiency and ensures stable long-term operation.
High Precision & Excellent Forming Quality

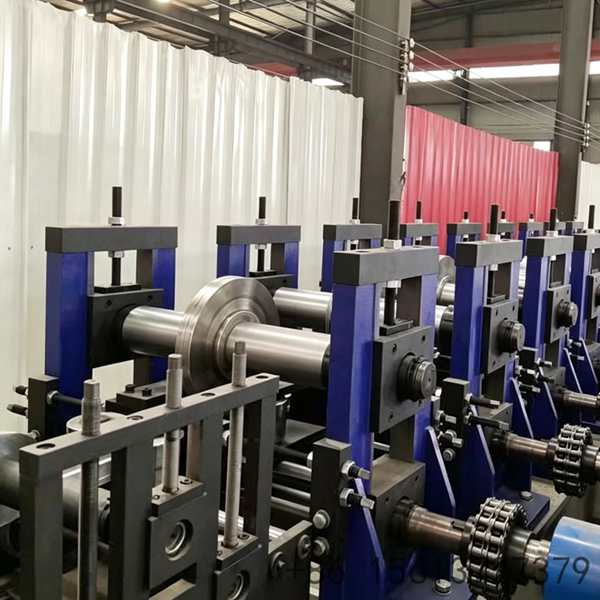

The forming rolls are made of forged alloy steel with precision grinding and quenching treatment, ensuring high dimensional accuracy and a smooth surface without damage to raw materials.
The profile tolerance is controlled within ±0.3mm, fully meeting international photovoltaic bracket engineering standards.
Strong Adaptability & Wide Application
Supports quick changeover for various PV bracket profiles such as C-channel, Z-type, U-steel, and customized special sections.
It handles material thickness from 0.8mm to 3.5mm, making it suitable for different load requirements and installation environments.
Robust Structure & Long Service Life
The machine adopts a heavy-duty welded frame with stress relief treatment, offering high rigidity and low vibration.
Main electrical and hydraulic parts use international branded components, ensuring reliability, low failure rate, and easy daily maintenance.
Safe & Eco-Friendly Operation
Full protective guards, emergency stop system, and overload protection ensure safe operation for workers.
The equipment meets CE certification and environmental requirements, making it ideal for export to global markets.
Application Scope
Widely used by professional PV bracket manufacturers, solar engineering companies, and metal profile factories.
The finished brackets are mainly applied in large photovoltaic power stations, commercial roof solar systems, agricultural photovoltaic bases, and various solar tracking bracket systems.

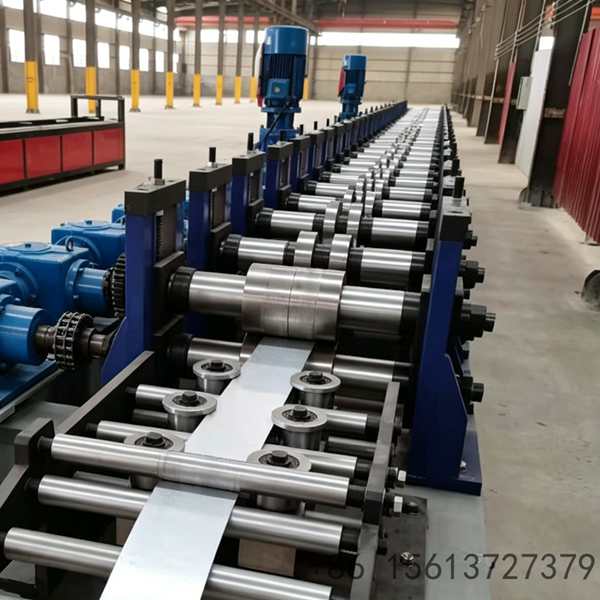

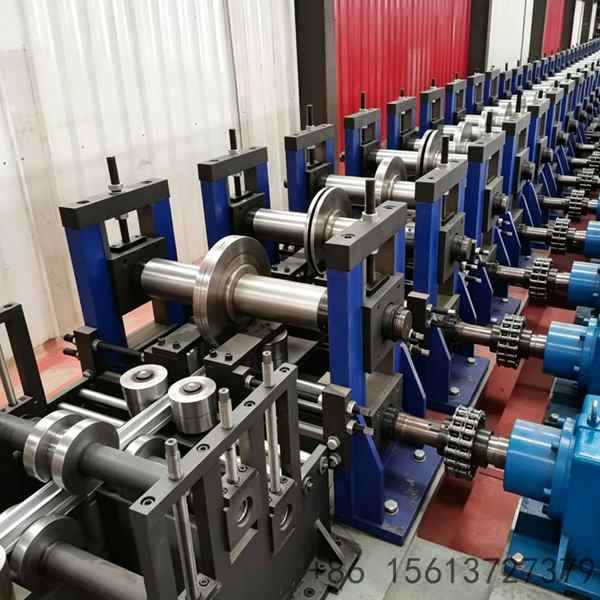

Detail

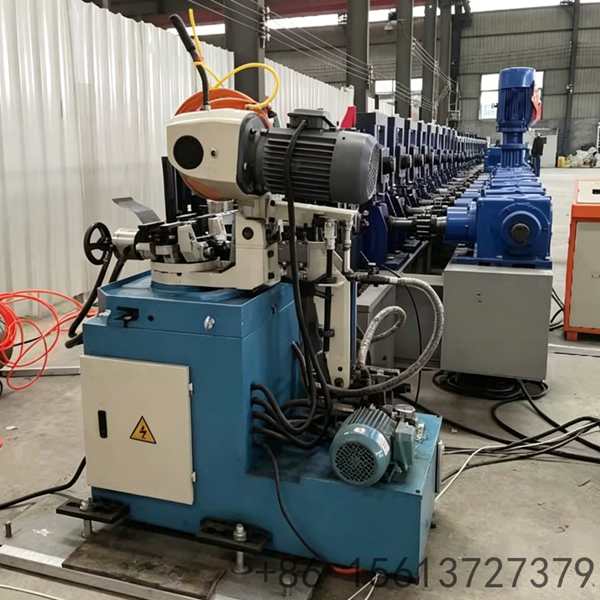

| Parameter | Specification |
|---|---|
| Material Thickness | 1.5 – 2.5 mm |
| Forming Speed | 10 – 20 m/min |
| Main Motor Power | 11 – 22 kW |
| Roller Material | GCr15 / Cr12MoV, Chrome Plated |
| Shaft Material | 45# Forged Steel, Ø70-85mm |
| Cutting Method | Hydraulic Stop-to-Cut |
| Punching System | Continuous / Pre- & Post-Punching |
| PLC Control | Mitsubishi / Delta |
| Length Tolerance | ± 1.5 mm |
