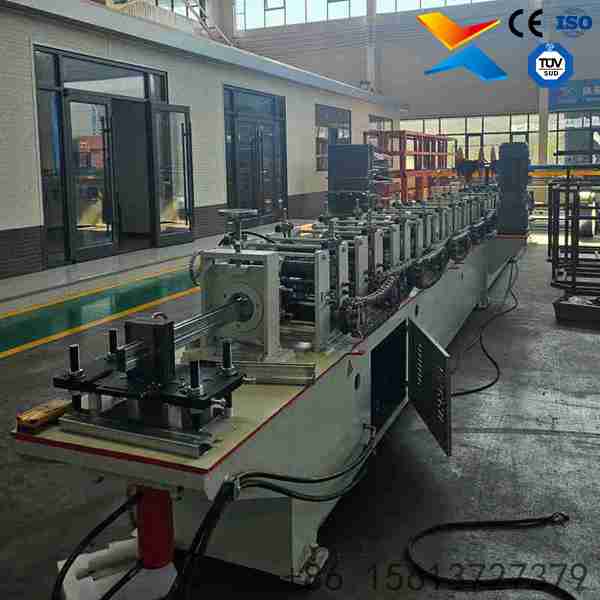

Custom Solar PV Mounting Bracket Roll Forming Machine

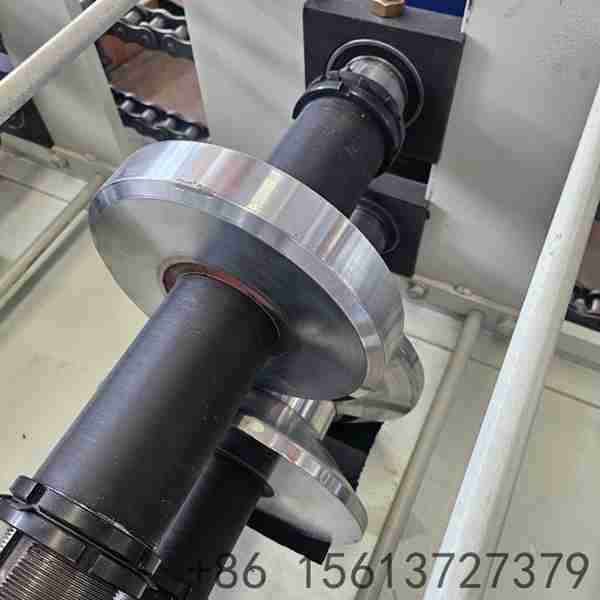

Material of rollers: High grade 45# forged steel, surface hard chromium plating
Rows of rollers: 14 stations
Material of shafts: High grade 45# forged steel
Diameter of shafts: 50 mm
Material of cutting blade: Cr12 Heat Treatment
Speed: 10-15 m/min
Side plate thickness: 16 mm
Product Briefing

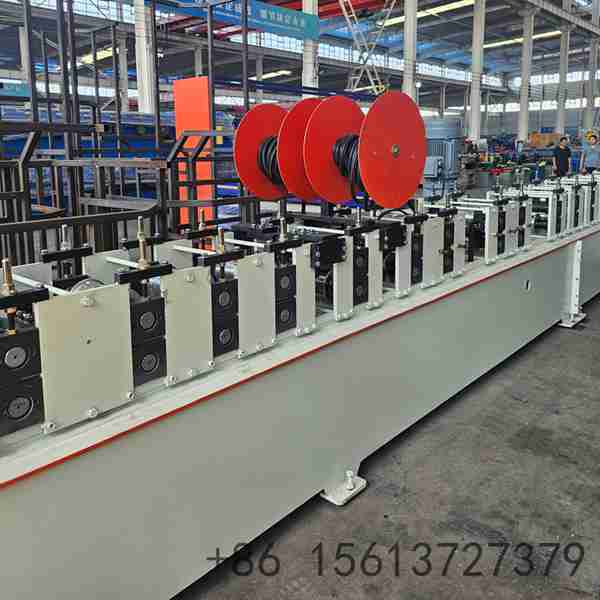

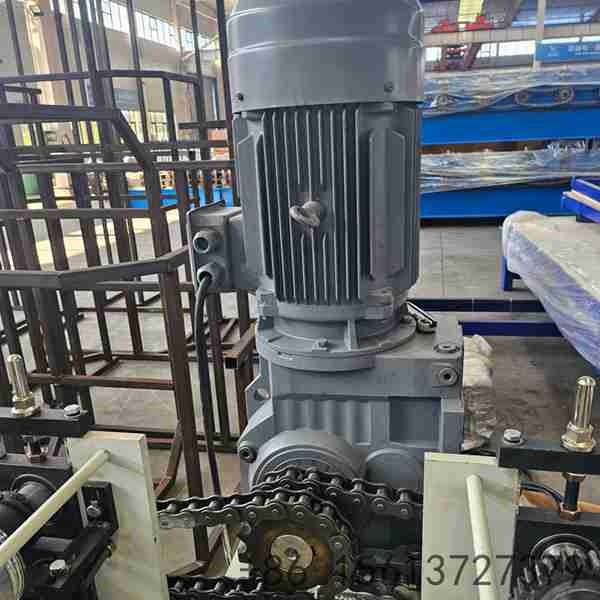

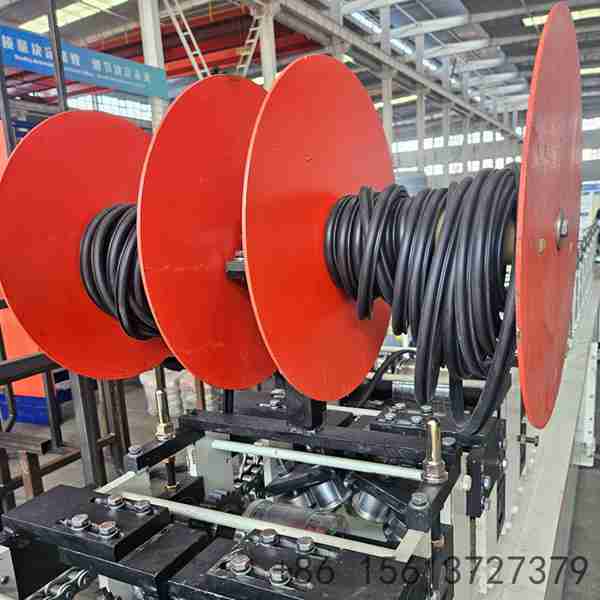

Multi-Profile Capability: Interchangeable rollers support various bracket and rail sizes for ground-mount, roof-mount, and commercial systems.

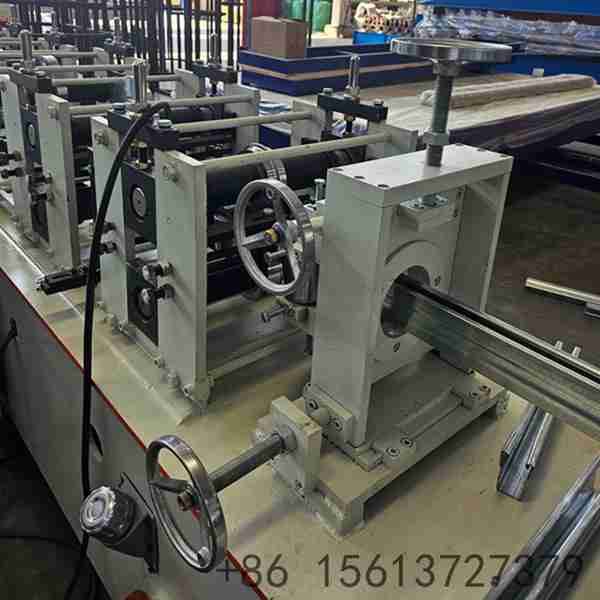

Quick-Change Roller System: Guided changeover procedure allows rapid switching between different profile configurations.
Racking Standard Adaptability: Profile engineering can be customized to match specific national and international PV racking standards.

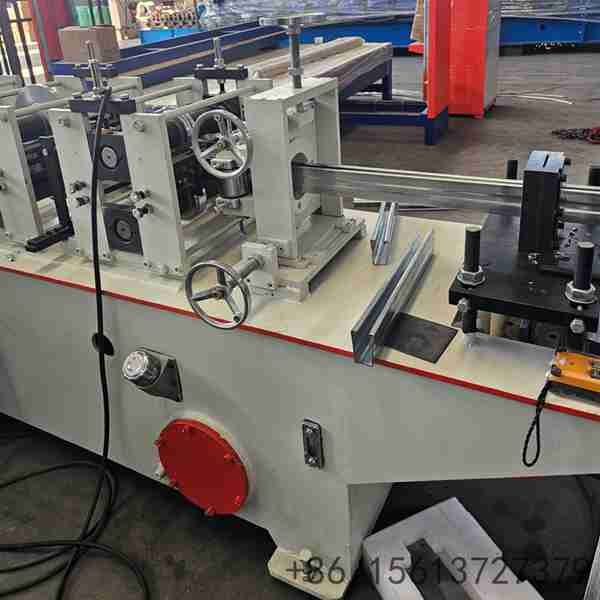

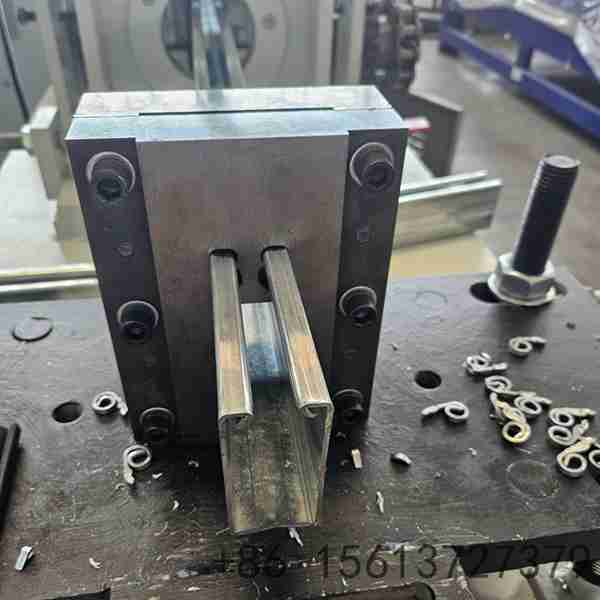

Precision Hydraulic Cutting: Integrated cutting unit provides clean, accurate cuts for every bracket length and profile type.

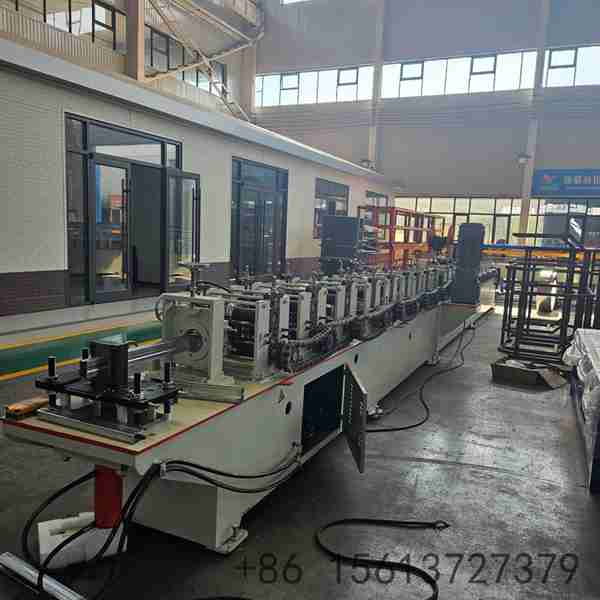

Flexible Material Handling: Compatible with Galvalume, galvanized, and pre-painted steel coils across a wide thickness range.
Detailed Description
Technical Parameters

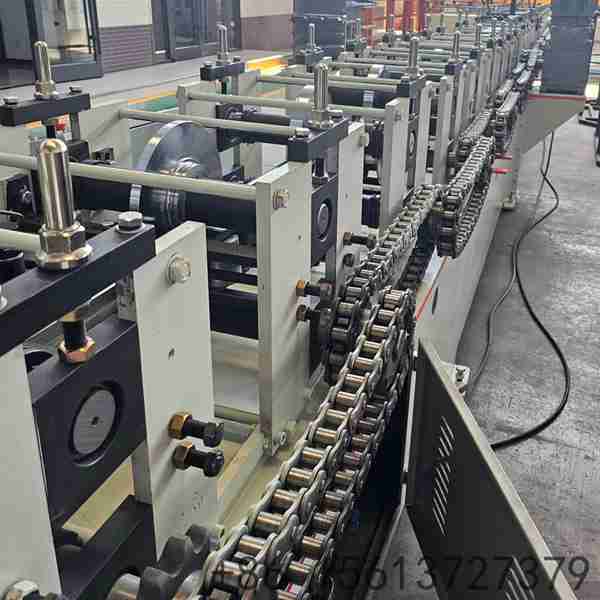

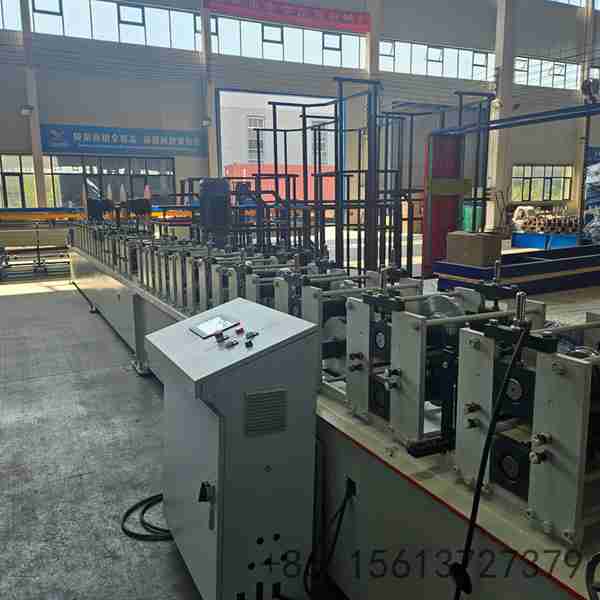

| Component | Technical Specification |
|---|---|
| System Compatibility | Ground Mount / Roof Mount / Commercial Racking |
| Bracket Width Range | 40mm - 120mm (Customizable) |
| Material Thickness | 1.0mm - 3.0mm (Application Dependent) |
| Material Type | Galvalume / Galvanized / Pre-painted Steel |
| Forming Stations | 14 - 24 Rows (Profile Dependent) |
| Roller Changeover Time | 2 - 3 Hours (Guided Procedure) |
| Cutting Unit | High-Precision Hydraulic Cutoff (Cr12Mov Blade) |
| Drive System | High-Torque Gearbox / Double-Row Chain Drive |
| Control System | Multi-Recipe PLC (Profile Storage Logic) |
Unique Technical Advantages

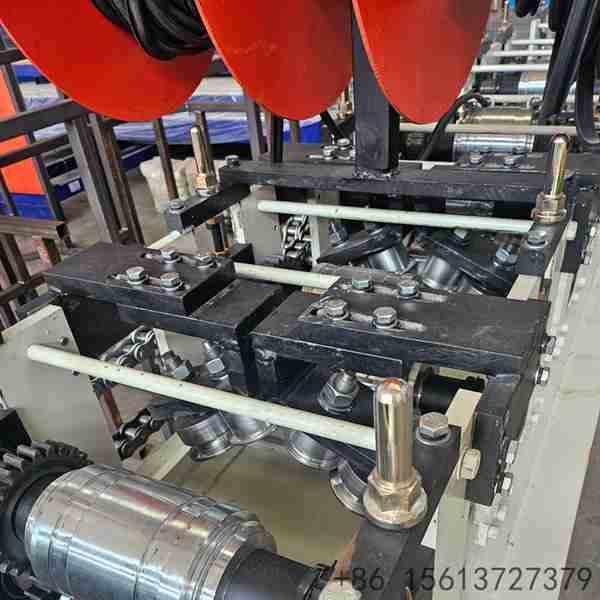

Multi-Recipe PLC Logic: Pre-programmed profile recipes enable one-button changeover between different bracket configurations.
Rapid Market Adaptability: Quickly switch production to match the requirements of different solar project tenders and regional racking standards.
Structural Integrity Engineering: Precision-formed edges ensure the alignment and load-bearing performance required for multi-panel solar arrays.
Complete Customization Support: Our engineers provide full profile design support for unique bracket geometries and special punching requirements.
