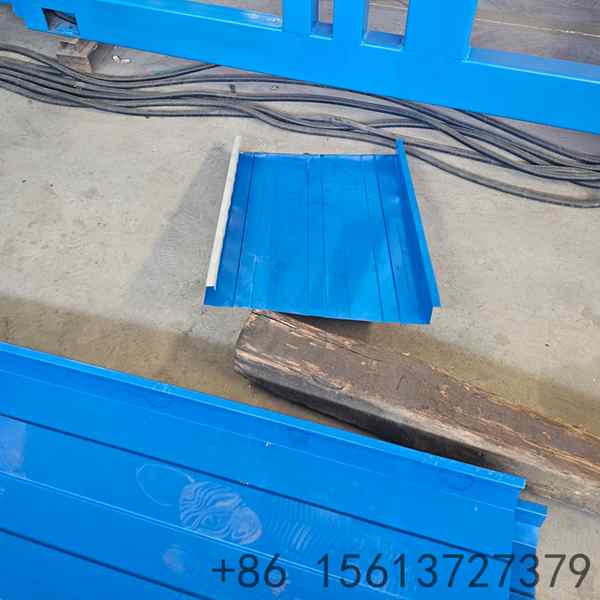

Five Rib Panel: A wide wall panel for building exteriors, built from a 1000mm coil.
Internal Stiffening Rib: An extra rib formed with the panel keeps the flat face from oil canning.
Shallow Rib Design: A 9mm rib height gives a flat looking wall with a stiffened face.

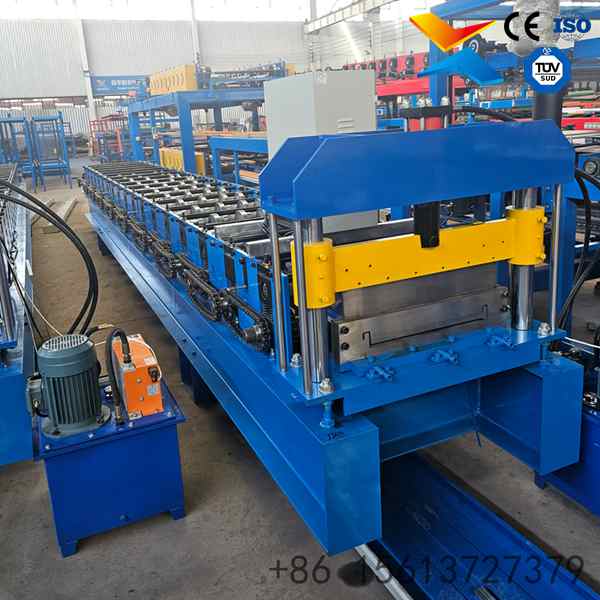

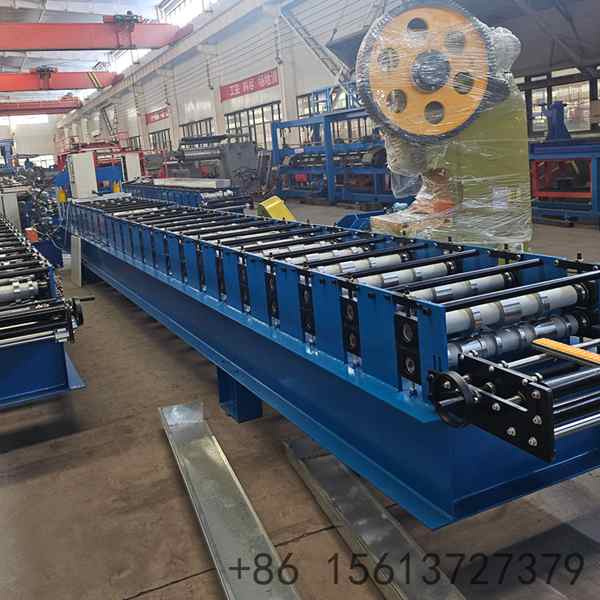

350H Frame: A heavy frame with 70mm shafts and a 4KW motor suits long production runs.

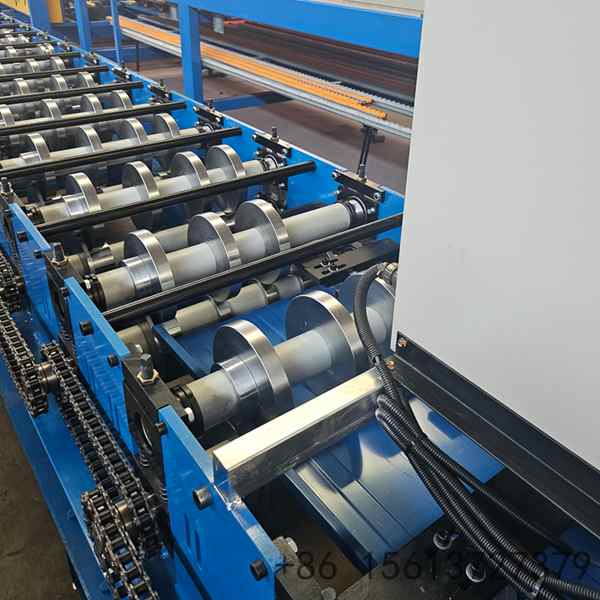

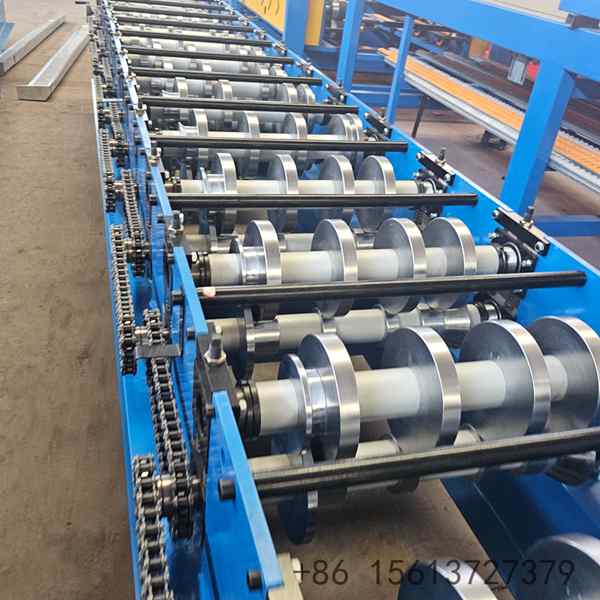

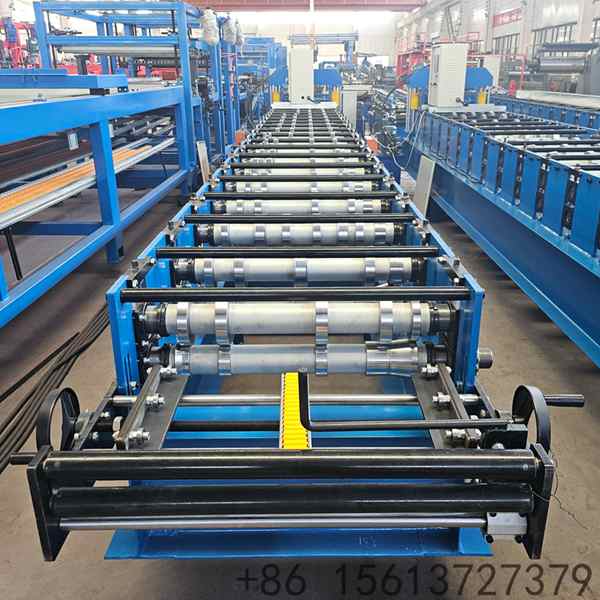

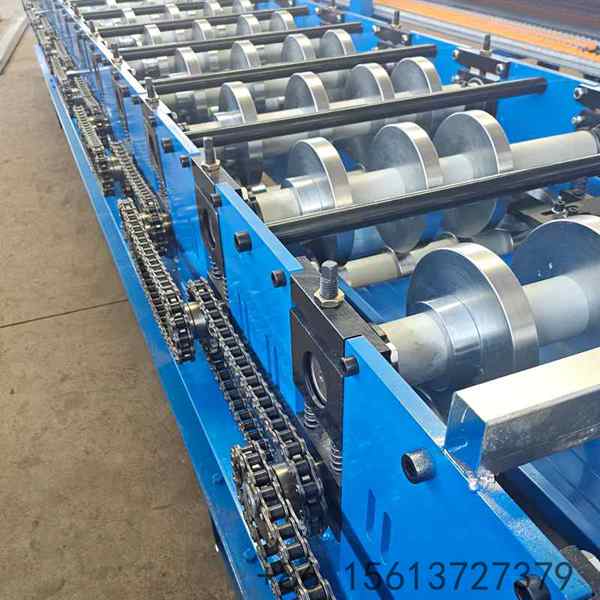

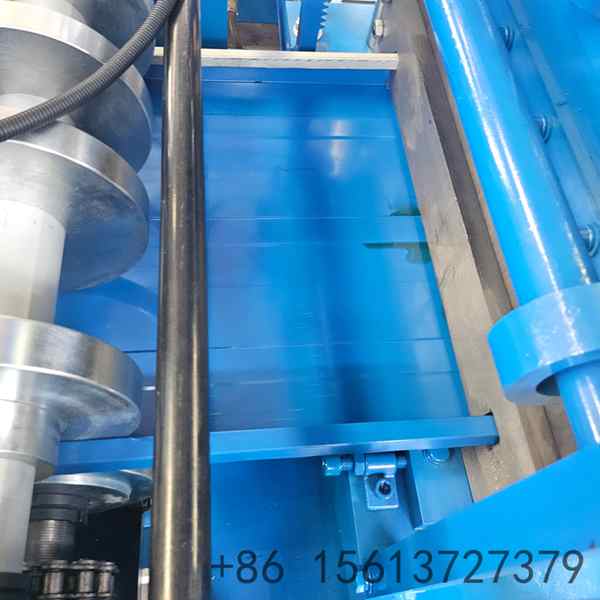

10 Forming Stations: The ribs and the internal stiffening rib build step by step.
Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Panel width, rib height and rib pitch follow your section drawing.
| Component | Specification |
|---|---|
| Machine type | Wall panel roll forming machine |
| Panel | Five rib wall panel |
| Model | HY9-205-820 |
| Effective width | 820 mm |
| Coil feed width | 1000 mm |
| Forming stations | 10 |
| Ribs | 5 |
| Rib height | 9 mm |
| Rib pitch | 205 mm |
| Internal stiffening rib | Yes, formed with the panel |
| Middle plate | [To be confirmed] |
| Frame | 350H |
| Shafts | 70 mm |
| Main motor | 4 KW |
| Chain drive | Six point double row |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Wide Flat Face: Five ribs across 820mm give a wide, flat looking wall panel.
Internal Stiffening Rib: The extra rib holds the flat face and limits oil canning.
Shallow Rib Height: A 9mm rib height suits walls where a flat face is wanted.
Heavy Frame: A 350H frame and 70mm shafts hold the section on long production runs.

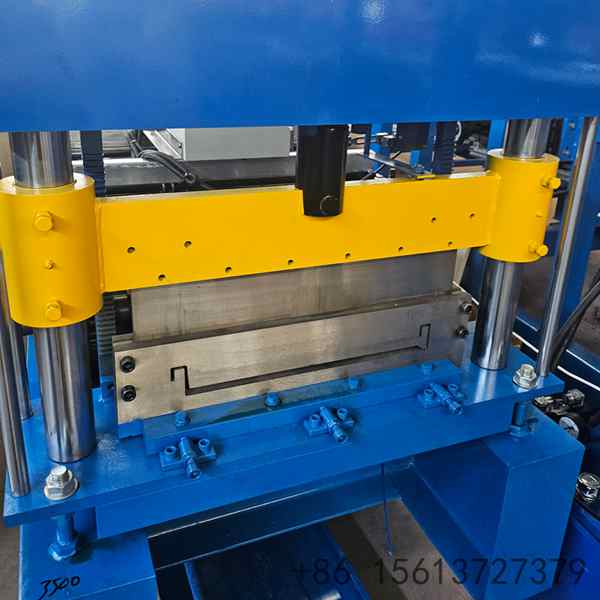

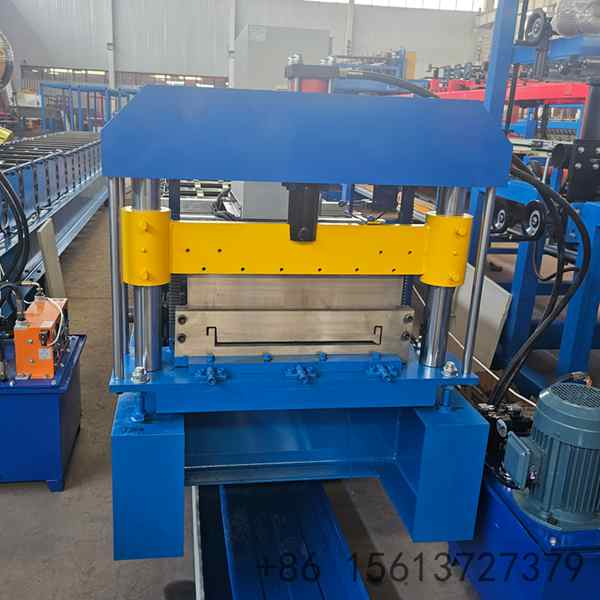

Fewer Operations: Rib forming and cutting run as one line.
Low Waste: A 1000mm coil yields an 820mm panel with modest offcut.
Drawing Matched: Rib height, rib pitch and edge form follow your section drawing.
