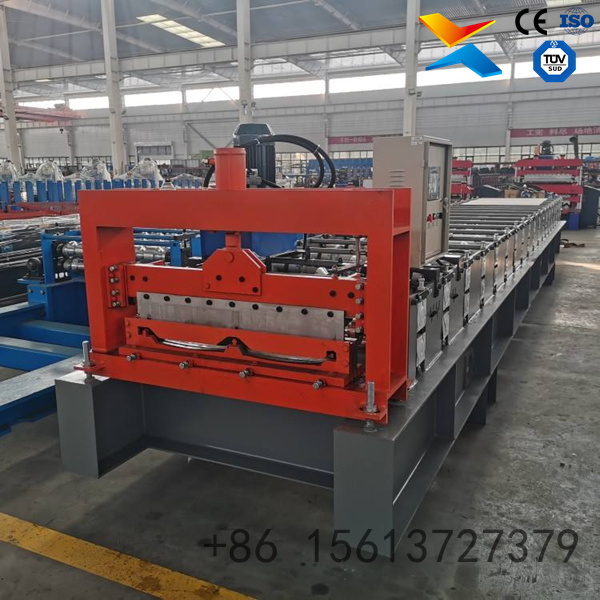

Self Clip Lock Roof Sheet Roll Forming Machine

Self Clip Lock Roof Sheet Roll Forming Machine

Product Attributes :

Type: Roll Forming Machine
Tile Type: Galvanized Steel
Rolling Thickness: 0.3-0.8 mm
Feeding Width: 1000 mm
Weight: 7000 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate

Product Description

Product Introduction:

Integrated Snap Lock Seam Design: Specifically engineered to produce panels with built-in clip lock seams that snap together without exposed fasteners, eliminating roof penetrations and significantly reducing installation time and leak risks.

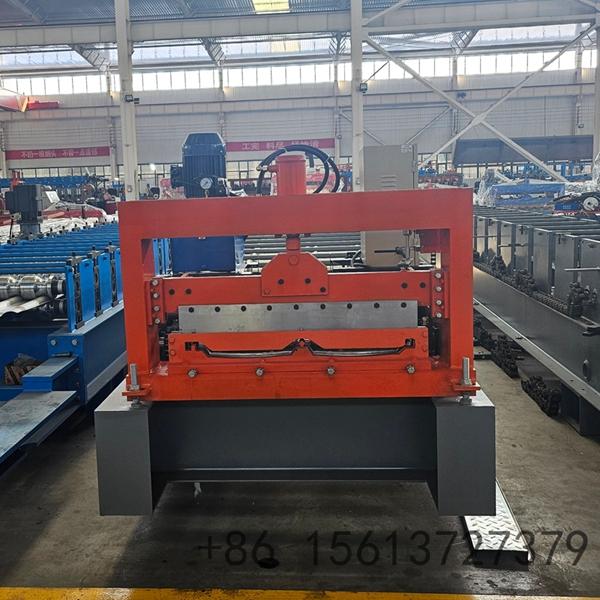

High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame designed to withstand the forming stresses of creating precise interlocking seams, ensuring zero vibration and maintaining tight dimensional tolerances.

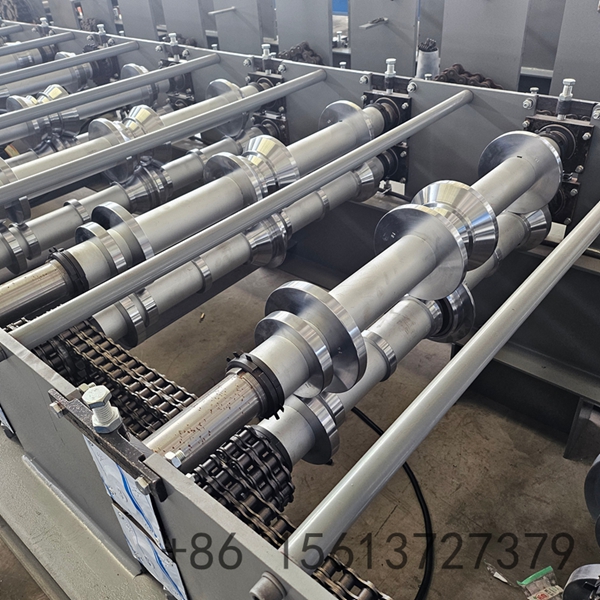

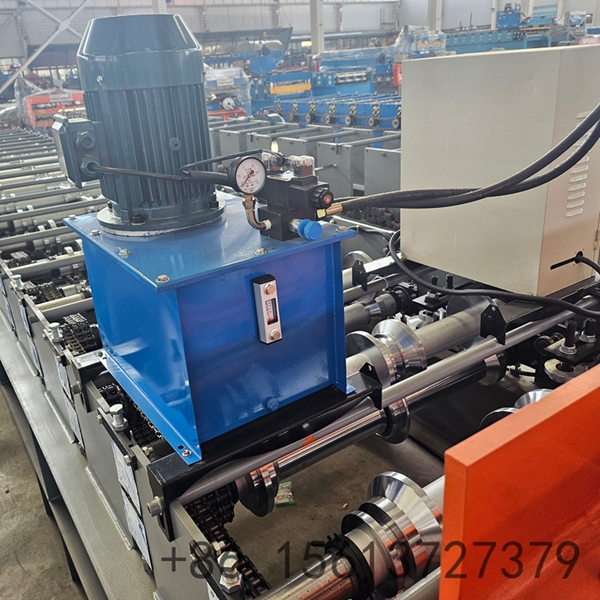

Precision Roll Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to shape the intricate self clip lock profile, guaranteeing consistent seam geometry for effortless on-site panel interlocking.

Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program batch counts, panel lengths, and monitor real-time system diagnostics for efficient production.

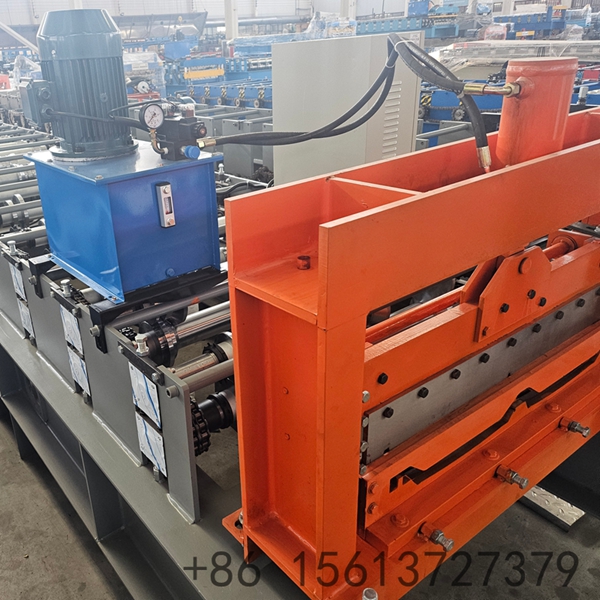

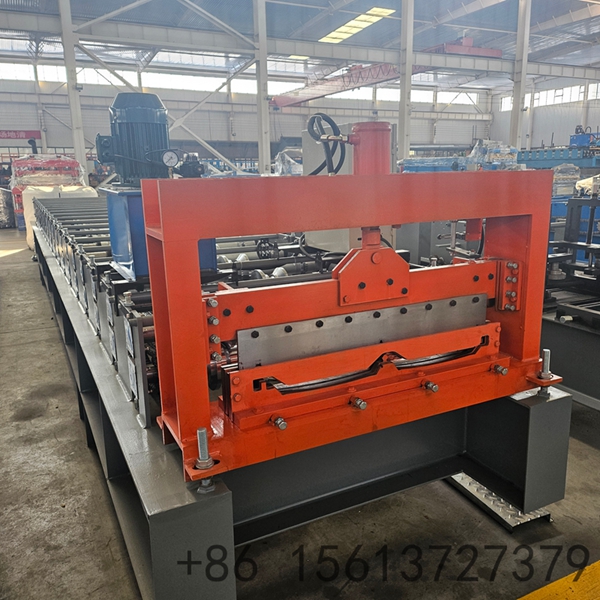

Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts panels to exact lengths with a strict ±1-2mm tolerance and clean edges for seamless installation.

Product Description & Parameters:

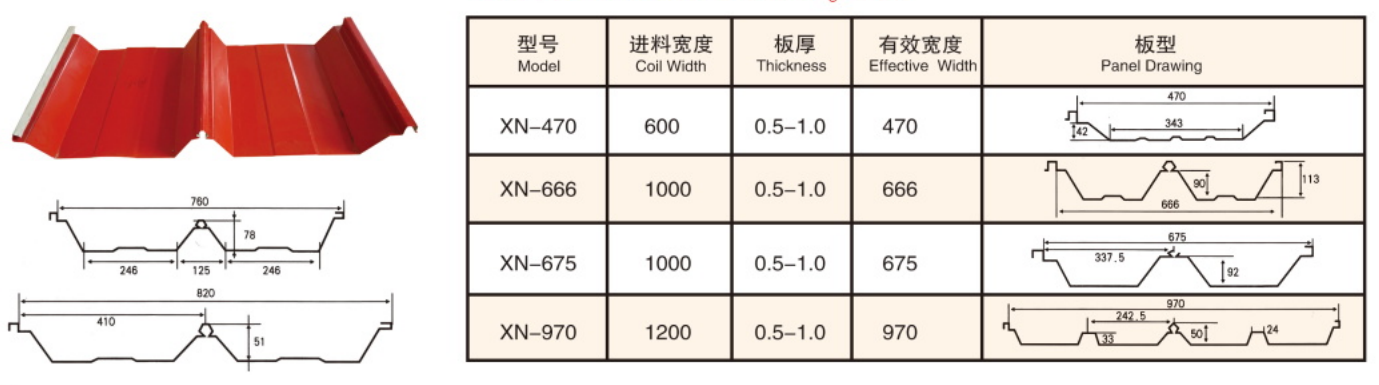

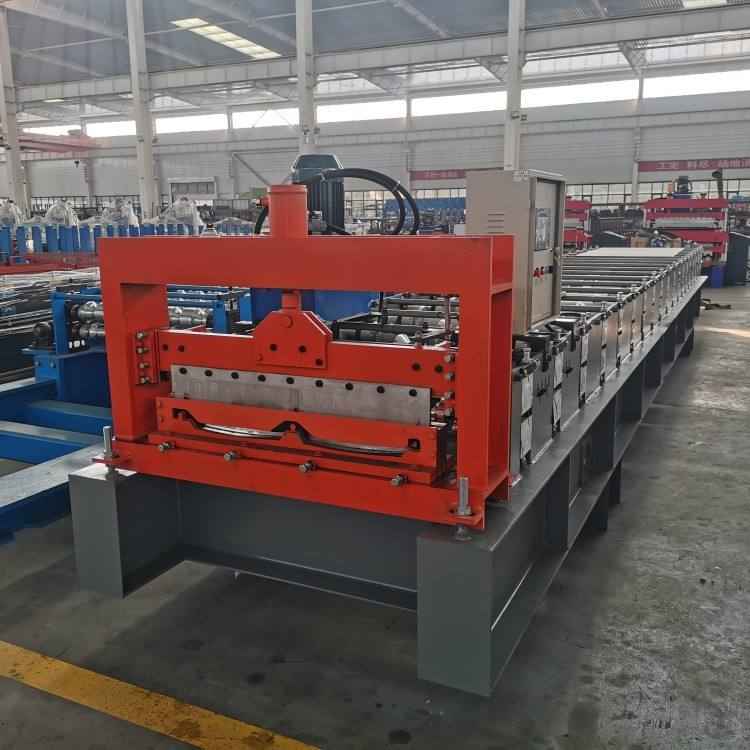

The Self Clip Lock Roof Sheet Roll Forming Machine is a specialized production solution designed for manufacturers of premium architectural roofing systems. Self clip lock (or snap lock) panels represent the evolution of standing seam roofing, featuring integrated male and female legs that mechanically lock together during installation. This eliminates the need for separate clips, field seaming equipment, or exposed fasteners, streamlining the entire roofing process.

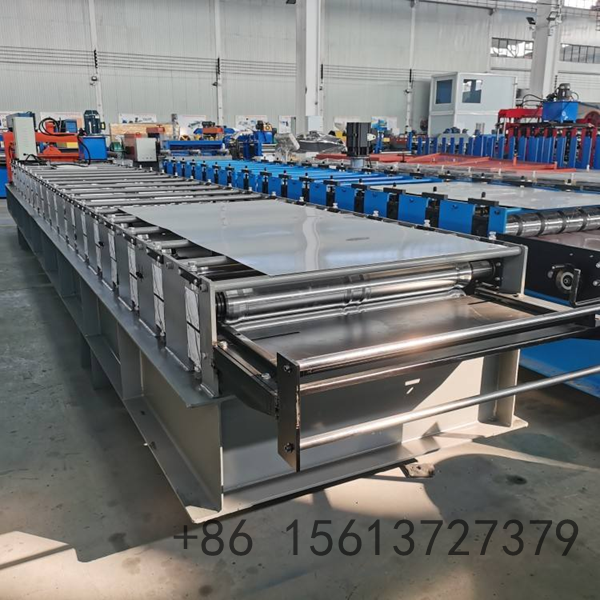

The core of this machine lies in its precision roller engineering. The forming stations gradually shape the flat metal sheet into the final profile, ensuring that the interlocking seams are perfectly aligned and maintain consistent engagement depth. This precision is critical, as even minor deviations can compromise the weather-tight seal between panels. The machine processes color steel, galvanized, or aluzinc coils through automated decoiling, precision roll forming, electronic length measurement, and hydraulic cutting.

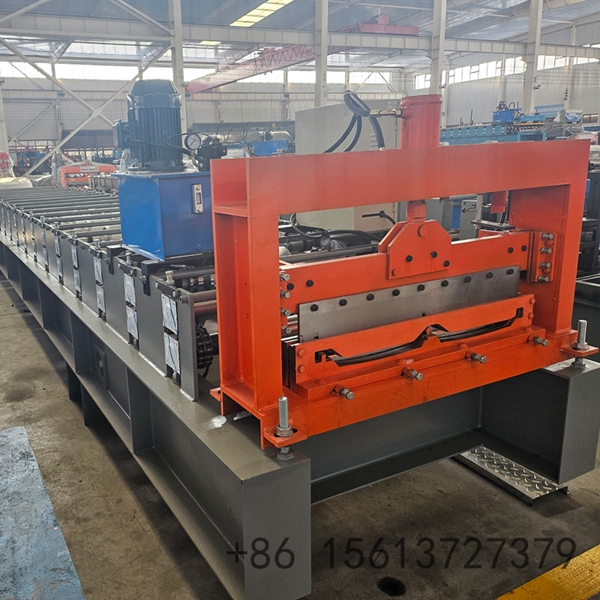

Constructed on a high-rigidity frame, the machine ensures stability and precision throughout the production cycle. The intelligent PLC control system synchronizes all components, allowing for efficient, high-volume production with minimal operator intervention. The hydraulic cutting system tracks the line speed in real-time to execute exact cuts, minimizing material waste and preparing the panels for immediate installation. This self clip lock roll forming machine is the ideal choice for suppliers targeting the high-performance architectural roofing market, offering a durable, weather-tight, and installation-efficient roofing solution that meets the demands of modern construction.

No.	Main Parameter / Feature	Details
1	Applicable Material	Color steel / Galvanized steel / Aluzinc coil
2	Material Thickness Range	0.4 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Coil Width Range	1000 / 1200 / 1250 mm (customizable)
5	Profile Type	Self Clip Lock / Snap Lock Standing Seam
6	Forming Speed	8 - 12 m/min (adjustable via frequency converter)
7	Number of Roller Stations	16 - 22 rows
8	Main Motor Power	5.5 - 7.5 kW
9	Hydraulic Station Power	5.5 - 7.5 kW
10	Roller Material	45# forged steel with hard chrome plating (0.05mm)
11	Shaft Material	45# / 40Cr steel, diameter 75-85mm, tempered & polished
12	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)
13	Cutting Method	Hydraulic post-cut, automatic pause and cut
14	Control System	PLC with touch screen (Siemens / Mitsubishi / Delta)
15	Voltage	380V / 50Hz / 3 Phase (customizable)
16	Machine Dimensions	Approx. 9m - 13m × 1.5m - 1.8m × 1.4m - 1.8m
17	Machine Weight	Approx. 6 - 11 Tons
18	Length Tolerance	±1 - 2 mm
19	Uncoiler Capacity	Up to 5 tons (manual or hydraulic)
20	Driving Mode	Chain transmission
21	Warranty	12-24 months free warranty + lifelong technical support
