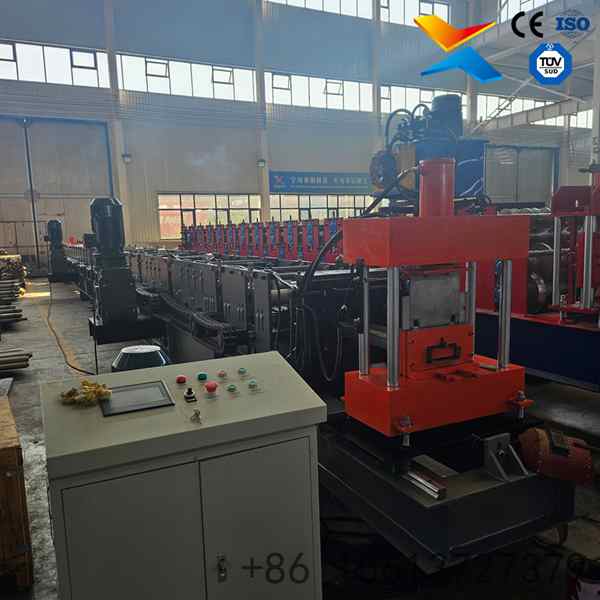

Steel Water Channel: A trough section formed for plant and process water runs.

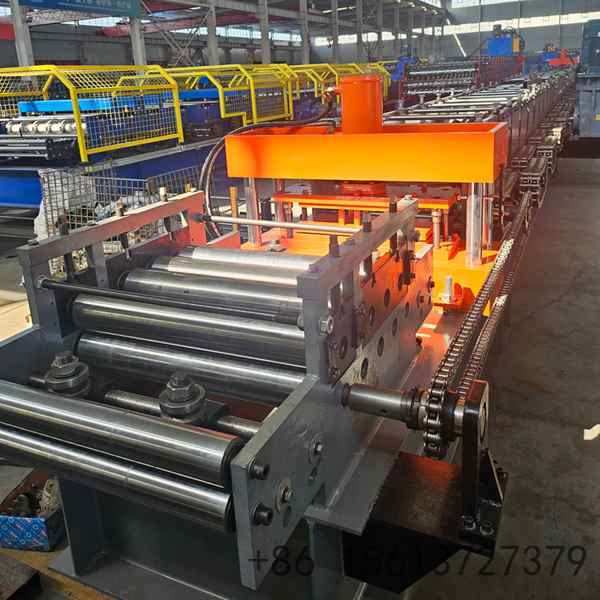

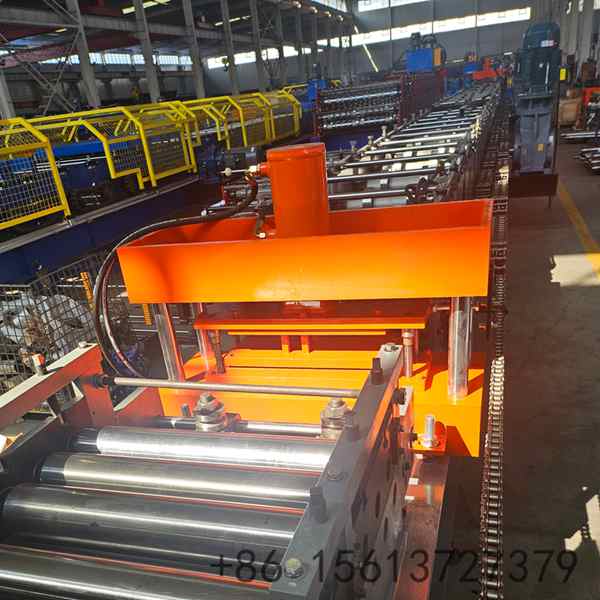

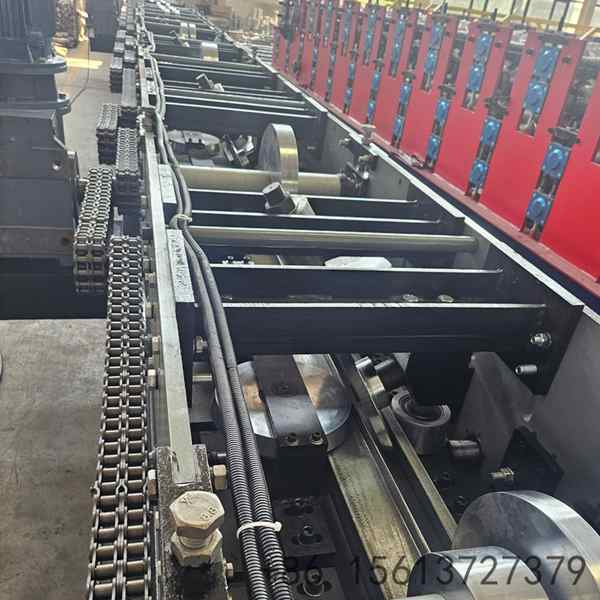

24 Forming Stations: The channel sides and the base fold step by step, keeping the trough square.
Heavy Build: A 350H frame, a 16mm middle plate and 65mm shafts suit long production runs.

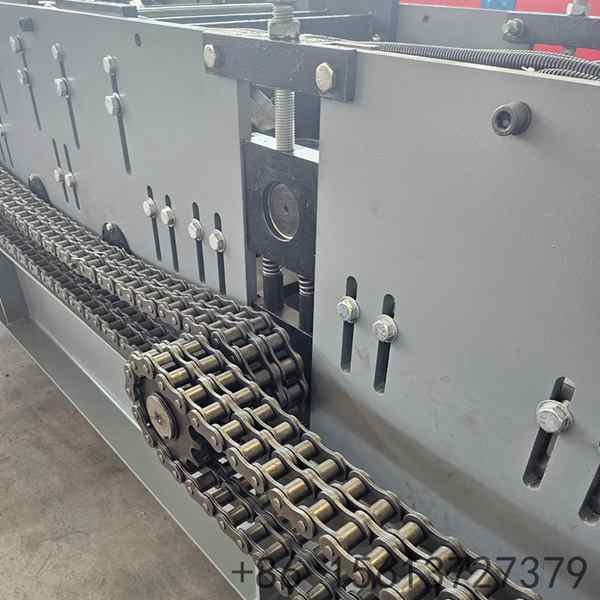

Matched Drive: A 5.5KW motor with a six point double row chain drive carries the line.
Low Waste: A 407mm coil yields a 125mm channel with the rest going into the side walls.
Set From Panel: Running length and batch count are set from the control panel.
Drawing Matched: Channel width, depth and edge form follow your section drawing.
| Component | Specification |
|---|---|
| Machine type | Industrial water trough roll forming machine |
| Profile | Steel water channel |
| Model | HY125 |
| Effective width | 125 mm |
| Coil feed width | 407 mm |
| Forming stations | 24 |
| Middle plate | 16 mm |
| Frame | 350H |
| Shafts | 65 mm |
| Main motor | 5.5 KW |
| Chain drive | Six point double row |
| Channel depth | [To be confirmed] |
| Sheet thickness | [To be confirmed] |
| Cutting | [To be confirmed] |
| Control system | [To be confirmed] |
| Running speed | [To be confirmed] |
| Line length | [To be confirmed] |
Deep Side Walls: A 407mm coil feeds a 125mm channel, so the sides carry the full depth of the trough.
24 Stations: The sides and base fold step by step, keeping the channel square along the run.
Heavy Frame: A 350H frame and 65mm shafts hold the section on long production runs.

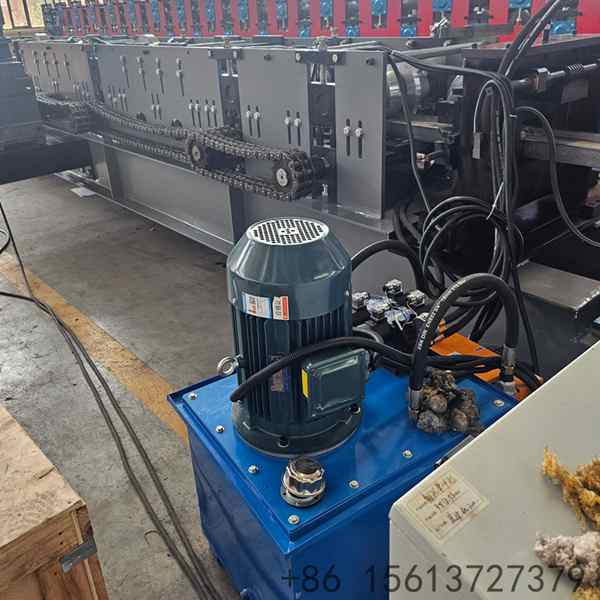

Matched Drive: A 5.5KW motor and a six point double row chain drive carry the forming load.

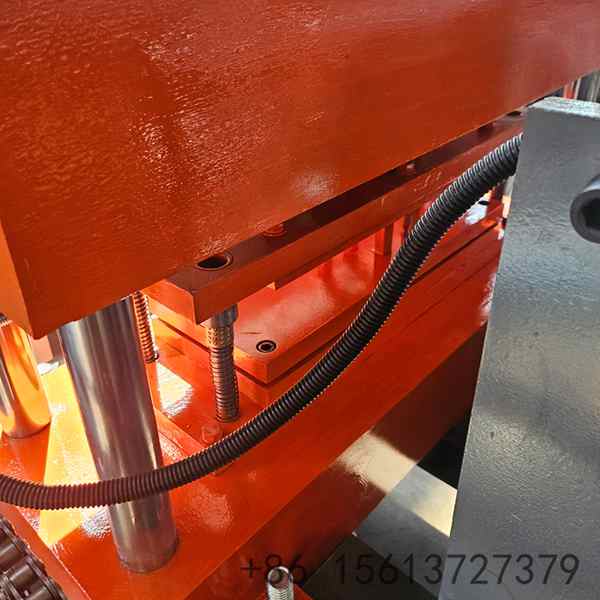

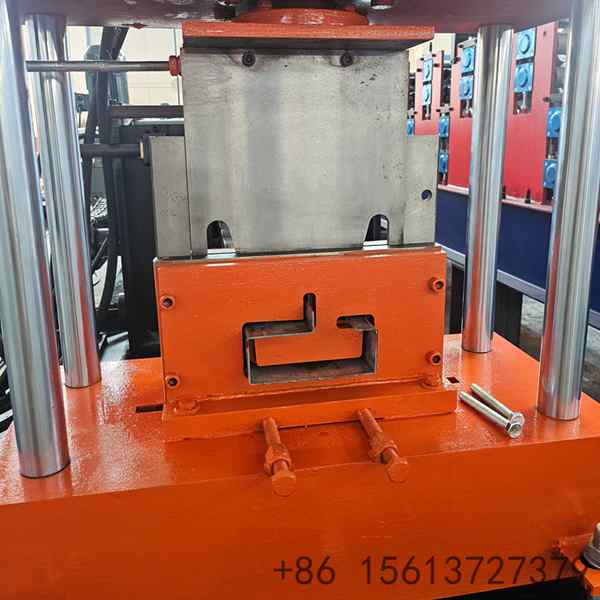

Fewer Operations: Forming and cutting run as one line.
Set From Panel: Length and batch count are entered on the control panel.
Drawing Matched: Channel width, depth and edge form follow your section drawing.
