Product output: Cylinders / closed rings / arcs
Roll arrangement: 3 main rolls (1 top + 2 bottom) + support roller
Drop end: Hinged tilt-down bearing for closed ring removal
Drive: Hydraulic power unit (pressure + drop end)
Frame: Heavy duty welded H-frame
Capacity: Matched to model, customizable

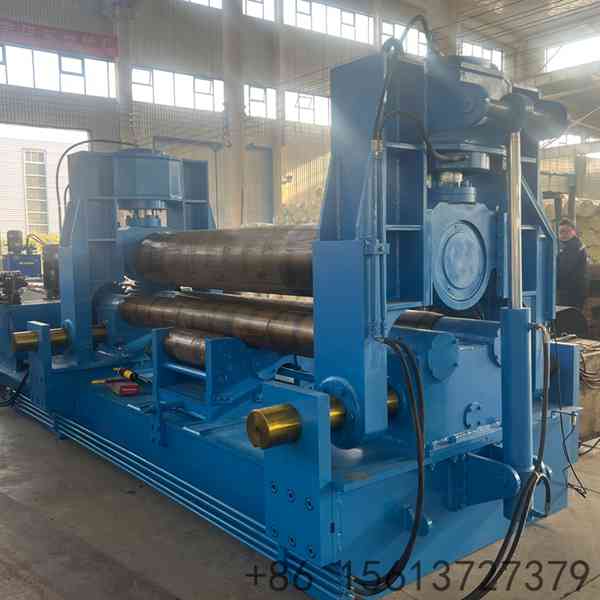

Closed Ring Production: Drop end bearing lets finished rings slide off the top roll.

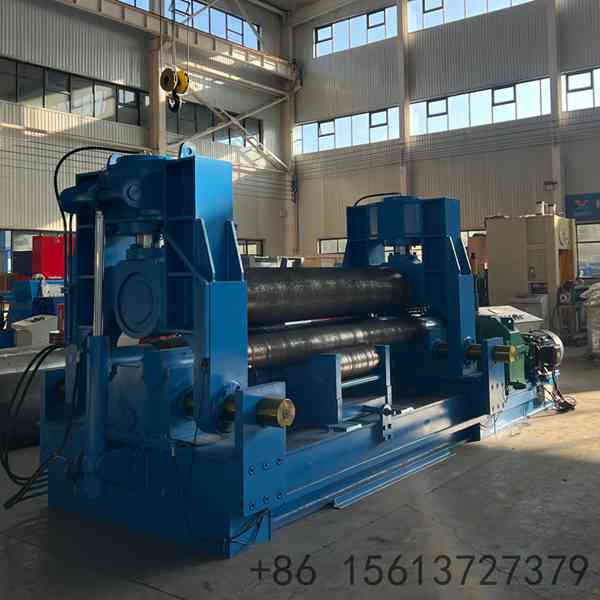

Three Main Rolls: One top and two bottom rolls for consistent cylinder forming.

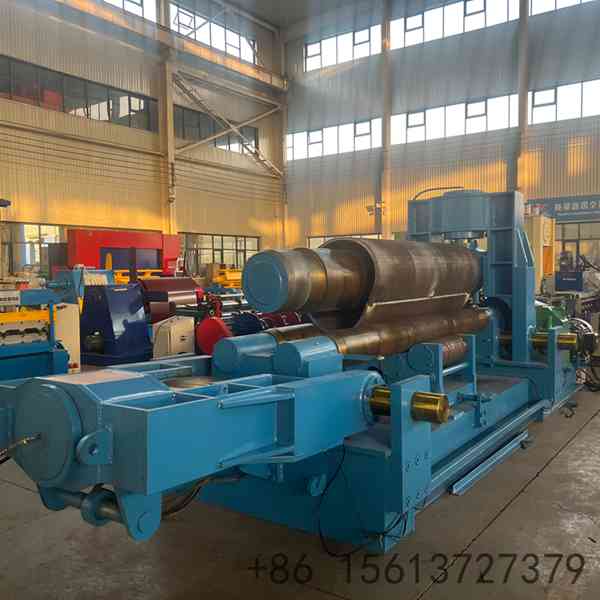

Anti Deflection Support: Center support roller keeps roundness across wide plate.
Heavy Duty Build: Welded H-frame with hardened steel rolls.
Model Matched Capacity: Thickness and width sized to your plate requirements.
| Component | Specification |
|---|---|
| Roll arrangement | 3 main rolls (1 top + 2 bottom) |
| Support roller | Center support under bottom rolls |
| Drop end | Hinged tilt-down bearing (closed ring removal) |
| Drive | Hydraulic power unit |
| Frame | Heavy duty welded H-frame |
| Roll material | Hardened steel, machined surface |
| Operation | Manual plate feed, hydraulic pressure control |
| Workpiece | Cylinders, closed rings, arcs |
| Capacity | Thickness / width matched to model (customizable) |
Closed Ring Removal: Drop end opens the frame so closed cylinders come off easily.
Even Roundness: Center support roller limits bottom roll deflection on wide plate.
Stable Forming: Heavy H-frame and hardened rolls hold accuracy under load.
Crane Saving: No need to lift the full cylinder for removal between jobs.
Flexible Work: Cylinder, arc and partial circle bending with roll adjustments.
Model Range: Capacity customized to your plate thickness and width.
Smooth Control: Hydraulic power unit regulates pressure and drop end motion.
