Heavy-Duty Shearless Corrugated & Trapezoidal Machine

Heavy-Duty Shearless Corrugated & Trapezoidal Machine

Product Attributes :

Application Production of trapezoidal metal roof sheets

Material Thickness 0.3 – 0.8 mm

Feeding Width 1000-1220 mm

Production Speed 8-15m/min

Note Custom sizes & profiles available

WhatsApp 15613727379

Product Description

Product Introduction:

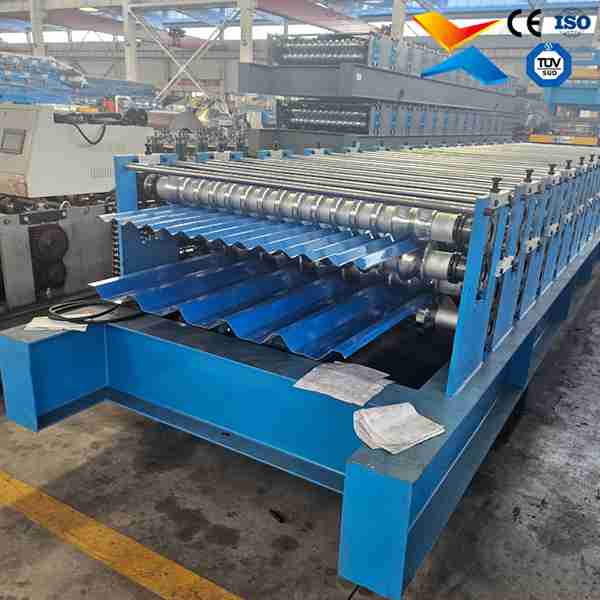

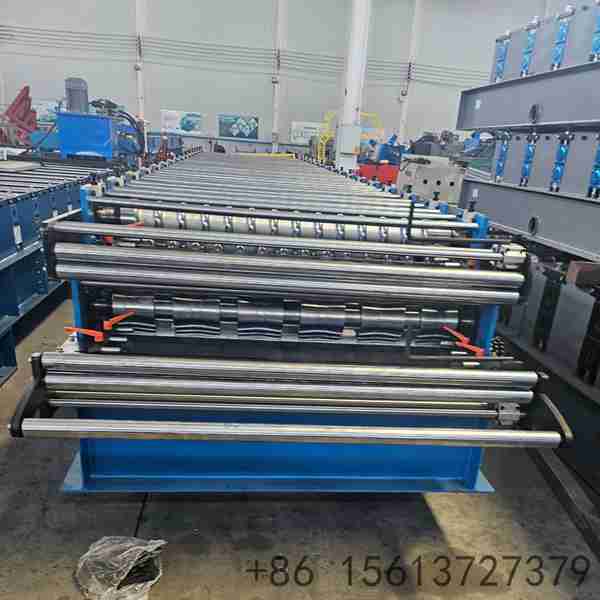

Reinforced Heavy-Duty Frame: The main chassis is constructed with high-strength H-beams and thick side plates. This massive structure absorbs vibrations during continuous forming, ensuring the corrugated panels maintain perfect geometric consistency.

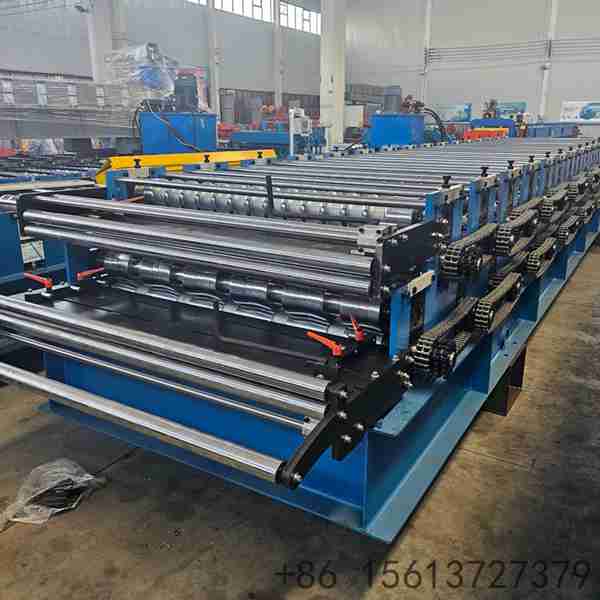

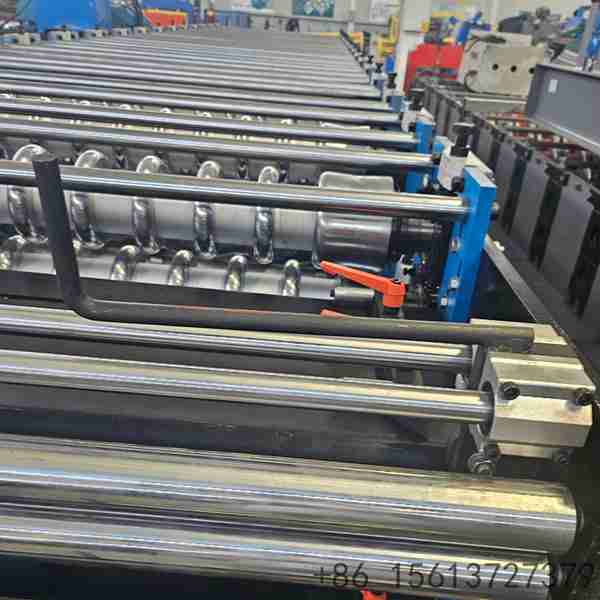

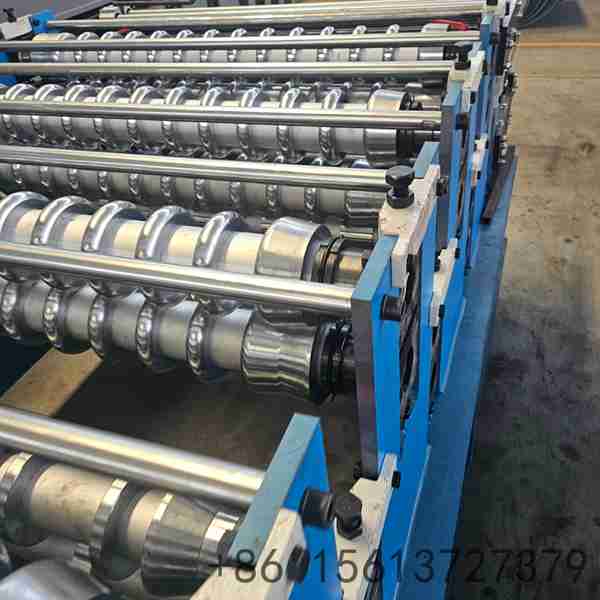

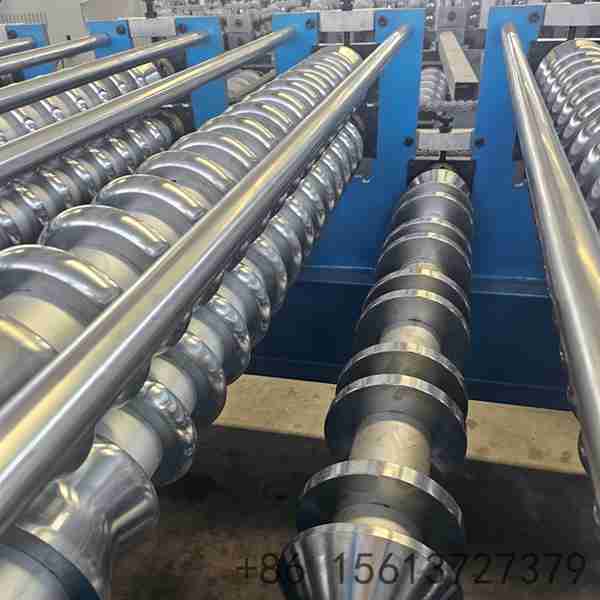

Flawless Corrugated Shaping: Specially designed roller stations guarantee a smooth, uniform curve for the corrugated panels without any surface scratches or structural deformation, even without a cutting mechanism.

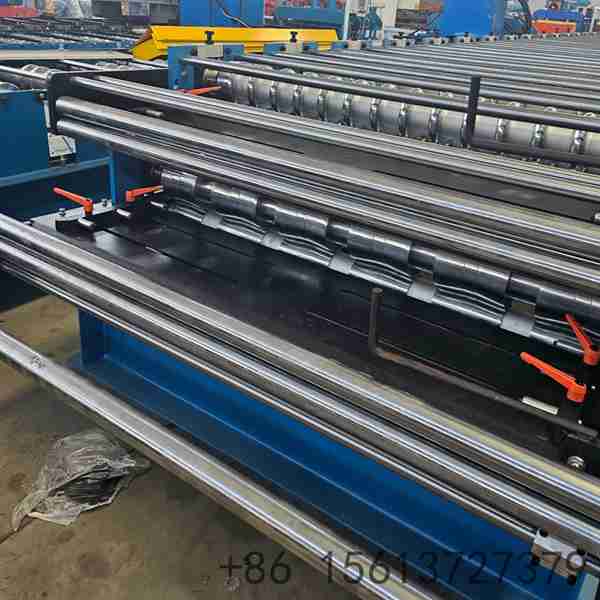

Zero-Maintenance Cutting Area: By eliminating the hydraulic shear head, cutting blades, and related hydraulic valves, the machine avoids common issues like blade dulling, oil leakage, and misalignment.

Stable Chain Transmission: Uses heavy-duty chains and precision gears for power transmission, providing stronger torque for continuous rolling of thicker materials.

Customizable Profile Configurations: Can be tailored to produce specific corrugated radii and trapezoidal dimensions based on exact market demands and project requirements.

Product Description & Parameters:
The Heavy-Duty Shearless Corrugated & Trapezoidal Machine is engineered for clients who demand extreme durability and flawless panel aesthetics. The biggest challenge in corrugated panel production is maintaining a smooth curve without deformation; our reinforced heavy-duty frame and precision rollers solve this by providing a rock-solid foundation.

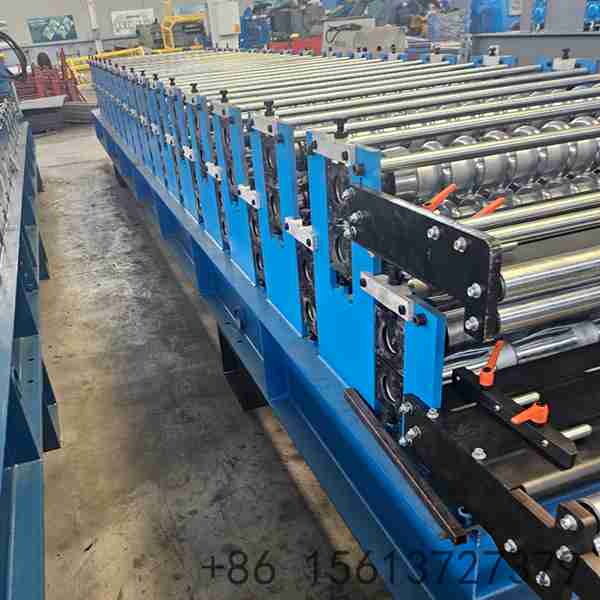

Without the interruption of a cutting head, the material flows continuously through the forming stations. This uninterrupted process is particularly beneficial for producing extra-long corrugated panels used in large-span steel structures, exhibition halls, and villas. The absence of a shear head not only reduces the machine's weight and footprint but also significantly lowers the failure rate, making it an ideal, low-maintenance investment for continuous roofing panel production.

No.	Main Parameter / Feature	Details
1	Applicable Material	Pre-painted Steel, Galvanized Steel
2	Material Thickness	0.3 - 0.8 mm
3	Feeding Width	Max 1220 mm
4	Forming Speed	12 - 18 m/min (Continuous)
5	Forming Stations	14-18 rows per layer
6	Main Motor Power	5.5 - 7.5 kW
7	Hydraulic Power	None (Shearless Design)
8	Roller Material	45# Steel, CNC Machined, Hard Chrome Plated
9	Shaft Material	45# Forged Steel, Dia. 75-80mm
10	Cutting System	None (Shearless)
11	Control System	PLC + Encoder (Siemens / Omron)
12	Voltage	380V / 50Hz / 3 Phase
13	Machine Dimensions	Approx. 8.0m x 1.5m x 1.4m
14	Machine Weight	Approx. 6 - 8.5 Tons
15	Decoiler	5T Hydraulic Decoiler
16	Warranty	12-24 Months + Lifetime Support
