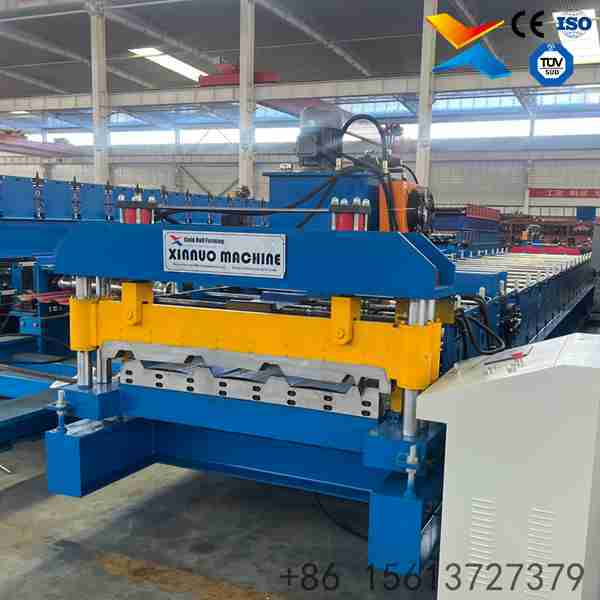

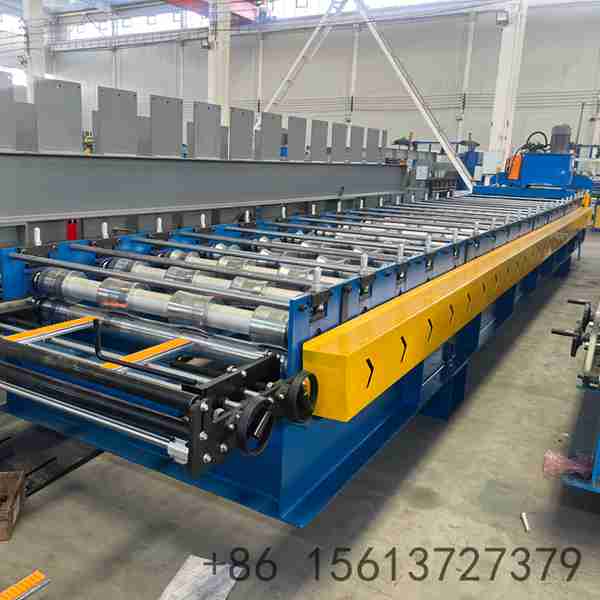

Floor Deck Roll Forming Machine With Dual Motor Driv
Product output: Composite floor deck sheets, open and closed (re-entrant) profiles
Applicable material: Galvanized steel / structural steel coils
Feeding width: Customizable (per deck profile)
Sheet thickness: 0.8-1.5 mm
Rib height: 50-100 mm (customizable)
Profile length: Customizable
Operation mode: PLC automatic control
Product Briefing
Open And Closed Deck: Produces both trapezoidal and re-entrant dovetail profiles on configured lines.

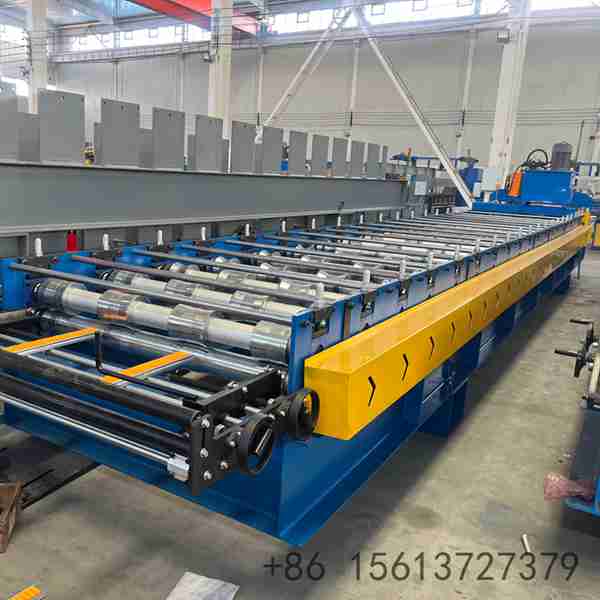

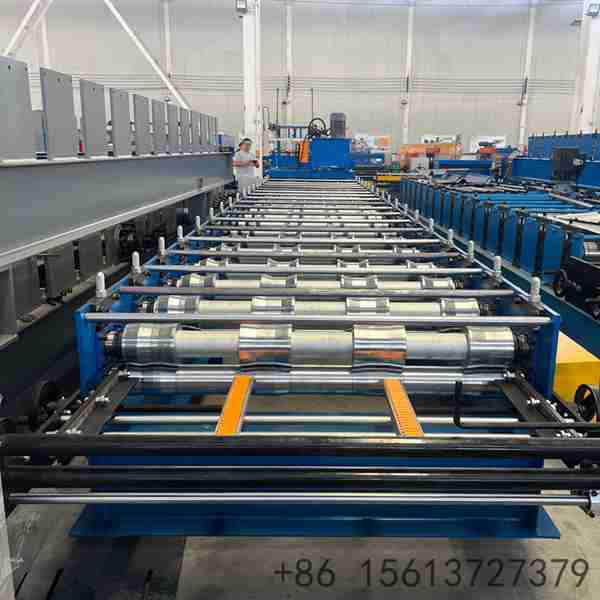

Deep Profile Capacity: Up to 34 forming stations handle rib heights of 50-100 mm.

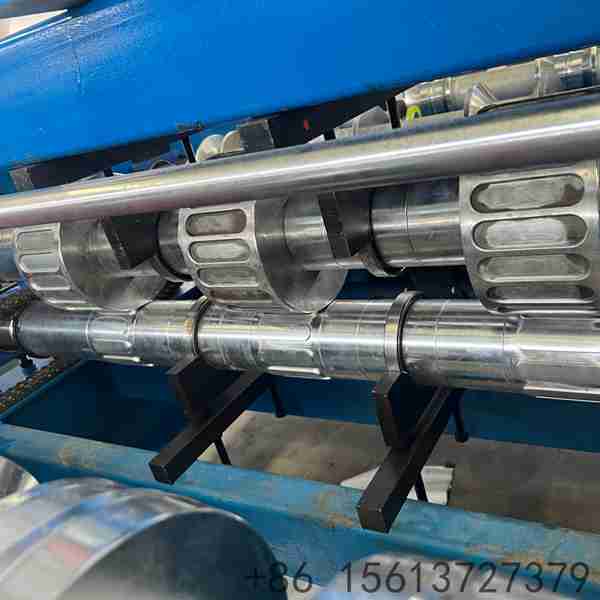

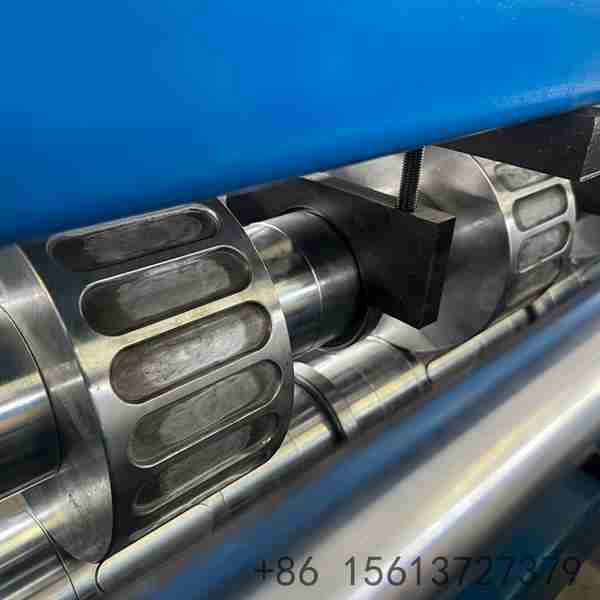

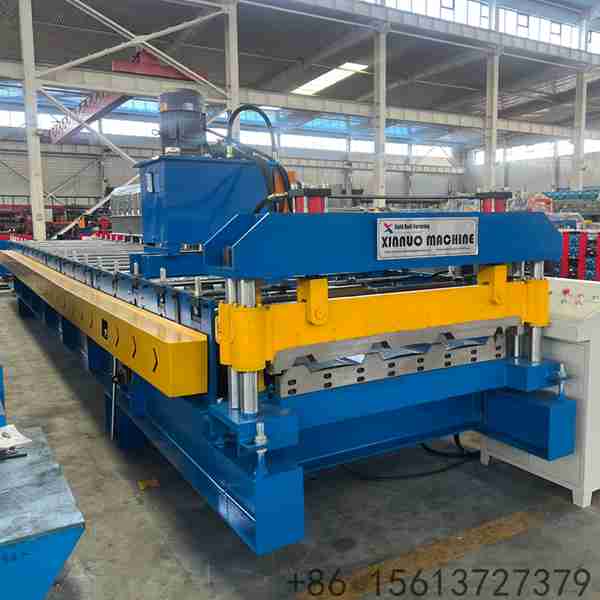

Re-Entrant Roller Set: Specialized rollers form the closed deck dovetail shape accurately.

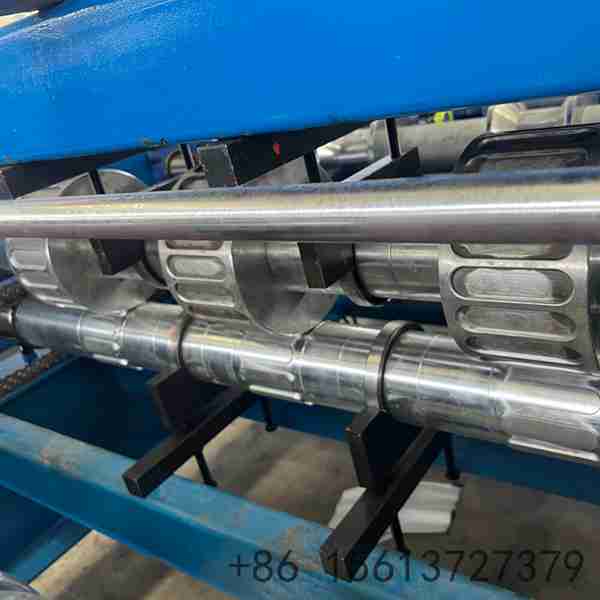

Anti-Pooling System: Clutch, bearing wheels and gear drives prevent jamming on thick material.
Custom Engineering: Roller design support for profile-specific deck configurations.

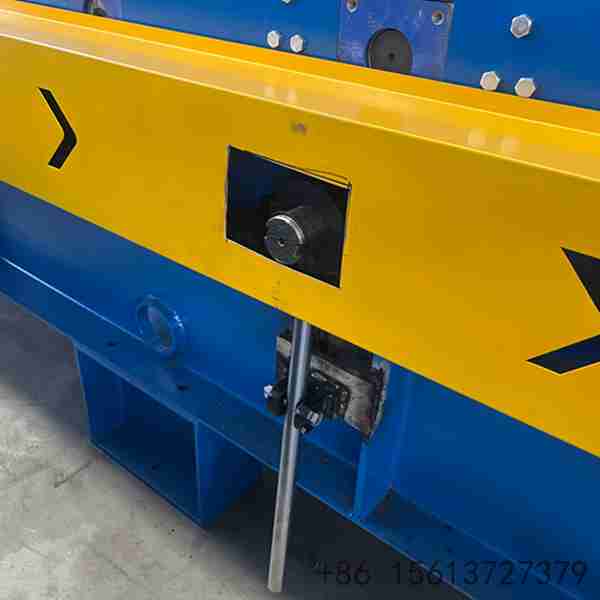

Heavy-Duty Build: 100 mm shafts, 18-25 mm side plates and dual motors for high forming forces.
Detailed Description
Technical Specifications
| Component | Specification |
|---|---|
| Material of rollers | High grade 45# forged steel, surface hard chromium plating |
| Rows of rollers | Up to 34 stations (per profile requirement) |
| Material of shafts | High grade 45# forged steel |
| Diameter of shafts | 100 mm |
| Main drive | Dual motors, 2 x 11 KW (2 x 15 KW for heavy profiles) |
| Chain drive | Heavy-duty 2-2.5 inch chain |
| Material of cutting blade | Cr12 Heat Treatment |
| Shear type | Dual-cylinder floor-standing hydraulic shear |
| Speed | 10-15 m/min |
| Side plate thickness | 18-25 mm |
| Anti-pooling devices | Clutch, bearing-mounted wheels, pressure bars, gear drives |
Technical Advantages (Based on Specifications)
Deep Forming Capacity: Up to 34 forming stations progressively shape deep re-entrant and trapezoidal profiles.
Wear-Resistant Rollers: 45# forged steel with hard chromium plating sustains high-friction forming of thick deck steel.
Jam-Free Production: The anti-pooling system with clutch and bearing wheels keeps material flowing through deep-profile stations.

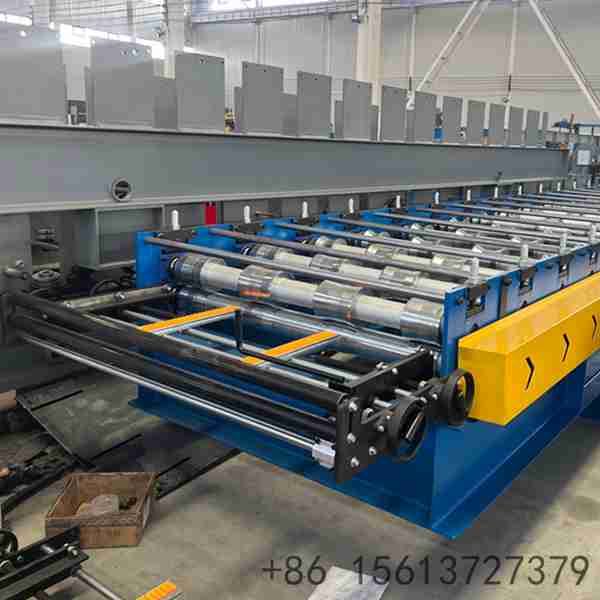

Balanced Heavy-Duty Drive: Dual motors with 2-2.5 inch chain deliver reliable force for thick sheets.
Rigid Structure: 100 mm shafts and 18-25 mm side plates handle high forming loads without deflection.
Accurate Cutting: Cr12 blades with dual-cylinder floor shear give square, clean cuts across the deck width.
Profile Flexibility: Custom roller engineering supports open and closed deck configurations for diverse projects.
