Product Description

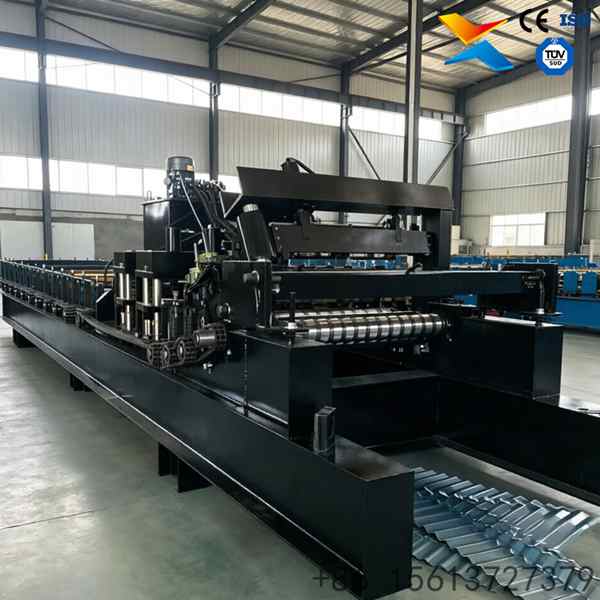

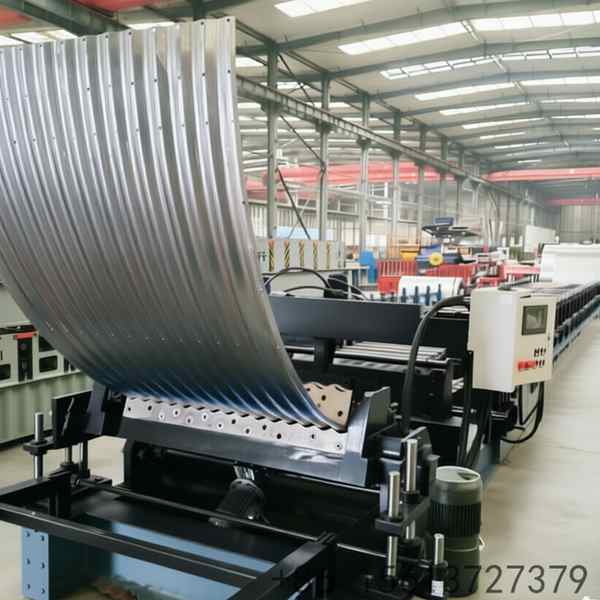

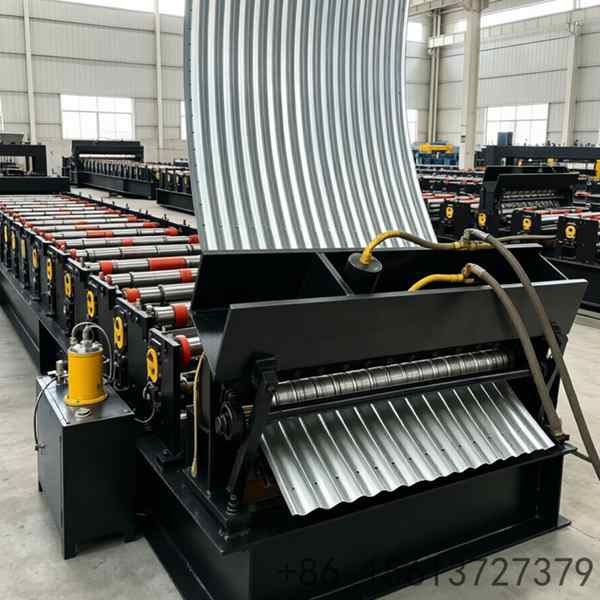

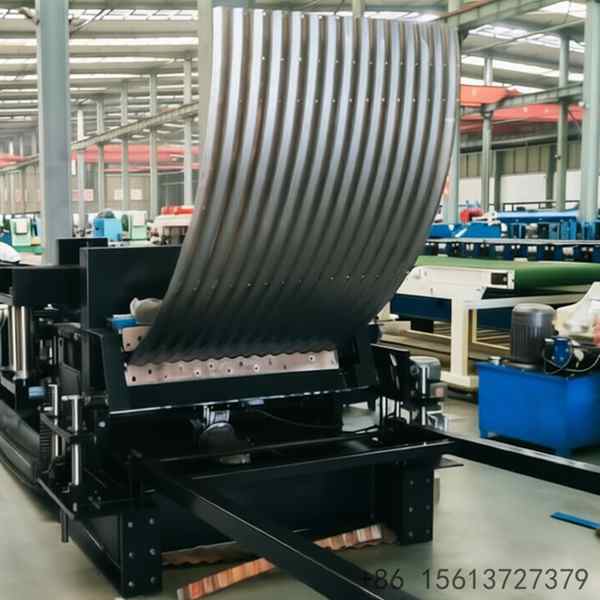

The Grain Silo Corrugated Panel Roll Forming Machine is a heavy-duty, fully automated production line dedicated to manufacturing high-strength corrugated wall panels for industrial grain storage silos. Designed to meet the rigorous demands of the agricultural and bulk material handling sectors, it efficiently processes galvanized steel coils into precise, weather-resistant silo sheets—critical structural components for storing wheat, corn, soybeans, cement, and other granular or powder materials.
Core Features
Heavy-Duty Material Processing
Unlike standard roofing machines, this equipment is specifically engineered to handle thicker and stronger materials. It smoothly processes galvanized steel, aluminum-zinc, and corrosion-resistant chromium-nickel steel with thicknesses ranging from 1.2mm to 4.5mm, ensuring the final silo walls possess superior load-bearing capacity and long-term durability.
Unlike standard roofing machines, this equipment is specifically engineered to handle thicker and stronger materials. It smoothly processes galvanized steel, aluminum-zinc, and corrosion-resistant chromium-nickel steel with thicknesses ranging from 1.2mm to 4.5mm, ensuring the final silo walls possess superior load-bearing capacity and long-term durability.
High-Precision Punching & Forming

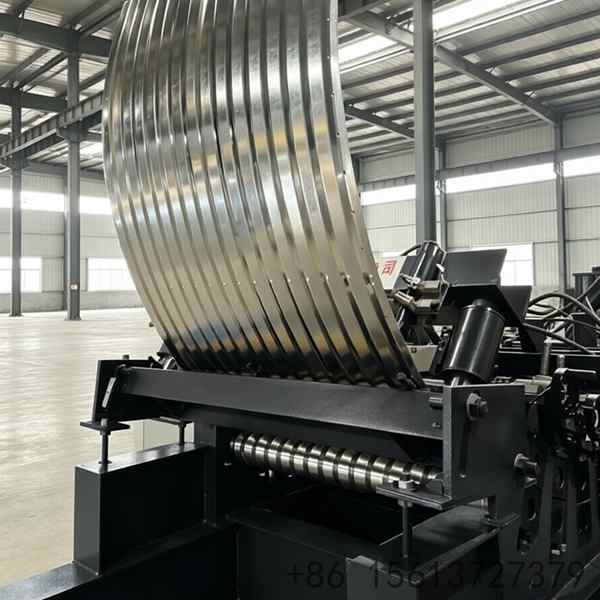

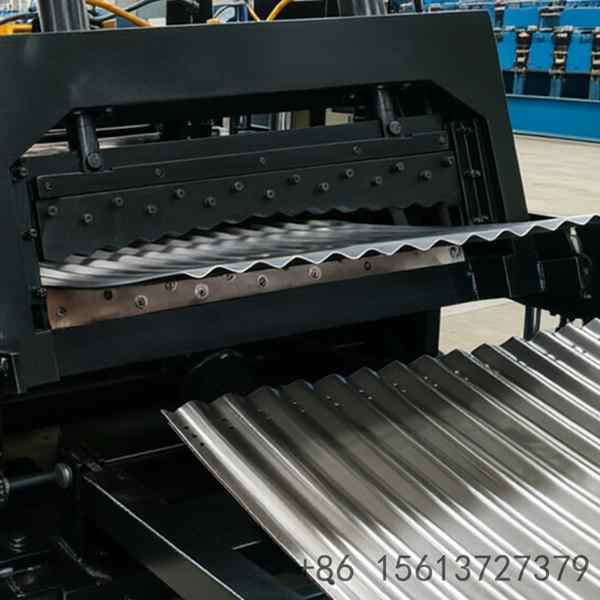

The production line integrates an advanced punching system that creates all mounting holes and arching bends in a single pass. This patented high-precision technology guarantees exact hole alignment, making the on-site assembly of the grain silo significantly faster and more secure. The corrugated profile is formed with strict dimensional tolerances to ensure a watertight seal.
The production line integrates an advanced punching system that creates all mounting holes and arching bends in a single pass. This patented high-precision technology guarantees exact hole alignment, making the on-site assembly of the grain silo significantly faster and more secure. The corrugated profile is formed with strict dimensional tolerances to ensure a watertight seal.
Fully Automated & Stable Operation

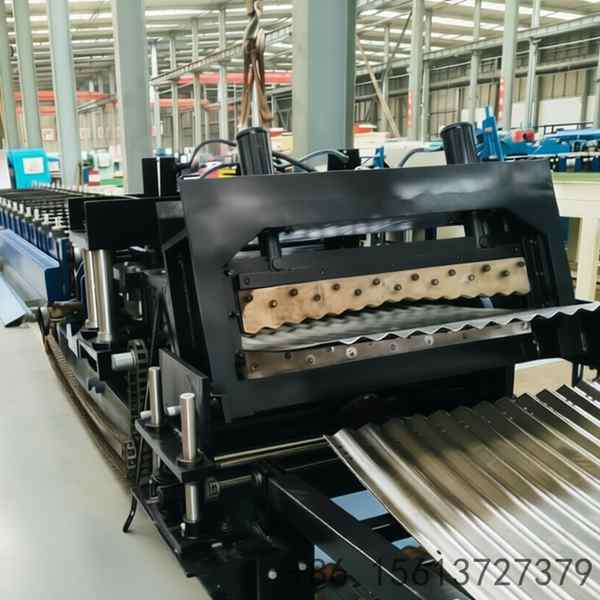

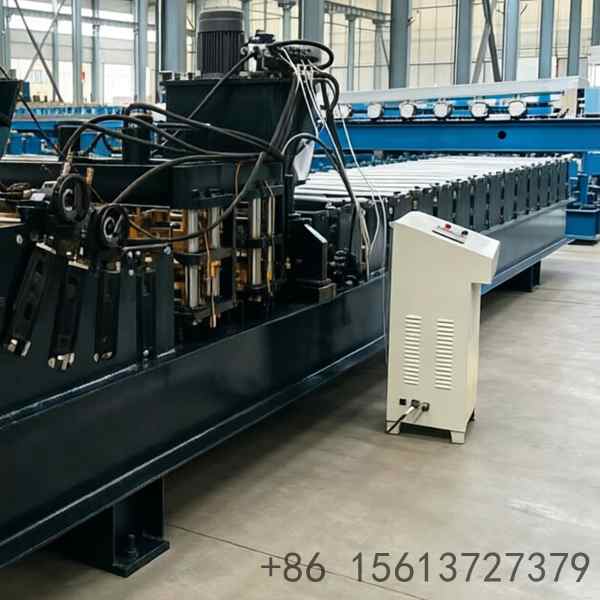

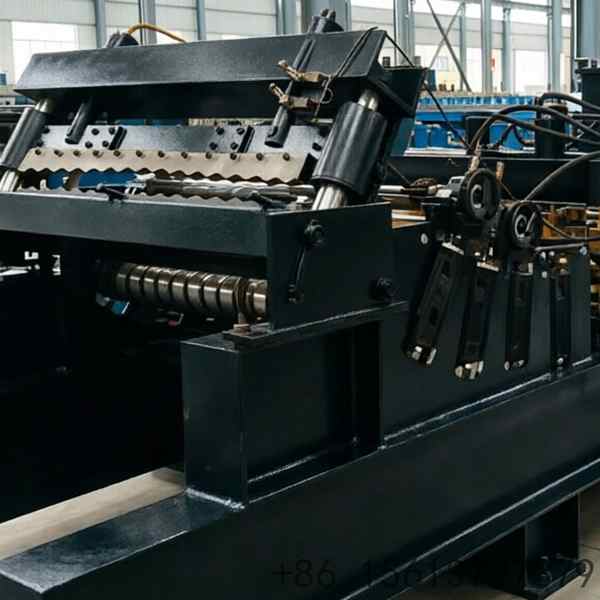

Equipped with a robust PLC control system, the machine automates the entire workflow from decoiling, leveling, and roll forming to hydraulic cutting and stacking. With a stable forming speed of 4–8 meters per minute (optimized for heavy-gauge materials), it provides consistent output for large-scale silo manufacturing projects.
Equipped with a robust PLC control system, the machine automates the entire workflow from decoiling, leveling, and roll forming to hydraulic cutting and stacking. With a stable forming speed of 4–8 meters per minute (optimized for heavy-gauge materials), it provides consistent output for large-scale silo manufacturing projects.
Robust Construction & Wear Resistance

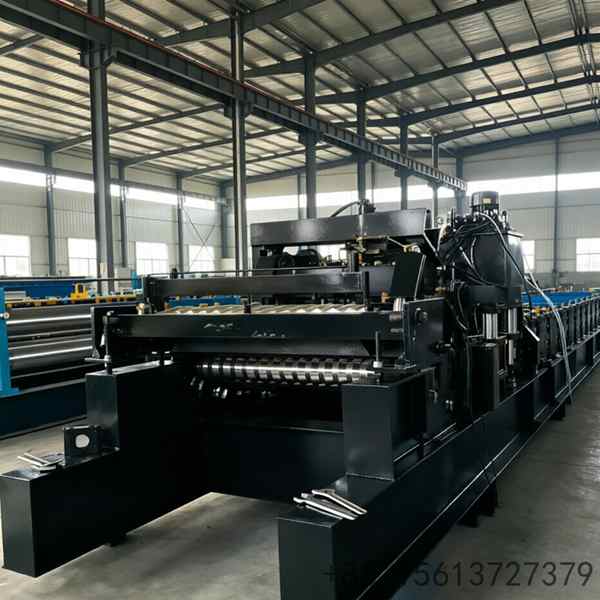

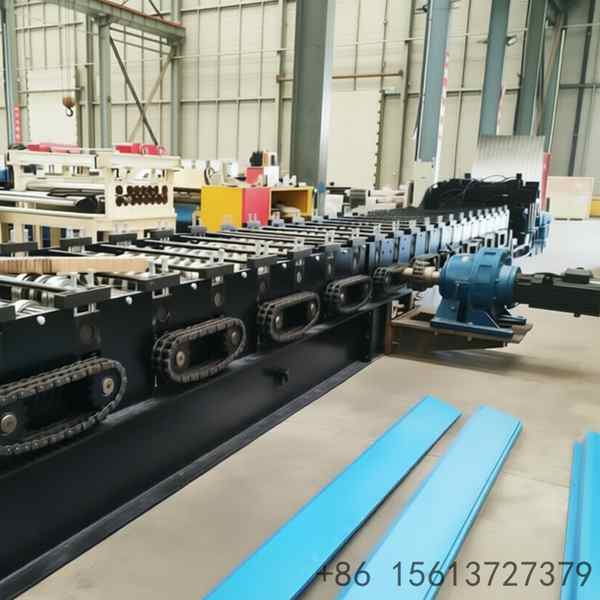

To withstand the high pressure of forming thick steel plates, the machine features a heavy-duty welded steel frame with stress-relief treatment. The forming rollers and shafts are crafted from high-grade forged steel (GCr15 / Cr12MoV), undergoing vacuum heat treatment (HRC 58-62°) and hard chrome plating to guarantee a long service life and a flawless surface finish on the panels.
To withstand the high pressure of forming thick steel plates, the machine features a heavy-duty welded steel frame with stress-relief treatment. The forming rollers and shafts are crafted from high-grade forged steel (GCr15 / Cr12MoV), undergoing vacuum heat treatment (HRC 58-62°) and hard chrome plating to guarantee a long service life and a flawless surface finish on the panels.
Application Scope
Widely used by steel silo manufacturers and agricultural storage engineering companies. The finished corrugated panels are essential for constructing grain storage systems, commercial feed bins, flat-bottom or hopper-bottom silos, cement silos, and industrial powder storage tanks
Detail
| Parameter | Specification |
|---|---|
| Material Type | Galvanized Steel / Zinc-Aluminum / Stainless Steel |
| Material Thickness | 1.2 – 4.5 mm |
| Feeding Width | Max 1250 mm |
| Forming Speed | 4 – 8 m/min |
| Profile Type | Corrugated Silo Wall Panel (Customizable) |
| Punching System | Integrated Hydraulic Punching (Pre/Post Forming) |
| Cutting Method | Hydraulic Stop-to-Cut / Flying Cut |
| Roller Material | GCr15 / Cr12MoV, HRC 58-62°, Chrome Plated |
| Main Shaft | 40Cr / 42CrMo, Precision Ground, Ø100-120mm |
| Control System | PLC + Touch Screen (Siemens / Mitsubishi / Delta) |
| Main Motor Power | 15 – 30 kW (Depends on thickness & stations) |
| Dimensional Tolerance | ± 1.0 mm (Length & Hole Position) |
