High-Strength Profile Production: Engineered to produce metal deck panels with big wave lengths that adhere well to concrete, saving steel mold plates and reducing floor weight.

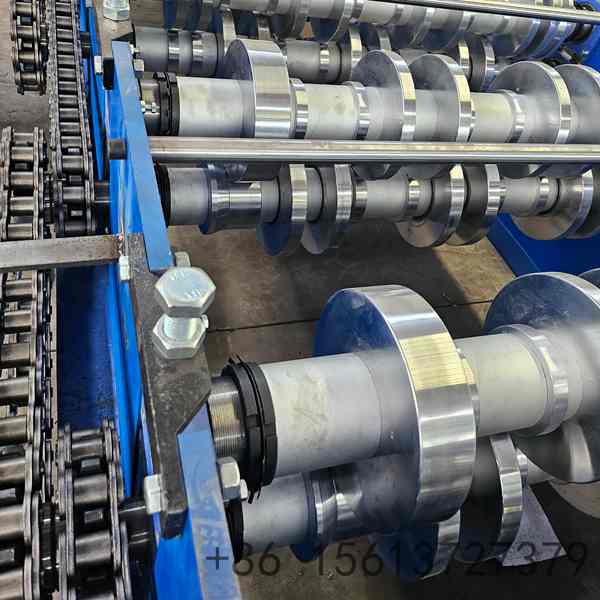

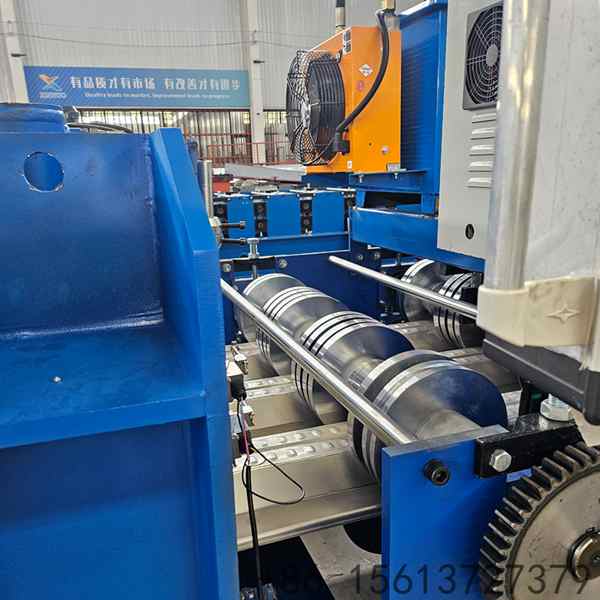

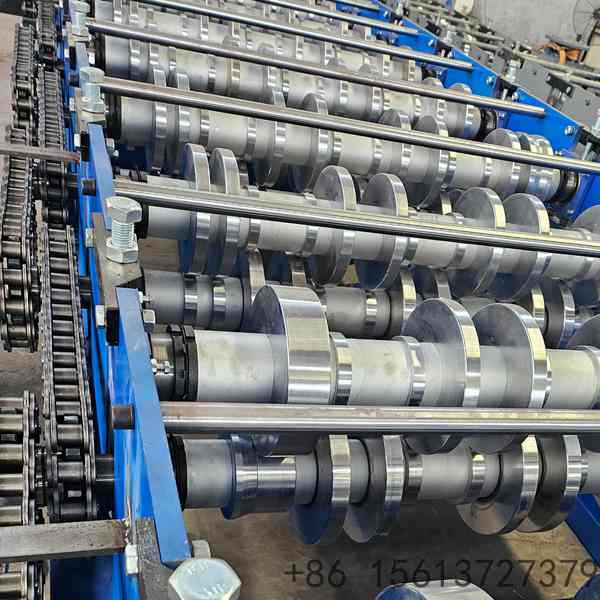

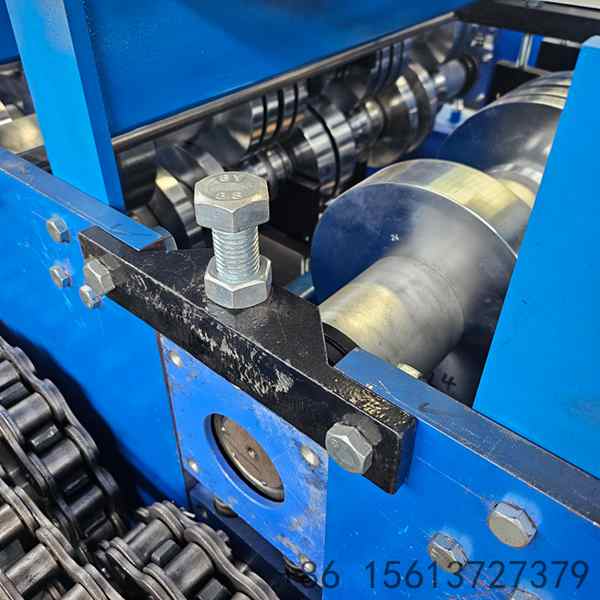

Precision Roll Forming System: Features high-grade 45# steel rollers with hard chrome plating and CNC machining, ensuring consistent dimensions and smooth surface finish.
Automatic Hydraulic Cutting: Equipped with Cr12 mould steel cutting blades that are quenched for hardness, providing precise length-set cutting with minimal tolerance.

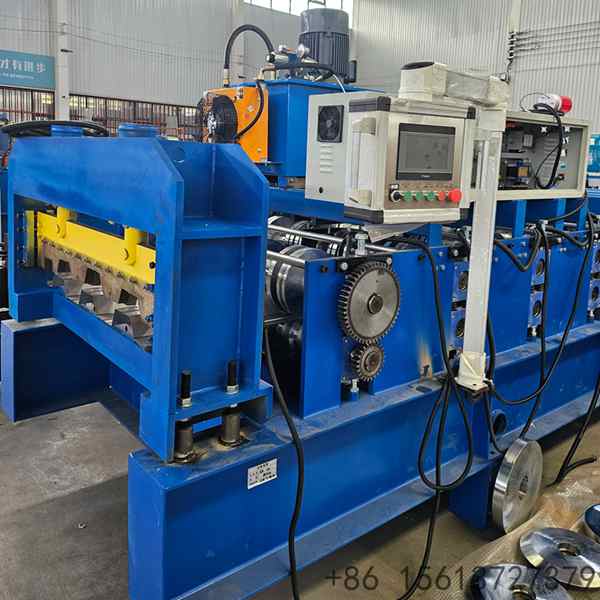

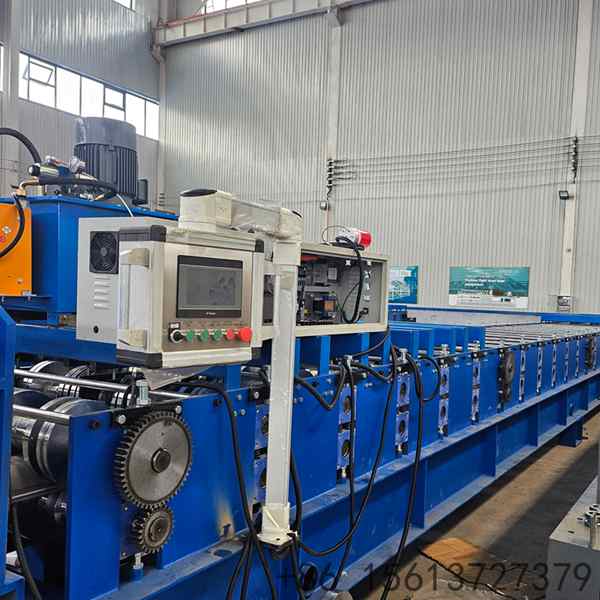

Advanced PLC Control: Utilizes imported brand PLC and touch screen interface for easy operation, accurate length measurement, and reliable automatic production.
Robust Machine Structure: Built with heavy-duty steel frame and high-strength shafts to ensure stable, vibration-free operation during continuous 24-hour production.

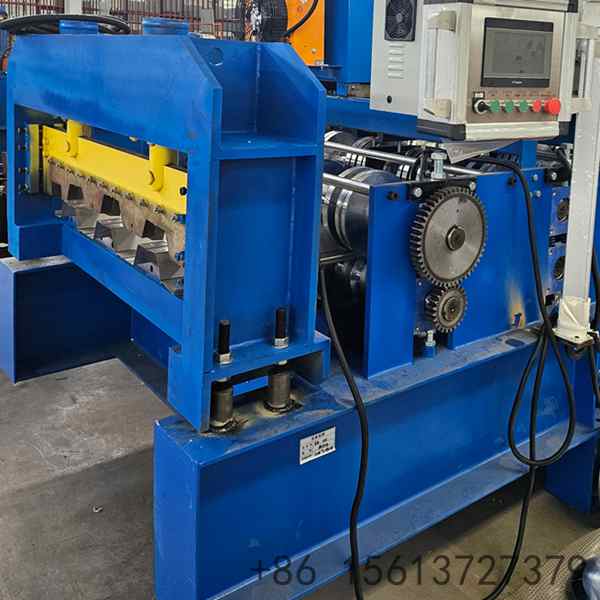

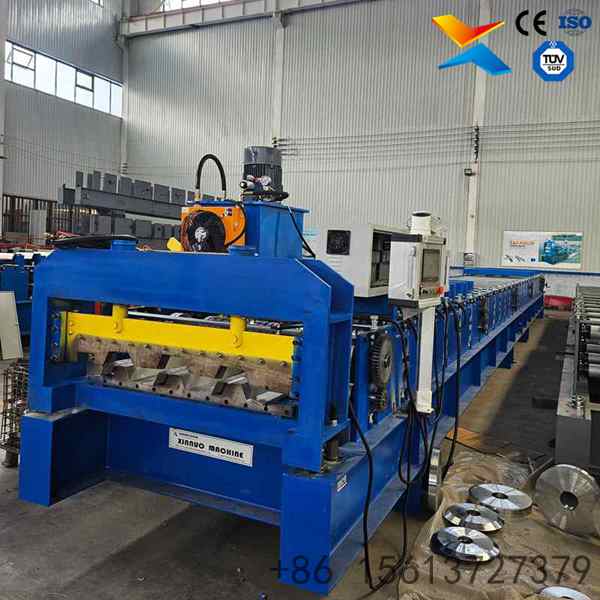

The Floor Decking Roll Forming Machine is a specialized cold roll forming equipment designed for manufacturing high-quality steel floor deck panels widely used in high-rise buildings, steel structure warehouses, and industrial facilities. The metal decks produced by this machine feature high strength with big wave length, adhering well to concrete while saving steel mold plates and reducing storey weight. With the same bearing capacity, this system economizes steel and cuts down overall investment. The machine integrates decoiling, guiding, roll forming, length measuring, and automatic cutting into a seamless production line that requires only 1-2 operators.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Galvanized steel sheet / Color steel sheet / Aluminium sheet |
| 2 | Material Thickness Range | 0.8 - 1.5 mm |
| 3 | Forming Speed | 10 - 15 m/min (adjustable via transducer) |
| 4 | Number of Roller Stations | 26 - 31 stations (depending on profile design) |
| 5 | Main Motor Power | 18.5 - 22 kW |

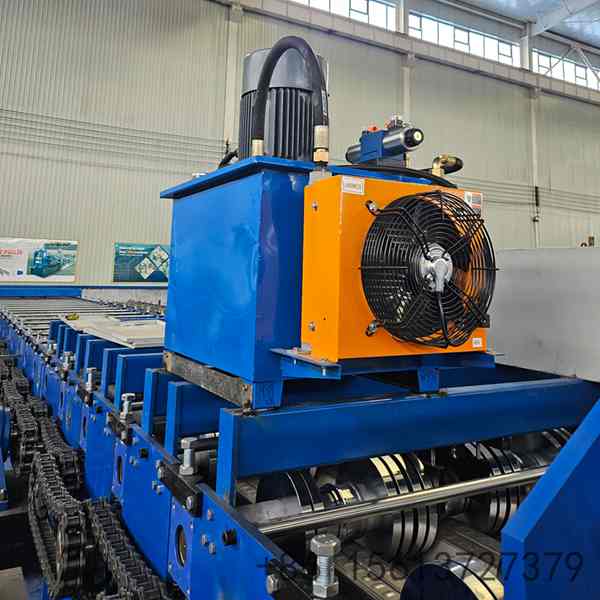

| 6 | Hydraulic Station Power | 4 - 7.5 kW |
| 7 | Roller Material | High-grade 45# forged steel with hard chrome plating |
| 8 | Shaft Material | 45# steel, diameter 85-90mm, tempered and polished |
| 9 | Cutting Blade Material | Cr12 mould steel with quenching treatment |
| 10 | Cutting Method | Hydraulic post-cut, automatic pause and cut |
| 11 | Control System | PLC control with touch screen (Mitsubishi/Delta) |
| 12 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 13 | Machine Dimensions | Approx. 12-18m × 1.5-2.8m × 1.4-1.75m |
| 14 | Machine Weight | Approx. 8 - 16 Tons |
| 15 | Length Tolerance | ±1-2 mm |
| 16 | Uncoiler Capacity | Up to 5-8 tons (manual or automatic) |

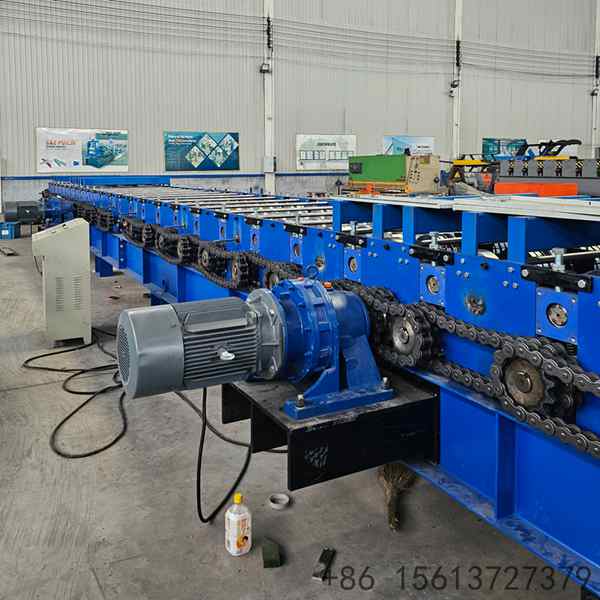

| 17 | Driving Mode | Chain transmission |
| 18 | Warranty | 1-2 years free warranty + lifelong technical support |
