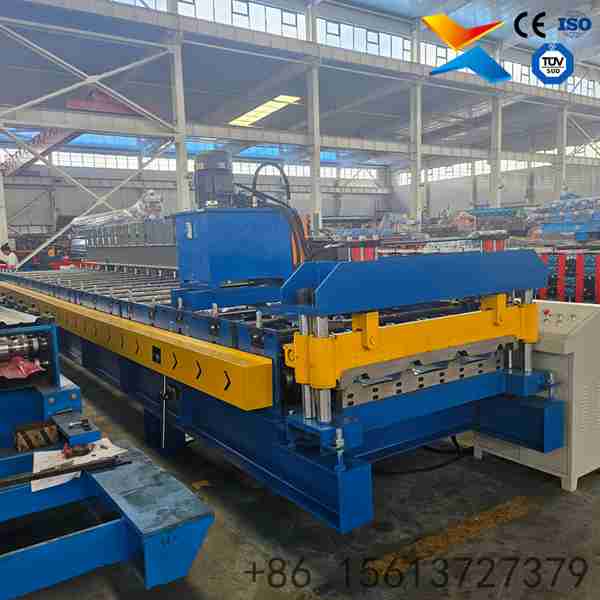

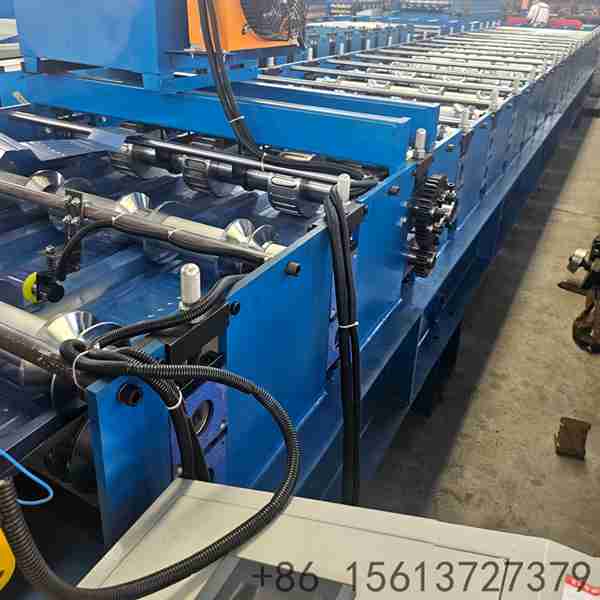

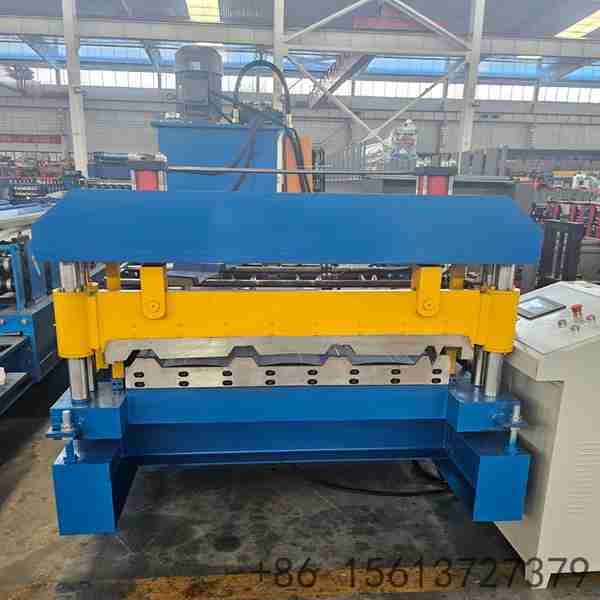

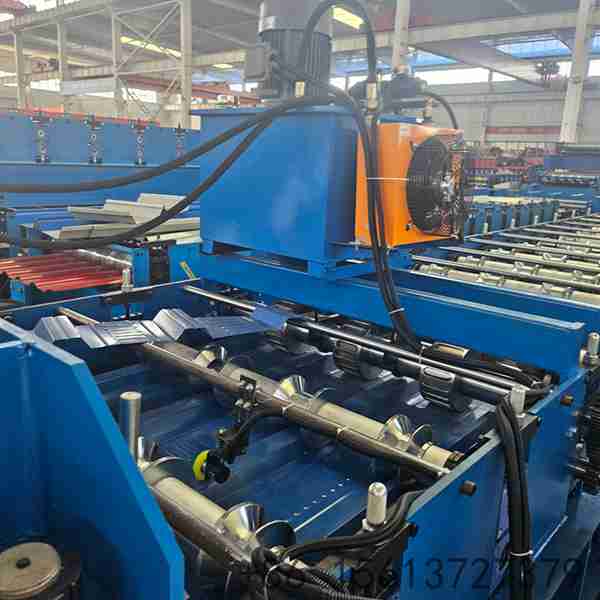

Four-Peak Floor Deck Roll Forming Machine

Four-Peak Floor Deck Roll Forming Machine

Product Attributes :

Material: GI / PPGI

Material Thickness: 1.2-2.0mm

Main roll forming machine Power: 15KW*2sets

Motor: Siemens

Forming Speed: 8-15m/min

Machine size: 9000*1700*1500mm

Machine weight: 15000KG

WhatsApp：+8615613727379

Product Description

Product Introduction:

Superior Load-Bearing Capacity: Engineered to produce the YX30-286-1215 profile, featuring a 286mm large wave pitch and a 30mm peak height. This four-peak structural design significantly enhances vertical load-bearing capacity and bending resistance, making it ideal for heavy-duty applications.

Rapid & Efficient Construction: The unique rib design acts as a natural shear key after concrete pouring, ensuring high composite strength between the steel deck and concrete. The flat bottom allows for easy hidden routing of pipelines, drastically reducing installation time and labor costs.

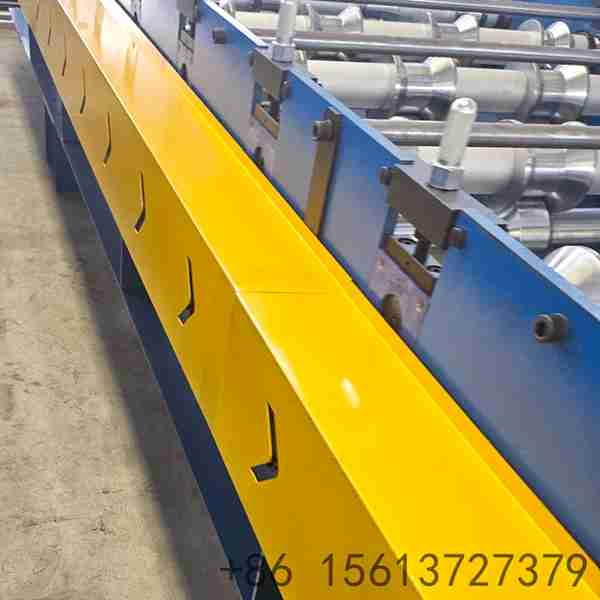

Heavy-Duty Frame Construction: Built with a reinforced H-beam main chassis and thick side plates to absorb intense vibrations during high-speed forming, ensuring zero deflection and perfect geometric consistency of the four-peak panels.

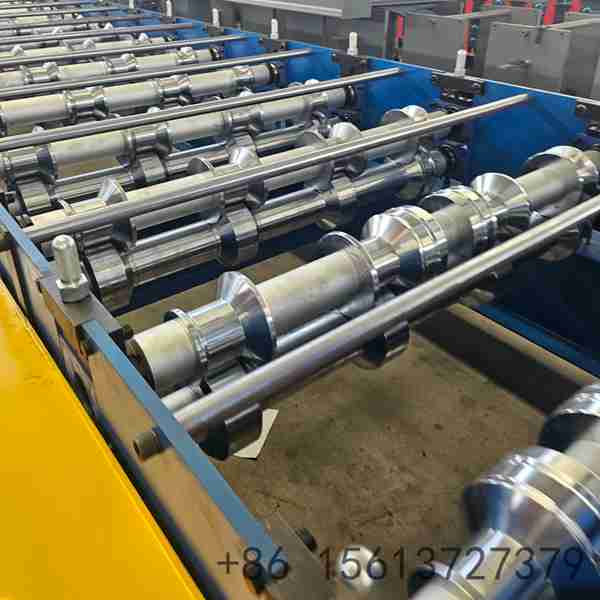

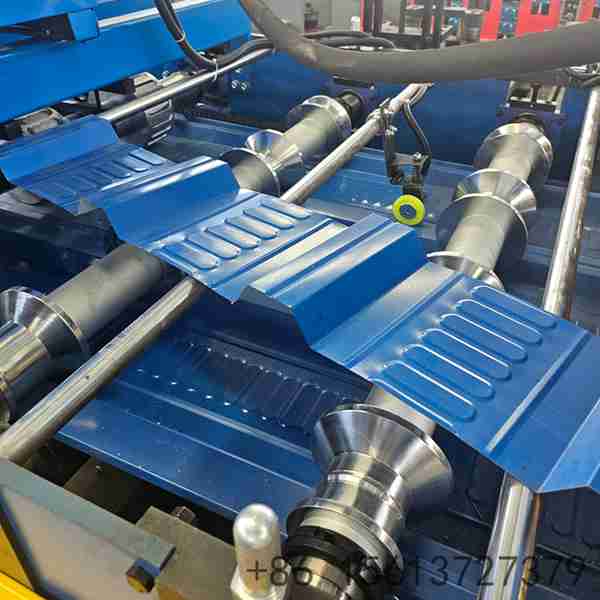

Precision Forming Rollers: Rollers are CNC-machined from high-grade 45# forged steel with hard chrome plating, guaranteeing flawless surface finishes and preventing any damage to the galvanized or color-coated steel.

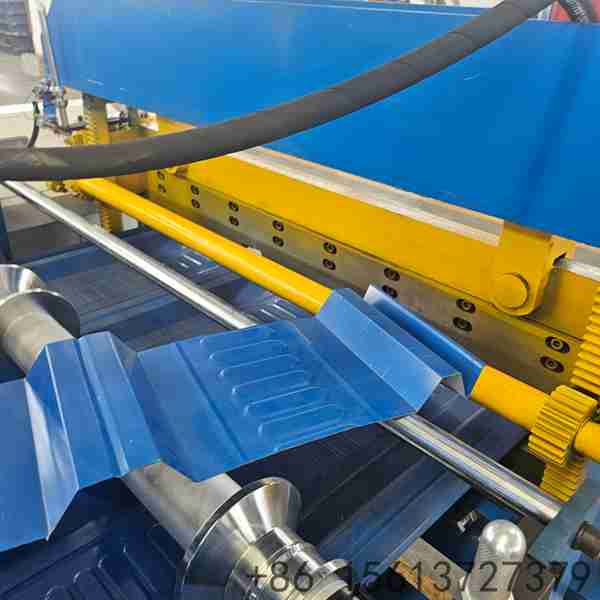

Smart PLC Automation: Features an intelligent PLC control system with a touch screen for precise length counting, automatic hydraulic cutting, and real-time production monitoring.

Product Description & Parameters:
The Four-Peak Floor Deck Roll Forming Machine is the ultimate solution for modern steel structure and container renovation projects. The YX30-286-1215 profile it produces serves as the "hardcore armor" for floor systems, offering exceptional structural integrity.

By utilizing high-quality galvanized steel coils (such as AZ150), the machine forms panels that not only support massive loads but also resist corrosion in demanding environments. The closed-type rib design optimizes concrete usage while maximizing structural strength. Whether used for modular LOFT apartments, creative commercial spaces, or large-span industrial factories, this four-peak floor deck machine delivers unmatched efficiency, safety, and cost-effectiveness.

No.	Main Parameter / Feature	Details
1	Applicable Material	Galvanized Steel Coil (GI), Pre-painted Steel (PPGI)
2	Material Thickness	0.8 - 1.5 mm (Heavy Duty)
3	Profile Model	YX30-286-1215 (Four-Peak)
4	Forming Speed	10 - 15 m/min
5	Forming Stations	18-22 rows (Depending on design)
6	Main Motor Power	7.5 - 11 kW
7	Hydraulic Power	5.5 - 7.5 kW
8	Roller Material	45# Forged Steel, CNC Machined, Hard Chrome Plated
9	Shaft Material	45# Forged Steel, Dia. 80-90mm
10	Cutting Blade Material	Cr12MoV, Quenched (HRC 58-62)
11	Cutting Method	Hydraulic Flying Cut / Stop-to-Cut
12	Control System	PLC + Touch Screen (Siemens / Delta)
13	Voltage	380V / 50Hz / 3 Phase (Customizable)
14	Machine Dimensions	Approx. 10.5m x 1.6m x 1.6m
15	Machine Weight	Approx. 9 - 12 Tons
16	Decoiler	5T - 8T Hydraulic Decoiler
17	Warranty	12-24 Months + Lifetime Technical Support
