Product Briefing
Optimized ROI Engineering: Designed to deliver reliable production at a competitive price point, ideal for growing workshops.
Durable Value Build: Features a reinforced H-beam base and solid shafts to ensure structural longevity without excessive cost.

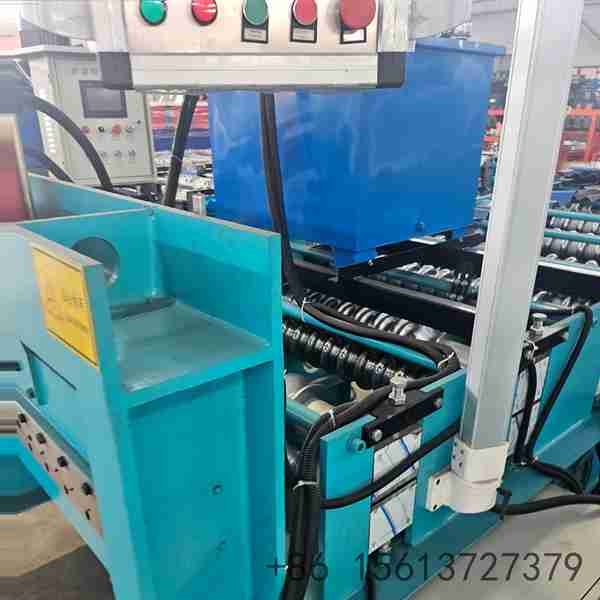

User-Friendly PLC Interface: Simplified automation system allows for rapid setup and easy operation with minimal operator training.
Low Maintenance Design: Utilizes standard industrial components that are easy to source and service locally, reducing downtime.
Versatile Profile Options: Capable of producing all standard trapezoidal and corrugated profiles common in regional markets.
5. Detailed Description
Technical Parameters
| Feature | Technical Specification |
|---|---|
| Investment Category | Economy / Value Tier (High ROI) |
| Material Thickness | 0.3mm - 0.7mm (Standard Building Gauges) |
| Forming Stations | 12 - 15 Stages (Optimized for Standard Profiles) |

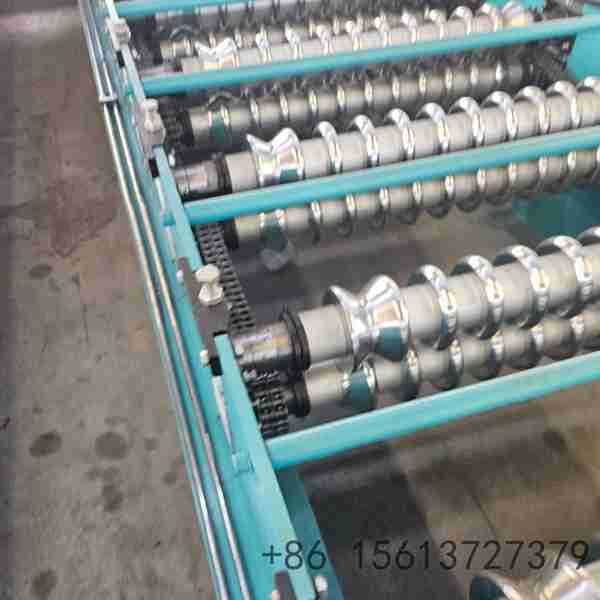

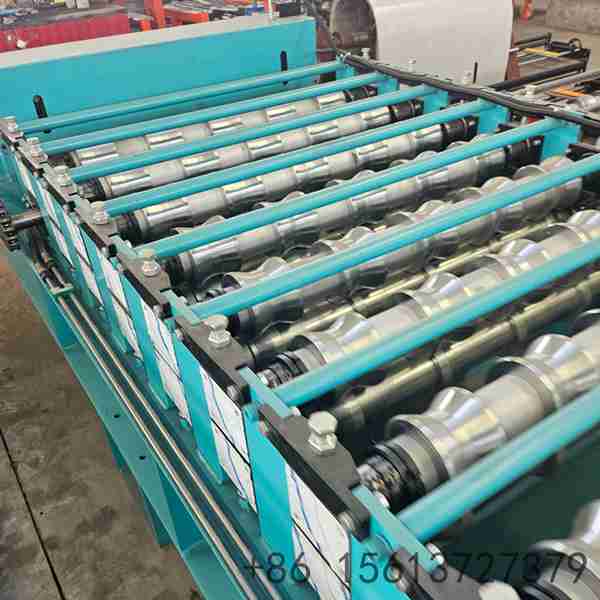

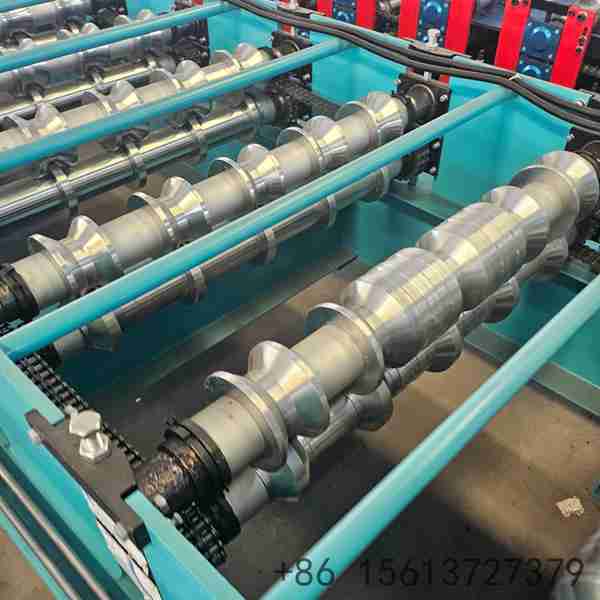

| Roller Material | 45# Steel with Industrial Hard Chrome Finish |
| Shaft Specification | Φ70mm Solid Steel Shafts |
| Drive System | High-Strength Single or Double-Row Chain Drive |
| Control Logic | Standard PLC with Digital Length Control |
Unique Technical Advantages
Streamlined Operational Workflow: The simplified controls focus on the core functions—feeding, forming, and cutting—ensuring high reliability with fewer complex components.

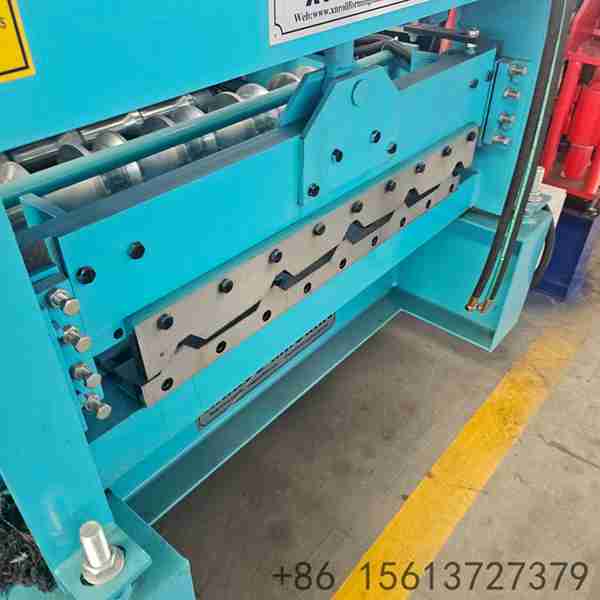

Simplified Hydraulic Station: Our value-engineered hydraulic system provides the necessary cutting force for standard gauges while being easy to maintain and service.
Universal Profile Adaptability: The machine is pre-calibrated to handle standard galvanized and color-coated coils, making it ready for immediate production.
Cost-Efficient Shipping Design: The compact machine frame is designed to fit easily into standard containers, reducing international logistics costs.
