Product Description

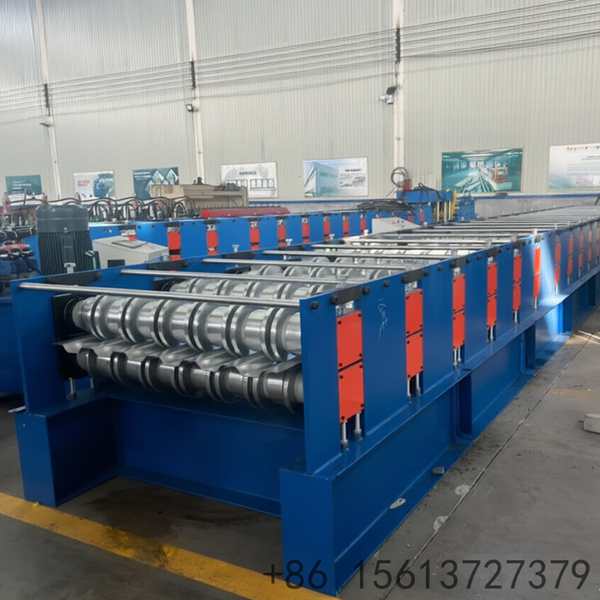

The Carriage Board Roll Forming Machine is a highly efficient, fully automated equipment dedicated to manufacturing precision corrugated side panels, floor decks, and structural reinforcements for truck boxes, shipping containers, and sanitation vehicles. Designed for the commercial vehicle and logistics equipment sector, it efficiently processes color steel, galvanized steel, and aluminum coils into high-strength, wavy metal panels—critical components for ensuring structural rigidity, impact resistance, and durability in heavy-duty transportation applications.
Core Features
High Strength & Excellent Forming Quality
The machine is engineered to produce carriage boards with uniform wave profiles and a scratch-free surface finish. The forming rollers are crafted from high-grade 45# steel or bearing steel (GCr15), featuring precision CNC machining and hard chrome plating. This ensures the final panels possess superior mechanical strength, high dimensional accuracy, and long-lasting durability to withstand harsh road conditions.
The machine is engineered to produce carriage boards with uniform wave profiles and a scratch-free surface finish. The forming rollers are crafted from high-grade 45# steel or bearing steel (GCr15), featuring precision CNC machining and hard chrome plating. This ensures the final panels possess superior mechanical strength, high dimensional accuracy, and long-lasting durability to withstand harsh road conditions.
Fully Automated & Easy Operation
Equipped with an advanced PLC control system and a user-friendly touch screen, the machine automates the entire workflow from uncoiling, sheet leveling, roll forming to measuring length and hydraulic cutting. Operators only need to input the desired length and quantity on the control panel, making it highly efficient and easy to operate, significantly reducing labor intensity.
Equipped with an advanced PLC control system and a user-friendly touch screen, the machine automates the entire workflow from uncoiling, sheet leveling, roll forming to measuring length and hydraulic cutting. Operators only need to input the desired length and quantity on the control panel, making it highly efficient and easy to operate, significantly reducing labor intensity.
Customizable Profiles & Strong Adaptability
The equipment is highly versatile, capable of producing various corrugated patterns and structural reinforcements. It supports custom profile designs based on customer drawings and can process material thicknesses ranging from 0.3mm to 8mm, making it suitable for light-duty trucks, heavy-duty trailers, container manufacturing, and diverse vehicle modification requirements.
The equipment is highly versatile, capable of producing various corrugated patterns and structural reinforcements. It supports custom profile designs based on customer drawings and can process material thicknesses ranging from 0.3mm to 8mm, making it suitable for light-duty trucks, heavy-duty trailers, container manufacturing, and diverse vehicle modification requirements.
Robust Structure & Reliable Cutting System
Built with a heavy-duty H-beam welded frame for stable, low-vibration operation under high load. The hydraulic post-cutting system utilizes Cr12 mold steel blades with quenching treatment (HRC 60-62°), ensuring clean, burr-free cuts without distorting the panel shape. The machine requires only 1-2 workers to operate, significantly reducing labor costs while maximizing production efficiency.
Built with a heavy-duty H-beam welded frame for stable, low-vibration operation under high load. The hydraulic post-cutting system utilizes Cr12 mold steel blades with quenching treatment (HRC 60-62°), ensuring clean, burr-free cuts without distorting the panel shape. The machine requires only 1-2 workers to operate, significantly reducing labor costs while maximizing production efficiency.
Application Scope
Widely used by commercial vehicle manufacturers, container factories, and steel structure suppliers. The finished carriage boards are essential for cargo trucks, refrigerated vehicles, sanitation trucks, shipping containers, and large-scale logistics equipment, perfectly matching various types of vehicle body structures.
Detail
| Parameter | Specification |
|---|---|
| Material Type | Color Steel / Galvanized Steel / Aluminum Coil |
| Material Thickness | 0.3 – 8.0 mm |
| Forming Speed | 6 – 15 m/min |
| Roller Material | 45# Steel / GCr15, Hard Chrome Plated |
| Control System | PLC + Touch Screen |
| Main Motor Power | 7.5 – 15 kW |
