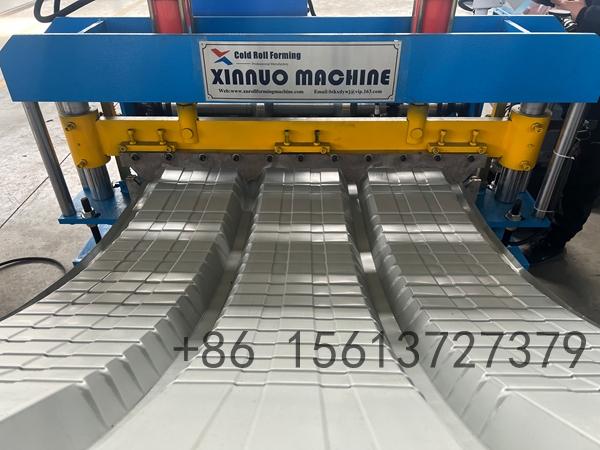

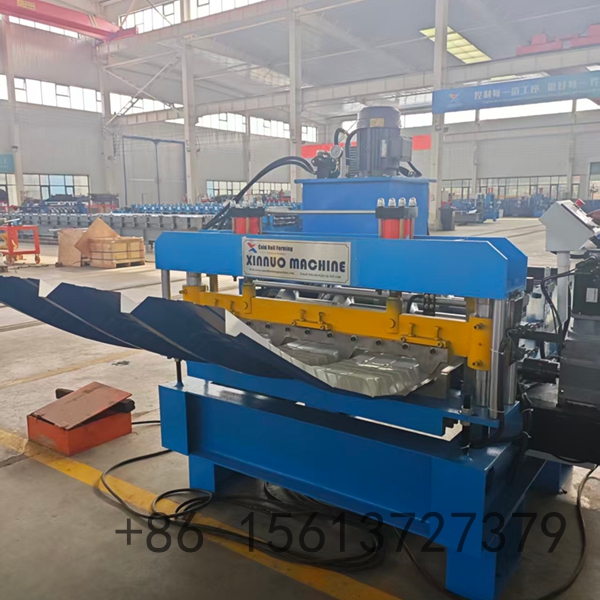

Variable Radius Arching Technology: Engineered with an adjustable hydraulic crimping system that allows operators to create arches with varying radii on the fly, eliminating the need for mechanical roller changes and enabling diverse architectural designs.

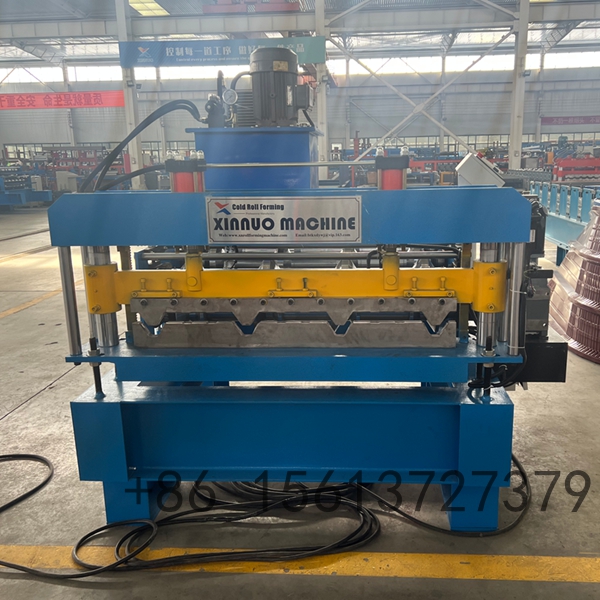

High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame with thickened side plates, specifically designed to withstand the immense forces of the crimping process without deflection or vibration.

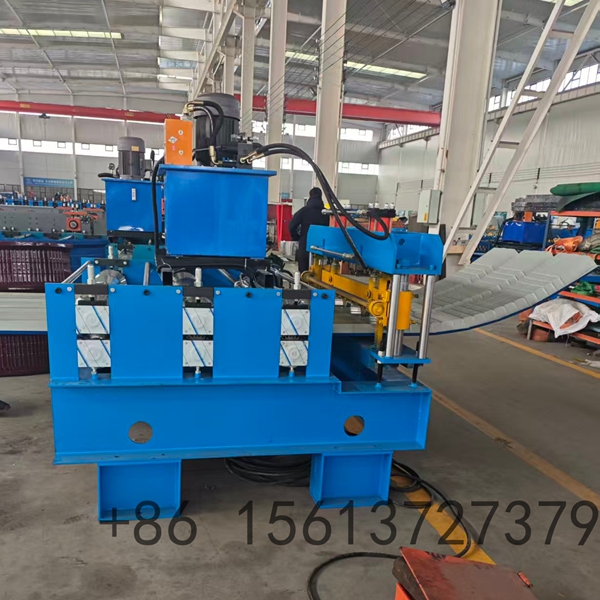

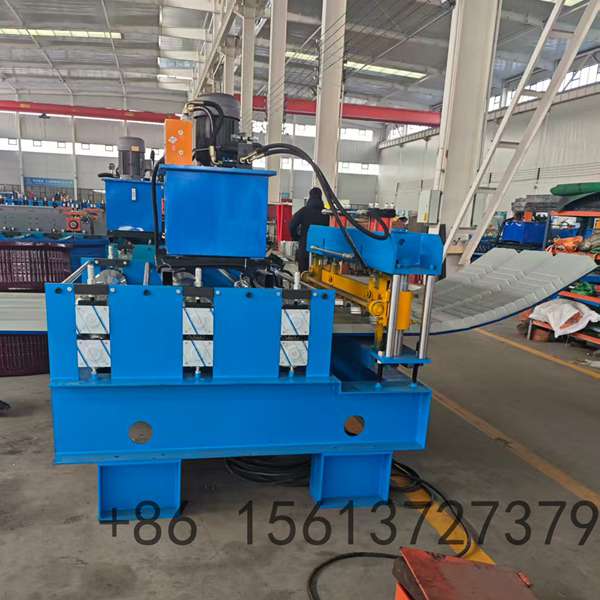

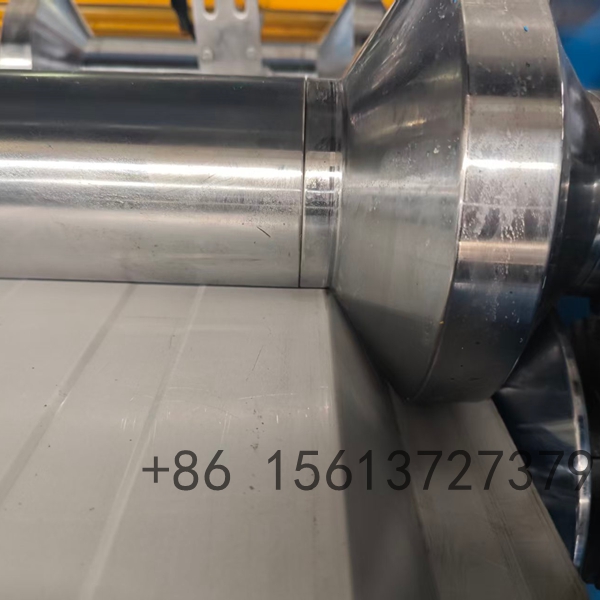

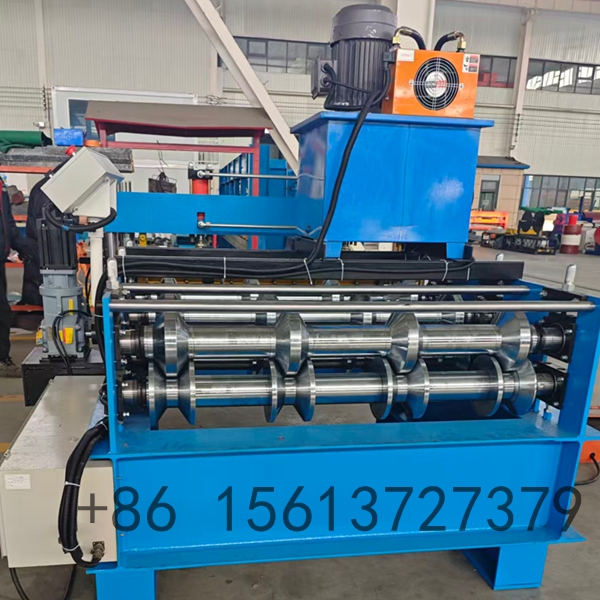

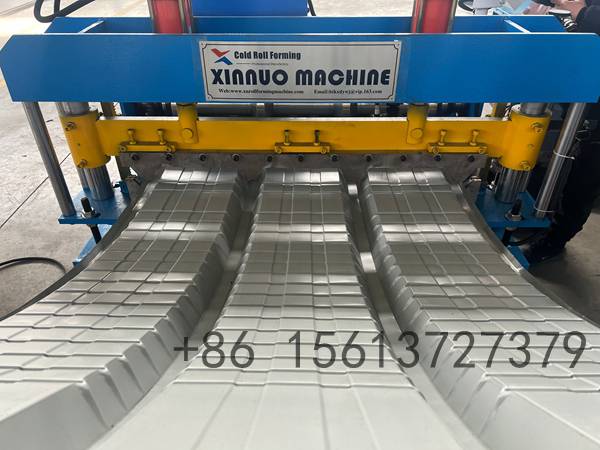

Precision Roll Forming & Curving: Utilizes precision-ground 45# forged steel rollers to shape the base profile, paired with a synchronized hydraulic crimping station that creates consistent, accurate arch camber across the entire panel width.
Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program arching parameters, panel lengths, and monitor real-time system diagnostics.
Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts curved panels to exact lengths with a strict ±1-2mm tolerance and clean edges.

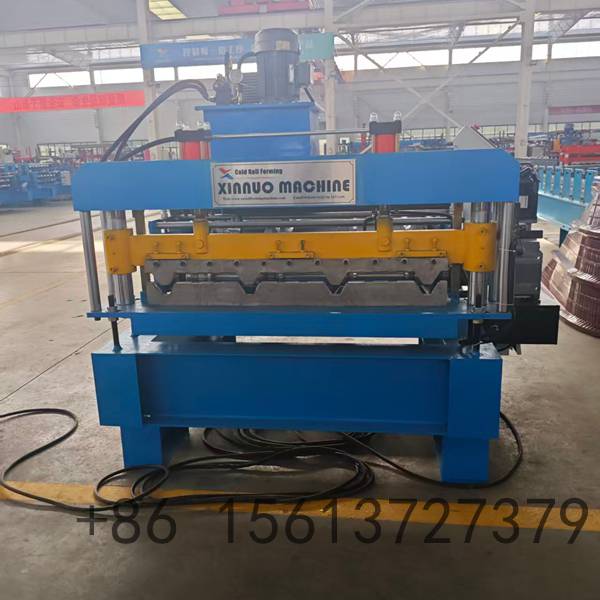

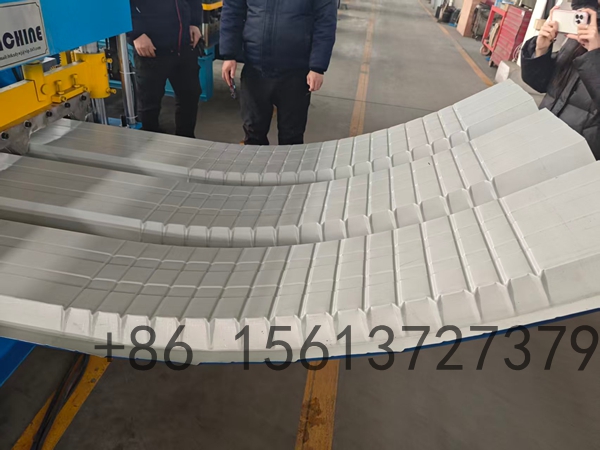

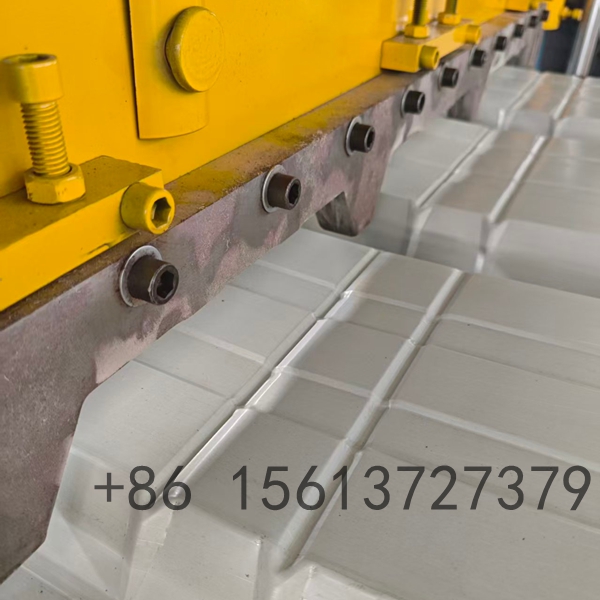

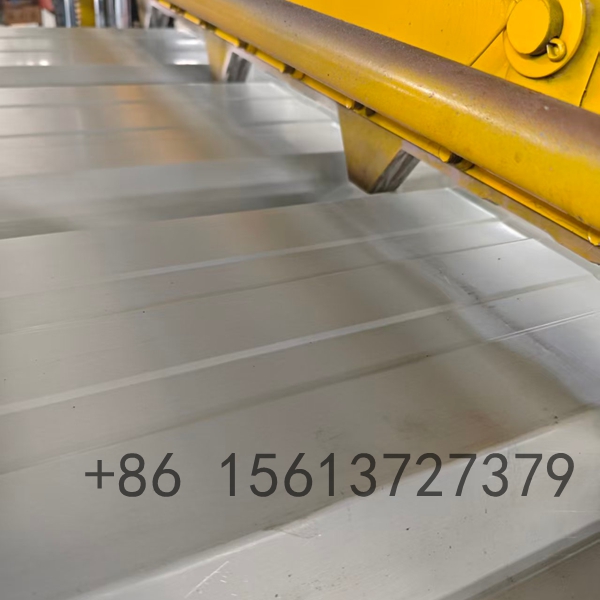

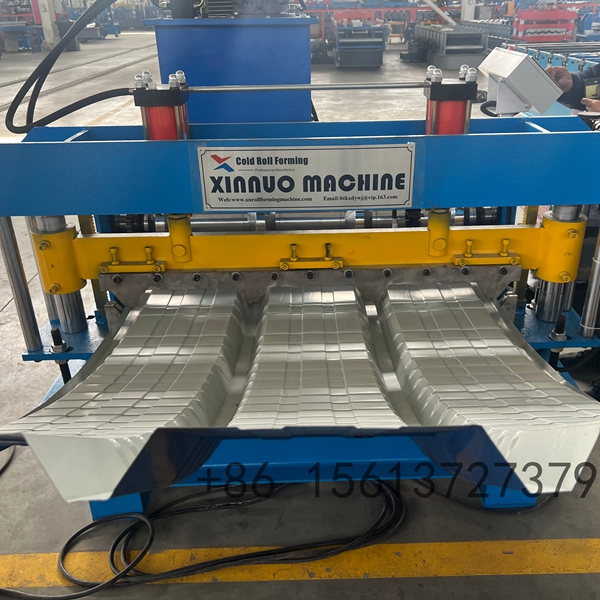

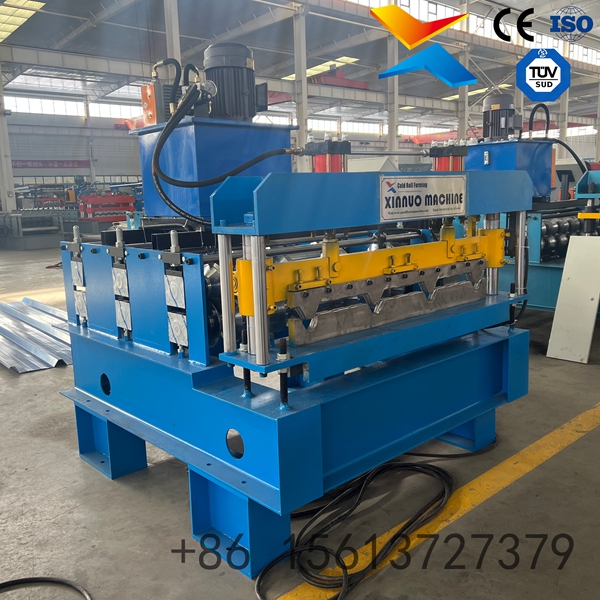

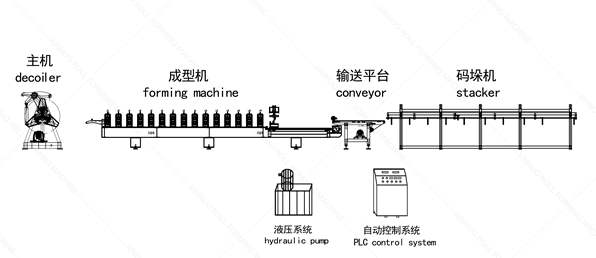

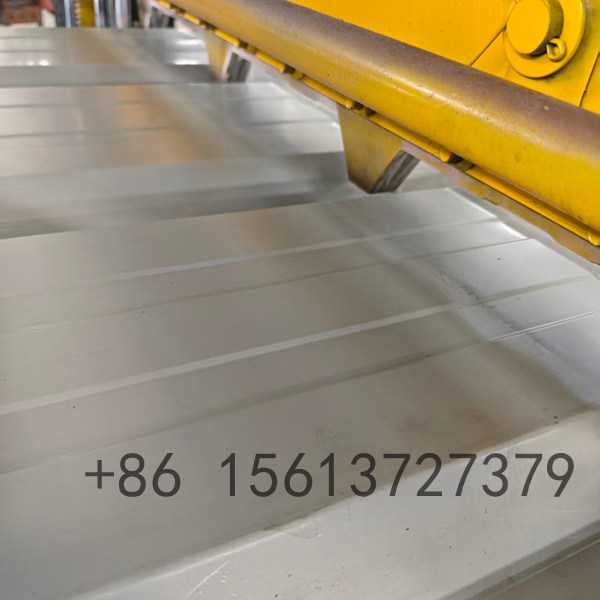

The Arch Camber Curving Roll Forming Machine is a specialized production solution designed for manufacturers of architectural curved roofing systems. Unlike traditional arching methods that require fixed tooling for each radius, this machine employs a dynamic hydraulic crimping technology. The process begins with forming a standard trapezoidal or corrugated base profile, which then passes through the crimping station. Here, hydraulic presses apply precise, intermittent pressure to the flat sections of the panel, creating a controlled deformation that results in a smooth, continuous arch.
| No. | Main Parameter / Feature | Details |
|---|---|---|
| 1 | Applicable Material | Color steel / Galvanized steel / Aluzinc coil |
| 2 | Material Thickness Range | 0.3 - 0.8 mm |
| 3 | Material Yield Strength | 235 - 550 MPa |
| 4 | Coil Width Range | 1000 / 1200 / 1250 mm (customizable) |
| 5 | Profile Type | Arch Camber (Variable Radius) |
| 6 | Minimum Arching Radius | R=450mm (depending on profile) |
| 7 | Arching Speed | 10 - 15 m/min (adjustable via frequency converter) |
| 8 | Number of Roller Stations | 12 - 16 rows (including crimping stations) |
| 9 | Main Motor Power | 4 - 7.5 kW |
| 10 | Hydraulic Station Power | 5.5 - 11 kW (High-pressure for crimping) |
| 11 | Roller Material | 45# forged steel with hard chrome plating (0.05mm) |
| 12 | Shaft Material | 45# / 40Cr steel, diameter 75-85mm, tempered & polished |
| 13 | Cutting Blade Material | Cr12 mould steel with quenching treatment (HRC 58-62) |
| 14 | Cutting Method | Hydraulic post-cut, automatic pause and cut |
| 15 | Control System | PLC with touch screen (Siemens / Mitsubishi / Delta) |
| 16 | Voltage | 380V / 50Hz / 3 Phase (customizable) |
| 17 | Machine Dimensions | Approx. 6m - 10m × 1.5m - 1.8m × 1.3m - 1.7m |
| 18 | Machine Weight | Approx. 4 - 8 Tons |
| 19 | Length Tolerance | ±1 - 2 mm |
| 20 | Uncoiler Capacity | Up to 5 tons (manual or hydraulic) |
| 21 | Driving Mode | Chain transmission |
| 22 | Warranty | 12-24 months free warranty + lifelong technical support |
