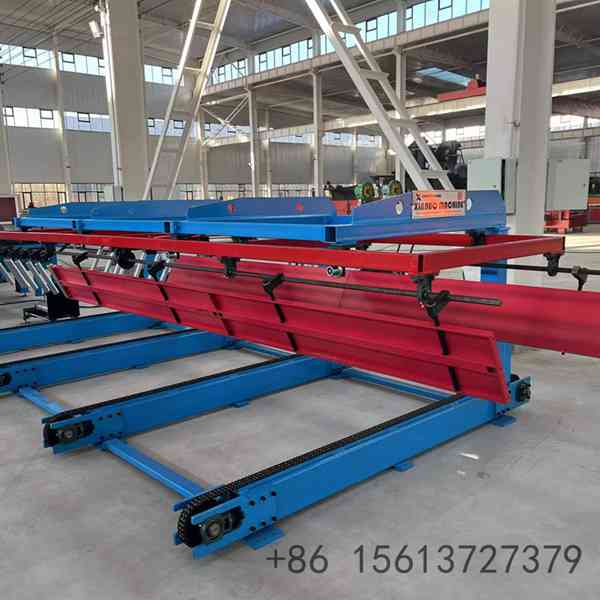

Line position: Roll forming line end (after cutting)
Max sheet length: 6 meters
Stacking control: PLC recipes + sensor counting
Lift system: Heavy duty hydraulic lift table
Changeover: Recipe recall per profile / sheet length
Discharge: Forklift-ready bundle position
Purpose: Manual outlet upgrade / new line integration
Line Automation: Collects and bundles sheets without stopping the machine.

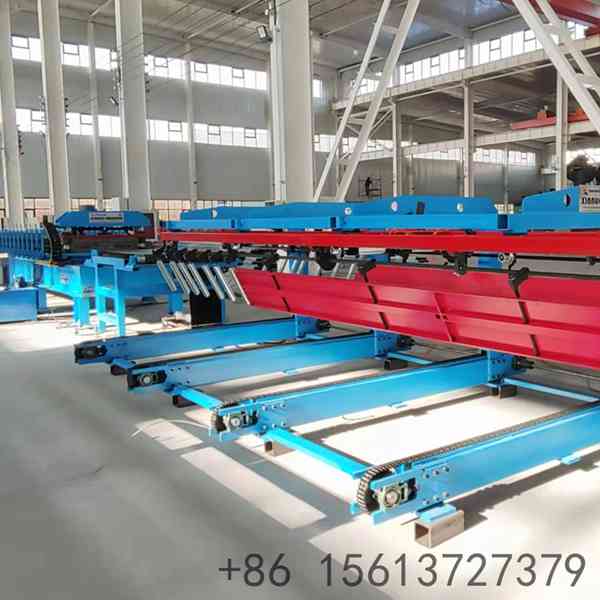

Sensor Counting: Tracks every sheet from the cutting unit.
Recipe Changeover: Per-profile and per-length settings stored in the PLC.
Heavy Duty Lift: Hydraulic table rated for production bundles.
Upgrade Ready: Fits existing lines or new high speed installations.
Bundle Consistency: Level, aligned stacks suit strapping and fork trucks.
| Component | Specification |
|---|---|
| Max sheet length | 6 m |

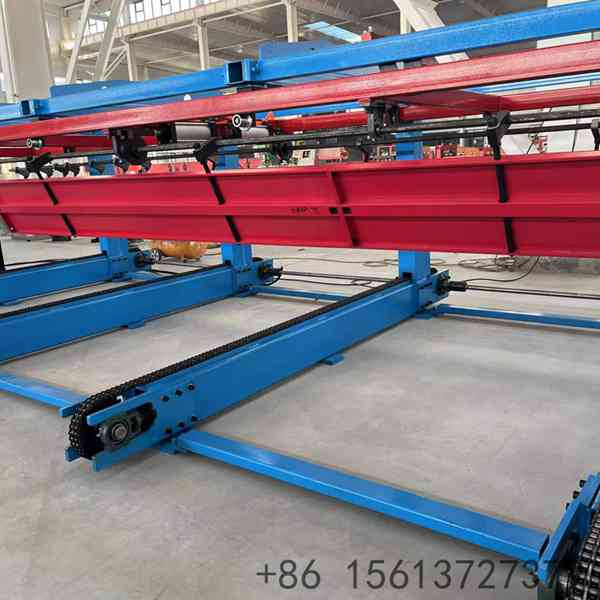

| Infeed | Roller infeed, line speed matched |
| Counting | Sensors (sheet / layer counting) |
| Lift system | Hydraulic lift table (rated for production bundles) |
| Control | PLC with multiple stored recipes |
| Discharge | Forklift-ready bundle position |
| Frame | Heavy duty welded steel frame |
| Adjustable | Sheet count, bundle height, discharge timing |
| Sizing | Motor power, lift capacity, platform width by line requirements |
Keeps Line Running: Bundles form below while the machine keeps producing.
No Hand Catching: Removes the manual outlet role from continuous lines.
Fast Changeover: Recipe recall switches profile and length settings instantly.

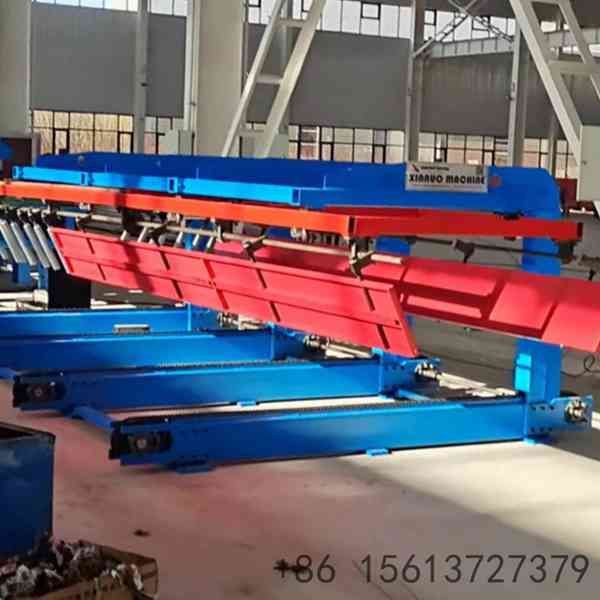

Level Bundles: Step-by-step table lowering keeps every layer aligned.
Strapping Ready: Consistent discharge stacks feed strapping machines.
Heavy Duty Support: Hydraulic lift handles full production bundle weight.
Retrofit Friendly: Matches infeed height and speed of existing equipment.
