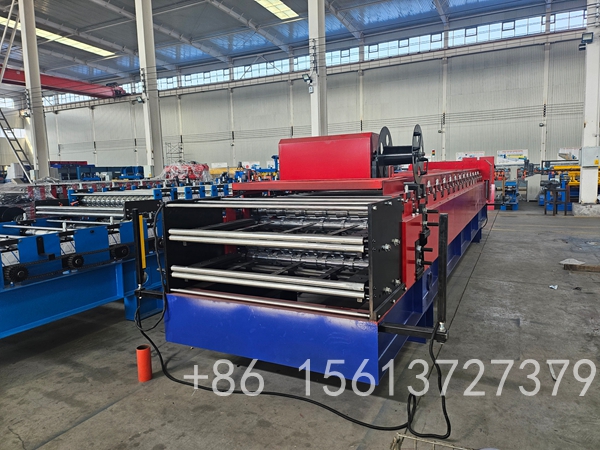

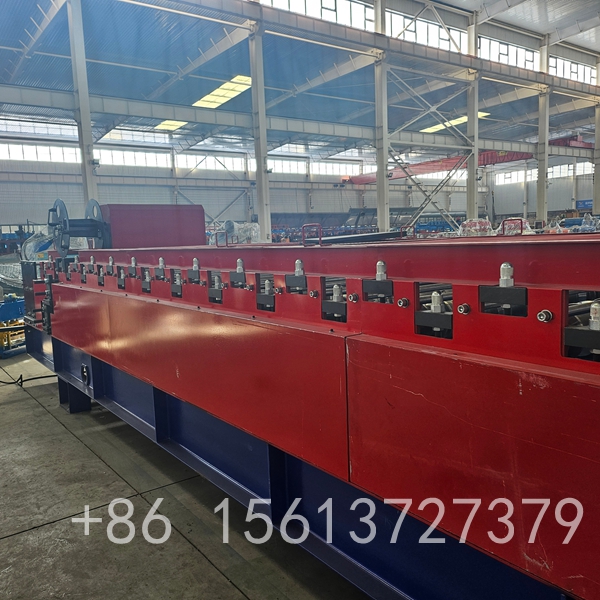

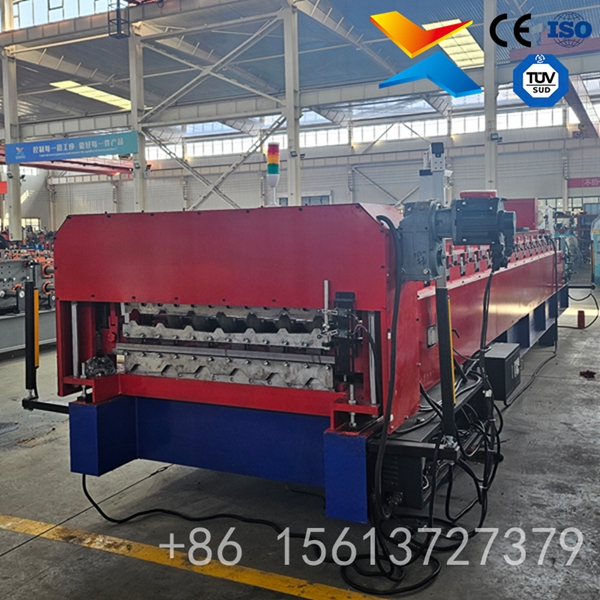

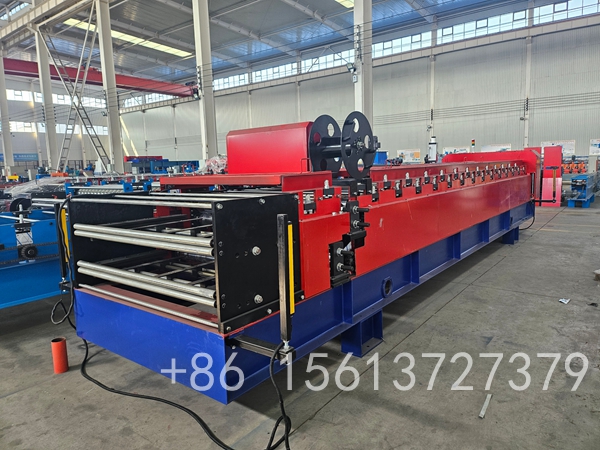

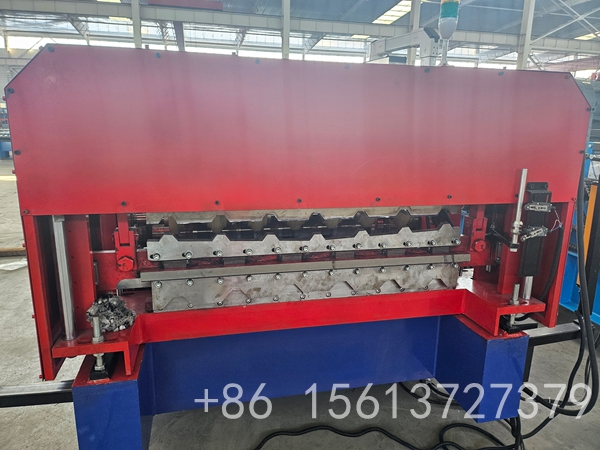

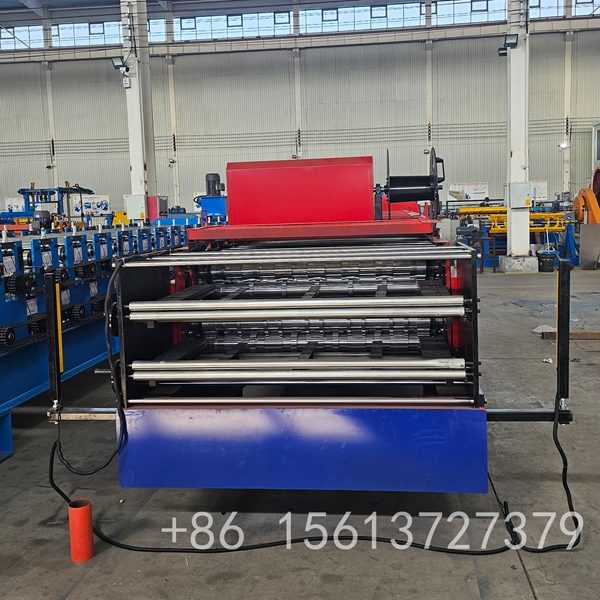

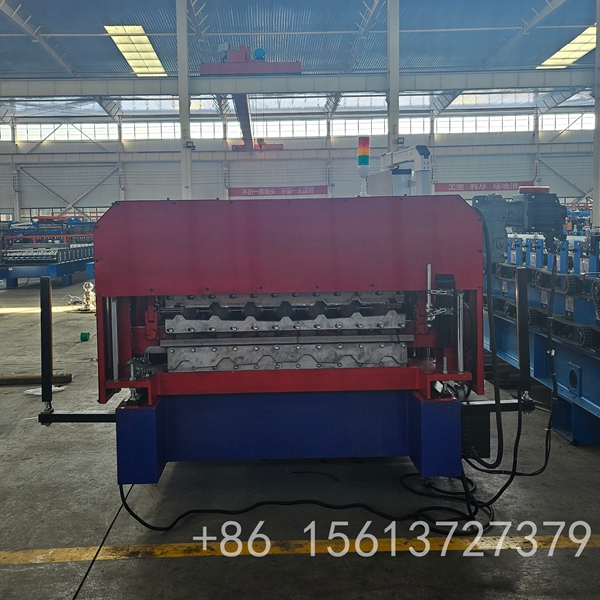

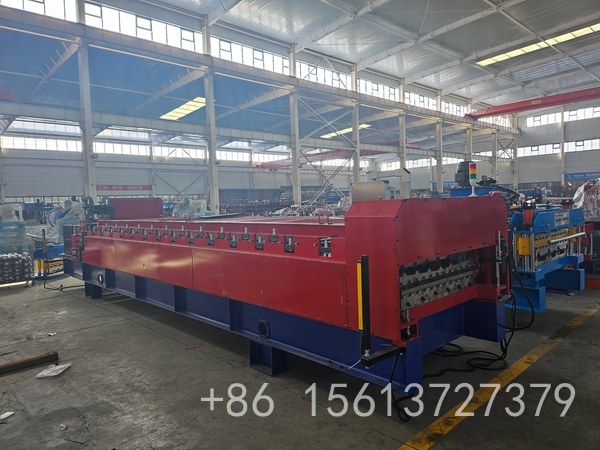

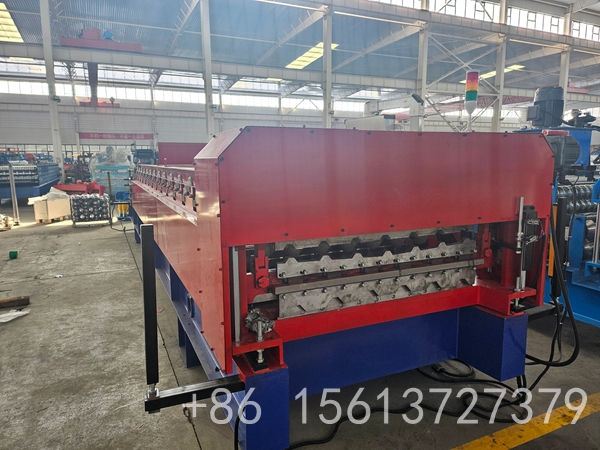

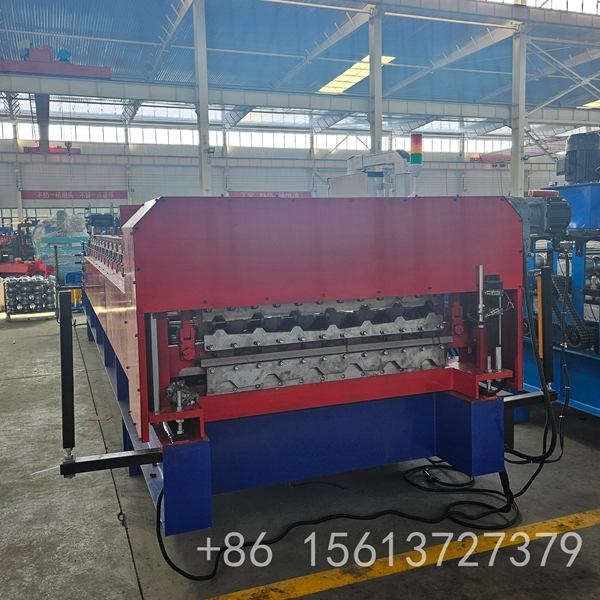

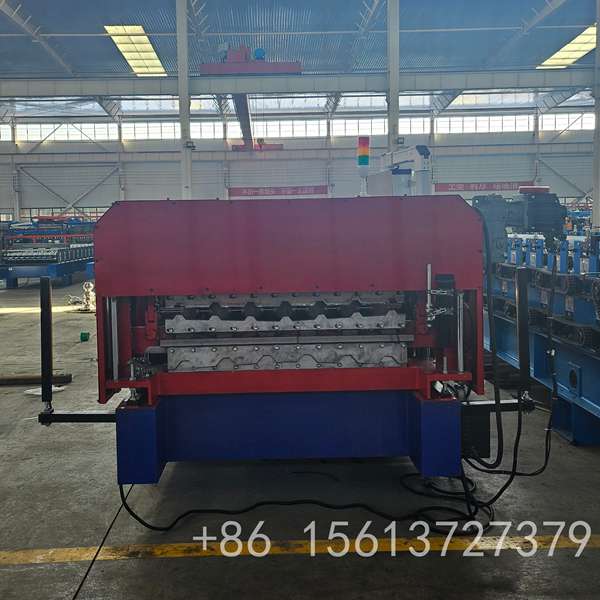

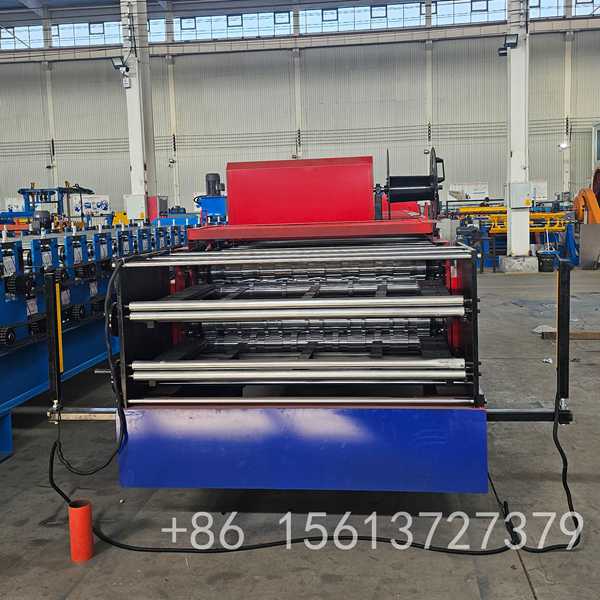

TP40 TP25 Ibr Roof Double Layer Roll Forming Machine

One Machine, Two Roofing Architectures: Stop buying separate lines for different roof pitches. This dual-layer system gives you the structural advantage of TP40 IBR for wide-span industrial warehouses, while keeping the TP25 IBR ready for steep-pitch residential or commercial projects requiring superior water shedding.

Zero-Downtime Profile Switching: Forget the tedious process of swapping out rollers. The upper and lower layers operate on completely isolated drive systems. When a new order comes in, simply select the TP40 or TP25 profile on the PLC screen and start producing immediately.

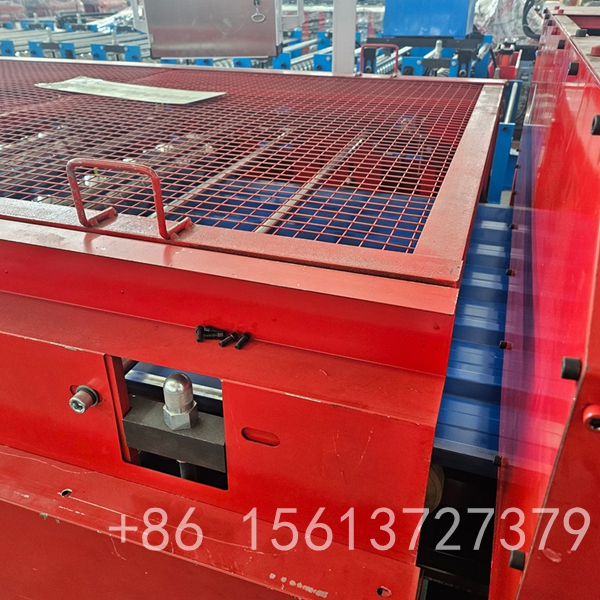

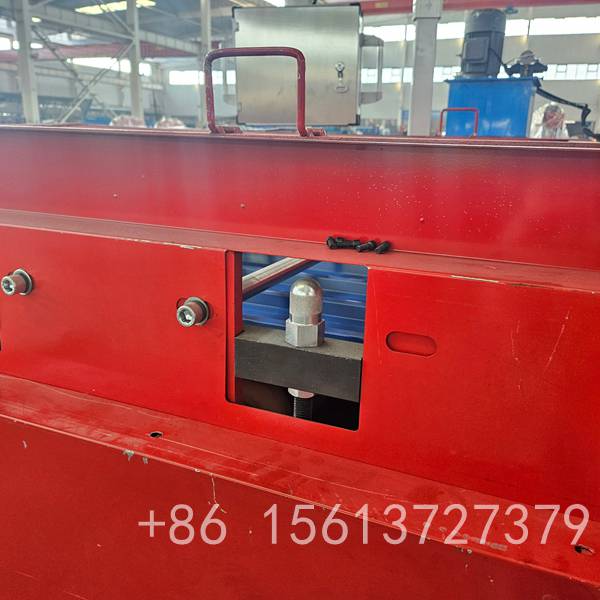

Watertight Precision Cutting: Both IBR profiles require exact edge alignment to prevent roof leaks. Our universal hydraulic post-cut system uses Cr12 quenched blades to deliver burr-free cuts with a strict ±1mm tolerance, ensuring every panel locks together perfectly on-site.

Heavy-Duty Anti-Vibration Base: IBR profiles demand consistent pressure. We use a reinforced 350H steel beam base with 20mm thick side plates to completely absorb forming stress, guaranteeing that the TP25 ribs remain sharp and the TP40 flat surfaces stay perfectly smooth.

Smart Production Management: The intuitive PLC interface doesn't just run the machine; it acts as your production manager. Set exact lengths, track batch counts, and monitor diagnostics in real-time, allowing a single operator to manage both roofing profiles effortlessly.
