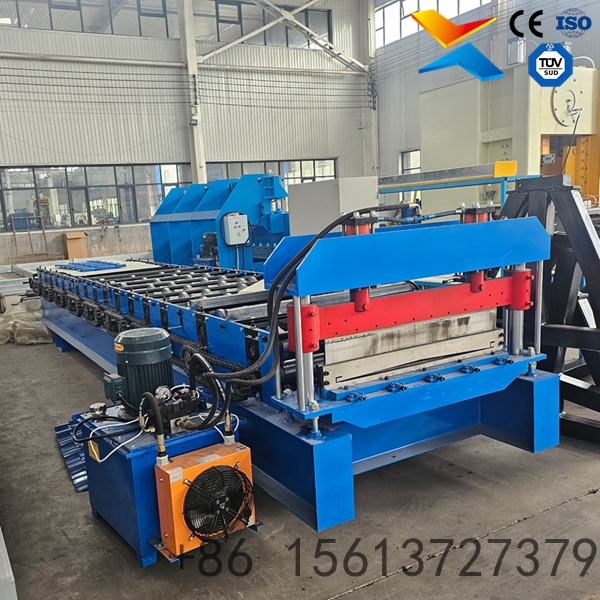

Sheet Panel Color Steel Roll Forming Machine

Sheet Panel Color Steel Roll Forming Machine

Product Attributes :

Type: Roll Forming Machine
Tile Type: Galvanized Steel
Rolling Thickness: 0.3-0.8 mm
Feeding Width: 1000 mm
Weight: 7000 kg
Warranty: 1 Year
Key Selling Points: Easy to Operate

Product Description

Product Introduction:

Versatile Sheet Panel Production: Specifically calibrated to produce a wide range of steel sheet profiles for both roofing and wall cladding applications, offering manufacturers flexibility to meet diverse architectural demands.

High-Rigidity Machine Construction: Built on a reinforced industrial-grade steel frame with thickened side plates, designed to absorb forming stresses and maintain tight dimensional tolerances during continuous high-speed production.

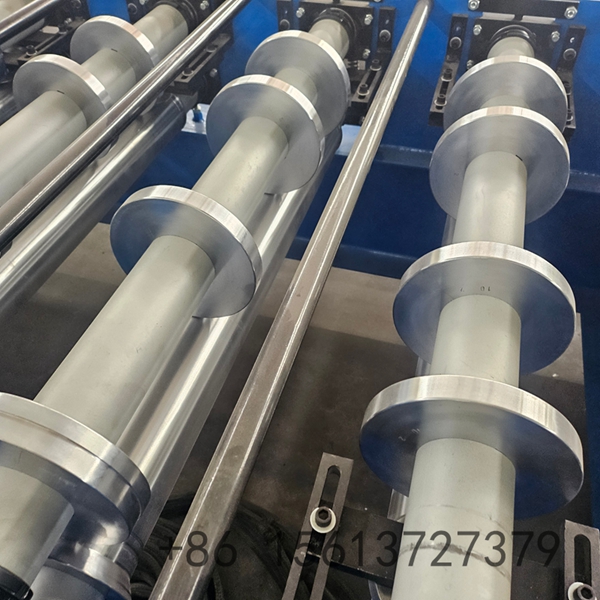

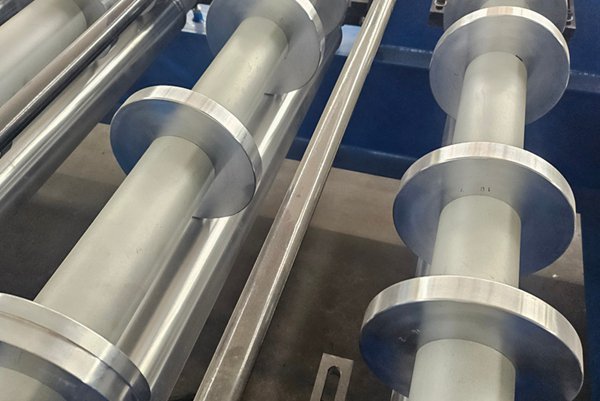

Precision Roll Forming Technology: Utilizes precision-ground 45# forged steel rollers with hard chrome plating to shape the sheet panels, guaranteeing a flawless surface finish and consistent panel geometry for perfect on-site installation.

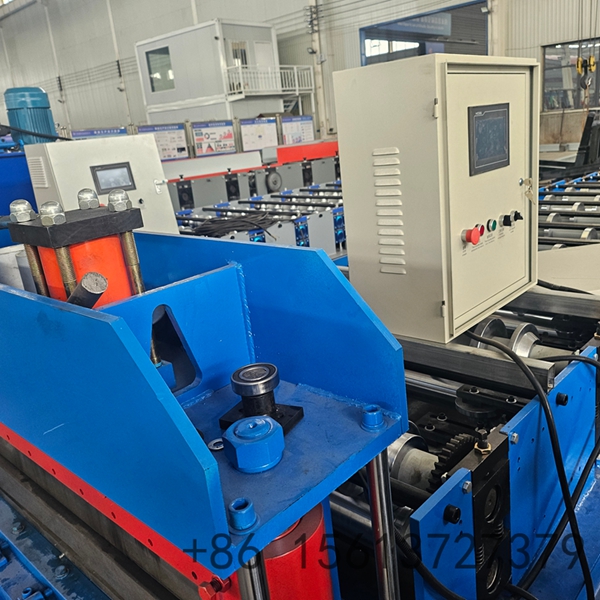

Intelligent PLC Automation: Powered by an imported PLC (Siemens/Mitsubishi/Delta) with a user-friendly touch screen, enabling operators to easily program batch counts, panel lengths, and monitor real-time system diagnostics for efficient production.

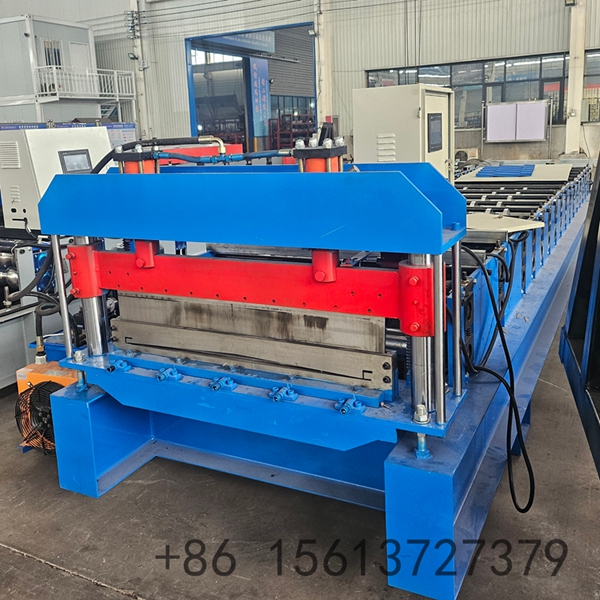

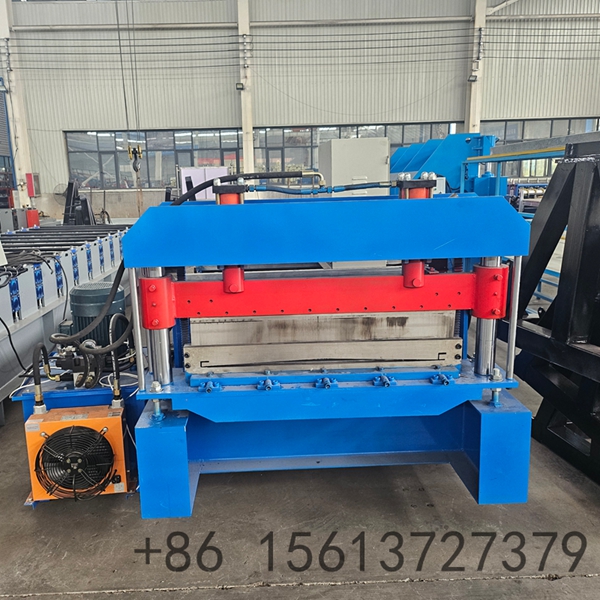

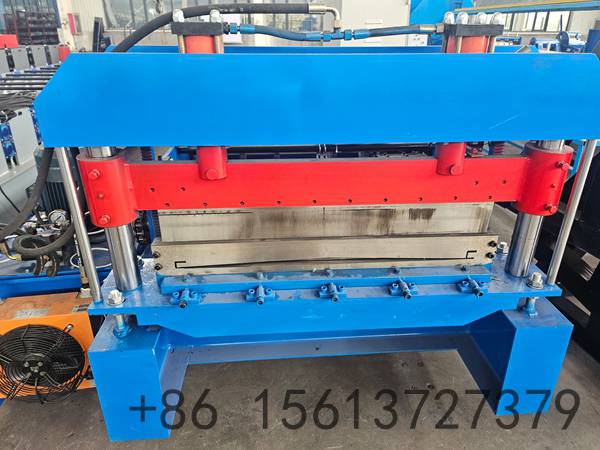

Burr-Free Hydraulic Cutting: Features a synchronized hydraulic post-cut system utilizing Cr12 mould steel blades (HRC 58-62) that accurately cuts color steel panels to exact lengths with a strict ±1-2mm tolerance and clean edges.

Product Description & Parameters:

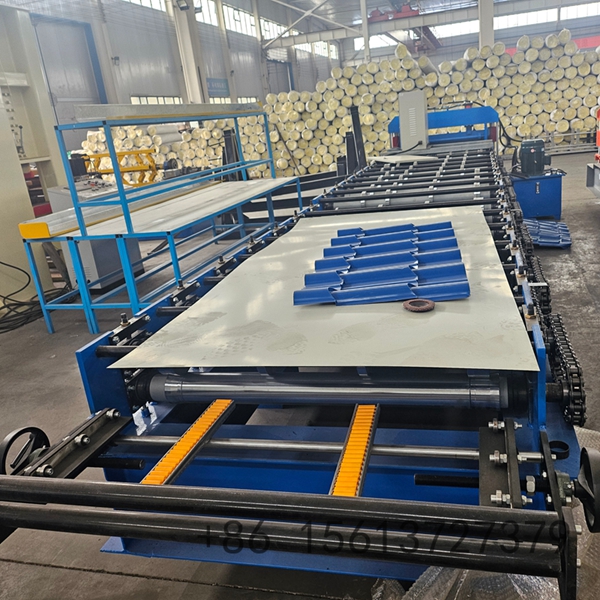

The Sheet Panel Color Steel Roll Forming Machine is a versatile production solution tailored for manufacturers of premium steel building materials. This equipment transforms raw color steel, galvanized, or aluzinc coils into finished roofing and wall panels through a highly synchronized process of decoiling, precision forming, and automated cutting. The machine is designed to handle various sheet profiles, making it an essential asset for suppliers serving both industrial and commercial construction markets.

The core advantage of this machine lies in its structural rigidity and forming precision. The reinforced base frame prevents deflection under load, while the precision-ground rollers guarantee that every sheet panel maintains consistent geometry and sharp profile definitions. The intelligent PLC control system streamlines operations, allowing for quick setup and accurate batch production. Meanwhile, the hydraulic cutting station tracks the line speed in real-time to execute exact cuts, minimizing material waste and ensuring that every panel is ready for immediate assembly. This sheet panel color steel roll forming machine is the reliable choice for suppliers demanding consistent quality and operational efficiency in the metal building materials market.

No.	Main Parameter / Feature	Details
1	Applicable Material	Color steel / Galvanized steel / Aluzinc coil
2	Material Thickness Range	0.3 - 0.8 mm
3	Material Yield Strength	235 - 550 MPa
4	Coil Width Range	1000 / 1200 / 1220 / 1250 mm (customizable)
5	Profile Type	Sheet Panel (Roof & Wall, customizable)
6	Forming Speed	8 - 15 m/min (adjustable via frequency converter)
7	Number of Roller Stations	13-16 rows
8	Main Motor Power	4 - 5.5 kW

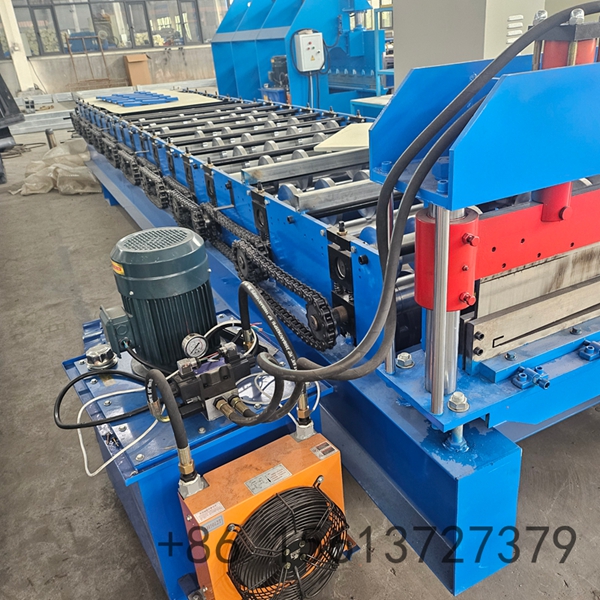

9	Hydraulic Station Power	4 - 5.5 kW
10	Roller Material	45# forged steel with hard chrome plating (0.05mm)
11	Shaft Material	45# / 40Cr steel, diameter 70-80mm, tempered & polished
12	Cutting Blade Material	Cr12 mould steel with quenching treatment (HRC 58-62)
13	Cutting Method	Hydraulic post-cut, automatic pause and cut
14	Control System	PLC with touch screen (Siemens / Mitsubishi / Delta)
15	Voltage	380V / 50Hz / 3 Phase (customizable)
16	Machine Dimensions	Approx. 7m - 10m × 1.3m - 1.65m × 1.1m - 1.6m
17	Machine Weight	Approx. 5 - 9 Tons
18	Length Tolerance	±1 - 2 mm
19	Uncoiler Capacity	Up to 5 tons (manual or hydraulic)

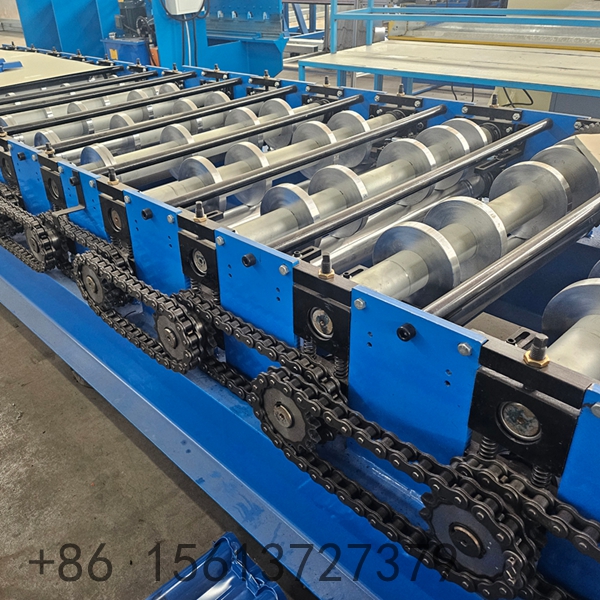

20	Driving Mode	Chain transmission
21	Warranty	12-24 months free warranty + lifelong technical support
